Description

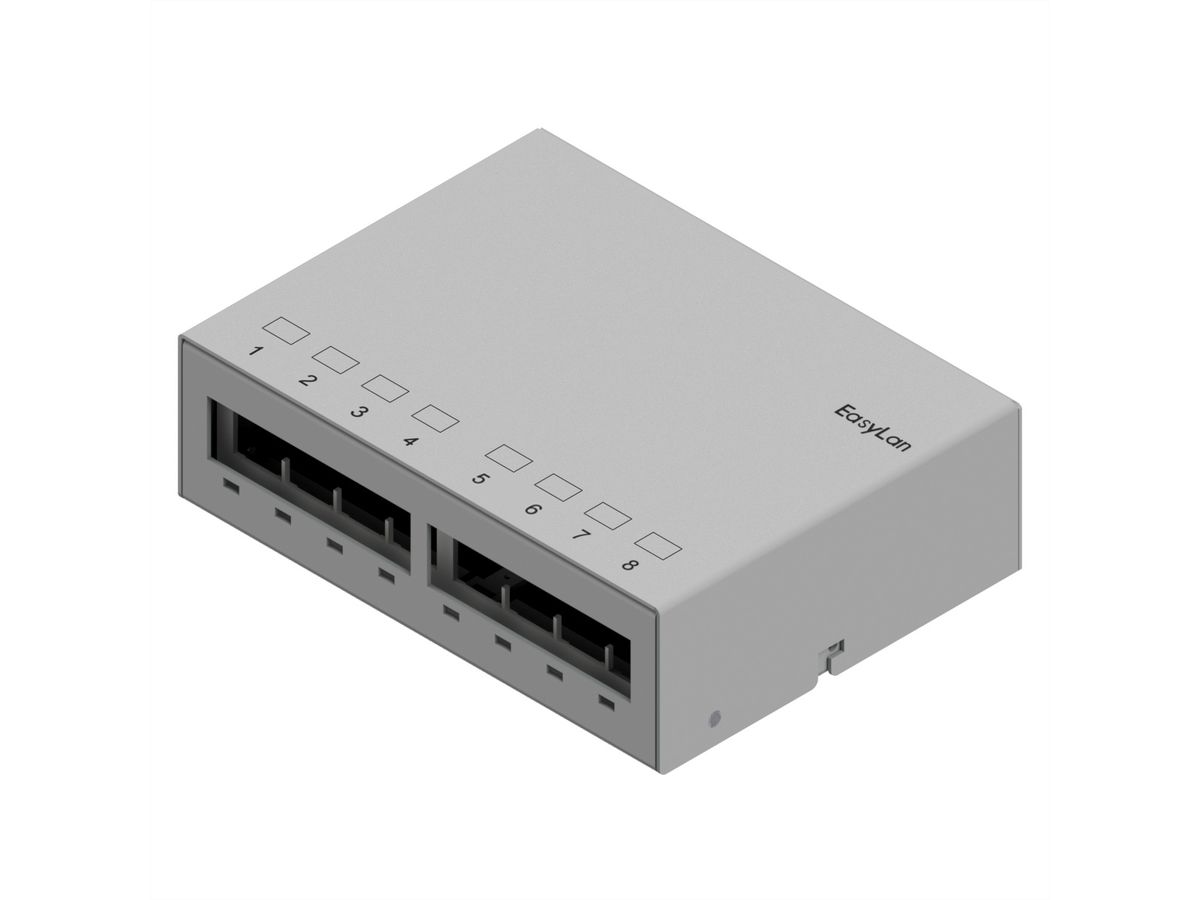

EasyLan® preLink® / fixLink® Desk Consolidation Point Panel 8x Keystone, RAL7035

• Consolidation Point Housing for 8 Keystone modules, e.g., RJ45, sheet steel, grey
• For use as Consolidation Panel, direct mounting or mounting set on DIN rails in electrical distribution systems
• The Desk Mounted Consolidation Point Panel has two levels
• This positions the modules flush with the front panel
• Material: Galvanized, fire-coated sheet steel
• Color: Grey, similar to RAL 7035
• Dimensions: Approx. 90 x 120 x 40 mm
• RoHS: compliant to 2002/95/EC

Specifications

Manufacturer	EasyLan
Product group	Network Passive Components
Product type	Network components housing
Colour	grey
Scope of delivery	CP behuizing voor 8 Keystone modules grijs
RAL colour	RAL 7035 Light grey
Operating temperature min.	-40 °C
Operating temperature max.	60 °C
Height	45 mm
Width	149 mm
Depth	112 mm
Weight	1433.374 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	270 mm
Package weight (single piece)	0.61 kg

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.

More about EASYLAN
