Description

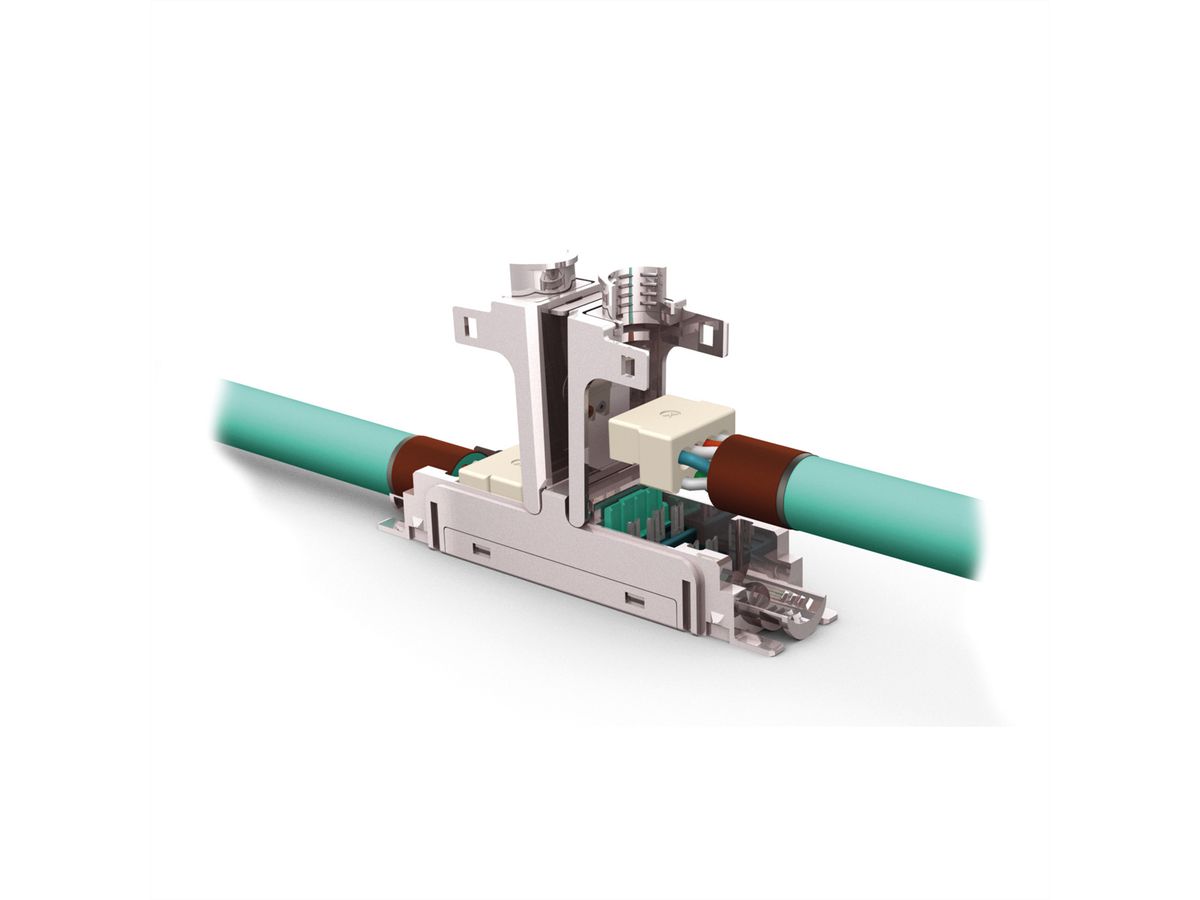

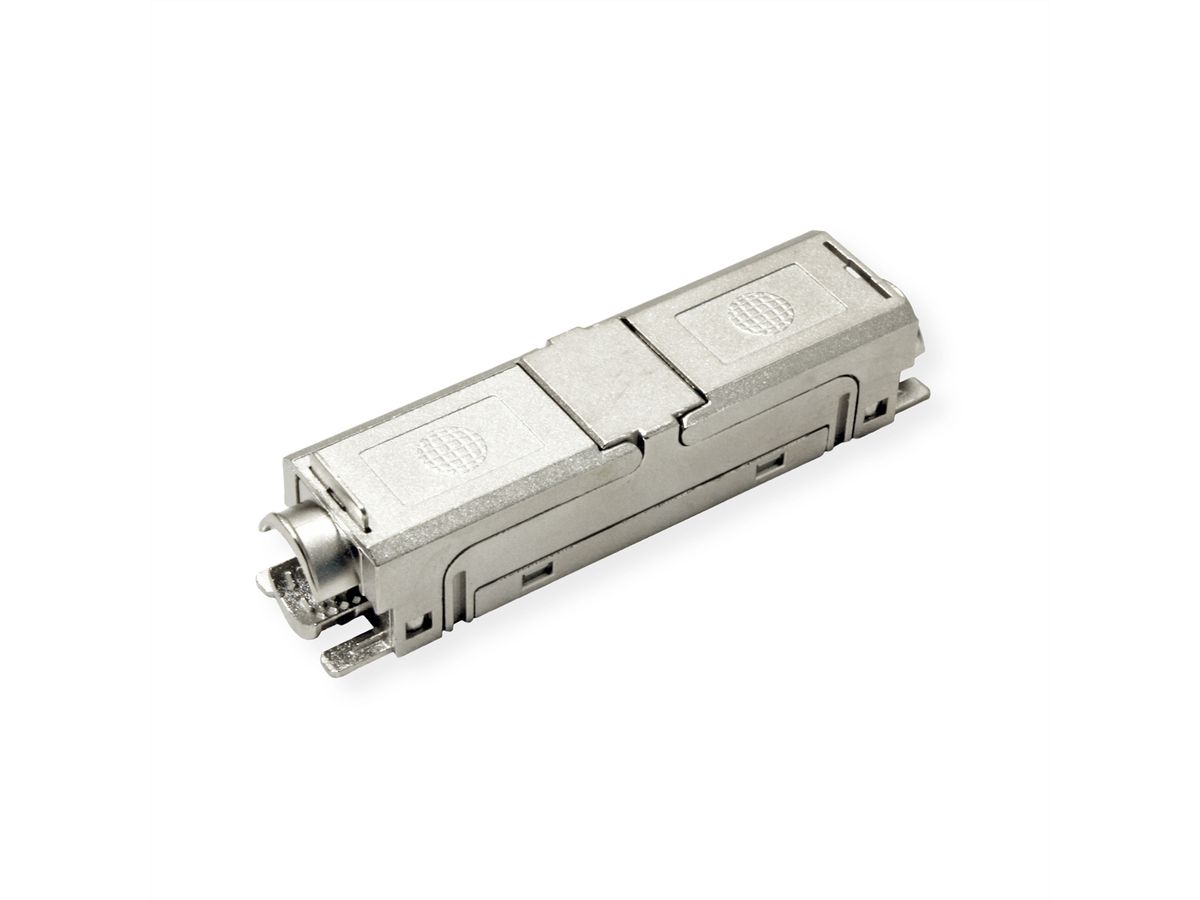

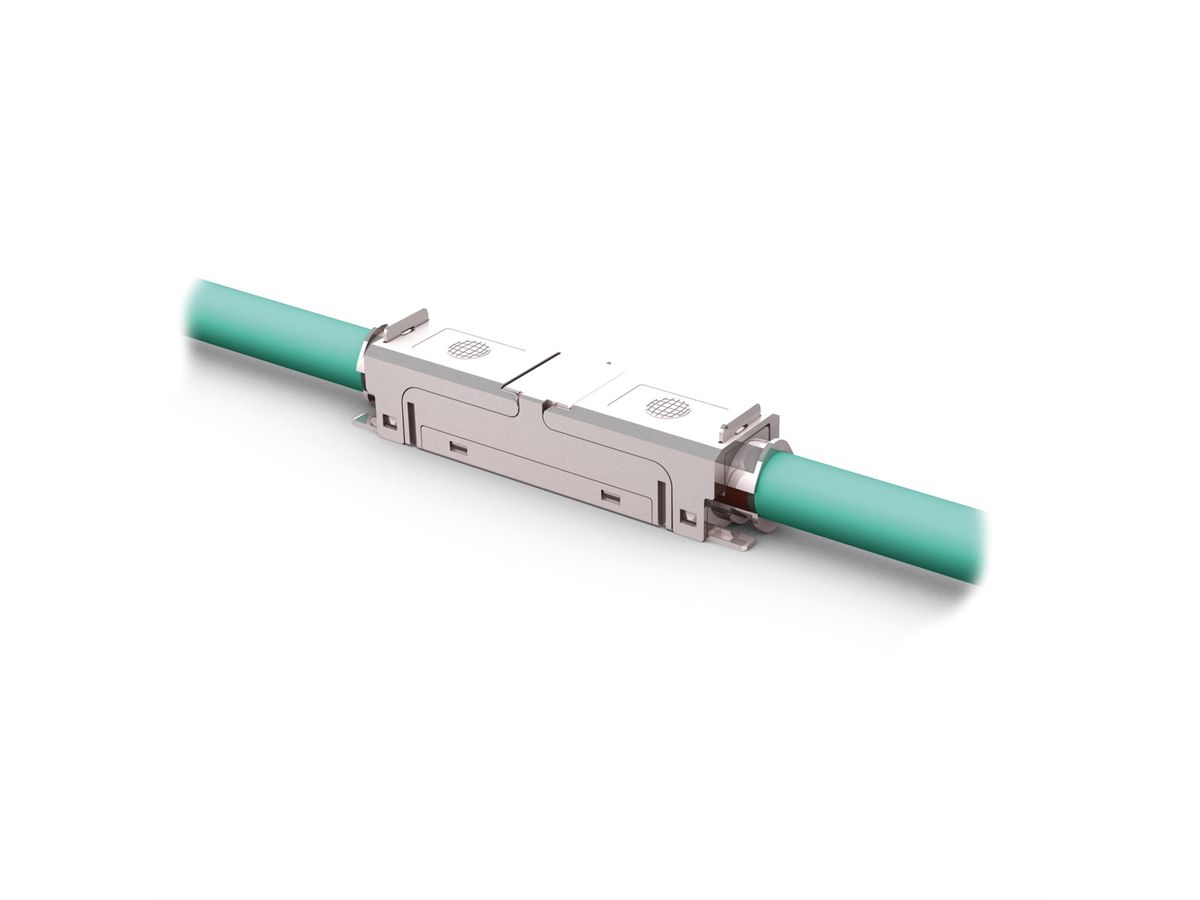

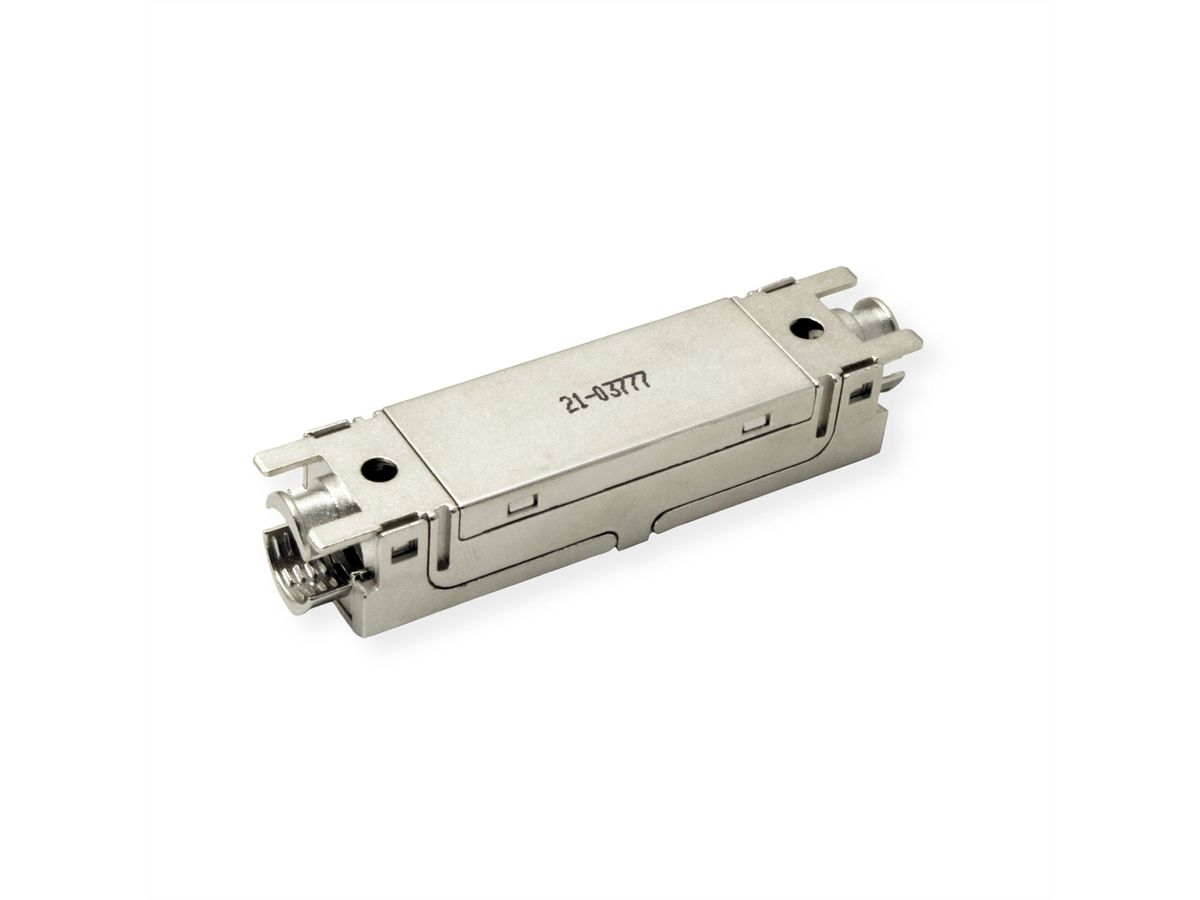

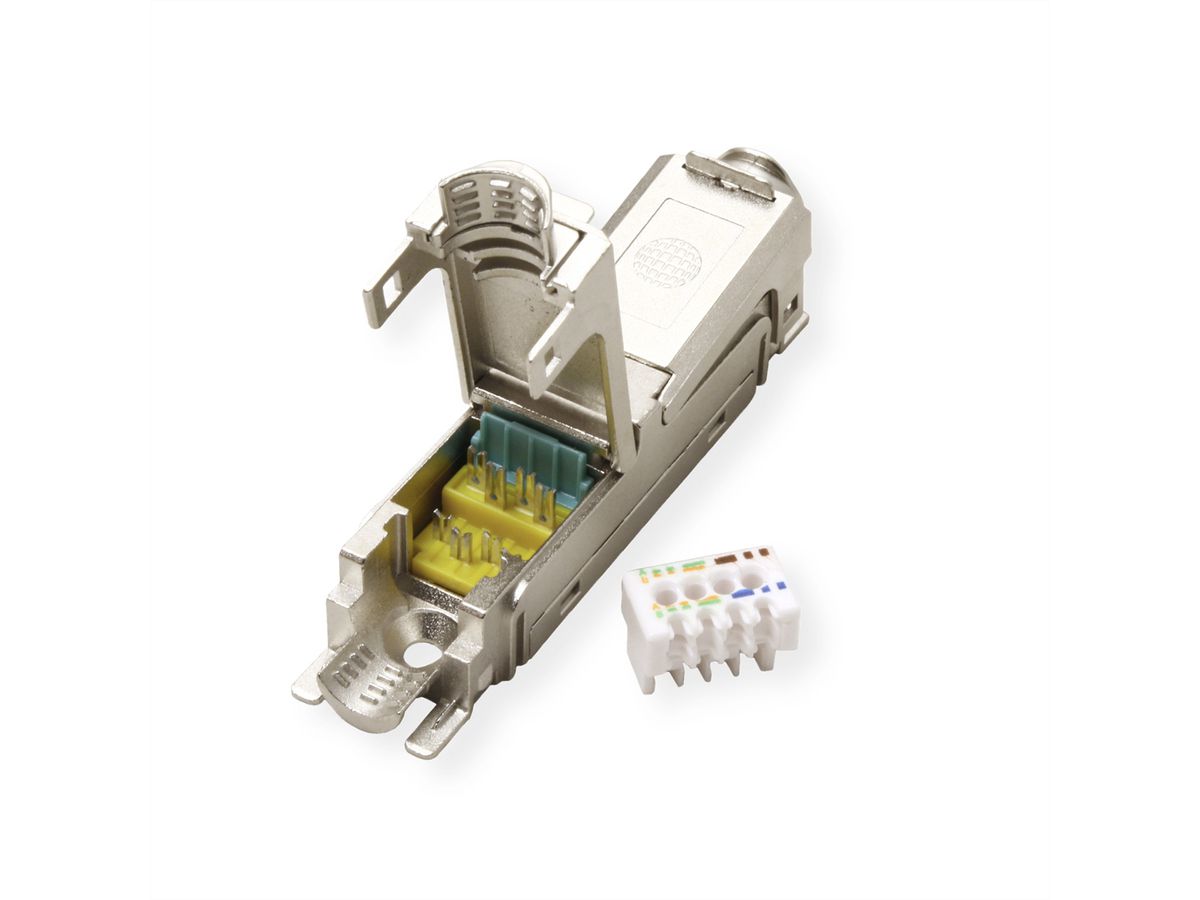

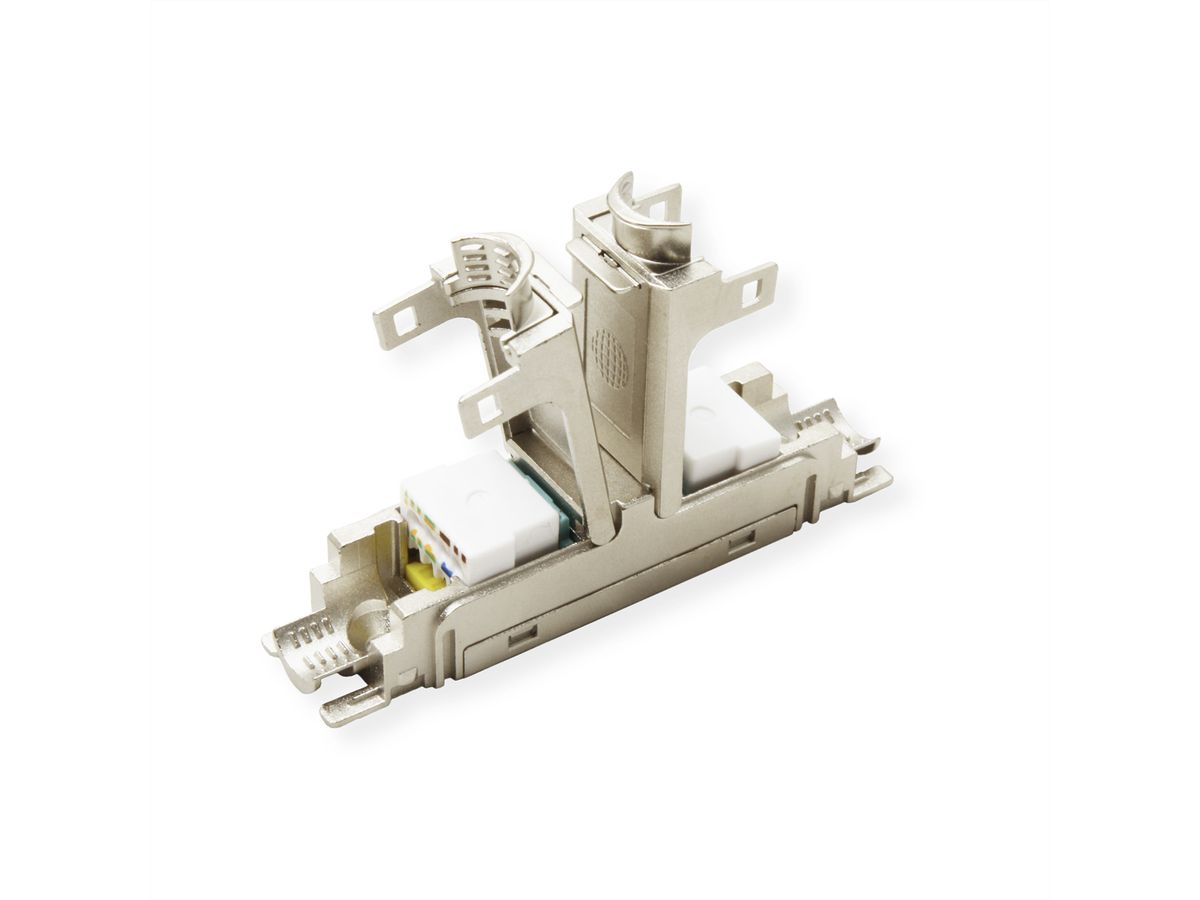

With the fixLink® Extender, cables can be easily extended with minimal effort. Even decommissioned cables can be reactivated and extended to the required connection point. The space requirement is minimal and the limited space in the cable duct or distribution cabinet is optimally utilized.

The extender is simply screwed into the trunking or onto the wall. Once installed, the extended cable can be used up to the maximum link length even for 10 Gigabit Ethernet transmissions and supports PoE+ (Power over Ethernet).

• Housing Material: Nickel-plated die-cast zinc
• Gold Plating in Contact Area: 30 µ
• Wire Compatibility: AWG 24-22
• Cable Diameter: 5 - 9.5 mm
• EMC Protection: 360° shielding
• Protection Class: IP20
• Environmental Requirements: Operating Temperature: -40°C to +70°C
• Supports for 10 Gbit/s
• Category: 6A ISO/IEC 11801

Specifications

Manufacturer	EasyLan
Product group	Connection technology TP
Product type	Network adapters
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Material (casing)	die-cast zinc
Protection class (IP Code)	IP20
Shield contacts	yes
separate strain relief	yes
Technical particularity	IP 20
Operating temperature min.	-40 °C
Operating temperature max.	70 °C
Height	13.15 mm
Width	15.6 mm
Depth	65.6 mm
Weight	100.376 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	80 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.038 kg
