Description

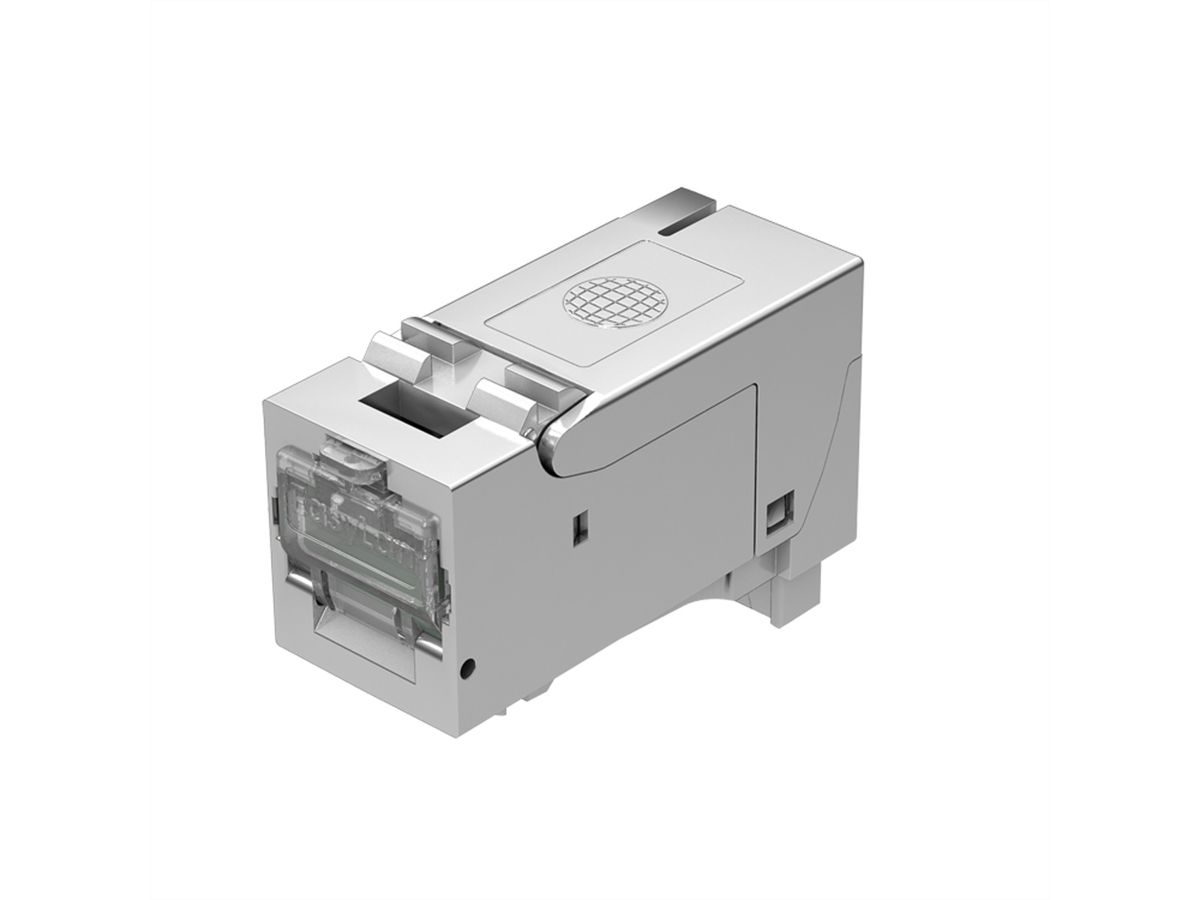

EasyLan® fixLink® SL RJ45 Keystone, shielded, Cat.6A (ISO/IEC), AWG 24-22, PoE 100W

• For the transmission of analog and digital voice, video, and data signals up to 500 MHz and 10 Gbit/s. Design and performance characteristics comply with the currently valid standards for Cat. 6A. The zinc die-cast housing with a nickel surface is designed for direct installation in module frame with standardized Keystone cutout dimensions.
• Thanks to its “Slim Line” design, the module can be combined with DIN 50x50 mounting boxes and design-compatible Universal Connection Unit mounting boxes, fitting all common German switch programs.
• Assembly without special tool; re-assembly with the same wire cross-section.
• 360° shielding contact, secure strain relief without cable ties using a locking spring, also made of zinc die-cast and inseparable from the housing.

• Installation dimensions: Standardized Keystone format
• Installation in 1x, 2x, and 3x mounting boxes
• Installation in 8x (GB2) or 12x (GB3) floor tanks
• Installation in 24x 1U panel or 24x 0.5U panel
• Wiring: 4-pair AWG 24-22 according to T568A or T568B
• Cable diameter: Continuously adjustable from 5 - 9.5 mm, straight 180-degree cable entry
• Standards: Cat. 6A (subscript) IEC 60603-51 and ISO/IEC 11801:2002 + A1:2008
• Channel and Permanent Link: Class EA according to ISO/IEC 11801:2002 + A1:2008, EN 50173-1, PoE Plus remote powering according to IEEE 802.3 af/at IEC 60512-99-001
• Supports transmission of 10 Gigabit Ethernet according to IEEE 802.an
• Quality certification: GHMT PVP certificate
