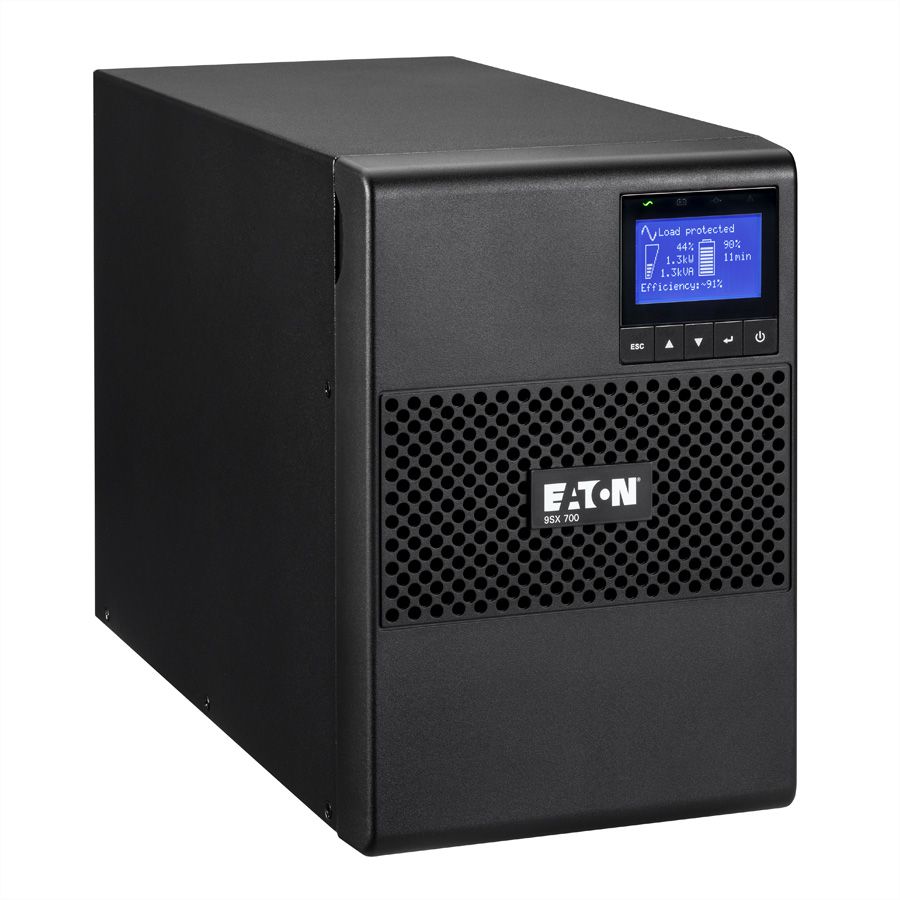

EATON 9SX 700i Tower

EATON 9SX 700i Tower

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 19323107
Brand / Manufacturer Eaton
Manuf. item no. 9SX700I
EAN 743172090911
Item weight 11.5 kg
Output (VA/W)
Interface

Description

Eaton 9SX 700i Tower 700VA Tower

Die EATON 9SX schützt kritische Anwendungen vor unvorhersehbaren Spannungsproblemen mit Rechnerausfall, Datenverlust oder Arbeitsunterbrechung durch Bereitstellung von sauberem unterbrechungsfreiem Strom. Ein grafisches, mehrsprachiges Display ermöglicht weitgehende, einfache Konfigurationsmöglichkeiten. Die EATON 9SX erhöht die Batterielebensdauer durch aktives Batteriemanagement (ABM).

  • Class1 (VFI-SS-111) Online-Doppelwandler-Technologie
  • Powerfaktor 0,9
  • RS232 & USB - Schnittstelle
  • 1 Relais-Ausgang
  • Terminal-Block für Remote power off / EPO

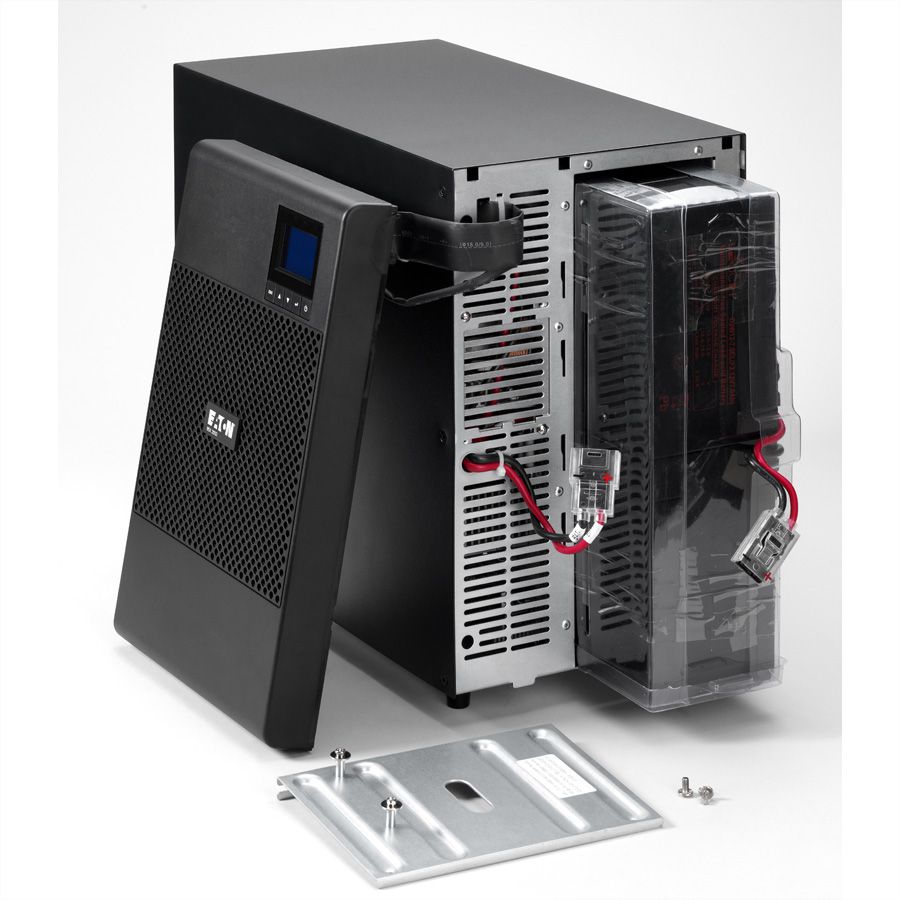

  • HotSwap Batterien
  • MS-Slot für Kommunikationskarten (Netzwerk, Relais oder ModBus)
  • Mehrere Lastsegmente
  • Lieferumfang: USV, Kabelsatz, Software

Specifications

Manufacturer Eaton
Product group USV
Product type UPS Online
Colour black
Classification (IEC 62040-3) VFI-SS-111
UPS technology Online
Output (VA/W) 700 / 630
Efficiency ????????????????????????????? %
Backup time full/half-load 5 / 13 min
Dimensions (HxWxD) 252 x 160 x 357 mm
Mounting form Tower
Voltage (input) 190- 276 V without derating; 120 - 276 V with derating
Voltage (output) 200/208/220/230/240V
Output voltage regulation +/-??????????????%
Frequency 40-70Hz, 50/60Hz autoselection, frequency converter mode

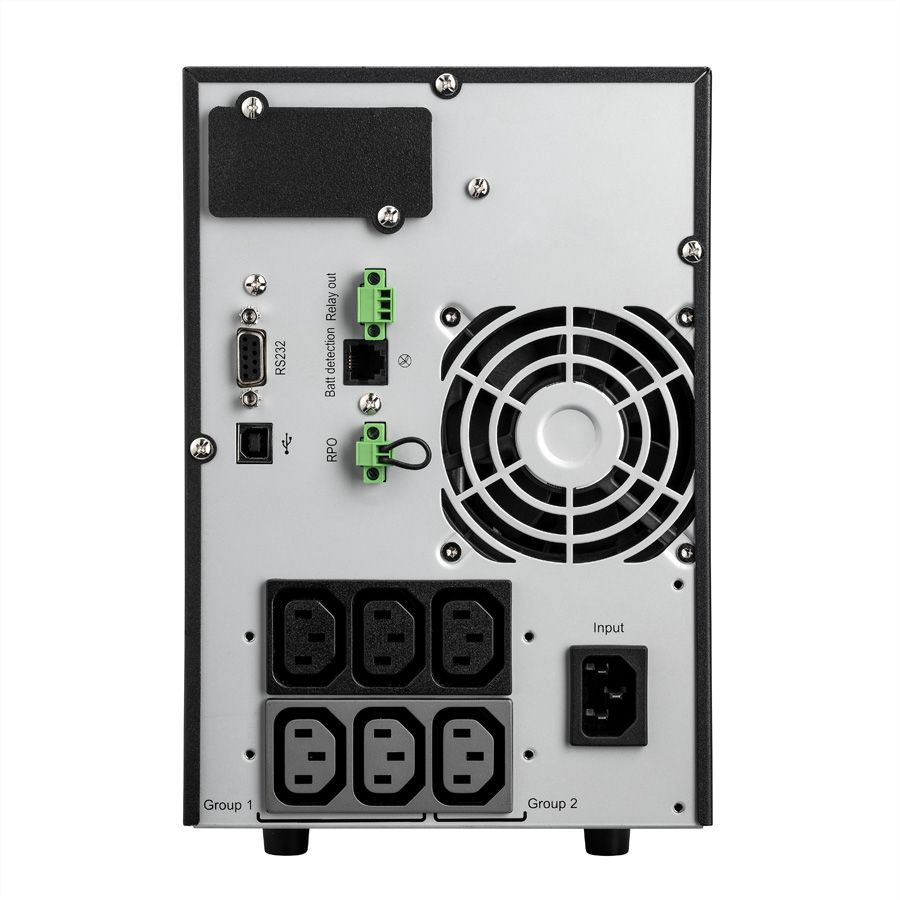

Connector type (input) C14
Connector type (output) (6) C13
Phase in/output 230V/230V / 50Hz
Over current protection EMI,- RFI-Filter
Delay expansion unit 0
Slot for adapter card MS-Slot
Acoustic level <40dB
Interface RS232, USB, MS-Slot, EPO
RS-232 Interface ja
USB 2.0 Interface ja
Hot swap batteries Ja, Frontseite
Bypass automatisch + manuell
Additional over current protector nein
Activity LED 4
Activity Display multilinugual
incl.Management Software für die gängigen OS
Internal cooling Aktiv, Lüfter
Ambient temperature Elektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach EUROBAT
Operating temperature min. -20 °C
Operating temperature max. 40 °C
Height 252 mm
Width 160 mm
Depth 357 mm
Weight 11.5 kg
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 11.5 kg

Downloads

Manufacturer data sheet - Deutsch (365.7 KB)

Download

Manufacturer data sheet - English (470.6 KB)

Download

User manual - Deutsch (3.2 MB)

Download

User manual - English (14.1 MB)

Download

Quick Installation Guide - English (15.8 MB)

Download
