EATON 9SX3000IR 19" Rackmount

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Product is a shipping prodcut! Shipping costs may arise!

Item no.	19323131
Brand / Manufacturer	Eaton
Manuf. item no.	9SX3000IR
EAN	743172091147
Item weight	26.5 kg
Output (VA/W)
Interface

Description

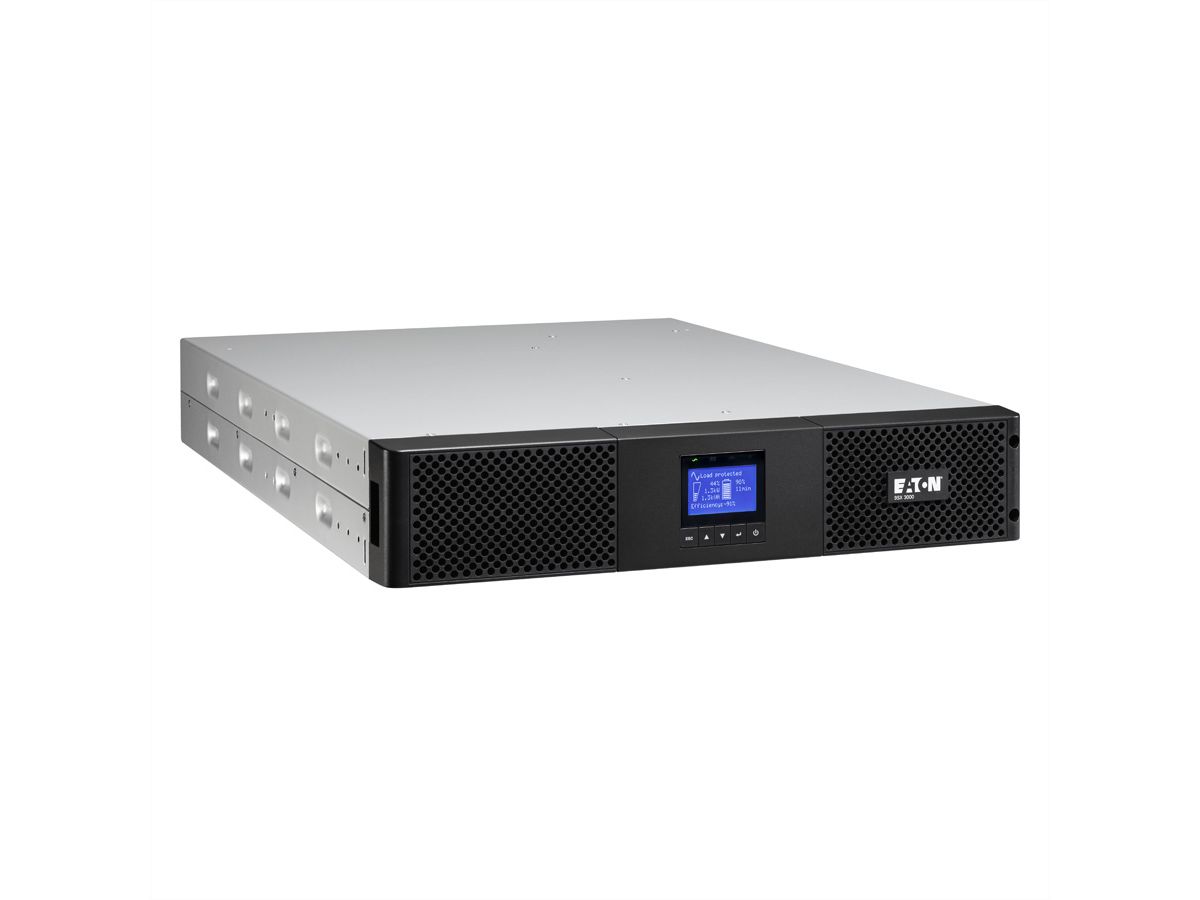

Eaton 9SX 3000iR 19" Rackmount

Die EATON 9SX schützt kritische Anwendungen vor unvorhersehbaren Spannungsproblemen mit Rechnerausfall, Datenverlust oder Arbeitsunterbrechung durch Bereitstellung von sauberem unterbrechungsfreiem Strom. Ein grafisches, mehrsprachiges Display ermöglicht weitgehende, einfache Konfigurationsmöglichkeiten. Die EATON 9SX erhöht die Batterielebensdauer durch aktives Batteriemanagement (ABM).

Class1 (VFI-SS-111) Online-Doppelwandler-Technologie
Powerfaktor 0,9
RS232 & USB - Schnittstelle
1 Relais-Ausgang
Terminal-Block für Remote power off / EPO

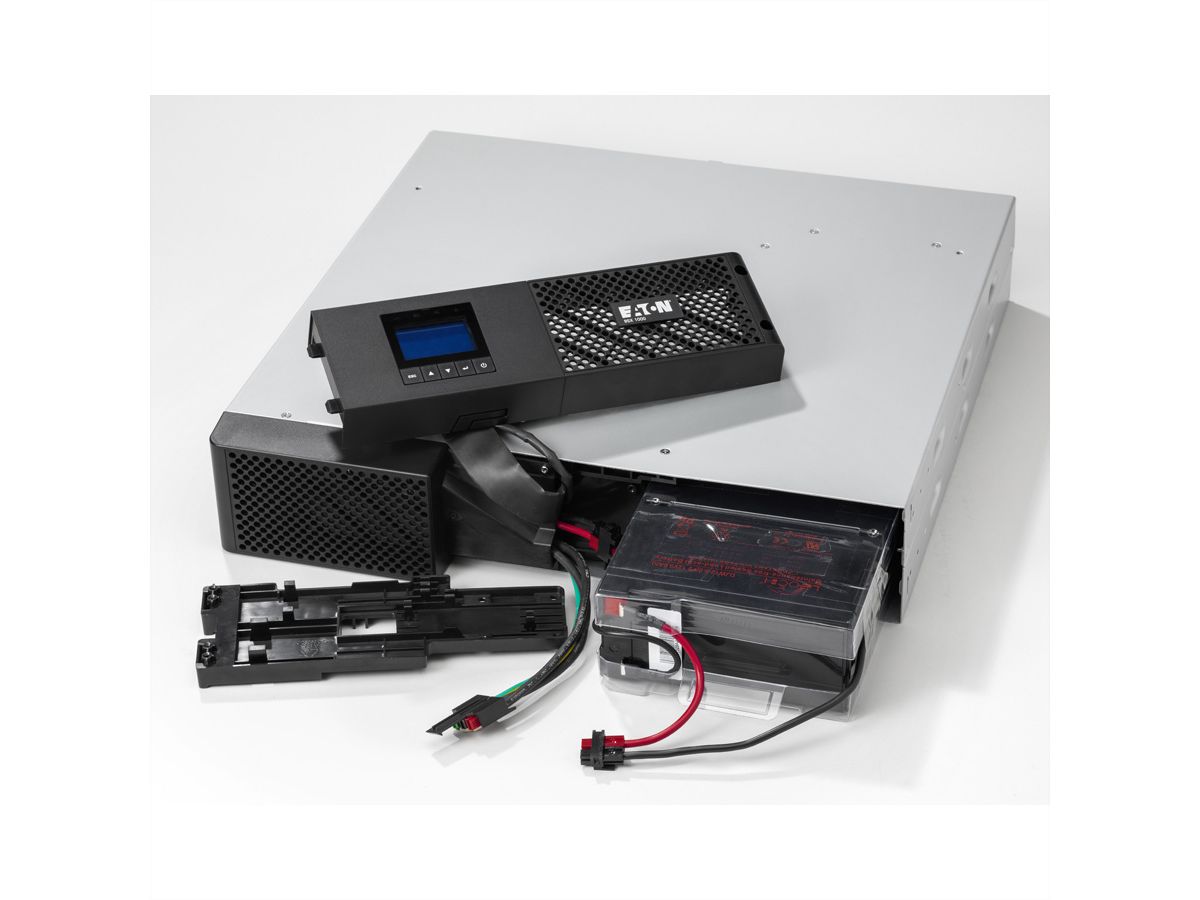

HotSwap Batterien
MS-Slot für Kommunikationskarten (Netzwerk, Relais oder ModBus)
Mehrere Lastsegmente
Lieferumfang: USV, Kabelsatz, Software

>> Nur für Schweiz:@@>> ACHTUNG: Dieser Anlage liegt ein Netzkabel mit T23 Stecker 16A bei, es wird für den Betrieb eine T23 Steckdose benötigt!

Specifications

Manufacturer	Eaton
Product group	USV
Product type	UPS Online
Colour	black
Classification (IEC 62040-3)	VFI-SS-111
UPS technology	Online
Output (VA/W)	3000 / 2700
Backup time	3 min
Backup time full/half-load	3 / 10 min
Dimensions (HxWxD)	86.5 x 438 x 608 mm 2HE
Mounting form	Rack
Voltage (input)	190- 276 V without derating; 120 - 276 V with derating
Voltage (output)	200/208/220/230/240V
Frequency	40-70Hz, 50/60Hz autoselection, frequency converter mode
Connector type (input)	C20
Connector type (output)	(8) C13, (1) C19
Phase in/output	230V/230V / 50Hz
Over current protection	EMI,- RFI-Filter
Max. quantity of delay expansion units	4
Delay expansion unit	4x 9SXEBM72R
Slot for adapter card	MS-Slot
Acoustic level	<45dB
Interface	RS232, USB, MS-Slot, EPO
RS-232 Interface	ja
USB 2.0 Interface	ja
Hot swap batteries	Ja, Frontseite
Bypass	automatisch + manuell
Additional over current protector	nein
Activity LED	4
Activity Display	multilinugual
incl.Management Software	für die gängigen OS
Internal cooling	Aktiv, Lüfter
Ambient temperature	Elektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach EUROBAT
Operating temperature min.	-20 °C
Operating temperature max.	40 °C
Height	86.5 mm
Width	438 mm
Depth	608 mm
Weight	26.5 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	26.5 kg

Downloads

Manufacturer data sheet - Deutsch (408.6 KB)

Download

Manufacturer data sheet - English (470.6 KB)

Download

User manual - Deutsch (3.2 MB)

Download

User manual - English (14.1 MB)

Download

Quick Installation Guide - English (15.8 MB)

Download

Safety instructions - Eaton Battery Services - English - Deutsch - Español - Français - Italiano (1.7 MB)

Download

Safety instructions - Eaton UPS - English - Deutsch - Español - Français - Italiano (2.3 MB)

Download

Safety instructions - Deutsch - English - Français - Italiano (189.1 KB)

Download
