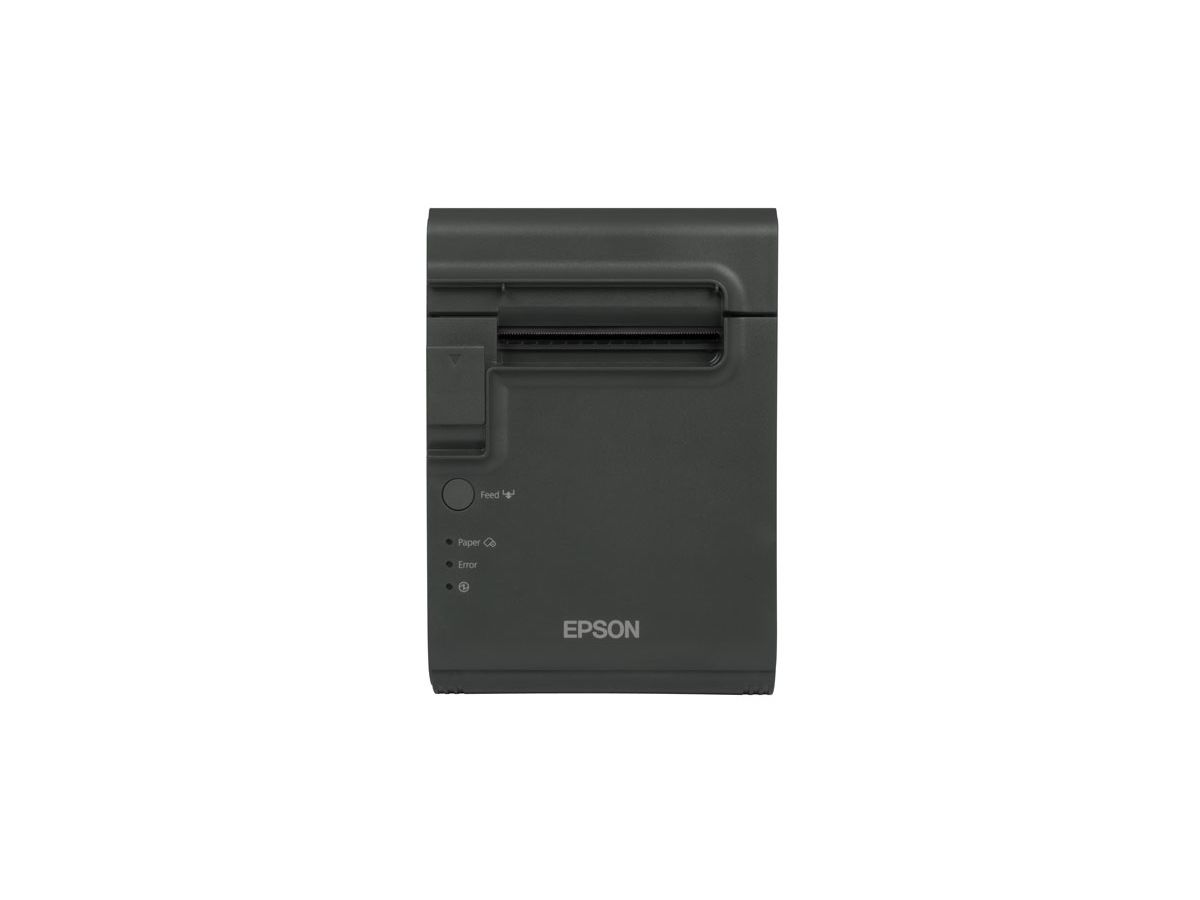

Epson TM-L90 (465) label printer Direct thermal 203 x 203 DPI 150 mm/sec Wired Ethernet LAN
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 517176741 |
|---|---|
| Brand / Manufacturer | EPSON |
| Manuf. item no. | C31C412465 |
| EAN | 8715946616988 |
:strip_icc():strip_exif()/logos/epson.png "EPSON")
Description
Epson TM-L90 (465). Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 150 mm/sec. Supported paper width: 80 mm. Connectivity technology: Wired. Product colour: Grey
Specifications
| Manufacturer | EPSON |
|---|---|
| Product type | Label Printers |
| Printing technology | Direct thermal |
| Ethernet/LAN | Yes |
| Max. resolution | 203 x 203 DPI |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Width | 140 mm |
|---|---|
| Depth | 148 mm |
| Height | 203 mm |
| Weight | 1.9 kg |
Printing
| Print technology | Direct thermal |
|---|---|
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 150 mm/sec |
| Printing characters | Barcode |
Power
| AC input voltage | 24 V |
|---|---|
| Power consumption | 1800 mA |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -10 - 50 °C |
Paper handling
| Autocutter | Yes |
|---|---|
| Half-cutter | No |
| Maximum roll diameter | 9 cm |
| Media thickness | 0.06 - 0.08 mm |
| Supported paper width | 80 mm |
| Autocutter durability | 2 million cuts |
Packaging data
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 193 mm |
| Package depth | 250 mm |
| Package height | 240 mm |
| Package weight | 2.8 kg |
Packaging content
| Manual | Yes |
|---|
Other features
| Safety | UL, CSA, TÜV |
|---|---|
| Buffer size | 4 KB |
| Character sets | ANK |
| Country of origin | China |
Design
| Product colour | Grey |
|---|
Performance
| Tape cutting | Automatic |
|---|---|
| Character pitch | 22.6,16.9 cpi |
| Mean time between failures (MTBF) | 260000 h |
| Mean cycles between failures (MCBF) | 70000000 |
| Cutter | Yes |
| Certification | VCCI-Class A, FCC-Class A, CE, AS / NZS 3548 |
Logistics data
| Products per pallet layer | 16 pc(s) |
|---|---|
| Products per pallet layer (UK) | 24 pc(s) |
| Products per pallet (UK) | 168 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 2.5 m |
| Harmonized System (HS) code | 84433210 |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.5 m |
| Products per pallet | 112 pc(s) |
