HDMI to VGA/Audio Converter with Scaler

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 05/12/2025

Item no.	14016729
Brand / Manufacturer	ATEN
Manuf. item no.	VC812
EAN	4719264640568
Item weight	0.612 kg

Description

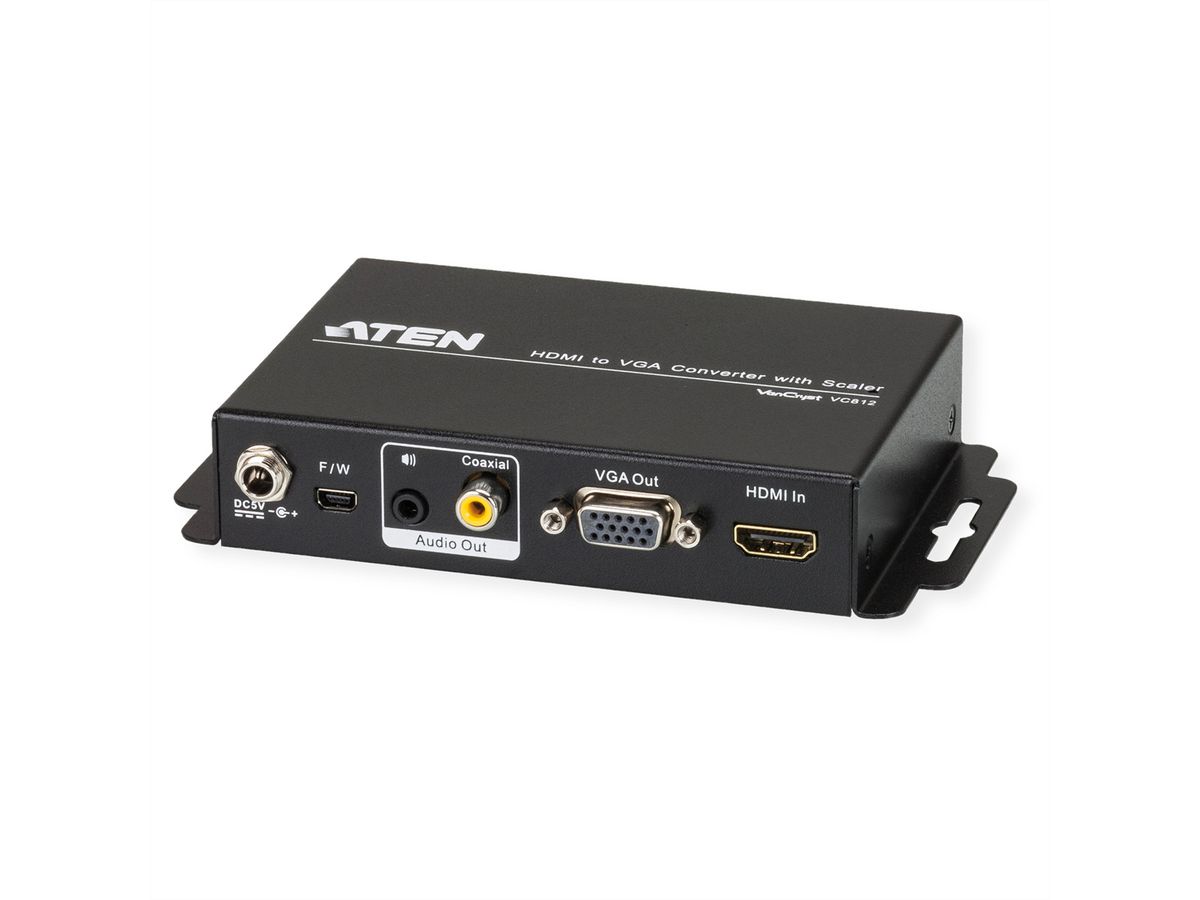

HDMI to VGA/Audio Converter with Scaler

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

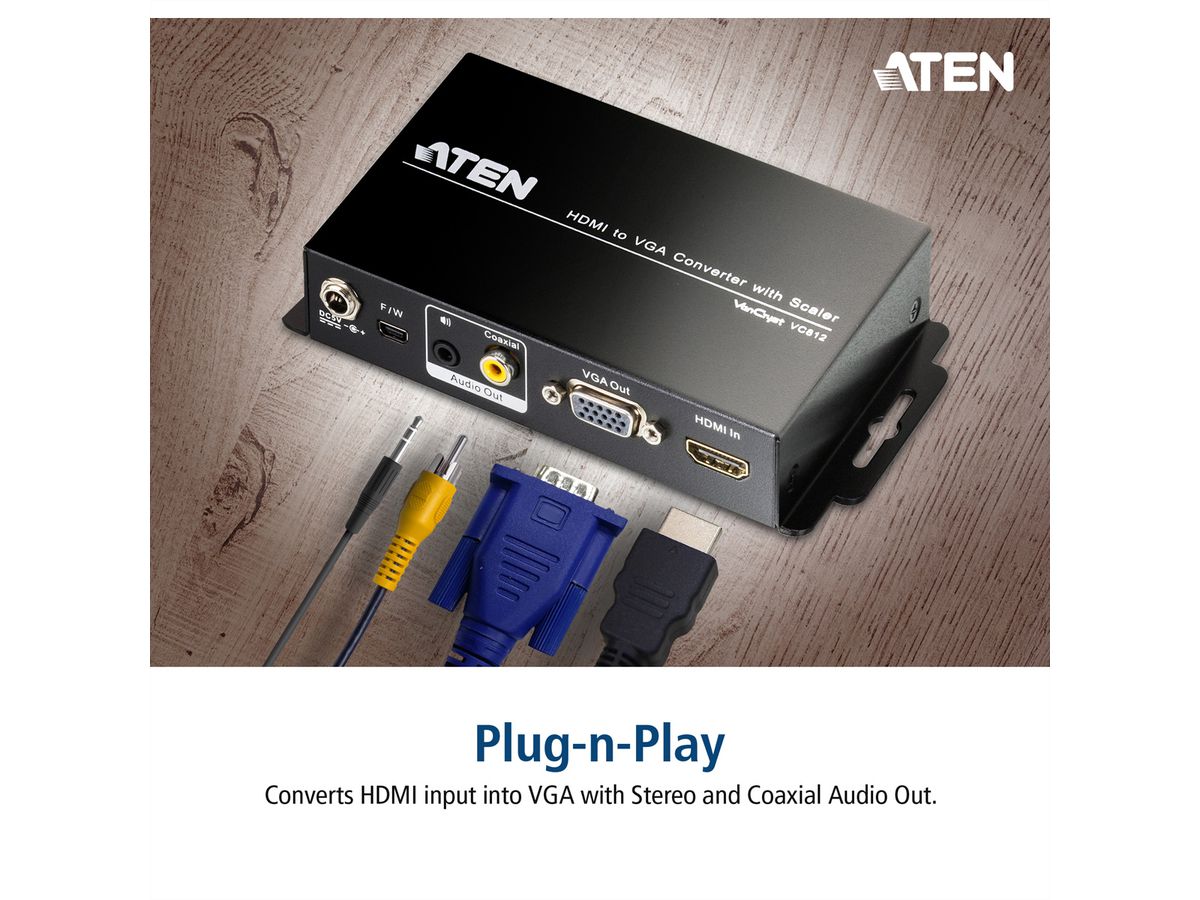

Converts HDMI signals to VGA output
Supports analog/digital audio
Superior video quality – up to 1080p; 1920 x 1200
Features a built in high-performance scaler function for best image quality

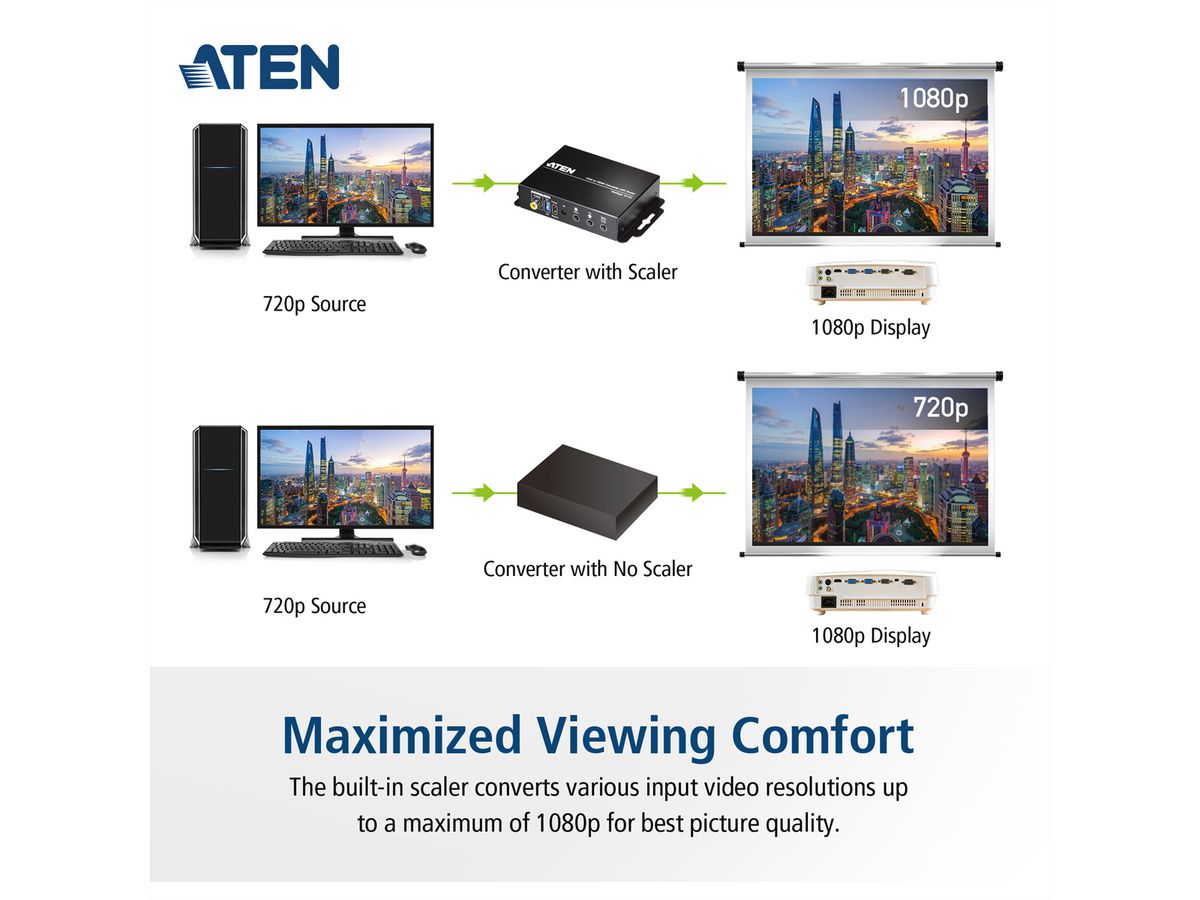

Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a superior de-interlacer function for smooth video playback quality

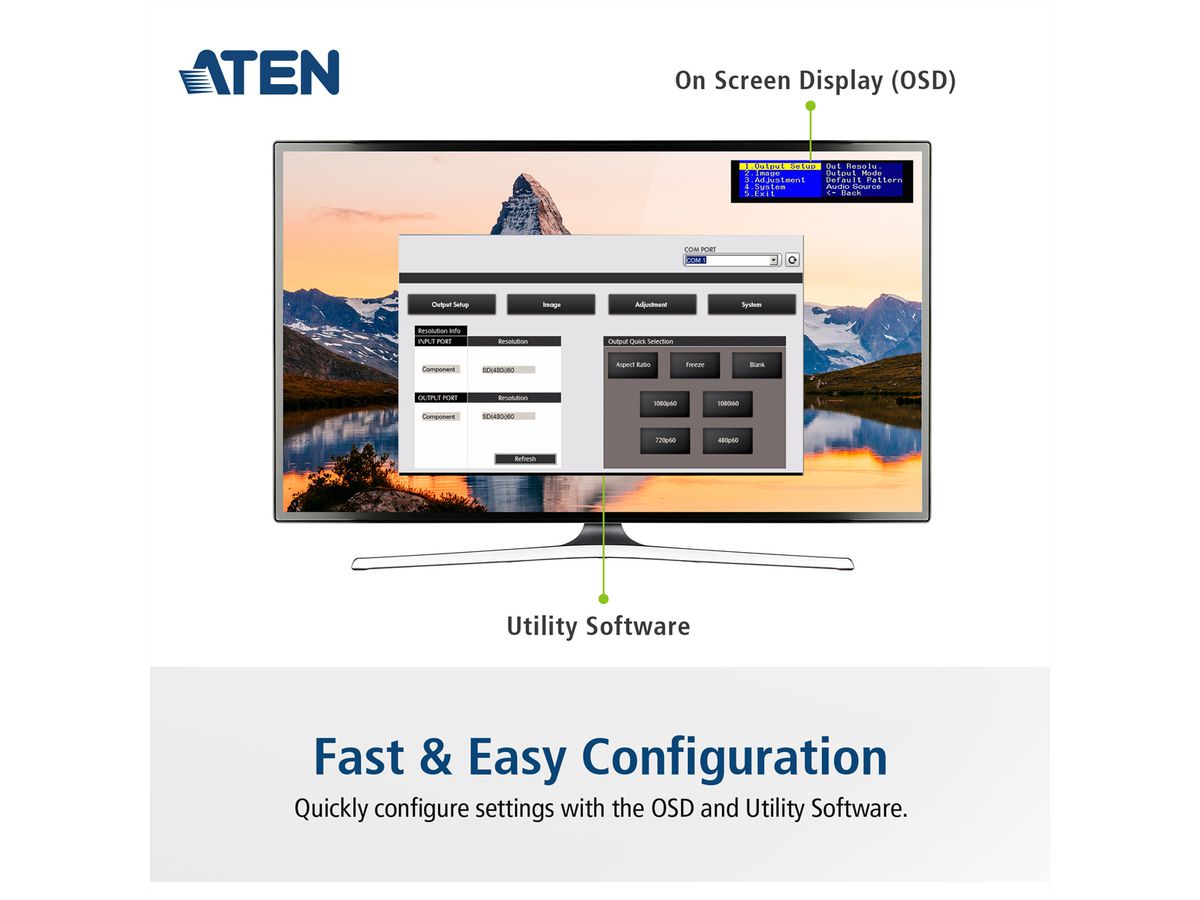

Built-in OSD function for video and system settings configuration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals

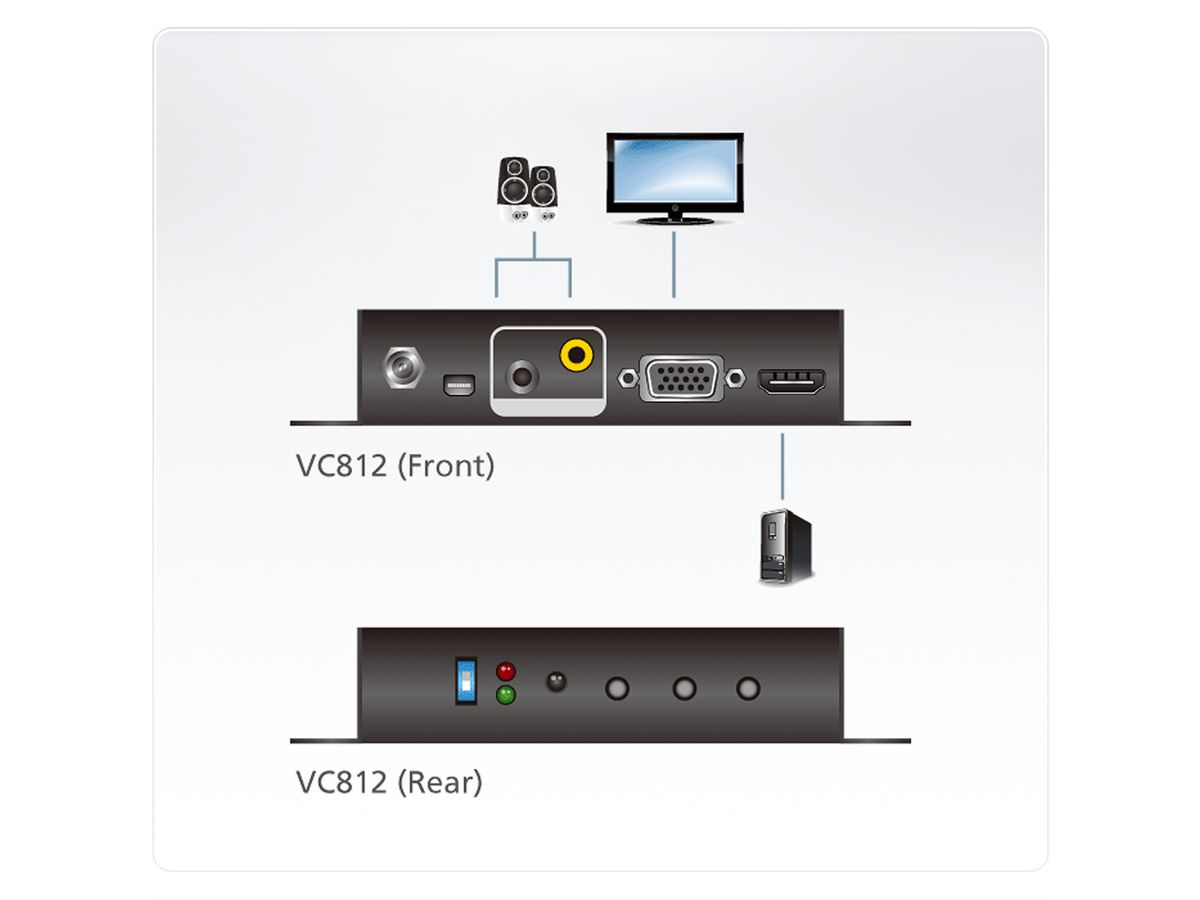

LED indication of power status and source device
No software required – eliminates incompatibility and installation issues

Note: The VC812 does not support HDCP

Specifications

Manufacturer	ATEN
Product group	Adapters, Terminators, Converters
Product type	HDMI-VGA Adapter
Colour	black
Scope of delivery	1x VC812 HDMI to VGA Converter with Scaler, 1x Power Adapter, 1x Software CD, 1x User Instructions
Dimensions (HxWxD)	28 x 83 x11 mm
Mains connection	Appliance Europlug, Type-C
Height	2.8 cm
Width	8.3 cm
Depth	11 cm
Weight	0.29 kg
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	250 mm
Package weight (single piece)	0.612 kg

Downloads

Manufacturer data sheet - English (444.1 KB)

Download

User manual - English (1.2 MB)

Download

Quick Installation Guide - English (1.2 MB)

Download

Technical drawing - English (27.8 KB)

Download

ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.

ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.

More about ATEN
