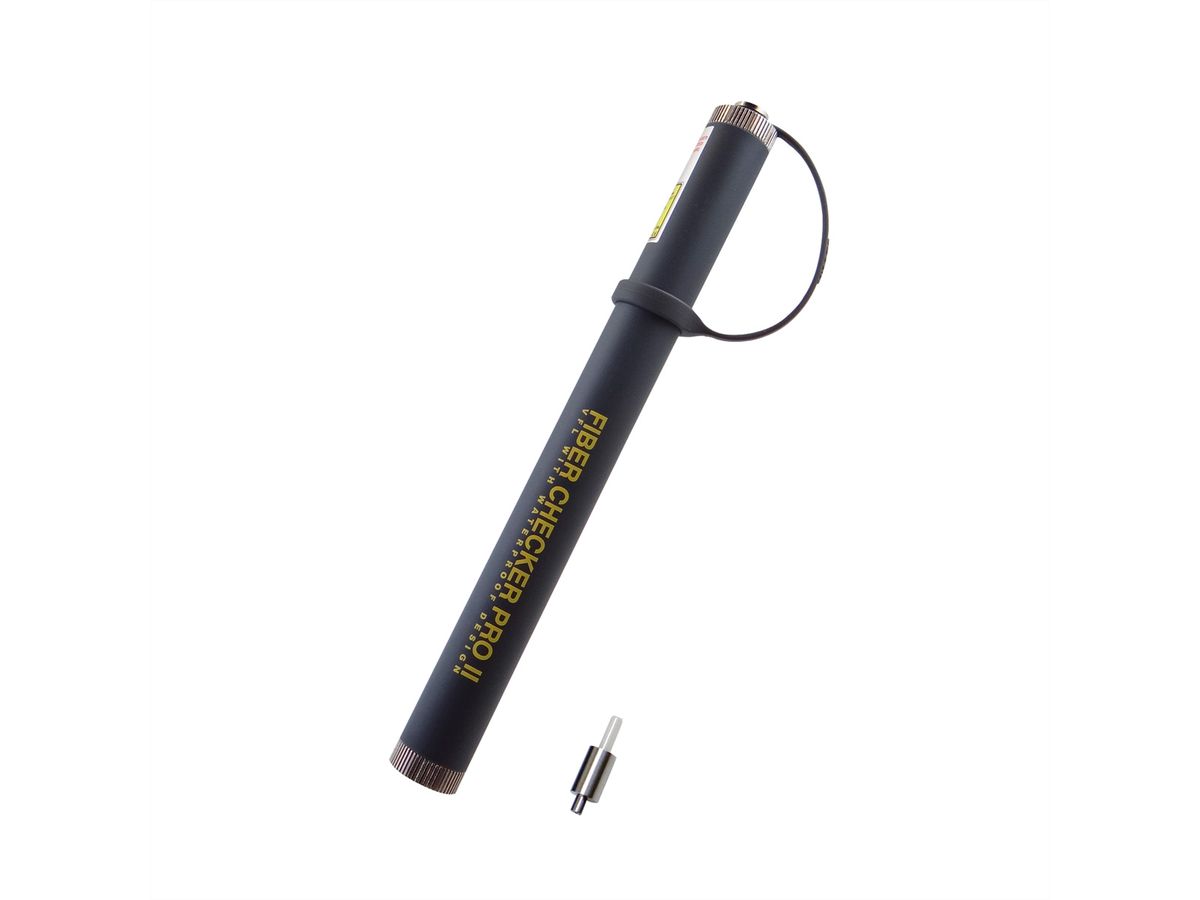

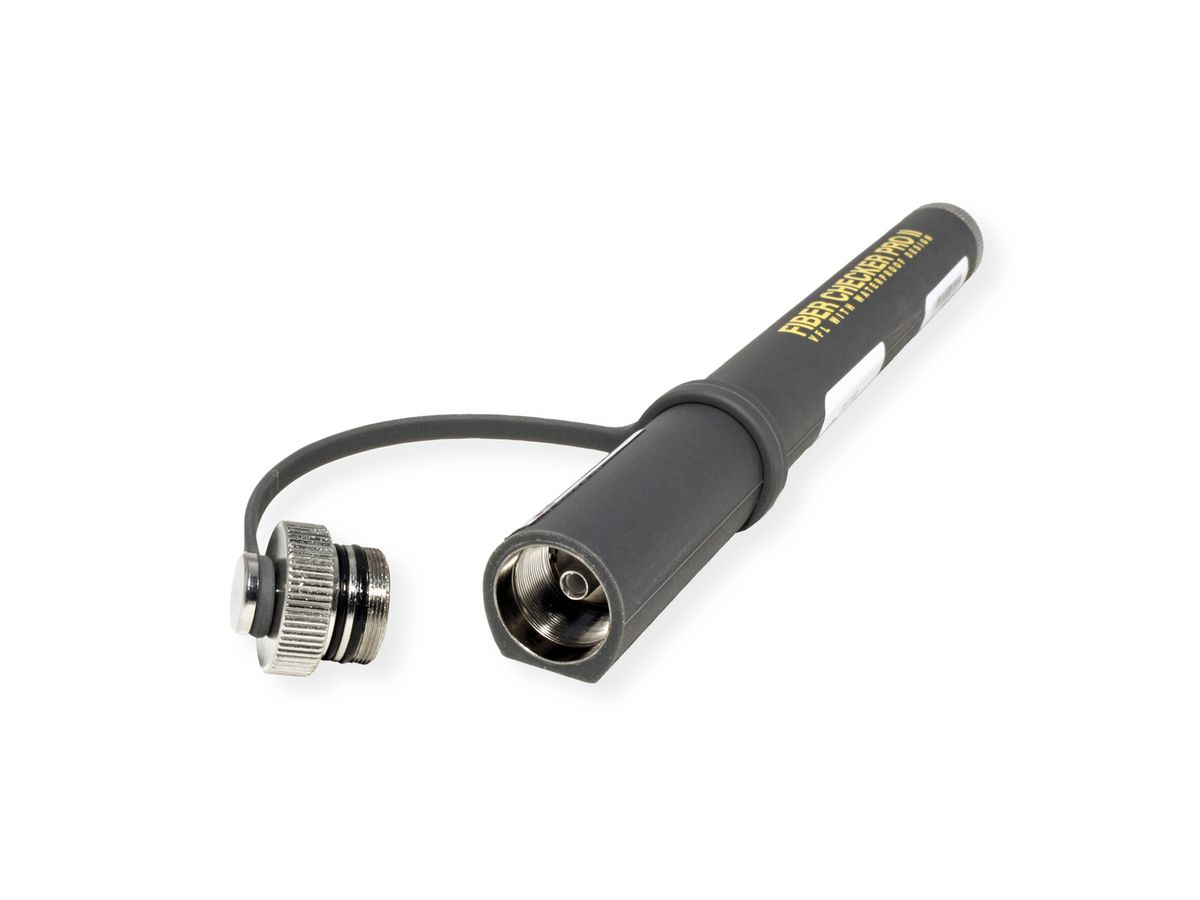

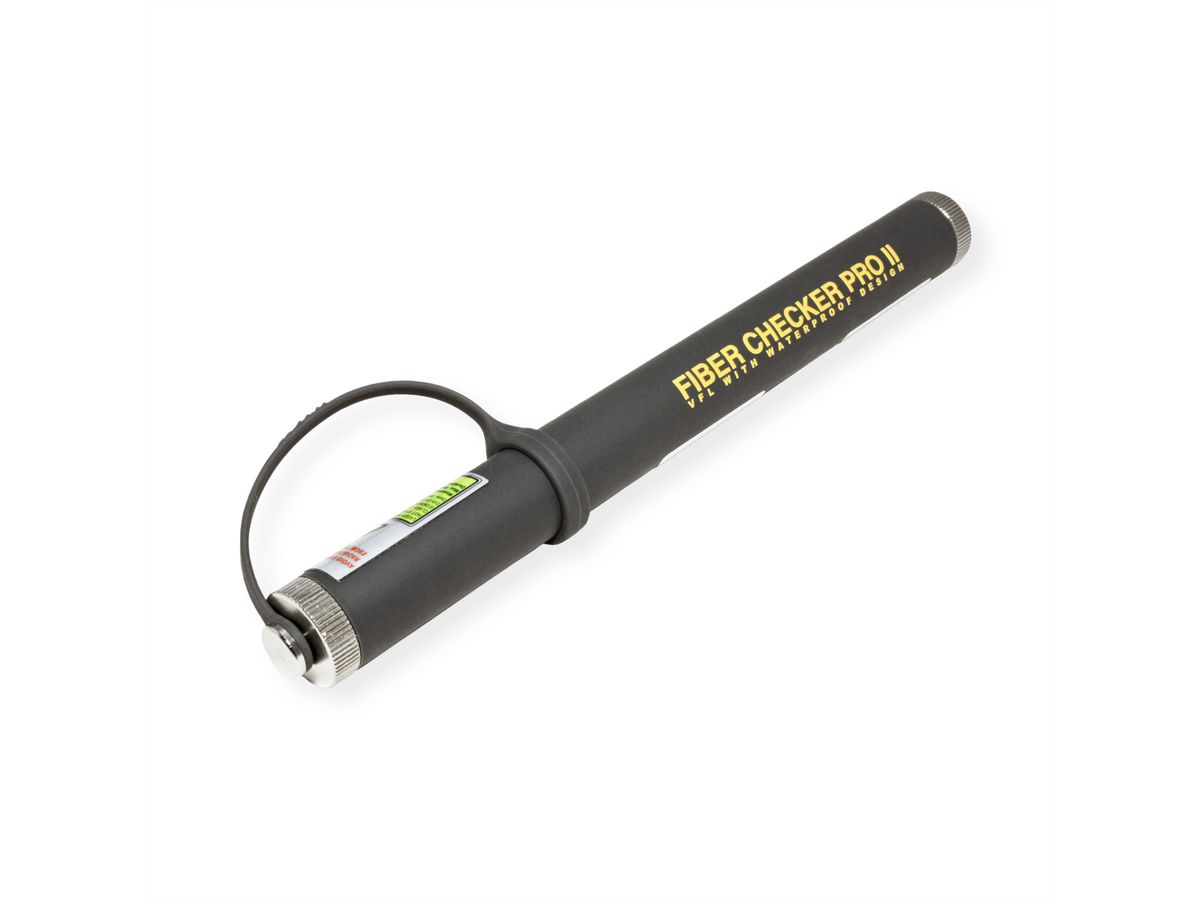

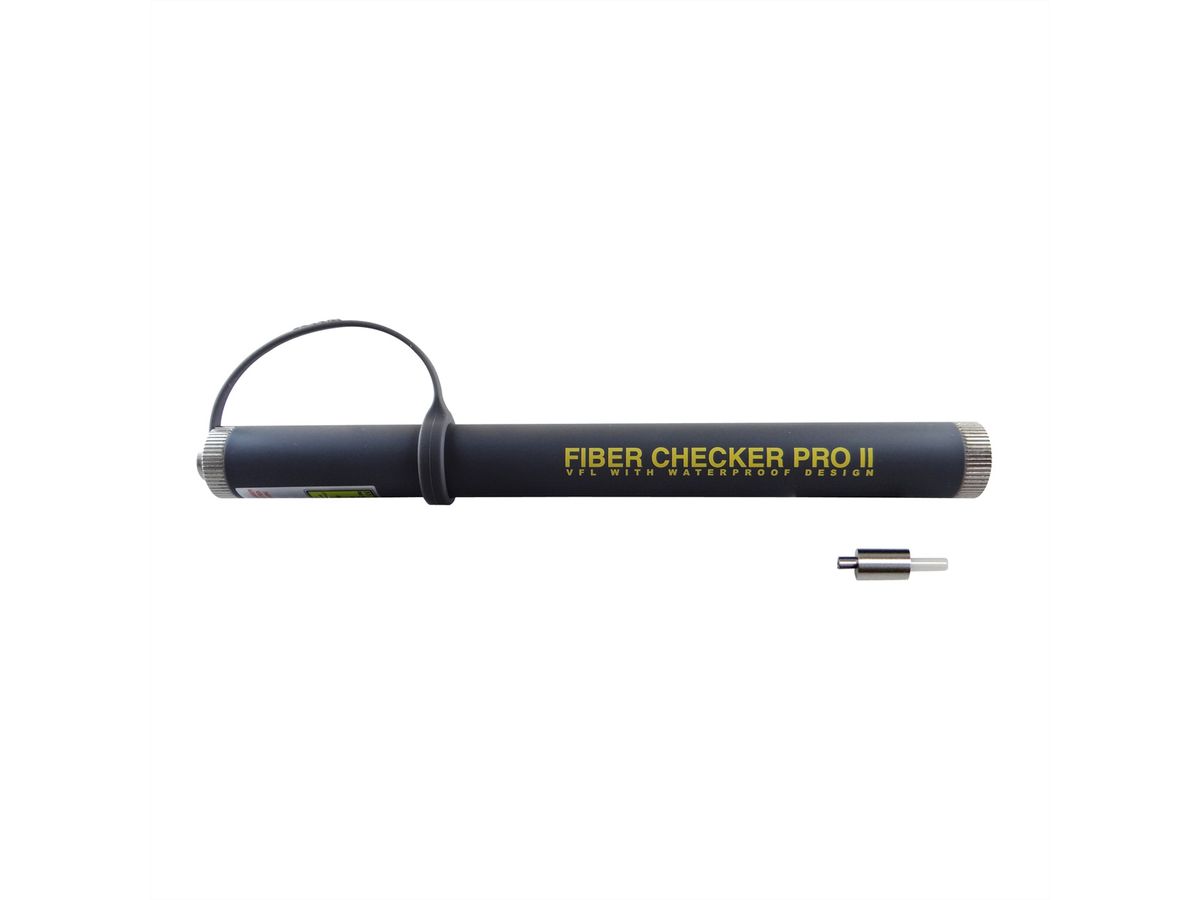

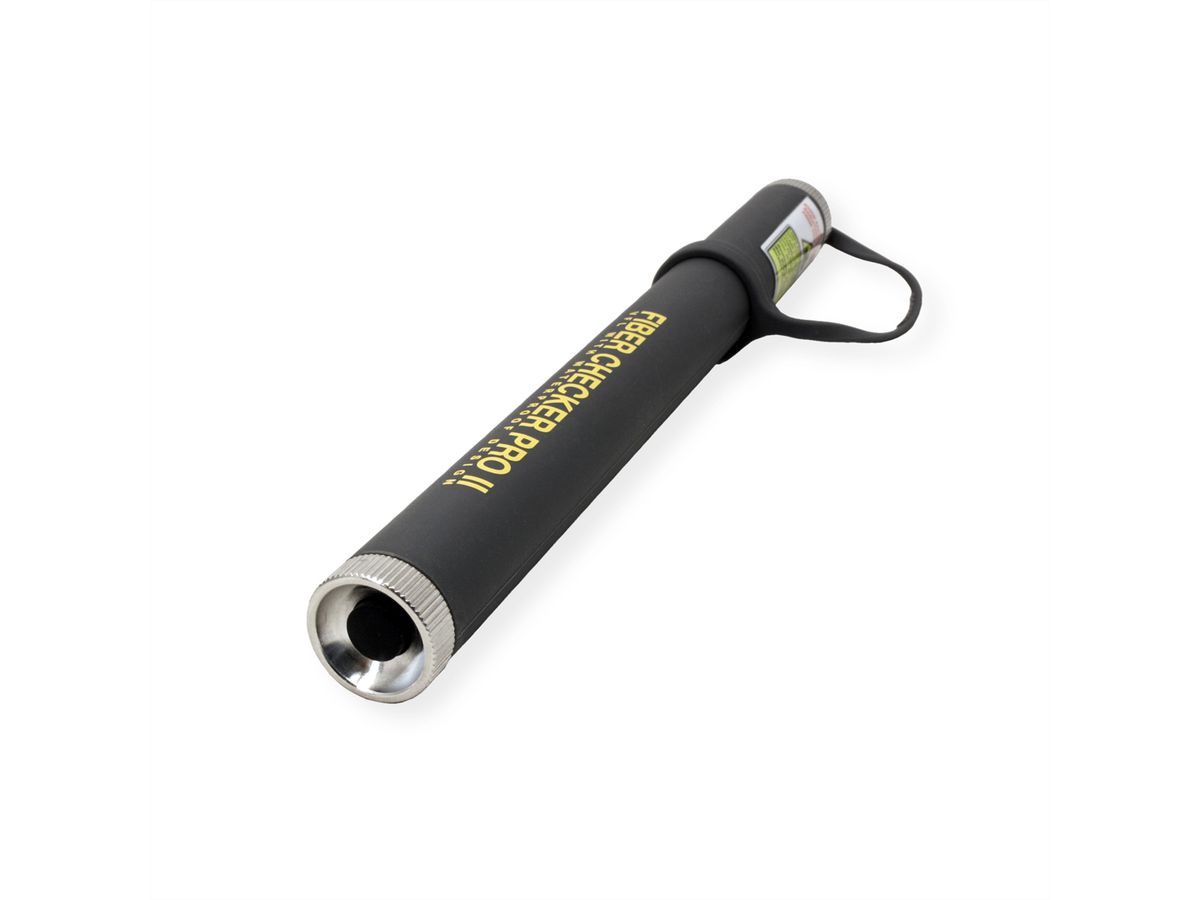

HOBBES Fiber Checker Pro II + LC Adapter

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	13013282
Brand / Manufacturer	HOBBES
Manuf. item no.	FC-2009A
EAN	7630049618145
Item weight	0.306 kg

Description

Fiber Checker Pro II is used during installation and repair to find faults, checking continuity, verifying signal path and identifying fiber. It tests single mode, multi–mode and plastic fibers.

It has the capacity to test fiber cables ranging up to 7 km. Fiber Checker Pro II emits a bright red light that can easily locate a fiber fault or a loss point. When testing for continuity, it discloses the fiber cable being tested from a bundle of fiber cables.

Wavelength: 650nm
Range: Visibility up to 7 km.
Easy to check fiber faults with visual red laser light.

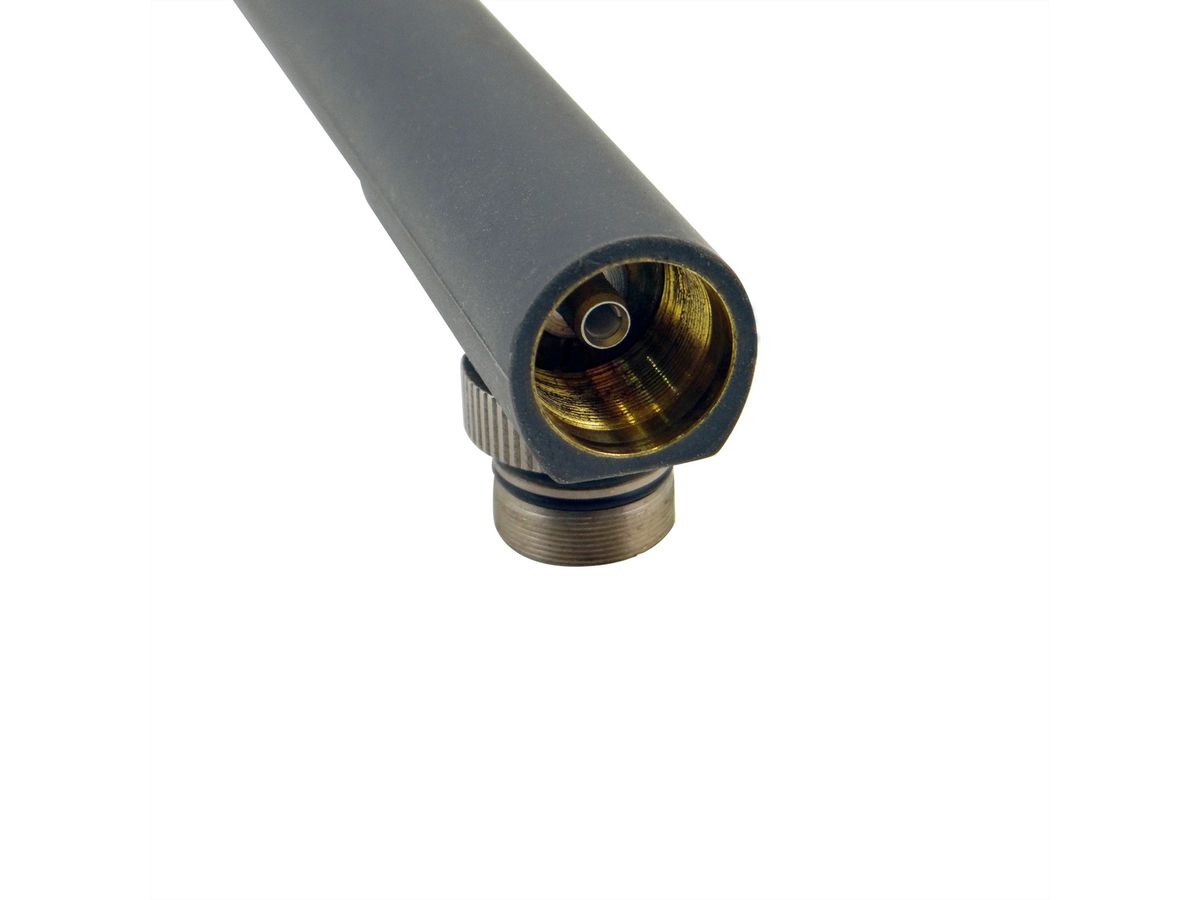

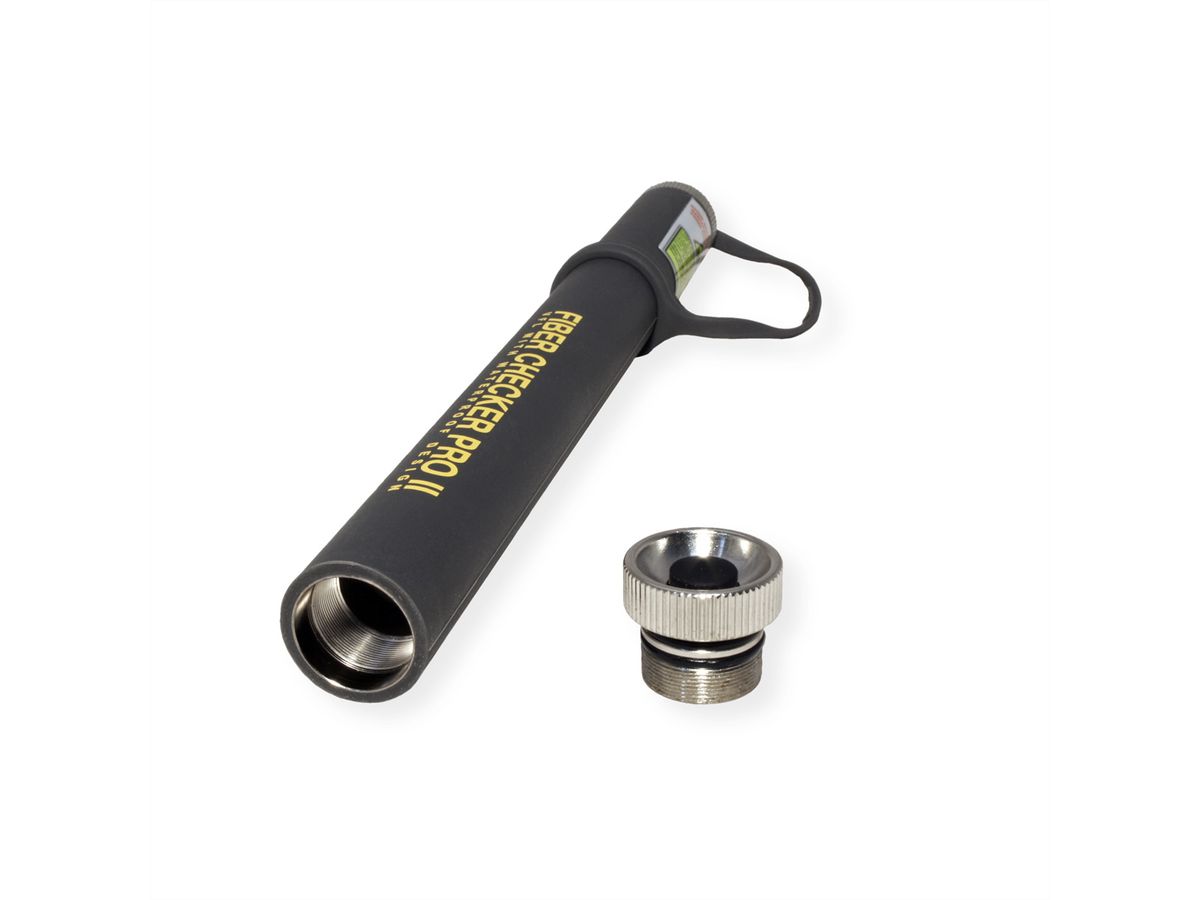

Universally Connector for test different interfaces: LC, ST, SC, FC, FDDA.
Tests single mode, multi–mode and plastic fiber cables

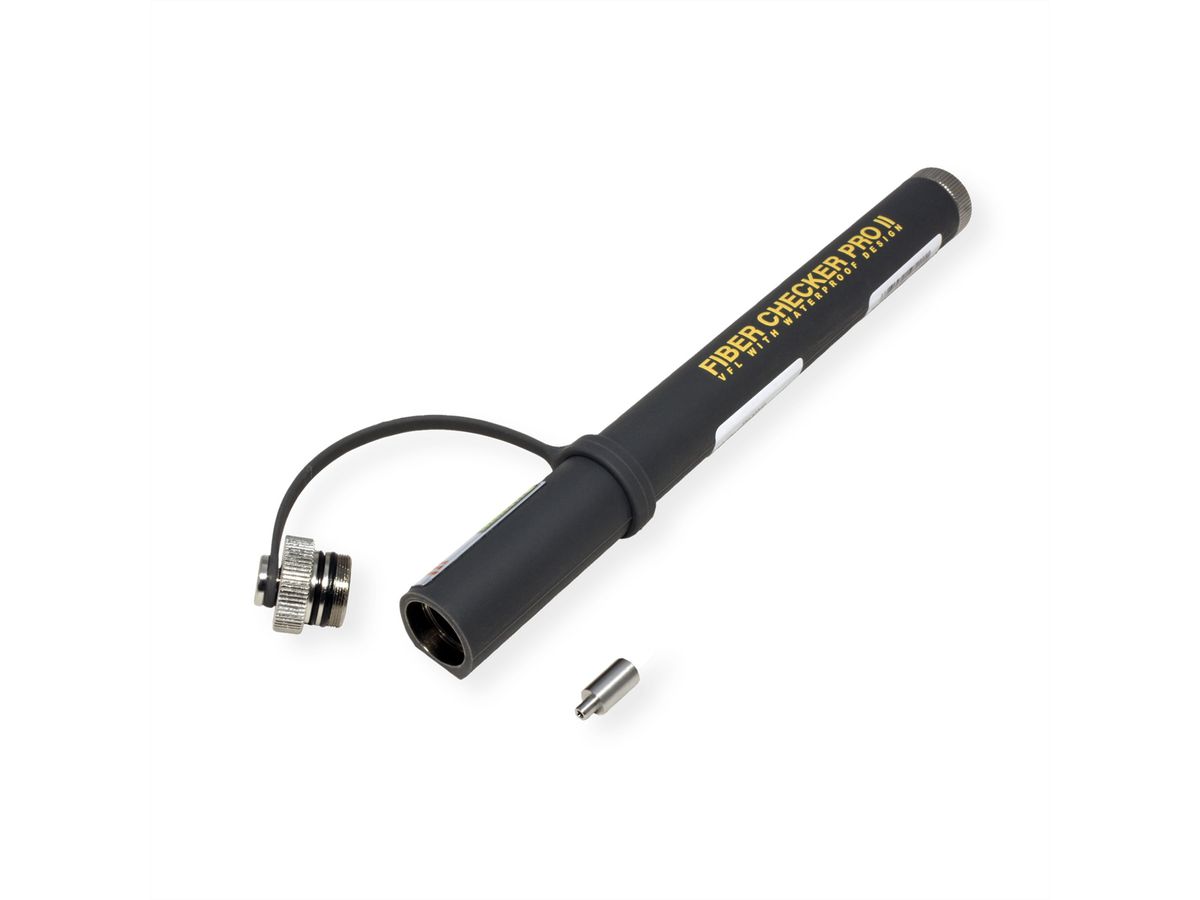

2.5mm fiber optic connectors to 1.25mm adapter included
Highly effective power circuits for stable laser power.
Operates in both CW (Continuous Wave) and PM (Pulse Mode).

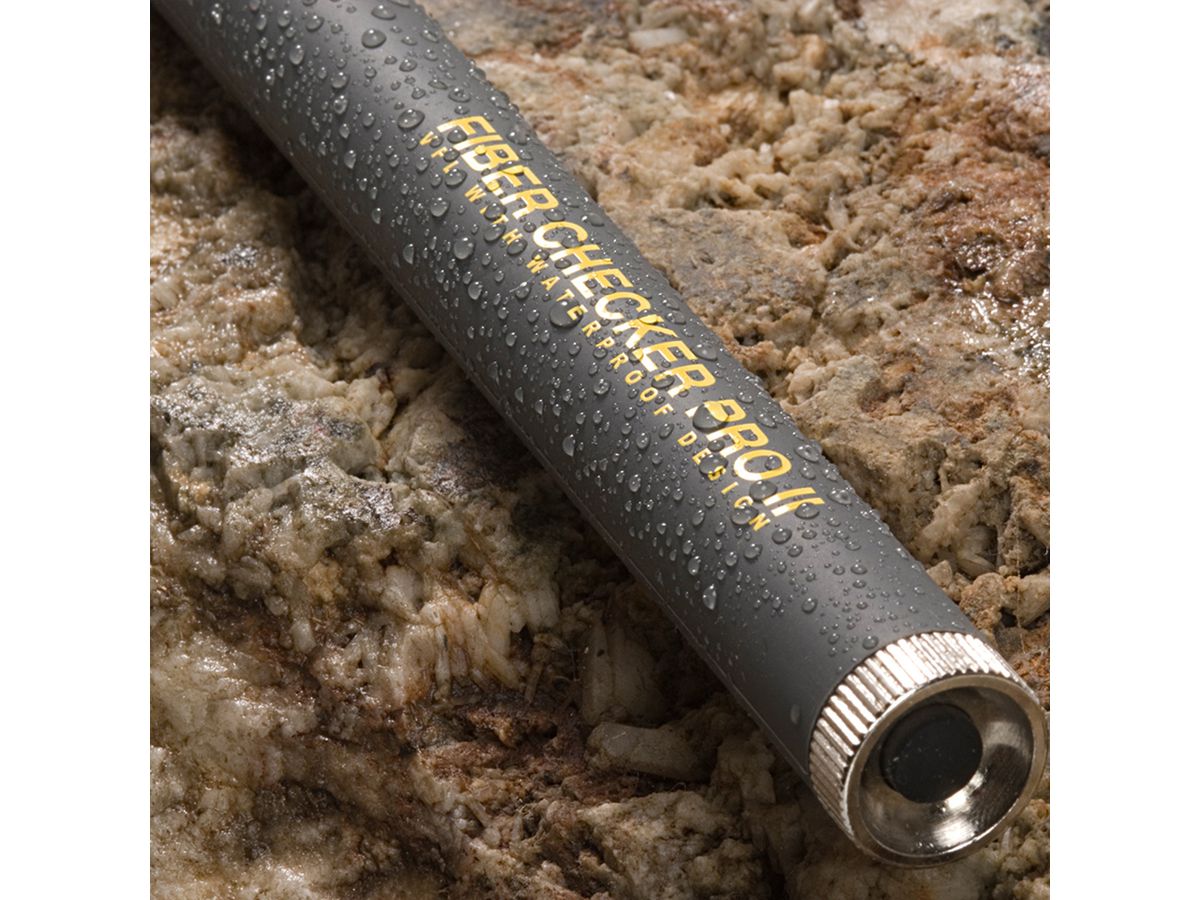

Dust–proof and water–proof design.
Use two alkaline AAA battery.
Durable water–proof and drop resistant construction.

This device is classified as a CLASS 2 LASER product!
Avoid any exposure to eyes!
This device must only be used for its intended purpose. Any improper use of this

product may result in serious damage. Use with caution!

Keep the device safely stored and away from children!
NEVER LOOK INTO THE LASER BEAM!

Laser class: Class II
Wavelength: 650nm±10nm@25ºC
Spectral width: <10nm
Output power: >1.2mW @ 25ºC into 9/125um single–mode fiber
Mode: CW/Pulse
Battery : Alkaline AAA 1.5V x 2
Output power reliable: ±0.2mW
Range: Visibility to 7 km
Operating temp.: 0ºC to 50ºC
Storage temp.: 0ºC to70ºC

Specifications

Manufacturer	HOBBES
Product group	Meters
Product type	Fiber tester
Accessories: Rechargeable battery/battery required	Micro battery (AAA), 02x
Weight	134.6 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	250 mm
Package weight (single piece)	0.306 kg

Downloads

Manufacturer data sheet - English (348.9 KB)

Download

User manual - English (1.6 MB)

Download

Safety instructions - Deutsch (422.5 KB)

Download

Safety instructions - English (422.5 KB)

Download

Safety instructions - Français (422.5 KB)

Download

HOBBES has gained an excellent reputation worldwide in recent years and is considered an important supplier to the telecommunications and computer industries.

HOBBES focuses in particular on innovative measurement technology for networks, electronics, fiber optic cables (FO) and thus comprehensively covers the entire spectrum of measurement technology in these sectors.
