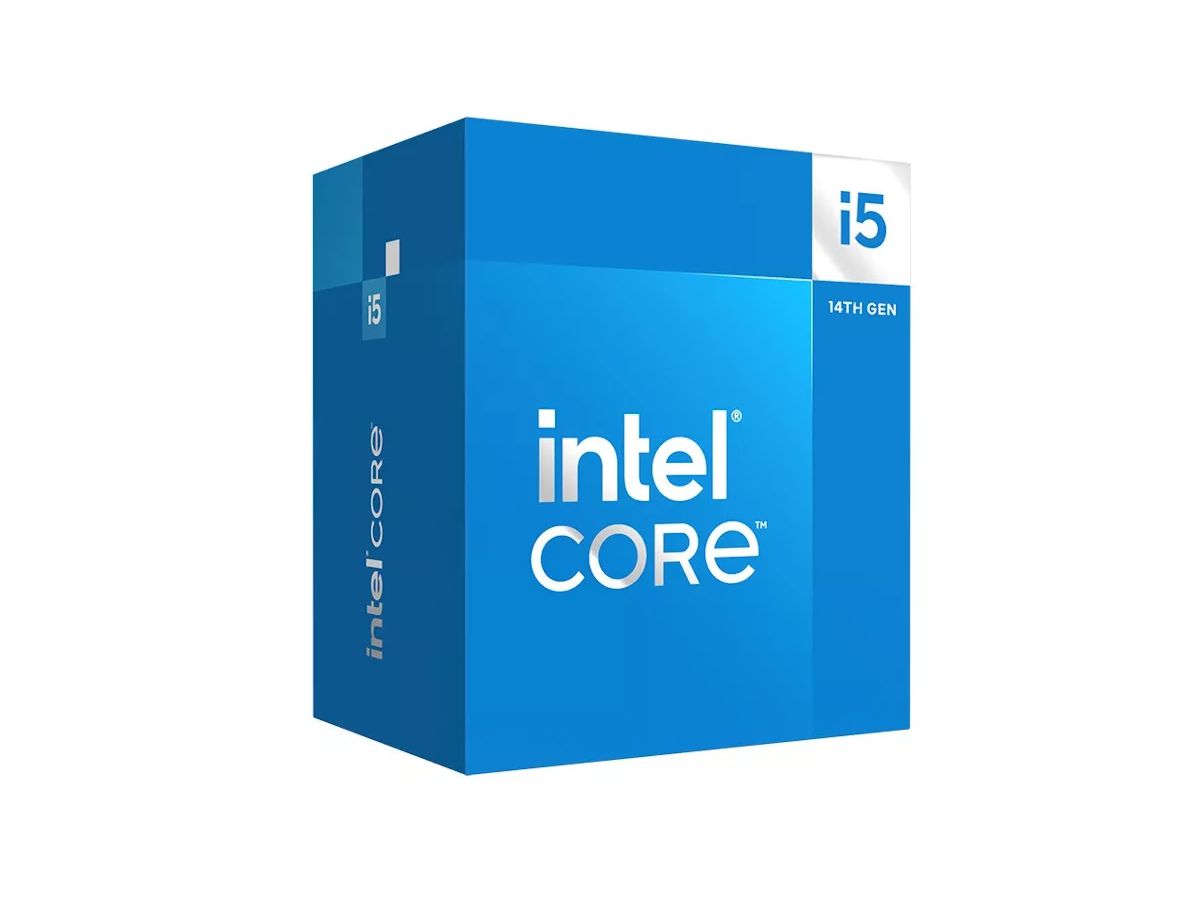

Intel Core i5-14400F processor 20 MB Smart Cache Box
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529151575 |
|---|---|
| Brand / Manufacturer | INTEL |
| Manuf. item no. | BX8071514400F |
| EAN | 5032037279147 |
:strip_icc():strip_exif()/logos/intel.png "INTEL")
Description
Intel Core i5-14400F. Processor family: Intel® Core™ i5, Processor socket: LGA 1700, Processor manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Processor package size: 45 x 37.5 mm. L2 cache: 9728 KB, Maximum internal memory: 192 GB
Specifications
| Manufacturer | INTEL |
|---|---|
| Product type | Processors |
Technical details
| Launch date | Q1'24 |
|---|---|
| Status | Launched |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor cores | 10 |
| Processor socket | LGA 1700 |
| Box | Yes |
| Cooler included | Yes |
| Processor manufacturer | Intel |
| Processor model | i5-14400F |
| Processor operating modes | 64-bit |
| Processor generation | Intel Core i5-14xxx |
| Processor threads | 16 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Processor boost frequency | 4.7 GHz |
| Performance-core boost frequency | 4.7 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core boost frequency | 3.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 148 W |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Raptor Lake |
| Processor ARK ID | 236777 |
Memory
| Memory channels | Dual-channel |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory bandwidth (max) | 76.8 GB/s |
Weight & dimensions
| Processor package size | 45 x 37.5 mm |
|---|
Operational conditions
| Tjunction | 100 °C |
|---|
Other features
| L2 cache | 9728 KB |
|---|---|
| Maximum internal memory | 192 GB |
Graphics
| On-board graphics card | No |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thread Director | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
Features
| Execute Disable Bit | Yes |
|---|---|
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0, 5.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Logistics data
| Harmonized System (HS) code | 8542310001 |
|---|
