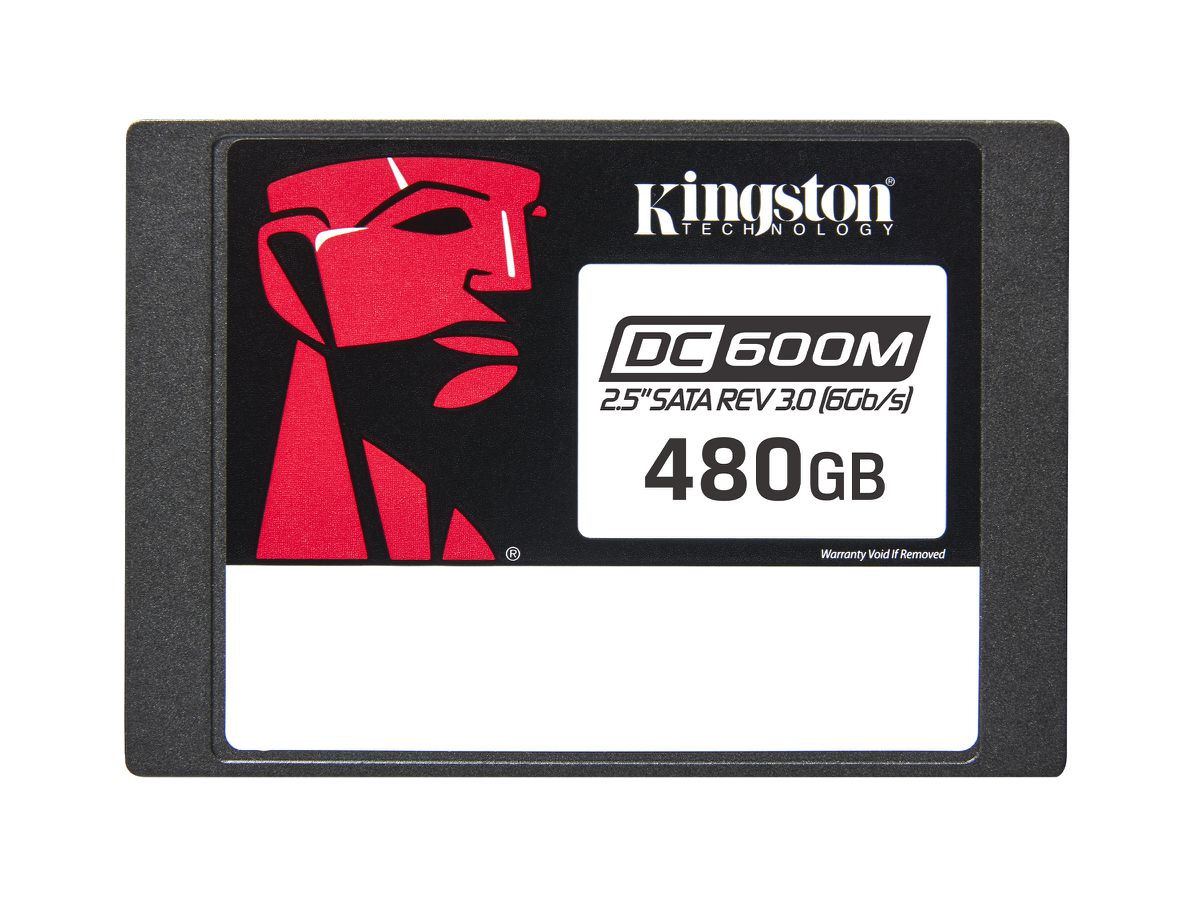

Kingston Technology 480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527933600 |
|---|---|
| Brand / Manufacturer | KINGSTON TECHNOLOGY |
| Manuf. item no. | SEDC600M/480G |
| EAN | 0740617334937 |
:strip_icc():strip_exif()/logos/kingston-technology.png "KINGSTON TECHNOLOGY")
Description
Kingston Technology 480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD. SSD capacity: 480 GB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 470 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Capacities available from 480GB–7680GB* to meet your data storage requirements.
Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet service-level agreements (SLAs).
Capacities of up to 7680GB
Upgrade and managestorage with capacities of up to 7680GB** .
Specifications
| Manufacturer | KINGSTON TECHNOLOGY |
|---|---|
| Product type | Internal Solid State Drives |
| Storage capacity | 480 GB |
| Hard disk size | 2.5" |
Weight & dimensions
| Width | 69.9 mm |
|---|---|
| Depth | 100.1 mm |
| Height | 70 mm |
| Weight | 66 g |
Power
| Power consumption (read) | 1.6 W |
|---|---|
| Power consumption (write) | 3.6 W |
| Power consumption (max) | 1.45 W |
| Power consumption (idle) | 1.3 W |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Packaging data
| Package width | 129.5 mm |
|---|---|
| Package depth | 9.1 mm |
| Package height | 184.2 mm |
| Package weight | 88.19 g |
Features
| SSD form factor | 2.5" |
|---|---|
| SSD capacity | 480 GB |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Target workload | Mixed Use (MU) |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 470 MB/s |
| Random read (4KB) | 94000 IOPS |
| Random write (4KB) | 41000 IOPS |
| Read latency | 200 µs |
| Write latency | 30 µs |
| Hot-Plug support | Yes |
| H/W PLP function | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 876 |
| Use conditions | Server/Enterprise |
Logistics data
| Country of origin | China, Taiwan |
|---|---|
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.9 mm |
| Master (outer) case gross weight | 959.95 g |
| Products per master (outer) case | 10 pc(s) |
