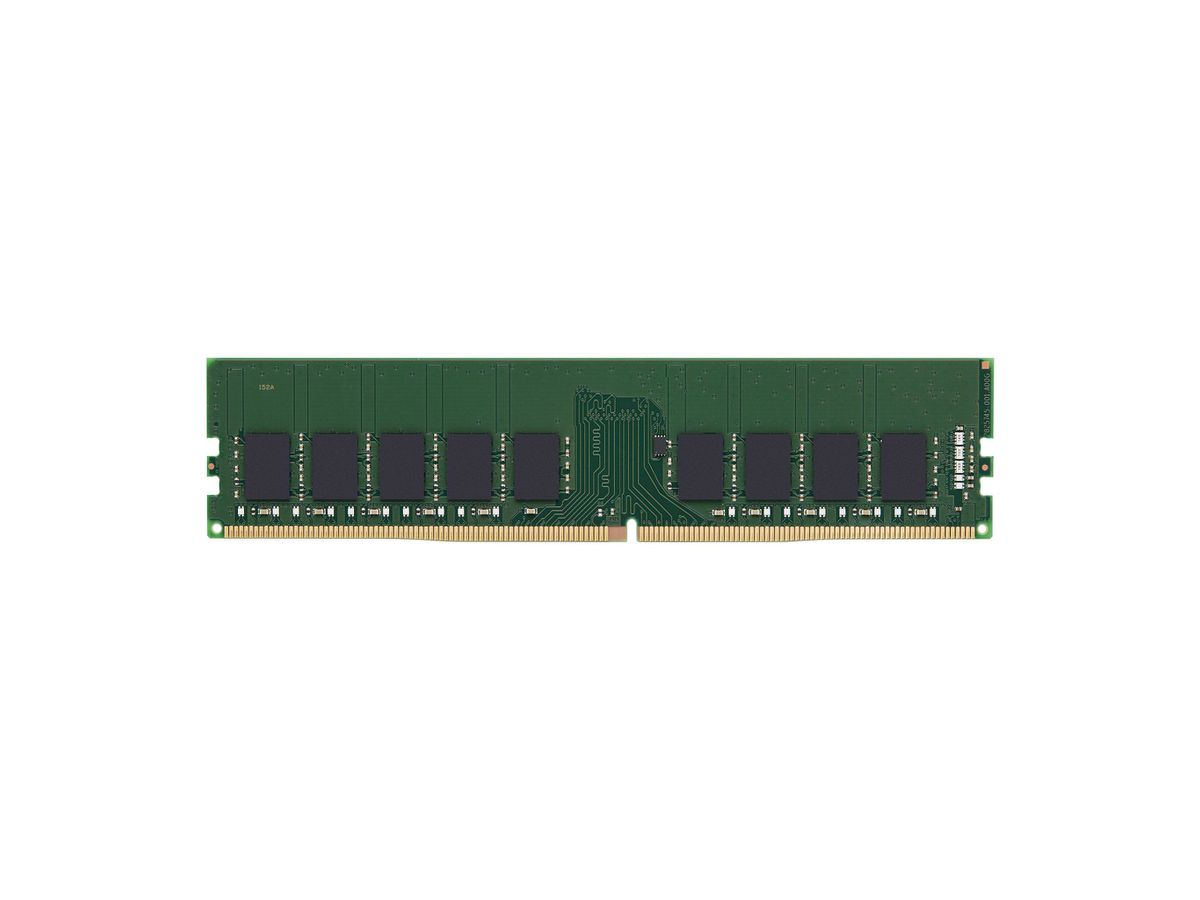

Kingston Technology KSM26ED8/32HC memory module 32 GB DDR4 2666 MHz ECC
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 526363496 |
|---|---|
| Brand / Manufacturer | KINGSTON TECHNOLOGY |
| Manuf. item no. | KSM26ED8/32HC |
| EAN | 0740617324877 |
:strip_icc():strip_exif()/logos/kingston-technology.png "KINGSTON TECHNOLOGY")
Description
Kingston Technology KSM26ED8/32HC. Component for: PC/Server, Internal memory: 32 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 288-pin DIMM, CAS latency: 19, ECC
Kingston's KSM26ED8/32HC is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Specifications
| Manufacturer | KINGSTON TECHNOLOGY |
|---|---|
| Product type | Memory Modules |
| Storage capacity | 32 GB |
Technical details
| Sustainability certificates | RoHS |
|---|
Weight & dimensions
| Height | 31.2 mm |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
Other features
| Supported data transfer rates | PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
|---|---|
| Harmonized System (HS) code | 84733020 |
Features
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR4 |
| Memory clock speed | 2666 MHz |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Y |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC | Y |
| CAS latency | 19 |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| SPD profile | Y |
| Programming power voltage (VPP) | 2.5 V |
| Backlight | N |
| JEDEC standard | Y |
