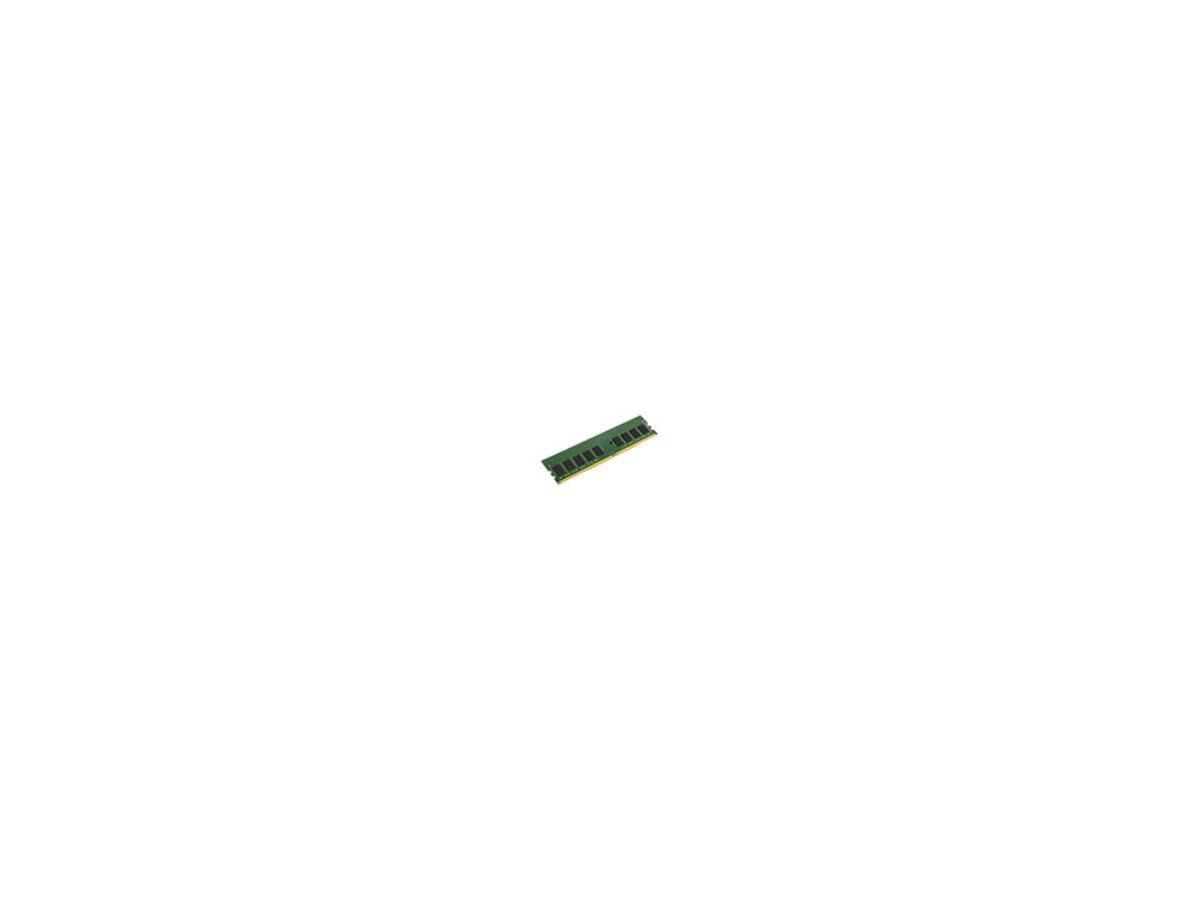

Kingston Technology KSM26ES8/8HD memory module 8 GB 1 x 8 GB DDR4 2666 MHz ECC

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/02/2024

Item no.	523990047
Brand / Manufacturer	KINGSTON TECHNOLOGY
Manuf. item no.	KSM26ES8/8HD
EAN	0740617312171

Description

Kingston Technology KSM26ES8/8HD. Component for: PC/server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 288-pin DIMM, CAS latency: 19, ECC

Kingston's KSM26ES8/8HD is a 1G x 72-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Manufacturer	KINGSTON TECHNOLOGY
Product type	Memory Modules
Storage capacity	8 GB

Technical details

Sustainability certificates	RoHS

Weight & dimensions

Width	133.3 mm
Height	31.2 mm

Operational conditions

Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C

Features

Internal memory	8 GB
Memory layout (modules x size)	1 x 8 GB
Internal memory type	DDR4
Memory clock speed	2666 MHz
Component for	PC/server
Memory form factor	288-pin DIMM
ECC	Y
Buffered memory type	Unregistered (unbuffered)
CAS latency	19
Memory ranking	1
Memory voltage	1.2 V
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
SPD profile	Y
JEDEC standard	Y

Downloads

PDF data sheet - Kingston Technology KSM26ES8/8HD memory module 8 GB 1 x 8 GB DDR4 2666 MHz ECC - English (177.3 KB)

Download
