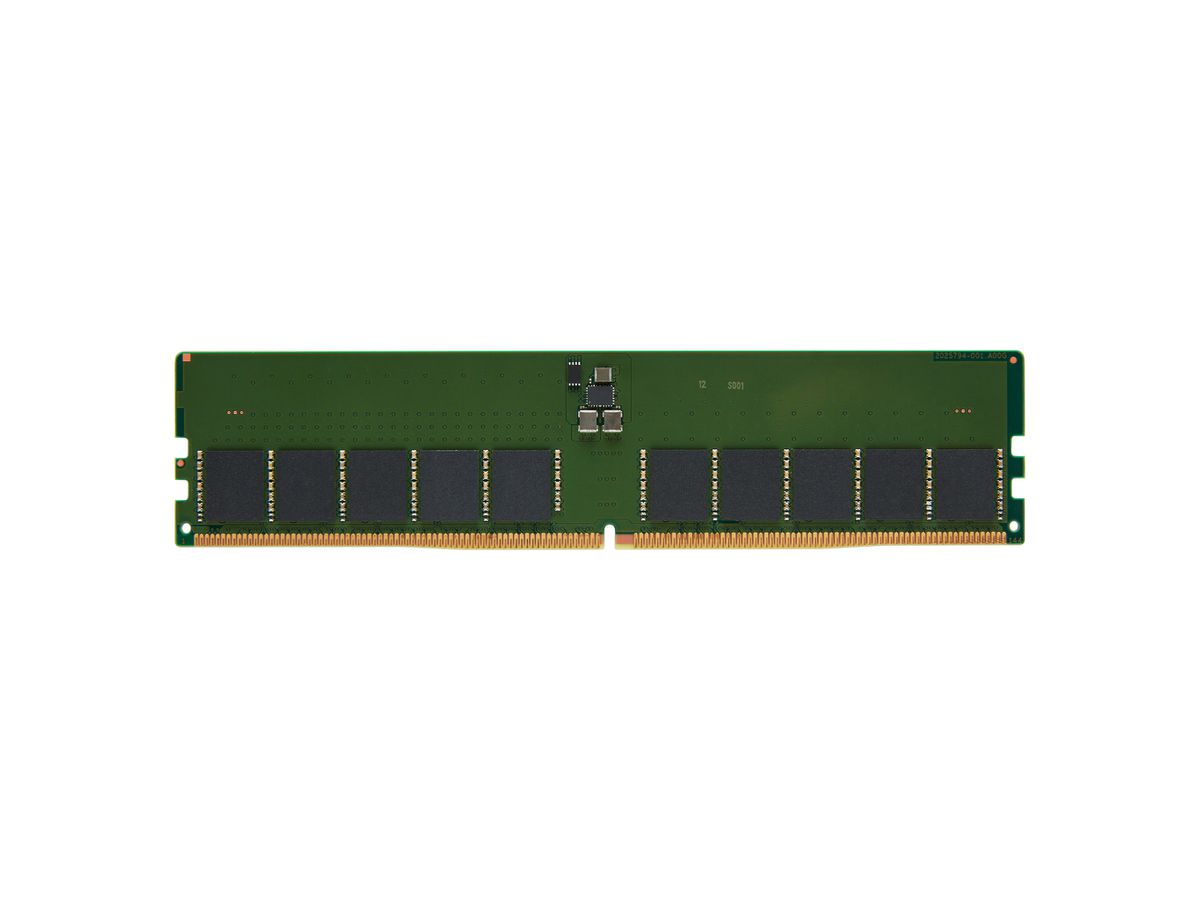

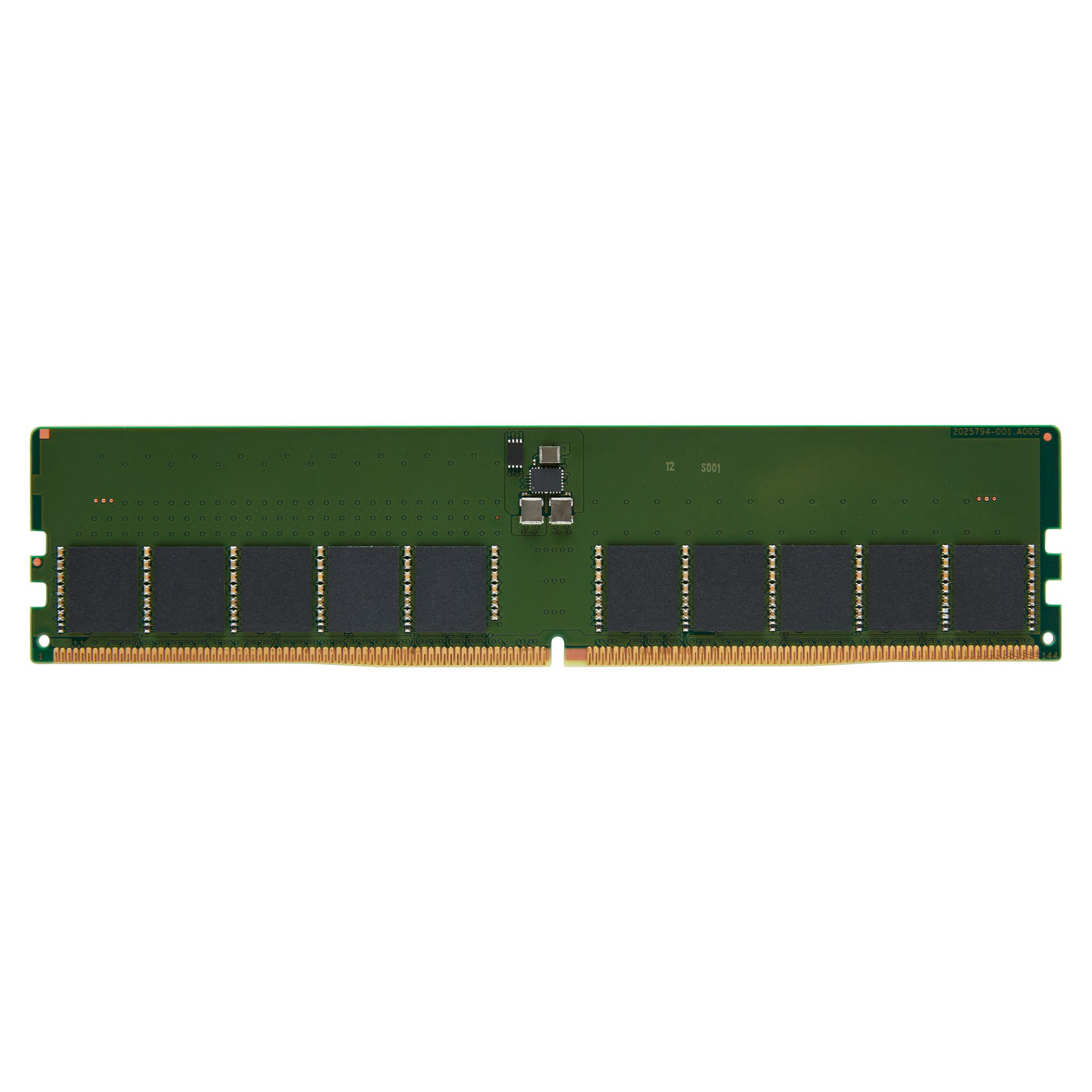

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 5600 MHz ECC
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 528042465 |
|---|---|
| Brand / Manufacturer | KINGSTON TECHNOLOGY |
| Manuf. item no. | KSM56E46BD8KM-32HA |
| EAN | 0740617336023 |
:strip_icc():strip_exif()/logos/kingston-technology.png "KINGSTON TECHNOLOGY")
Description
Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green
Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
| Manufacturer | KINGSTON TECHNOLOGY |
|---|---|
| Product type | Memory Modules |
| Storage capacity | 32 GB |
Weight & dimensions
| Width | 133.3 mm |
|---|---|
| Height | 31.2 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 95 °C |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
Features
| Internal memory | 32 GB |
|---|---|
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR5 |
| Memory clock speed | 5600 MHz |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC | Yes |
| CAS latency | 46 |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Product colour | Black, Green |
| Lead plating | Gold |
| JEDEC standard | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
