METZ CONNECT 19"-Panel 1HE bestückt mit 24 C6A Modulen Kat.6A (Class EA)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26110643
Brand / Manufacturer	METZ CONNECT
Manuf. item no.	130B11P0-E
EAN	4250184131601
Item weight	1.314 kg

Description

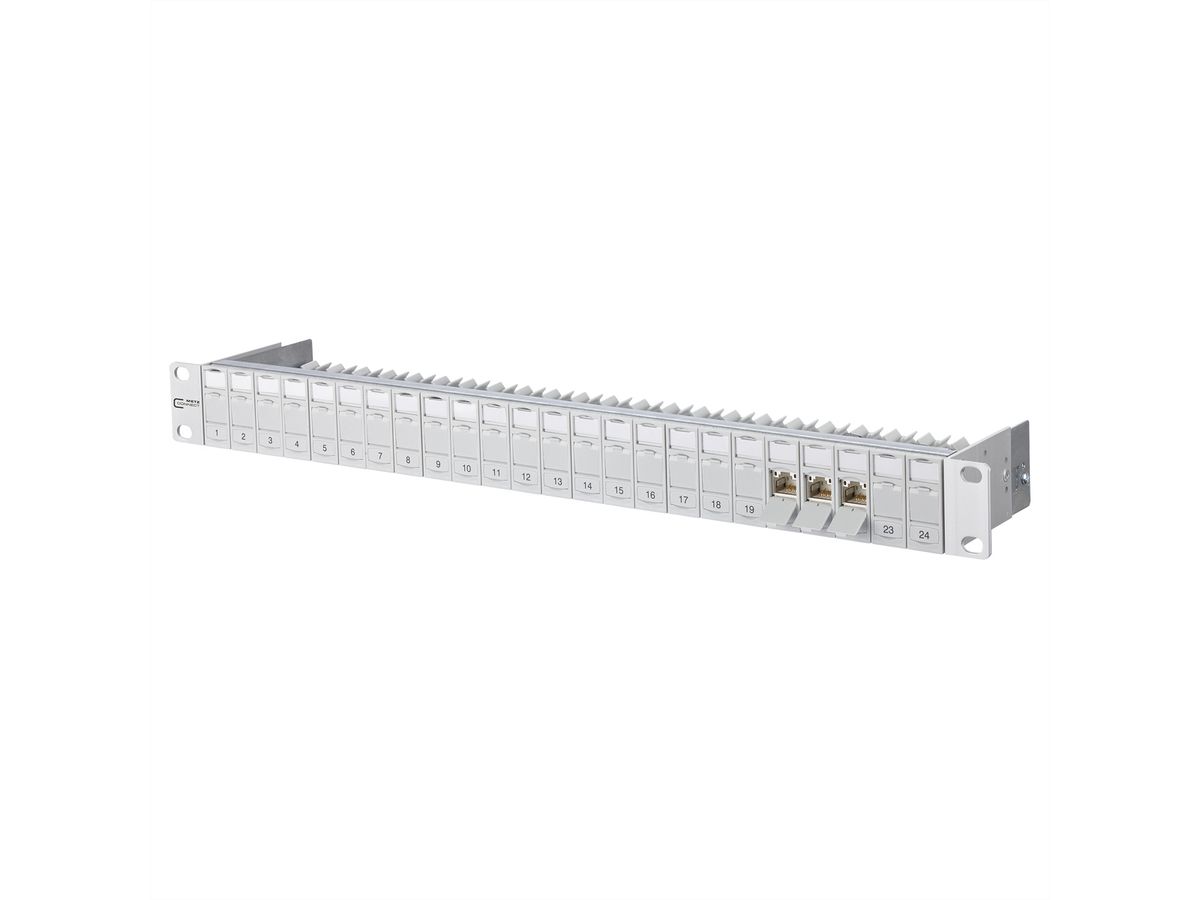

19''-Patchfeld 1 HE bestehend aus einem Modulträger und 24 einzelgeschirmten RJ45-Modulen - C6Amodul 180°

GHMT Cat.6A re-embedded PVP zertifiziert; Cat.6A Komponentenprüfung nach ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) und IEC 60603-7-51 Ed.1 (12/2008)
Komponente getestet bis 600 MHz, Link bis 800 MHz - für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
Anschluss von Datenleitungen AWG 26/1 - 22/1 (massiv) und AWG 26/7 bis 22/7 (Litze) an IDC-Schneidklemmen
Integrierte Kabelabfangung, zusätzliche Zugentlastung möglich
Erdungsbolzen M6 x 10 mit Mutter und Zahnscheibe, inkl. 30 cm Erdungskabel
Alle vollgeschirmten Module sind mittels Erdungsschiene verbunden

Specifications

Manufacturer	METZ CONNECT
Product group	Anschlusstechnik TP
Product type	Patchpanel Cat.6A / Class EA
Colour	grey
Scope of delivery	Moduledrager incl. 24 C6A-modules
Shield type	geschirmt
Transfer quality	Cat6A / Class EA
Cabinet system	19"-Technik
Quantity of ports	24
Modular assembly	ja
Material (casing)	Plaatstaal
Shield contacts	ja
separate strain relief	ja
Connection direction	gerade

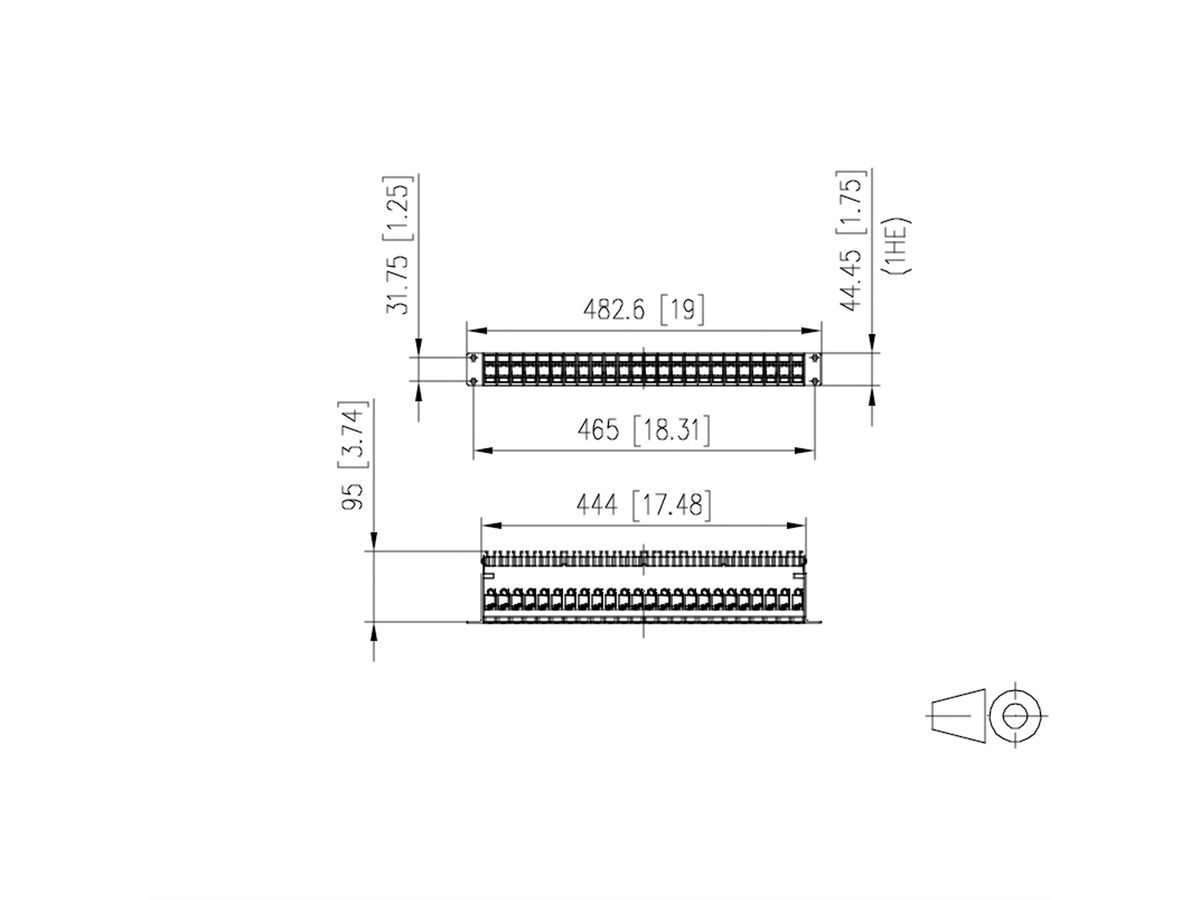

Dimensions (HxWxD)	44,45 x 482,6 x 95
Assembly depth	95 mm
Technical particularity	Montage zonder gereedschap
RAL colour	RAL 7035 Lichtgrau
Height	43.6 mm
Width	482.6 mm
Depth	100 mm
Weight	1260 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	200 mm
Depth of packaging (single piece)	530 mm
Package weight (single piece)	1.314 kg

Downloads

Manufacturer data sheet - English (433.9 KB)

Download

Manufacturer data sheet - Deutsch (434.1 KB)

Download
