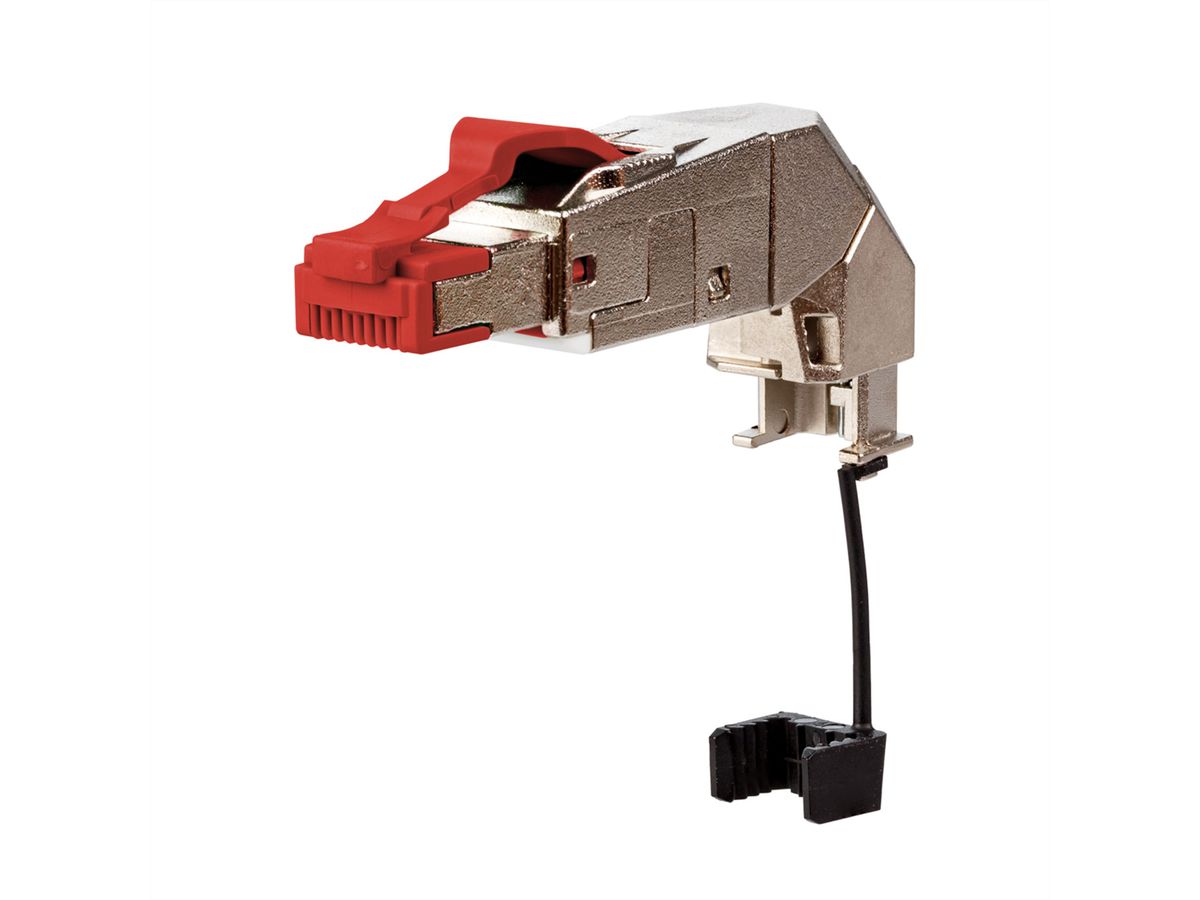

METZ CONNECT 25G RJ45 field plug pro 360

METZ CONNECT 25G RJ45 field plug pro 360

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 26110764
Brand / Manufacturer METZ CONNECT
Manuf. item no. 130G405042-E
EAN 4251394618562
Item weight 0.034 kg

Description

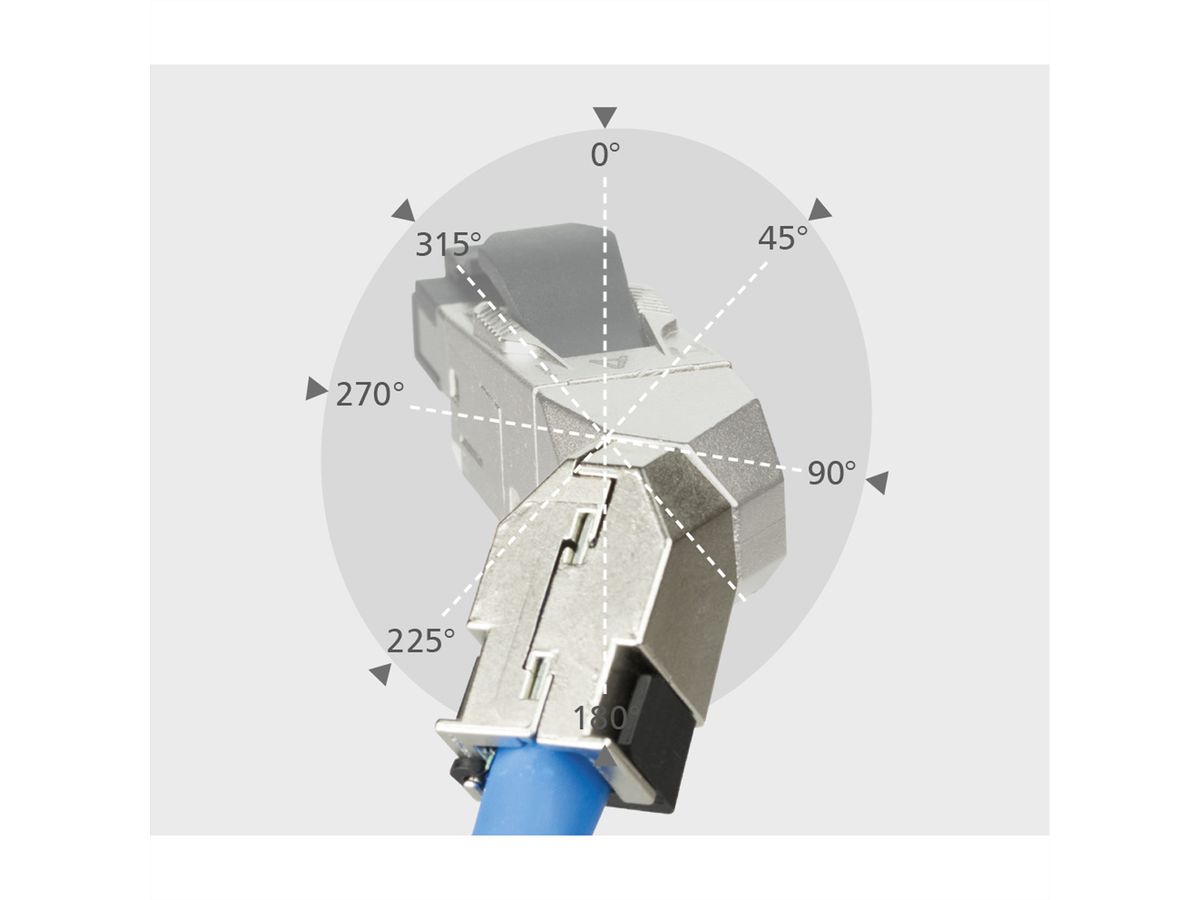

25G RJ45 field plug pro 360, feldkonfektionierbarer RJ45-Stecker bis 1250 MHz, vollgeschirmt und multiportfähig, Kabelzuführung variabel, frei wählbar (360°)

  • einfachste Konfektion - ohne Spezialwerkzeug anschließbar
  • Adernanschluss Litzenleiter AWG 27/7 - 22/7, Aderdurchmesser 0,43 - 0,76 mm
  • Adernanschluss Vollader AWG 26/1 - 22/1, Aderdurchmesser 0,409 - 0,64 mm
  • Übertragungstechnische Eigenschaften nach ISO/IEC 11801 (bis 1250 MHz)
  • 25GBASE-T für 25 Gbit Ethernet (IEEE 802.3bq), Remote Powering (PoE, PoE plus, UPoE und 4PPoE) und HDBaseT geeignet
  • Schutzart IP20
  • geeignet für Kabelmanteldurchmesser von 5,5 bis 10,5 mm
  • 2-teiliges, industrietaugliches Gehäuse aus Zinkdruckguss
  • Zugentlastung per Rastclip direkt am Ladestück
  • geschützter Verriegelungshaken
  • wiederanschließbar

Specifications

Manufacturer METZ CONNECT
Product group Netzwerkkomponenten
Product type Stecker und Buchsen für Netzwerkverkabelung
Colour silver
Shield type geschirmt
Protection class (IP Code) IP20
Operating temperature min. -40 °C
Operating temperature max. 85 °C

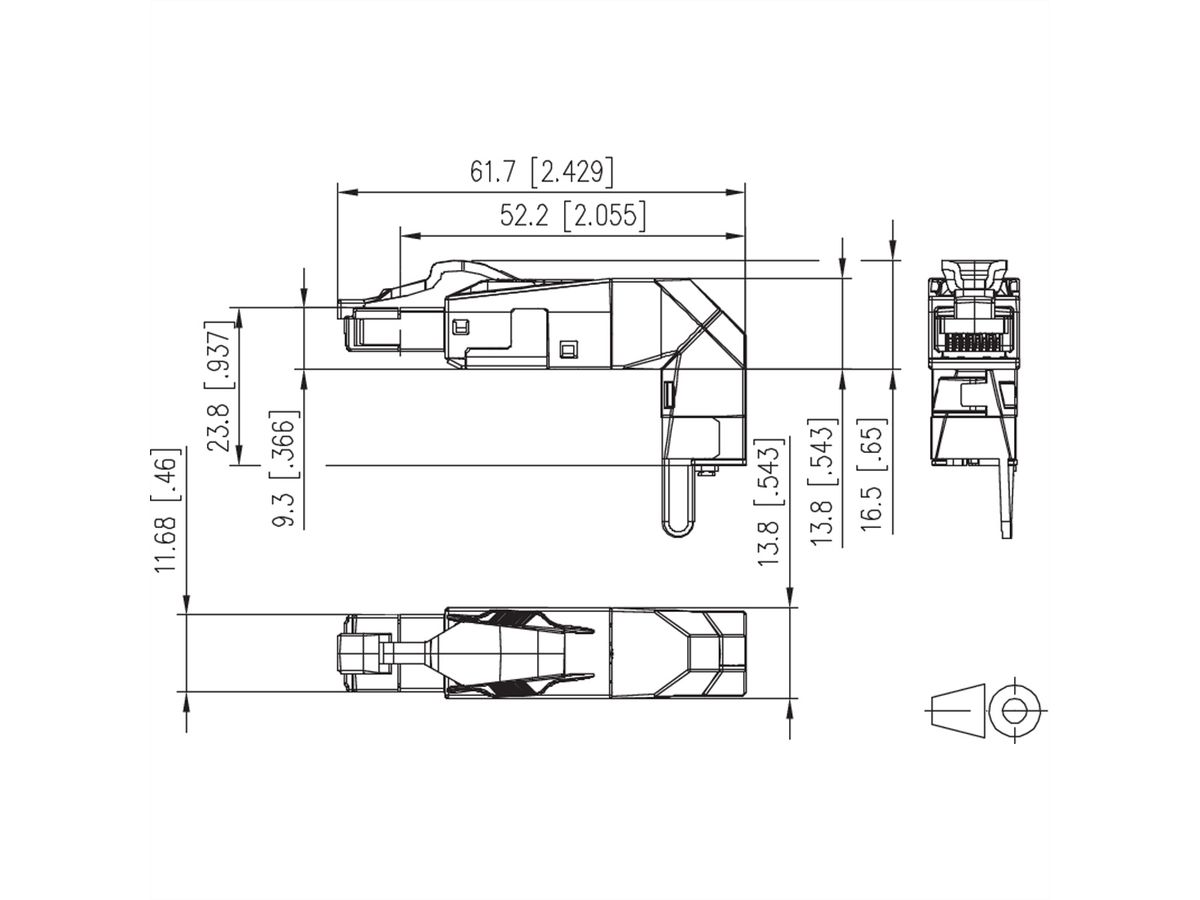

Height 16.5 mm
Width 13.8 mm
Depth 49.8 mm
Weight 33 g
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 100 mm
Depth of packaging (single piece) 180 mm
Package weight (single piece) 0.034 kg

Downloads

Manufacturer data sheet - English (636.6 KB)

Download

Manufacturer data sheet - Deutsch (636.7 KB)

Download



The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

METZ CONNECT GmbH
Im Tal 2, 78176 Blumberg, Germany
