METZ CONNECT E-DAT modul Cat.6A K Jack - Keystone

METZ CONNECT E-DAT modul Cat.6A K Jack - Keystone

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 26110758
Brand / Manufacturer METZ CONNECT
Manuf. item no. 130910KI
EAN 4250184181002
Item weight 0.026 kg

Description

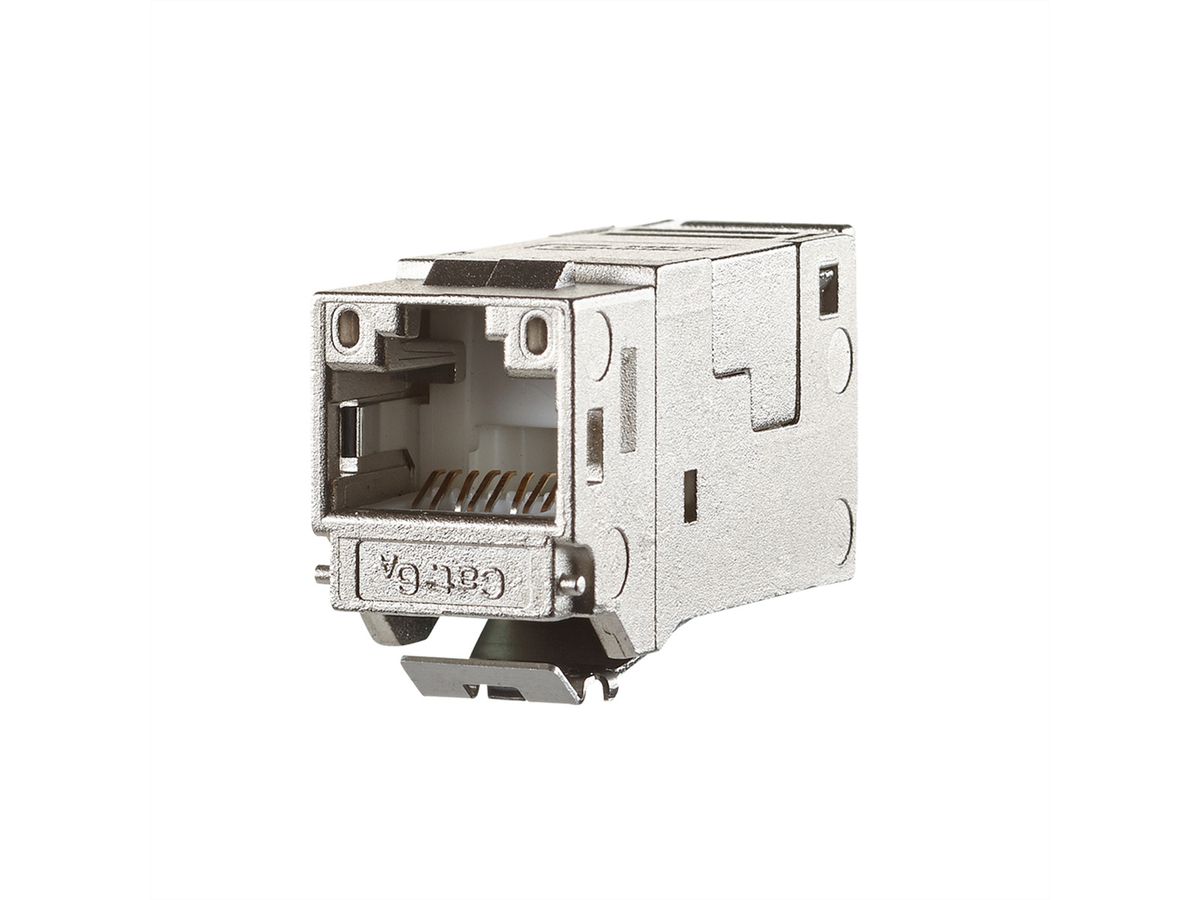

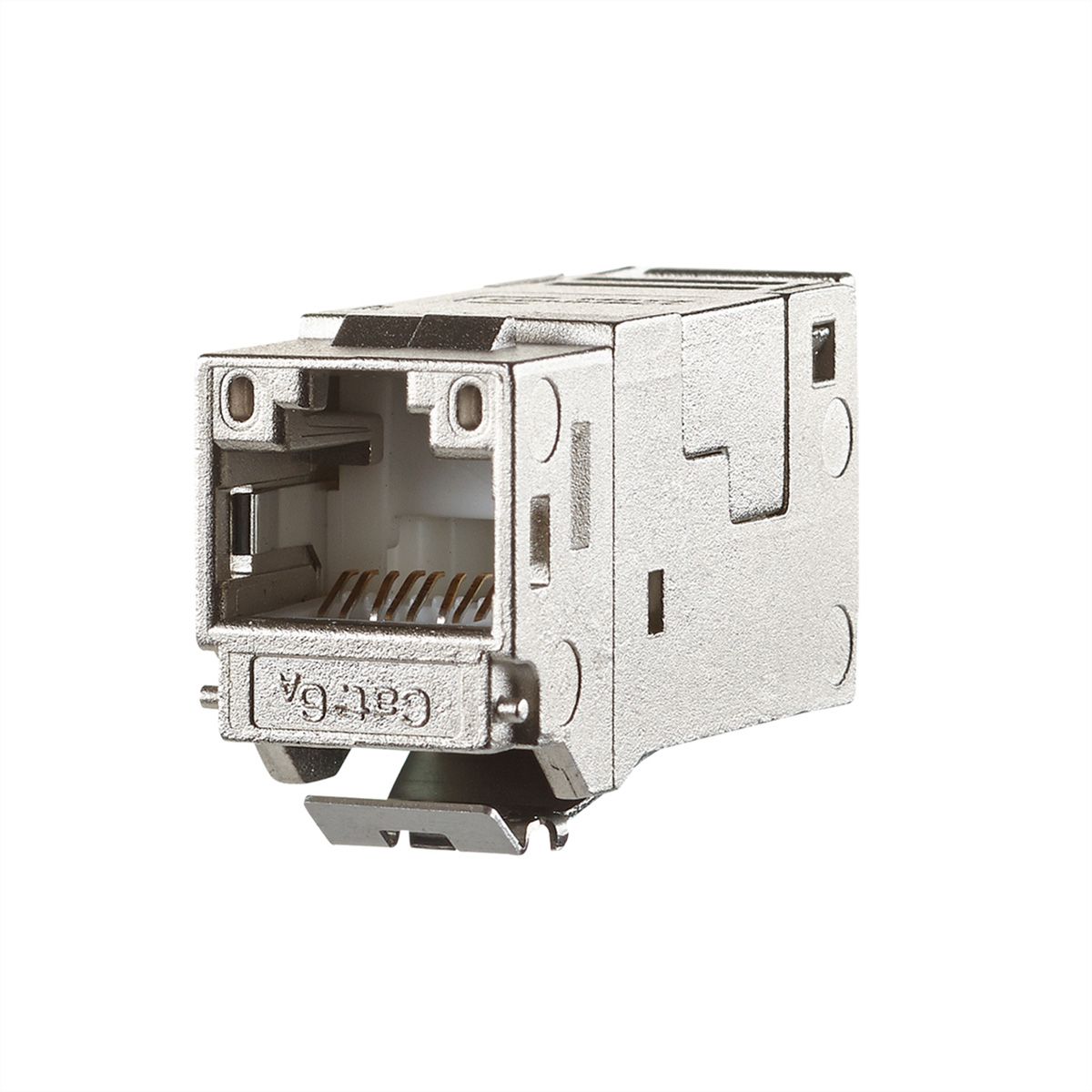

E-DAT modul Cat.6A K Jack - Keystone, modulare Anschlusseinheit Cat.6A, RJ45

  • Cat.6A Komponentenprüfung nach ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D und IEC 60603-7-51, GHMT zertifiziert
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • getestet: Link bis 500 MHz
  • für 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE und 4PPoE) und HDBaseT geeignet

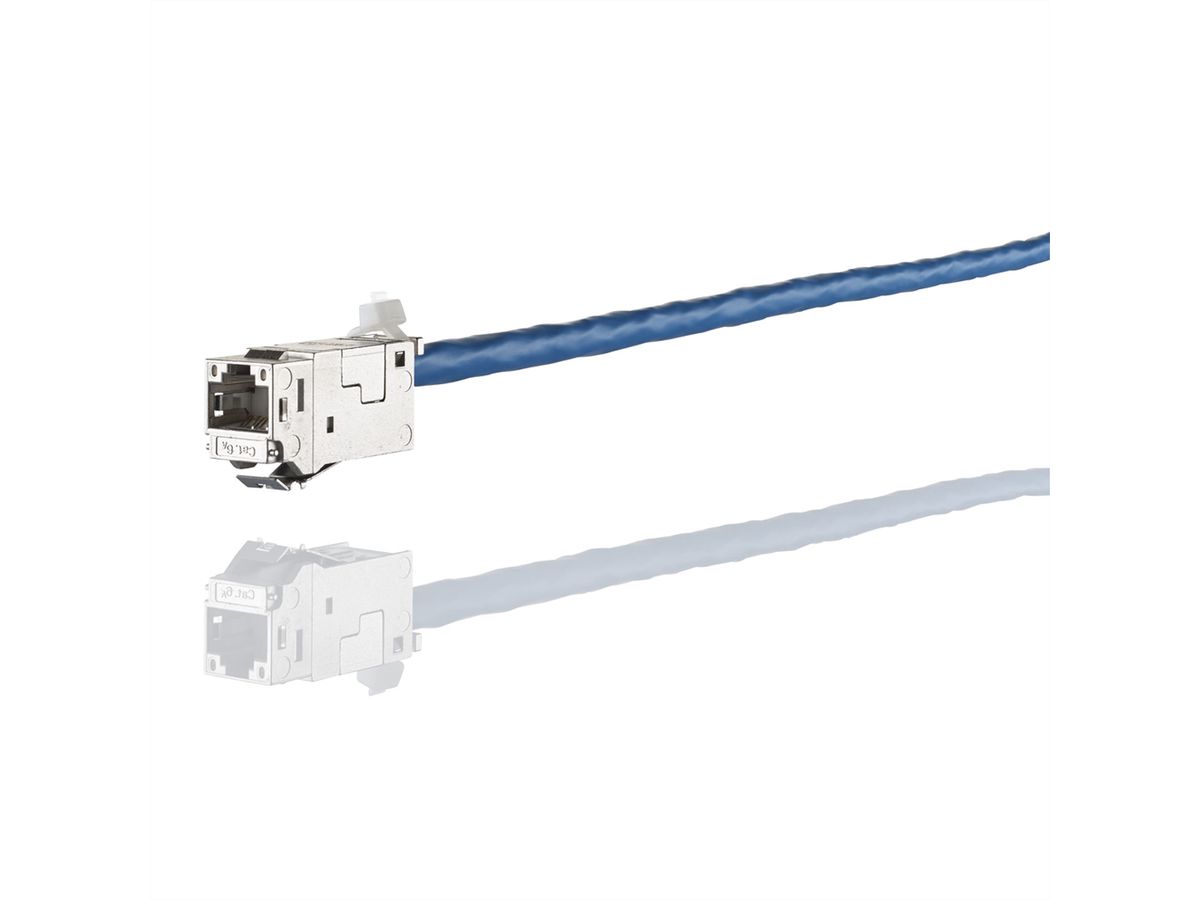

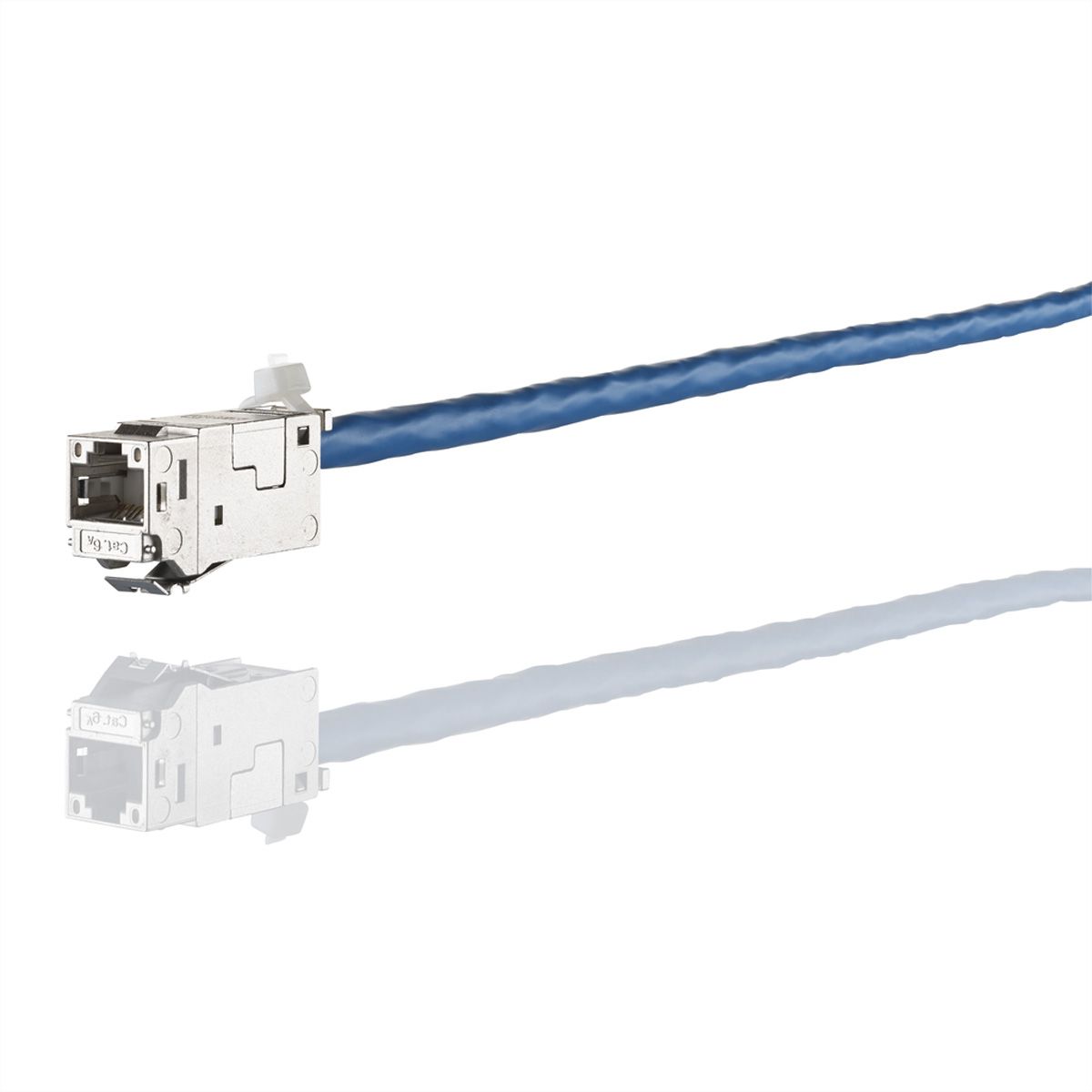

  • montagefreundlicher Anschluss der 2- bis 4-paarigen Datenleitung AWG 26/1 - 22/1 (eindrähtig) und Litzenleiter mit 7-drähtiger Cu-Litze AWG 26/7 - 22/7 (mehrdrähtig) an IDC-Schneidklemmen

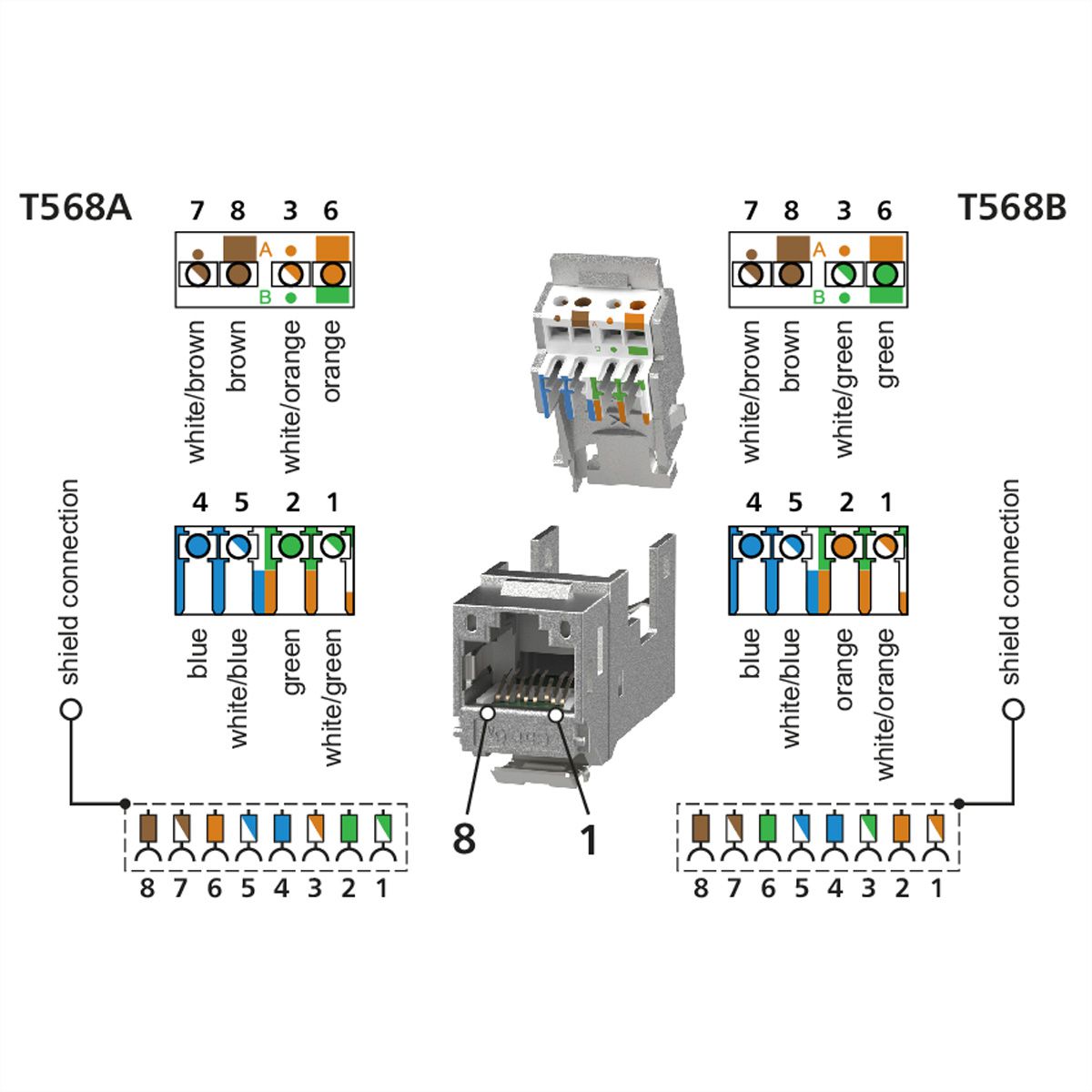

  • Kennzeichnung der Adernbelegung T568A und T568B
  • leichtes und schnelles Einlegen der Adernpaare in das E-DAT modul Ladestück
  • Modulgehäuse aus Zinkdruckguss, veredelt
  • Montage ohne Spezialwerkzeug
  • Zugentlastung mit Kabelbinder am Modul
  • Einbauform: Keystone
  • Kabelzuführung 180°
  • Lieferung in einer 10er Verpackung

Specifications

Manufacturer METZ CONNECT
Product group Netzwerkkomponenten
Product type Stecker und Buchsen für Netzwerkverkabelung
Colour silver
Scope of delivery E-DAT module Cat.6A, 10 stuks
Transfer quality Cat6A / Class EA
Operating temperature min. -40 °C
Operating temperature max. 70 °C

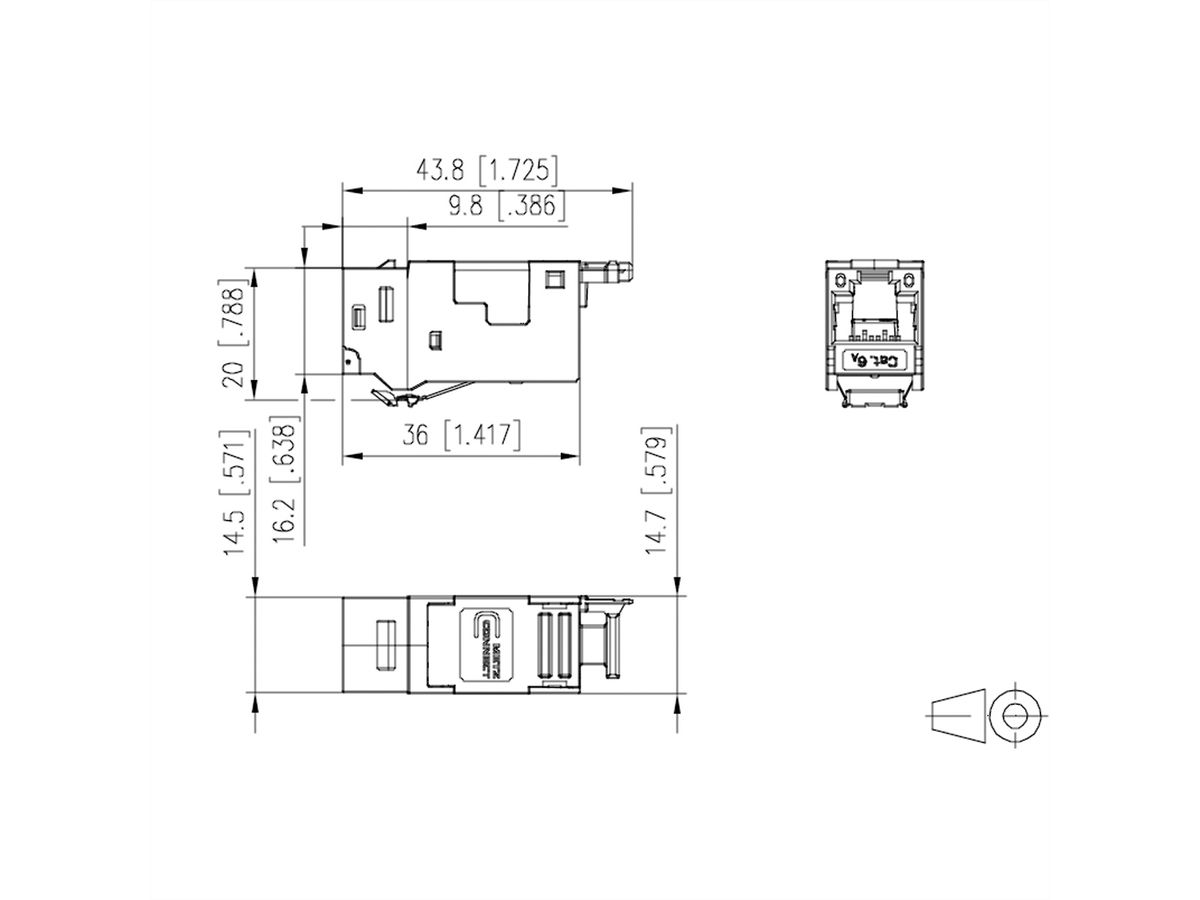

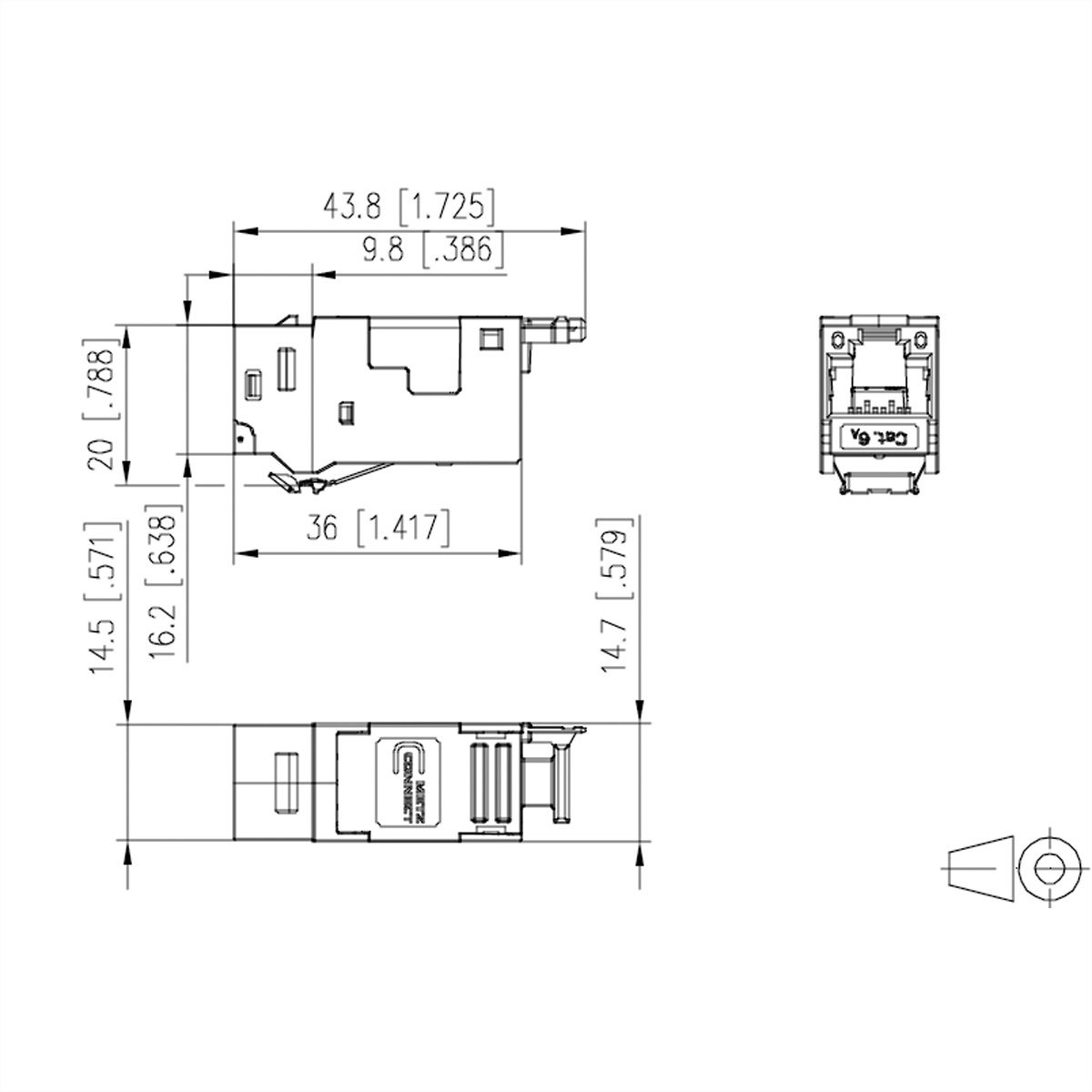

Height 22.4 mm
Width 14.7 mm
Depth 43.85 mm
Weight 26 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 100 mm
Package weight (single piece) 0.026 kg
