METZ CONNECT E-DAT modul Kupplung 8(8) 90° Klasse EA

METZ CONNECT E-DAT modul Kupplung 8(8) 90° Klasse EA

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21173109
Brand / Manufacturer METZ CONNECT
Manuf. item no. 1309A1-I
EAN 4250184106623
Item weight 0.03 kg

Description

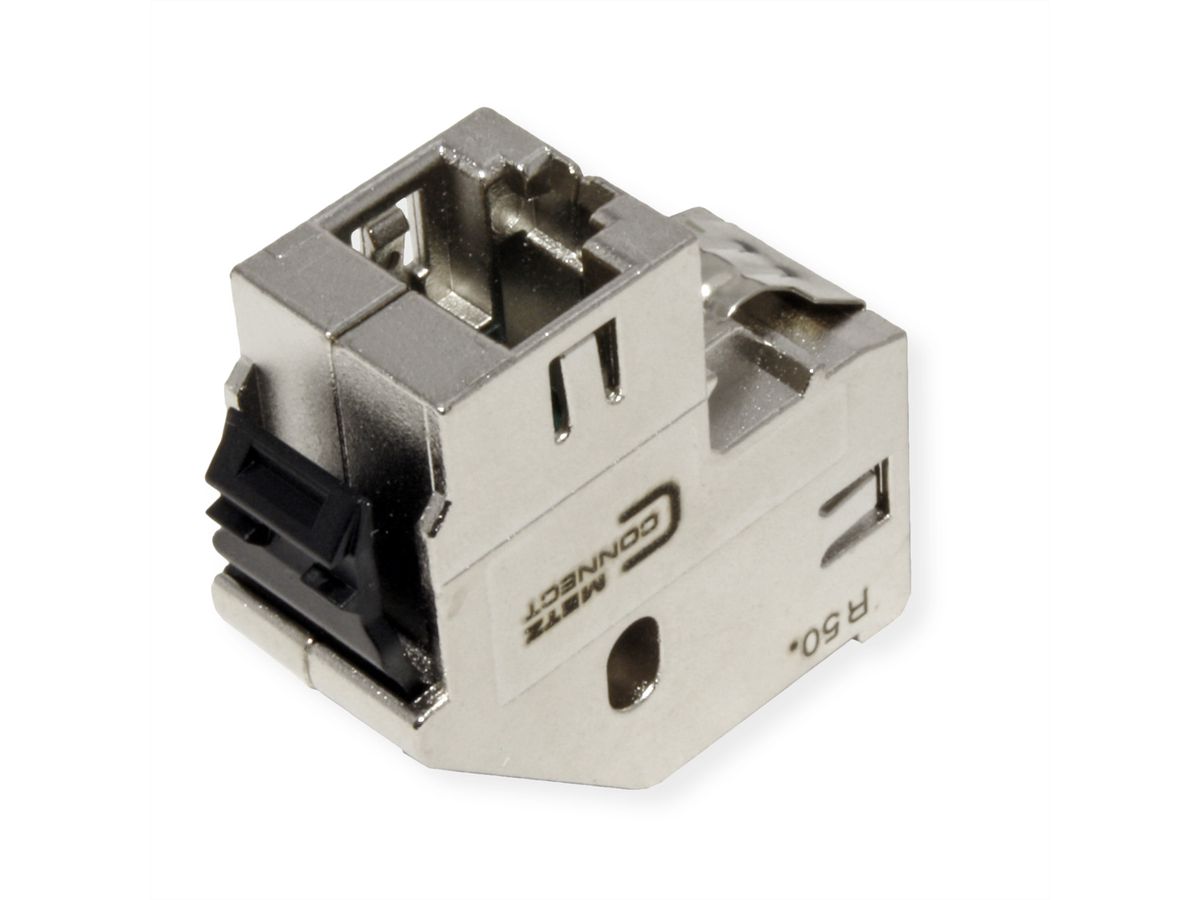

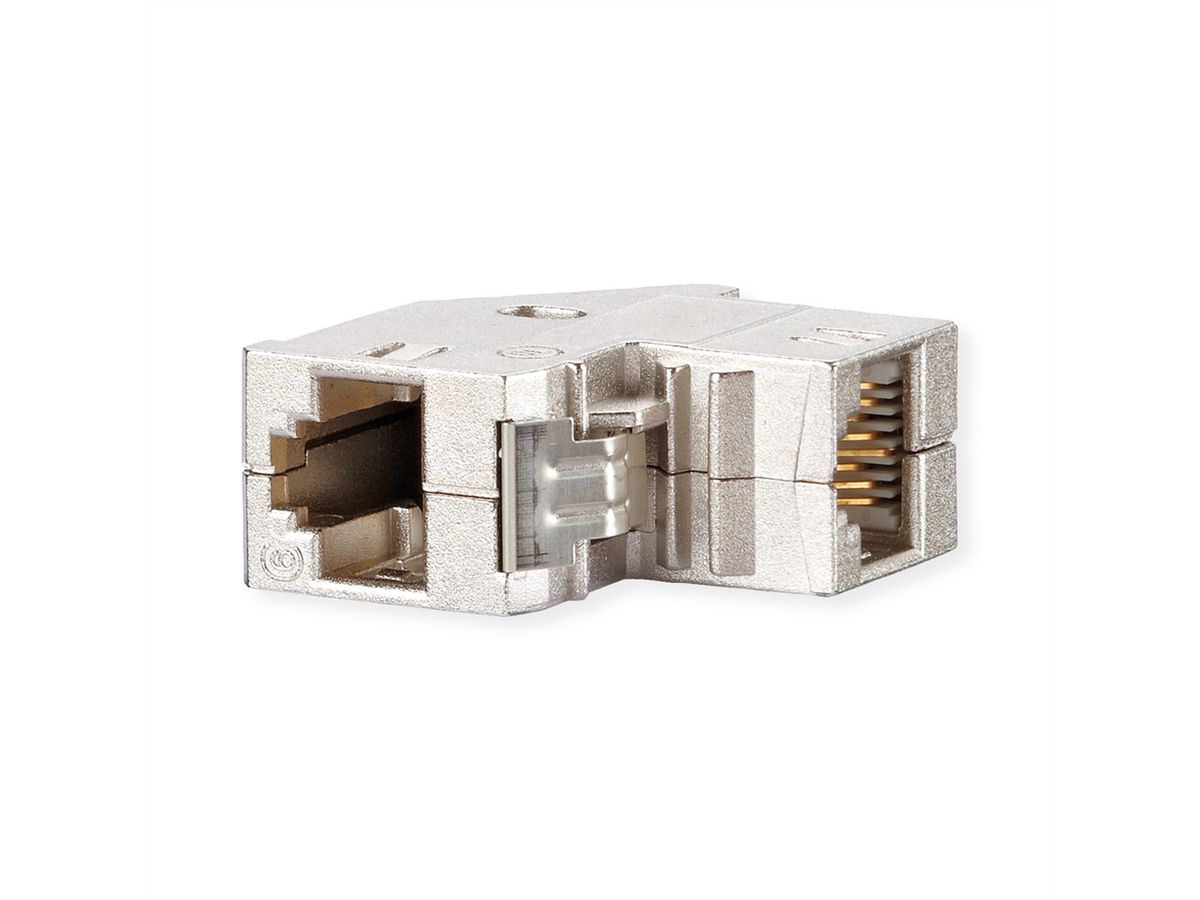

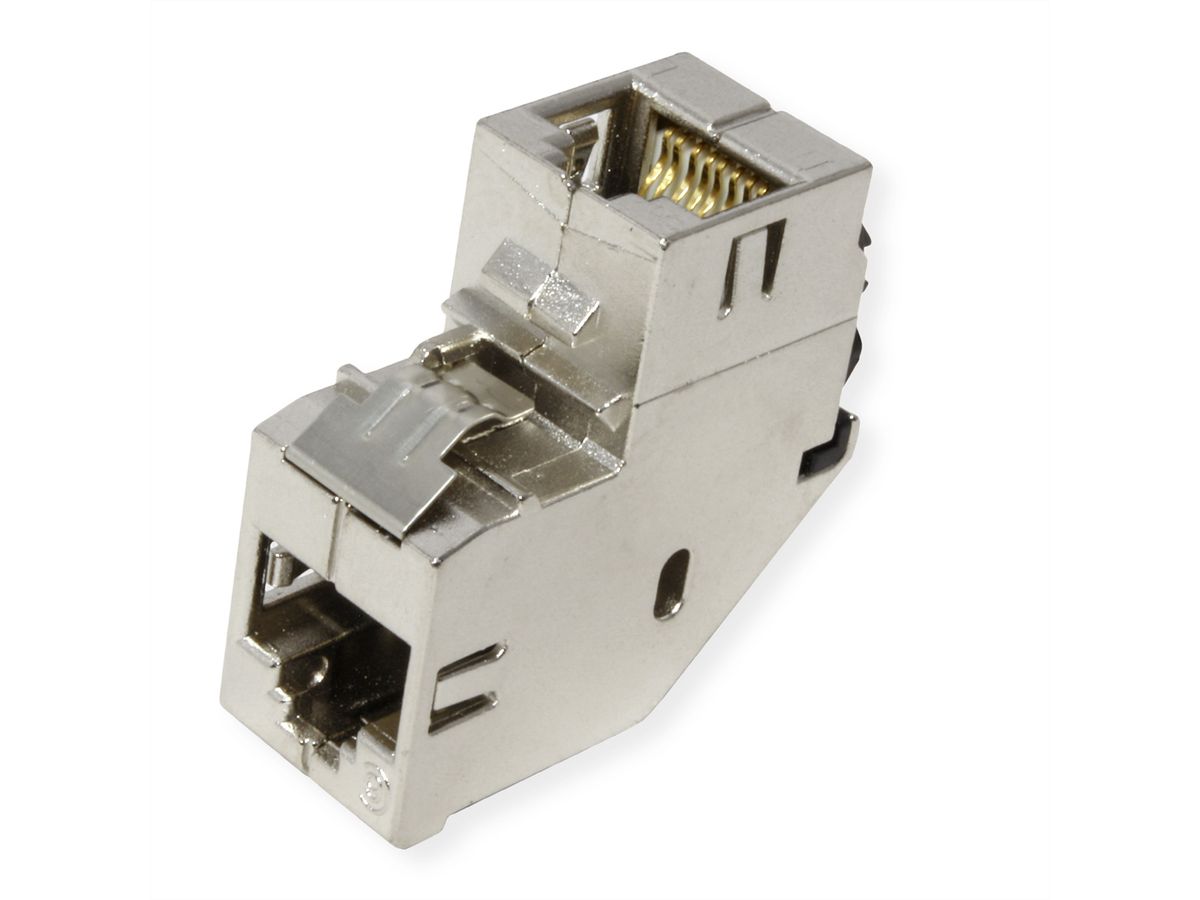

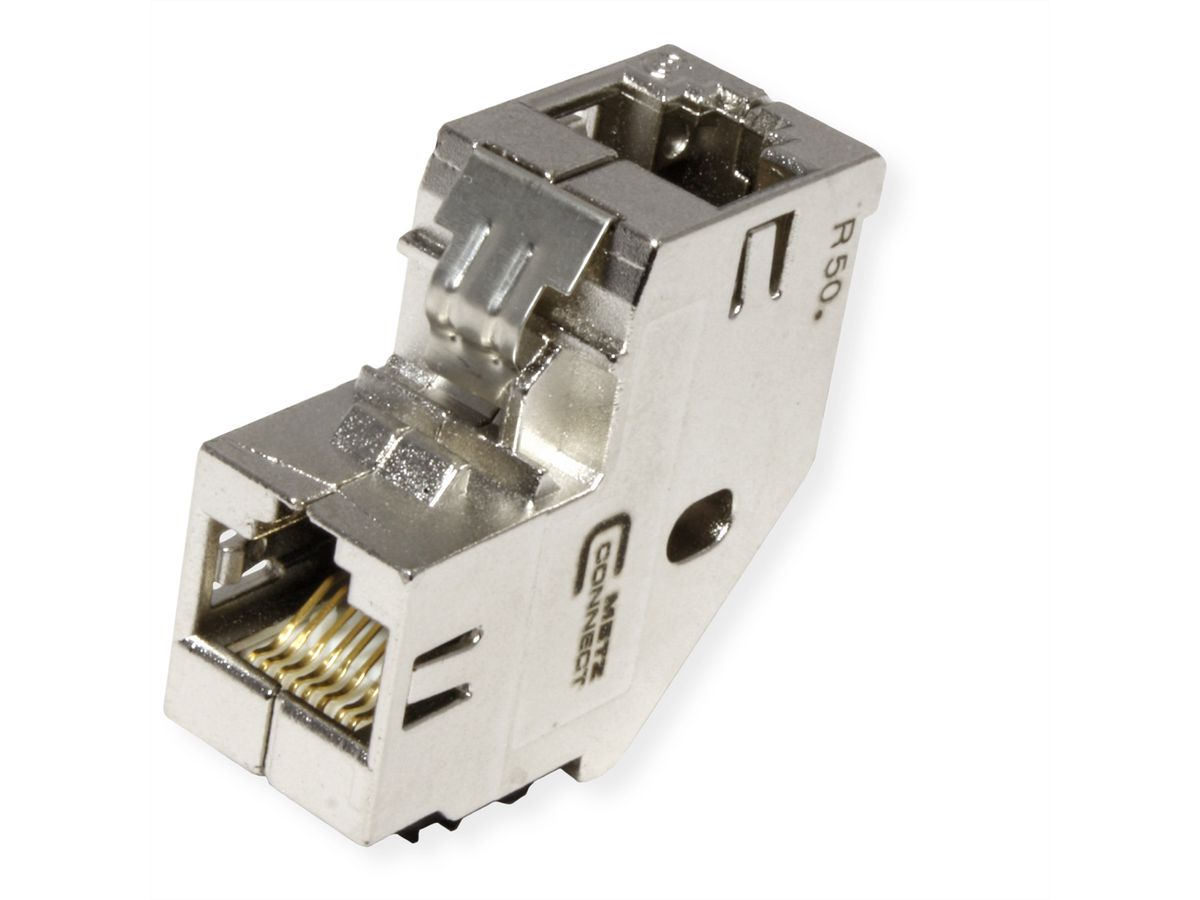

E-DAT modul Kupplung 8(8) 90° Klasse EA - RJ45 Kabelkupplung

  • RJ45 Kabelkupplung Klasse EA
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
  • vollgeschirmte 90° Kupplung aus Zinkdruckguss, veredelt
  • besonders geeignet für Consolidation Points und Cross-Connect Verkabelungen
  • 2 Einbauformen in einer Kupplung, zum Einbau in Modul- oder Keystone-Applikationen

Specifications

Manufacturer METZ CONNECT
Product group Netzwerkkomponenten
Product type Industrial Networking
Colour silver
Shield type geschirmt
Transfer quality Cat6A / Class EA
Side 1 Connector Type RJ-45
Side 1 Connector Gender Weiblich (Buchse)
Side 2 Connector Type RJ-45
Side 2 Connector Gender Weiblich (Buchse)
Modular assembly ja
Operating temperature min. -40 °C
Operating temperature max. 70 °C
Height 4.9 cm
Width 14 cm
Depth 18 cm
Weight 30 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 70 mm
Depth of packaging (single piece) 80 mm
Package weight (single piece) 0.03 kg

Downloads

Manufacturer data sheet - Deutsch (1.1 MB)

Download

Manufacturer data sheet - English (1.1 MB)

Download



The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.
