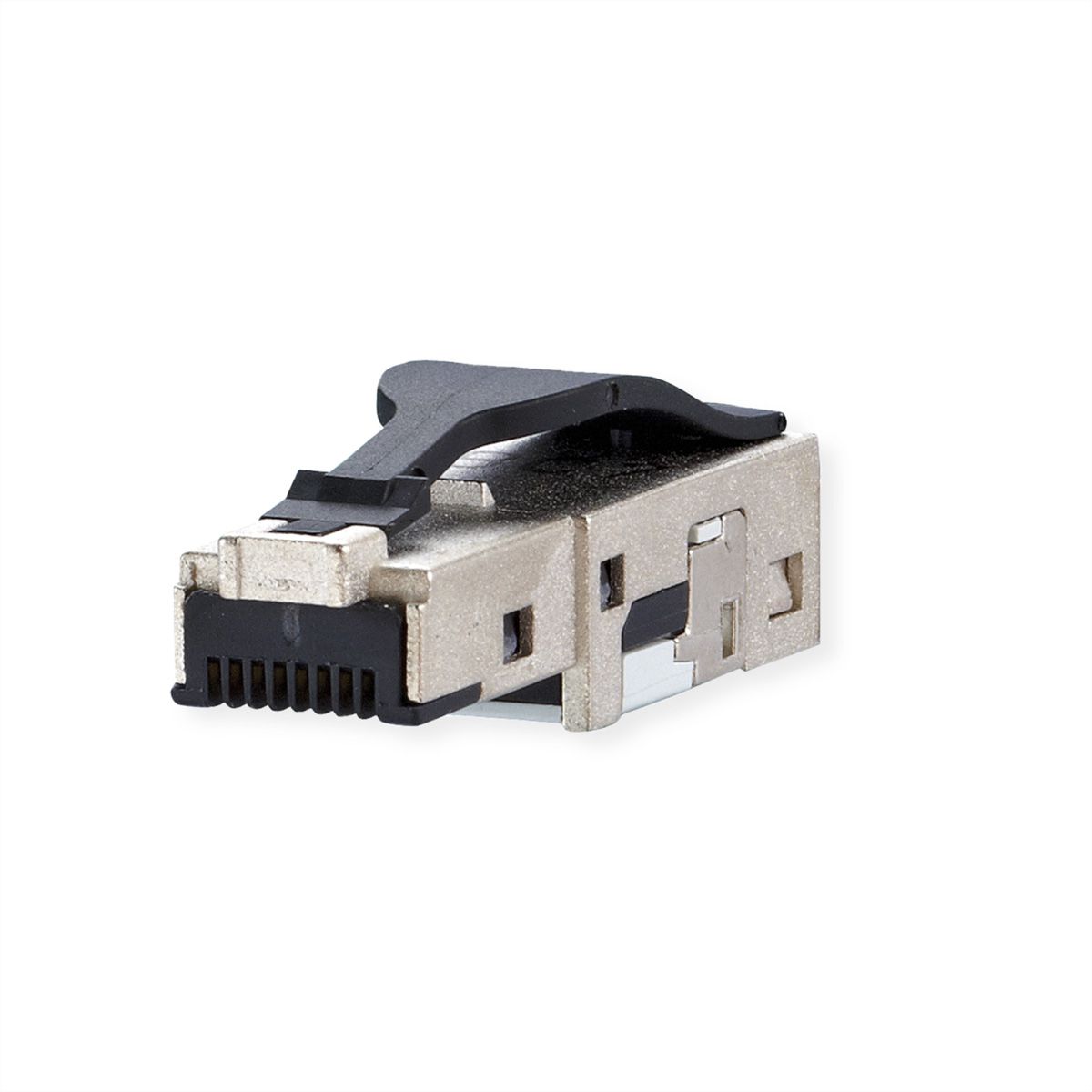

METZ CONNECT E-DAT RJ45 field plug short Cat.6 Class EA

METZ CONNECT E-DAT RJ45 field plug short Cat.6 Class EA

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/06/2024
Item no. 21173110
Brand / Manufacturer METZ CONNECT
Manuf. item no. 1401400812-E
EAN 4251394609881
Item weight 0.014 kg

Description

E-DAT RJ45 field plug short Cat.6 Class EA - feldkonfektionierbarer Cat.6 Klasse EA Stecker

  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE und 4PPoE) und HDBaseT geeignet
  • 8-adriger feldkonfektionierbarer RJ45-Stecker für AWG 22
  • Anschluss von AWG 26/7 - 22/7, AWG 26/1 - 22/1 möglich
  • Volldraht Cu-Leiterdurchmesser 0,409 - 0,64 mm
  • Litze Cu-Leiterdurchmesser 0,48 - 0,76 mm
  • Aderdurchmesser bis 1,6 mm
  • Kabelmantel von 5,5 bis 8,5 mm
  • besteht nur aus nur 2 Teilen
  • einfachste Konfektion - ohne Spezialwerkzeug anzuschließen
  • industrietaugliches Zinkdruckgussgehäuse
  • mit Verriegelungshaken

Specifications

Manufacturer METZ CONNECT
Product group Netzwerkkomponenten
Product type Industrial Networking
Colour multicolored
Shield type geschirmt
Transfer quality Cat6A / Class EA
Halogen free ja
Operating temperature min. -40 °C
Operating temperature max. 70 °C
Height 4.9 cm
Width 14 cm
Depth 18 cm
Weight 14 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0.014 kg

Downloads

Manufacturer data sheet - Deutsch (206.4 KB)

Download

Manufacturer data sheet - English (206.3 KB)

Download
