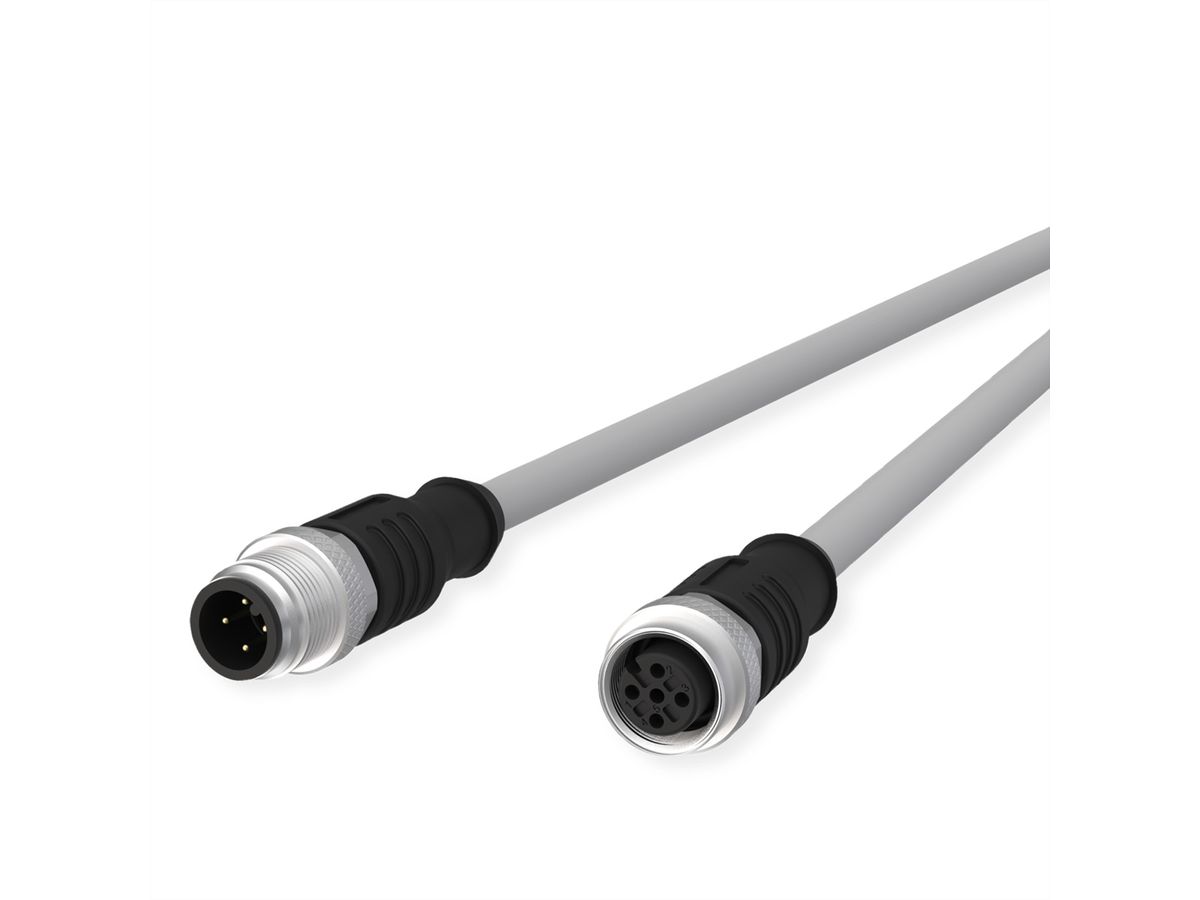

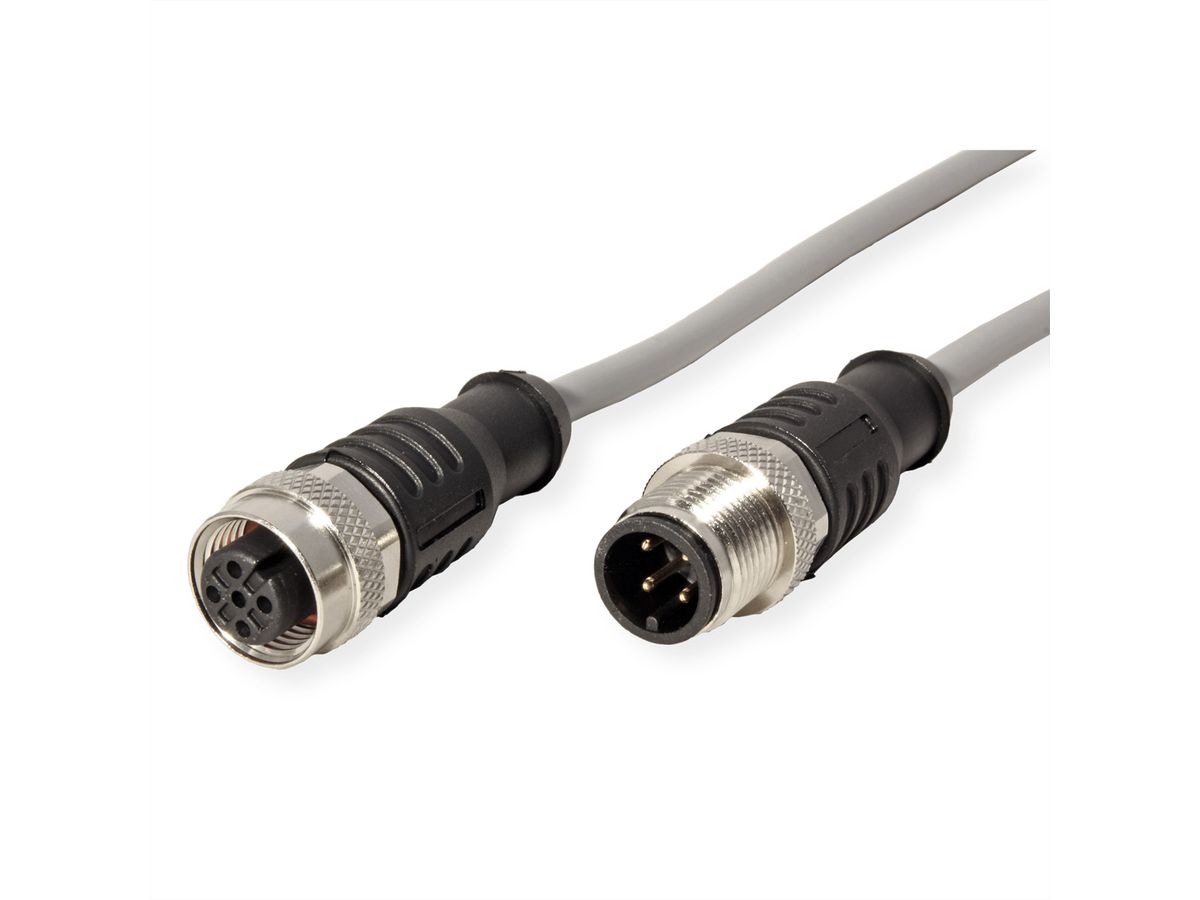

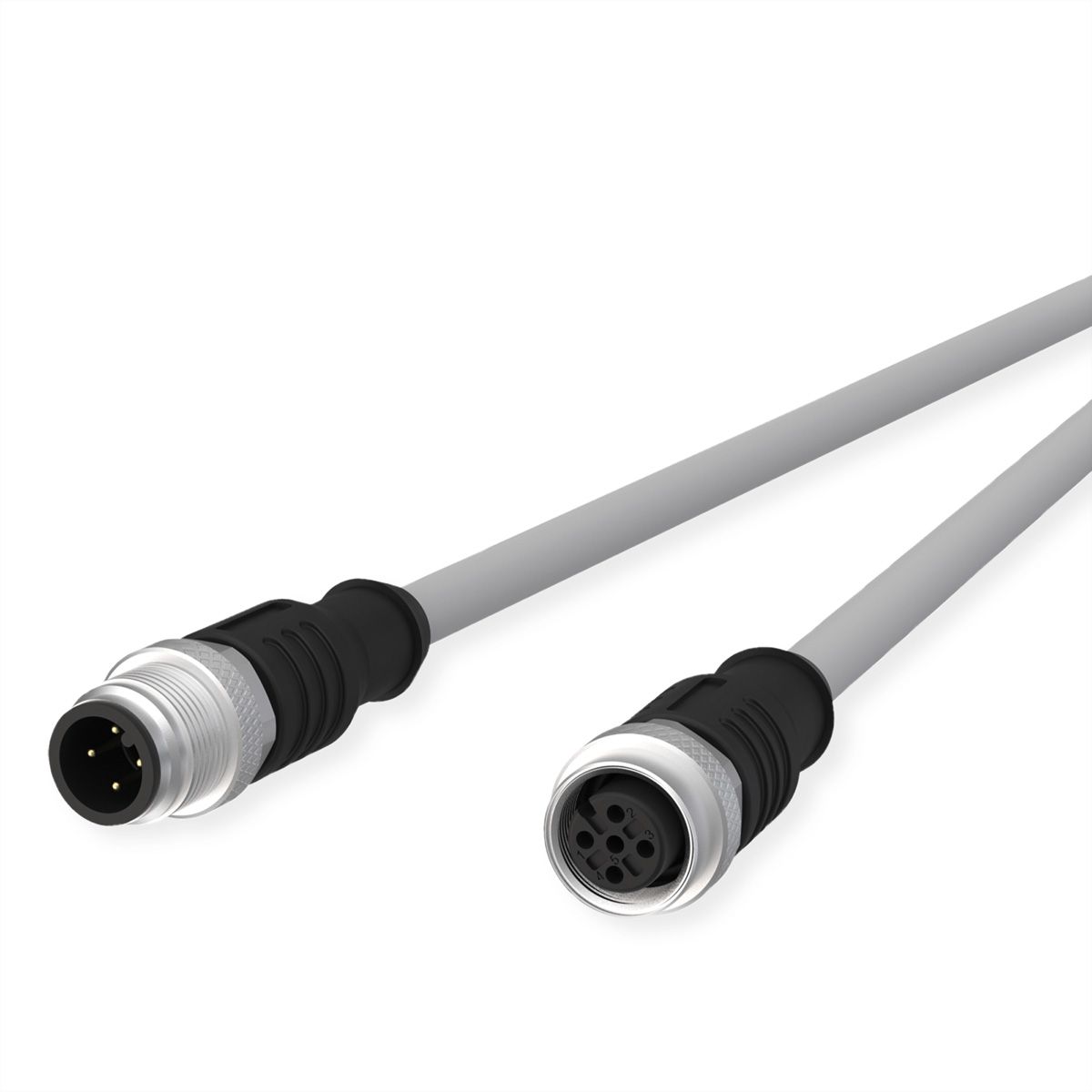

METZ CONNECT M12 Sensor-/Aktorleitung, A-kodiert, M12 Stecker gerade - M12 Buchse gerade, grau, 5 m

METZ CONNECT M12 Sensor-/Aktorleitung, A-kodiert, M12 Stecker gerade - M12 Buchse gerade, grau, 5 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/06/2024
Item no. 21168901
Brand / Manufacturer METZ CONNECT
Manuf. item no. 142MIA12050
EAN 4251394648507
Item weight 0.218 kg
Colour
Length

Description

M12 Sensor-/Aktorleitung, A-kodiert, M12 Stecker gerade - M12 Buchse gerade, ungeschirmt, 4-polig, PVC

PVC-Kabel für den Einsatz in der Regelungs-, Steuertechnik und Sensorik. Geeignet für die Verwendung im Trockenbereich bei Verpackungsmaschinen und Montage- und Fördertechnik. Hohe Flexibilität bei unbelasteter Bewegung (bedingter Schleppketteneinsatz möglich). Prädestiniert für die Verwendung in der Lebensmittel- und Getränkeindustrie. Besondere Eigenschaften: seewasserbeständig, recyclefähig, LABS-frei, RoHs-konform, säure- und laugenbeständig, ozonbeständig, UV-beständig.

Specifications

Manufacturer METZ CONNECT
Product group Netzwerkkomponenten
Product type Industrial Networking
Colour grey
Length 5 m
Shield type ungeschirmt
Side 1 Connector Type M12-A
Side 1 Connector Gender Männlich (Stecker)
Side 2 Connector Type M12-A
Side 2 Connector Gender Weiblich (Buchse)
Suitable for cable guide chain ja
Halogen free ja
Protection class (IP Code)
  • IPX5
  • IPX7
  • IPX8
Operating temperature min. -25 °C
Operating temperature max. 80 °C
Height 3 cm
Width 25 cm
Depth 37 cm
Weight 203 g
Height of packaging (single piece) 370 mm
Width of packaging (single piece) 250 mm
Depth of packaging (single piece) 30 mm
Package weight (single piece) 0.218 kg

Downloads

Manufacturer data sheet - Deutsch (2.2 MB)

Download

Manufacturer data sheet - English (2.2 MB)

Download



The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.
