Description

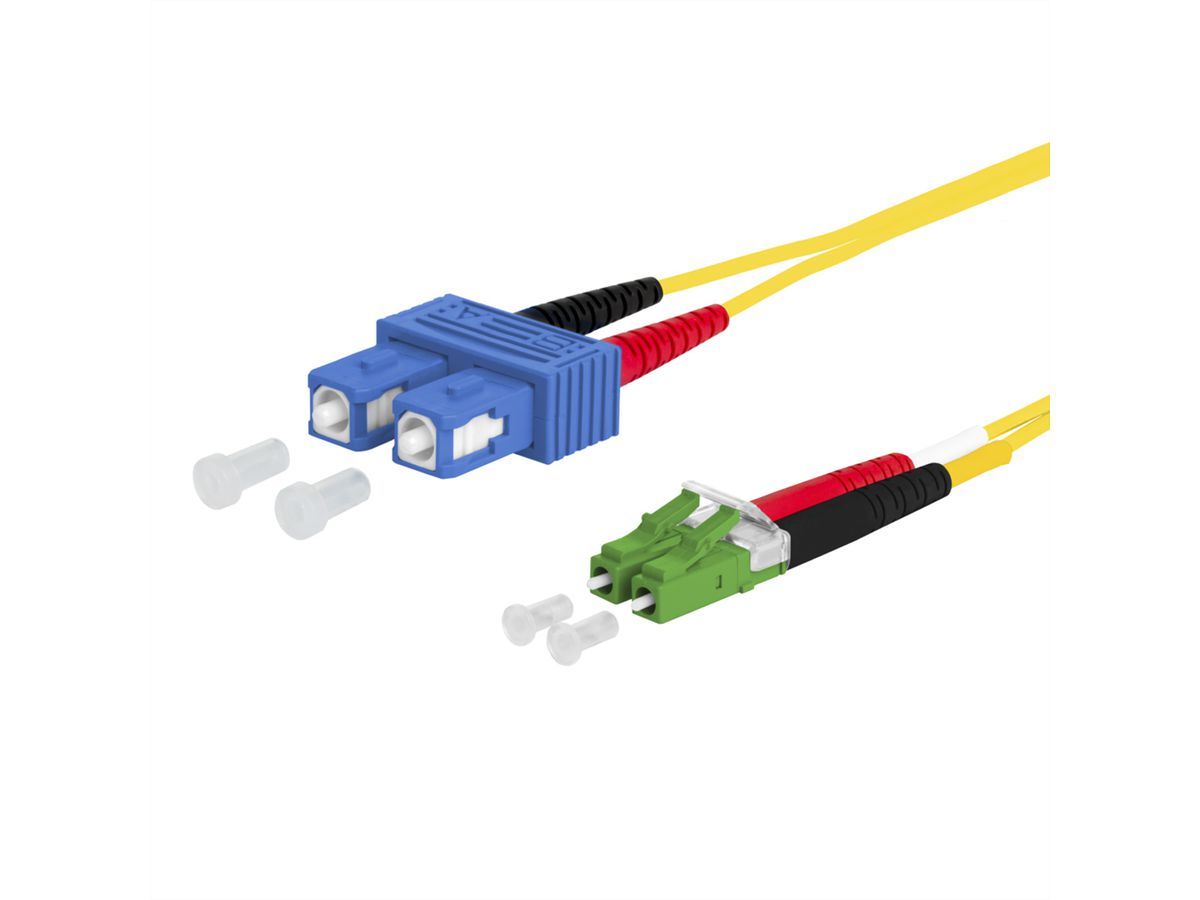

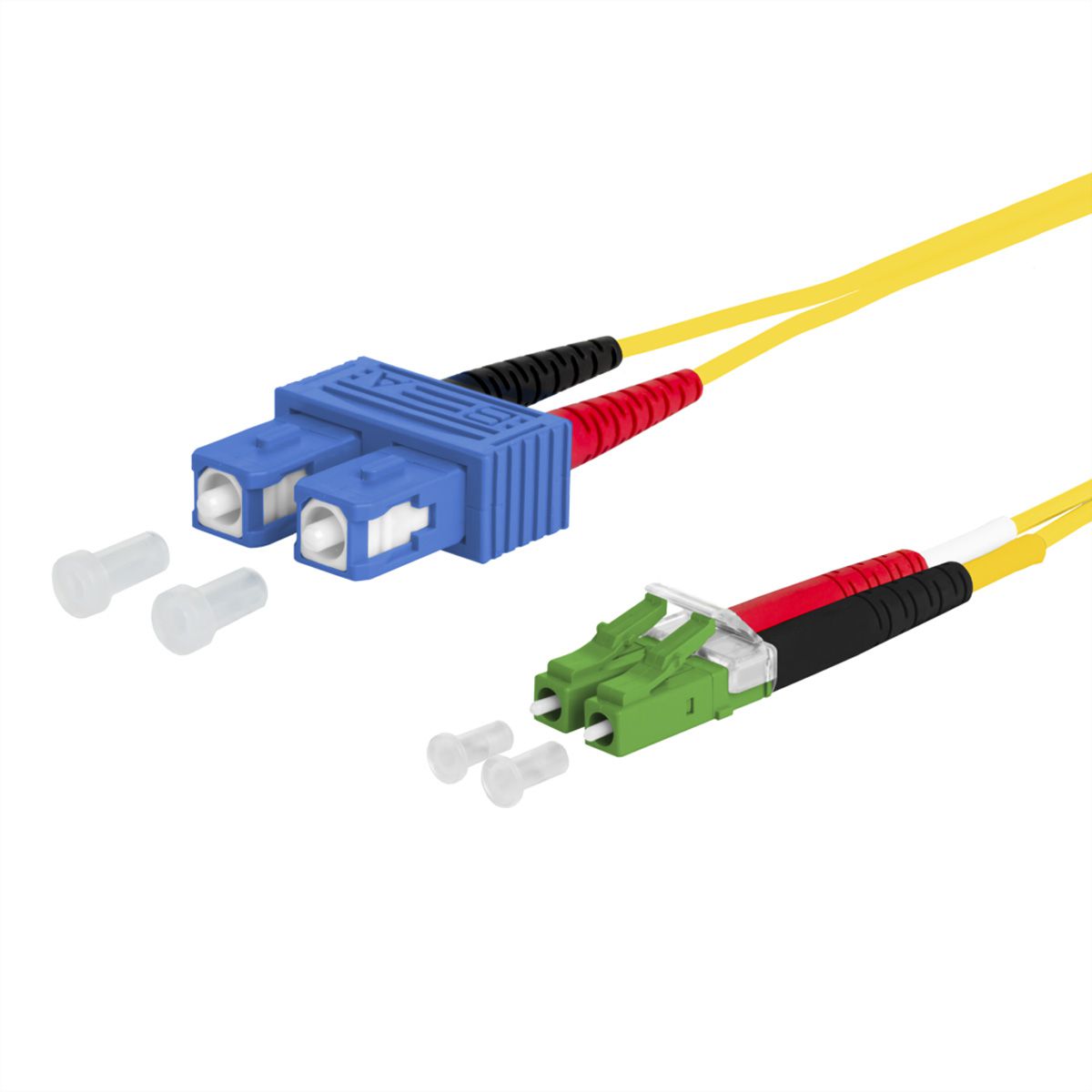

Single mode patch cord I-V(ZN)H E9/125 OS2

• single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
• outer diameter 2.0 x 4.2 mm
• halogen-free LSHF-FR sheath with low smoke development, flame retardant
• duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
• 100 % tested

Specifications

Manufacturer	METZ CONNECT
Product group	Fibre optic cable
Product type	Fibre Optic Jumper Cables OS2
Colour	yellow
Length	2 m
Cable type	Duplex Cable
Fibre section	Single mode 9/125µm OS2
Connection ports	SC / LC APC
Side 1 Connector Type	SC
Side 2 Connector Type	LC APC
Bend insensitivity	yes
Aramid strain relief	yes
Crossed	yes
External cable diameter	2.0 x 4.2 mm
Cable LSOH	yes
Flame retardant according to IEC 60332-1-2	yes
Low smoke according to IEC 61034-2	yes
Halogen free according to IEC 60754-2	yes
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Storage temperature min.	-10 °C
Storage temperature max.	60 °C
Weight	27 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - Deutsch (470.1 KB)

Download

Manufacturer data sheet - English (470.0 KB)

Download



The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.

More about METZ CONNECT
