Mobotix c26B Indoor Kamera 6 MP, 180°/360° Tag, Audio

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21193268
Brand / Manufacturer	MOBOTIX
Manuf. item no.	Mx-c26B-AU-6D016
EAN	4047438030540
Item weight	0.406 kg

Description

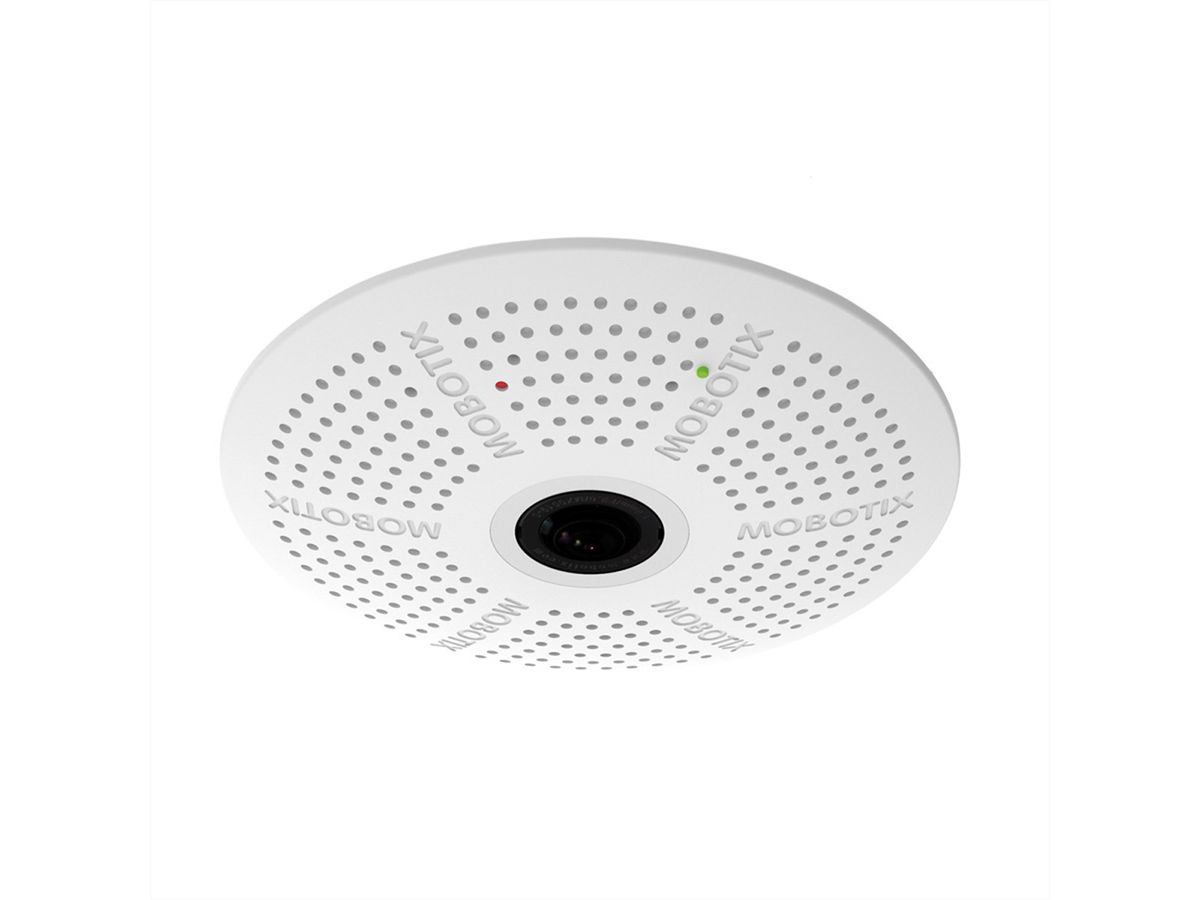

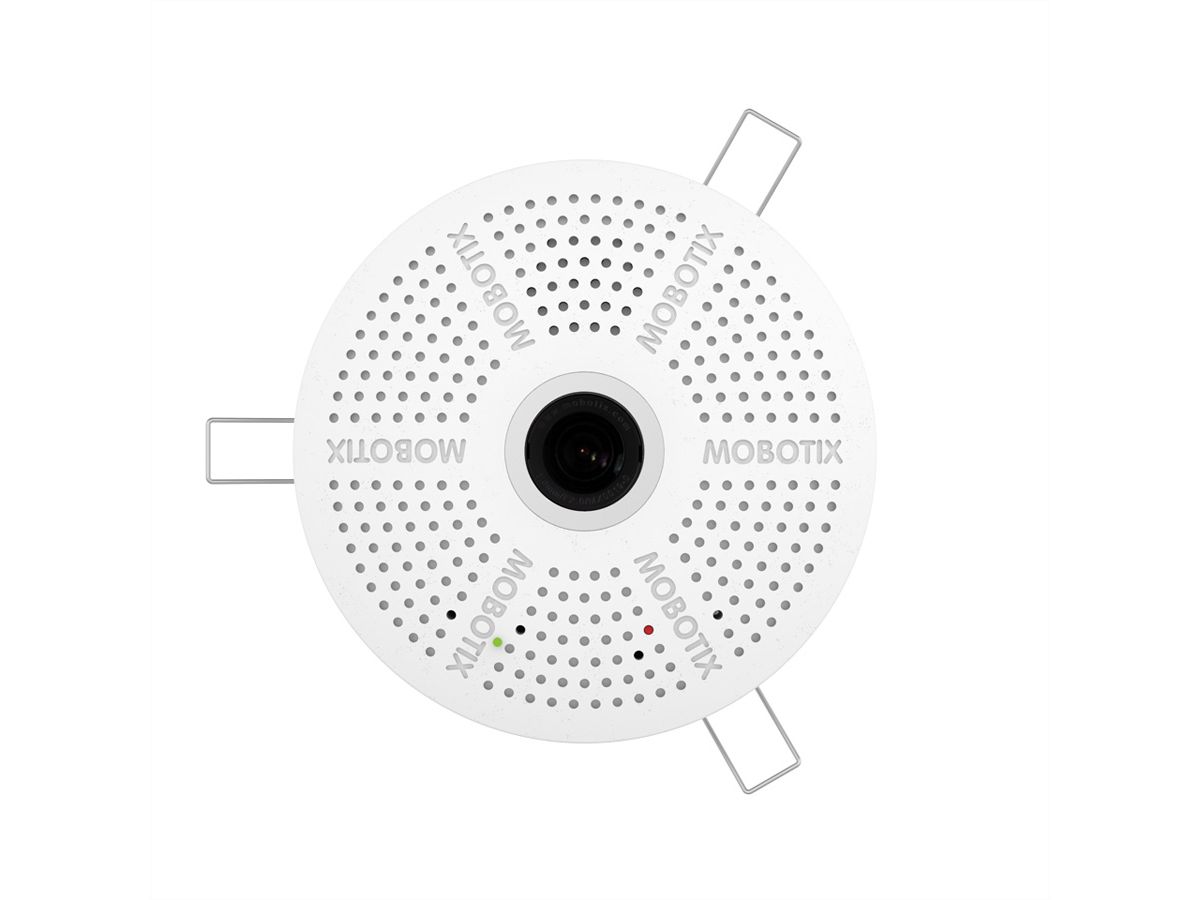

Die Mobotix c26B ist die kleinste hemisphärische Kamera im Programm und bekannt für die die schnelle Deckenmontage im Innenbereich. Die Kamera hat einen lichtstarken Tag- oder Nachtsensor mit 6Megapixel und MxAnalytics Videoanalyse, z. B. für Heatmap um die Kundenwege in Verkaufsräumen zu analysieren. Mit dem Zubehör IO-Modul (MxIOBoard-IC) erhält die Kamera zusätzlich einen MxBus-Anschluss, zwei Eingänge und zwei 12V-Ausgänge.

Indoor-Deckenkamera. Einfache Montage.:

Mx6-Systemplattform der 2. Generation, mit MxBus, H.264 und ONVIF-Kompatibilität
Aufzeichnung auf interner MicroSD-Karte (4GB serienmässig)

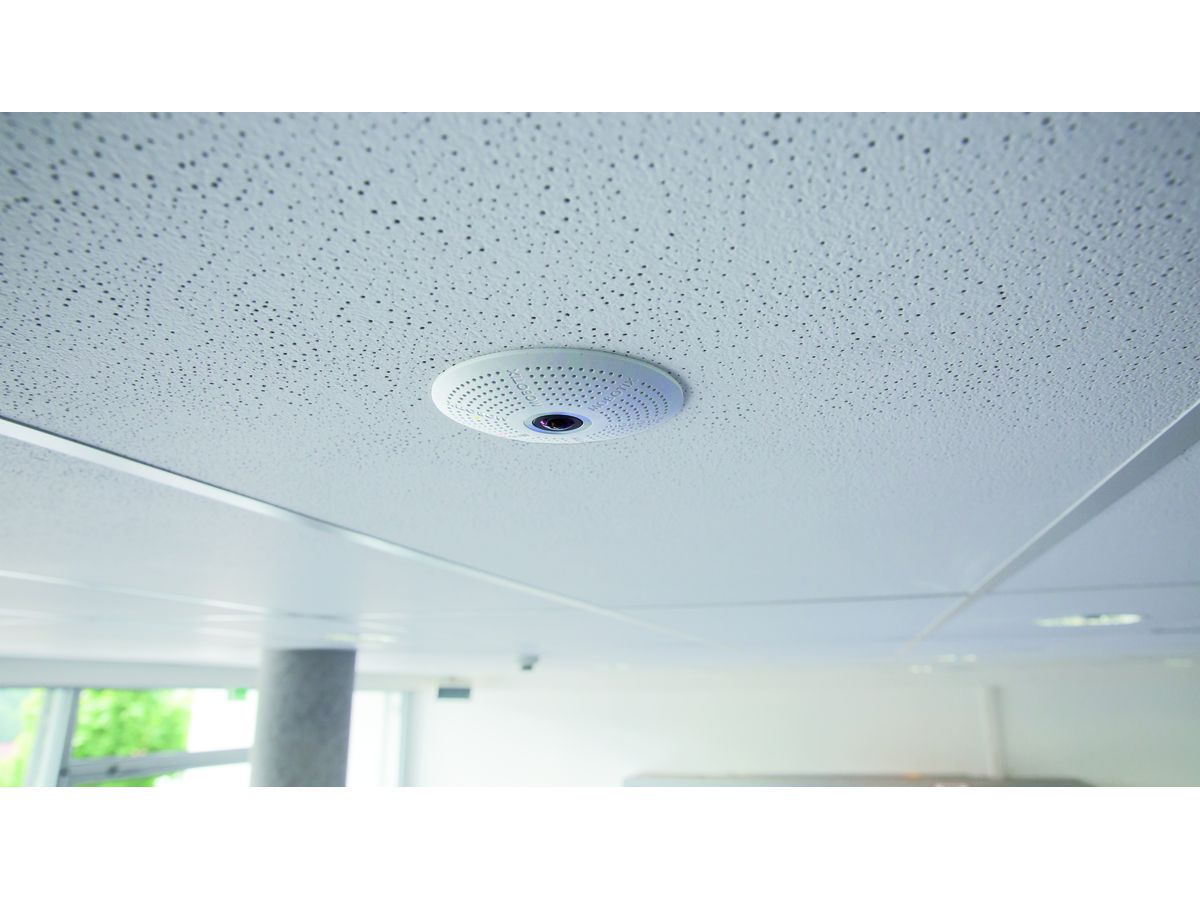

Für die Decken- oder Eckmontage, Aufputz-Set optional
Serienmässig mit MxAnalytics Videoanalyse-Tools
Bildwinkel horizontal: 180°
Bildwinkel vertikal: 180°
Brennweite: 1,6 mm
Blende: f/2.0
Max. Bildgröße: 6MP (3072x2048)

Specifications

Manufacturer	MOBOTIX
Product group	Sicherheitskameras
Product type	Fish-Eye-Netzwerkkamera
Scope of delivery	Camera met lens, montagemateriaal, MicroSD-kaart van 4 GB, Ethernet-kabel 0,5 m
Mounting form	Fish-Eye
Type	MOBOTIX c26
Interface	LAN
ONVIF	ja
Image Sensor Type	1/1.8“ CMOS
Resolution	6 MPx
Maximum Resolution (Dots)	3072x2048
Framerate at max Resolution (Frames/Second)	42@HD, 34@FullHD, 12@6MP
Lens Type	Fixes Objektiv
Field of View	180° / 360°
Day/Night Mode	nein
IR LED	nein
Audio Input	ja
Audio Output	ja
Motion Detection	ja
Memory Card Slot	ja
Power over Ethernet (PoE)	ja
WLAN	nein
Protection class	IP20 / IK06
Suitable for Outdoor Use	nein
Mains connection	Power over Ethernet (PoE)
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	9 cm
Width	15 cm
Depth	19.6 cm
Weight	442 g
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.406 kg
