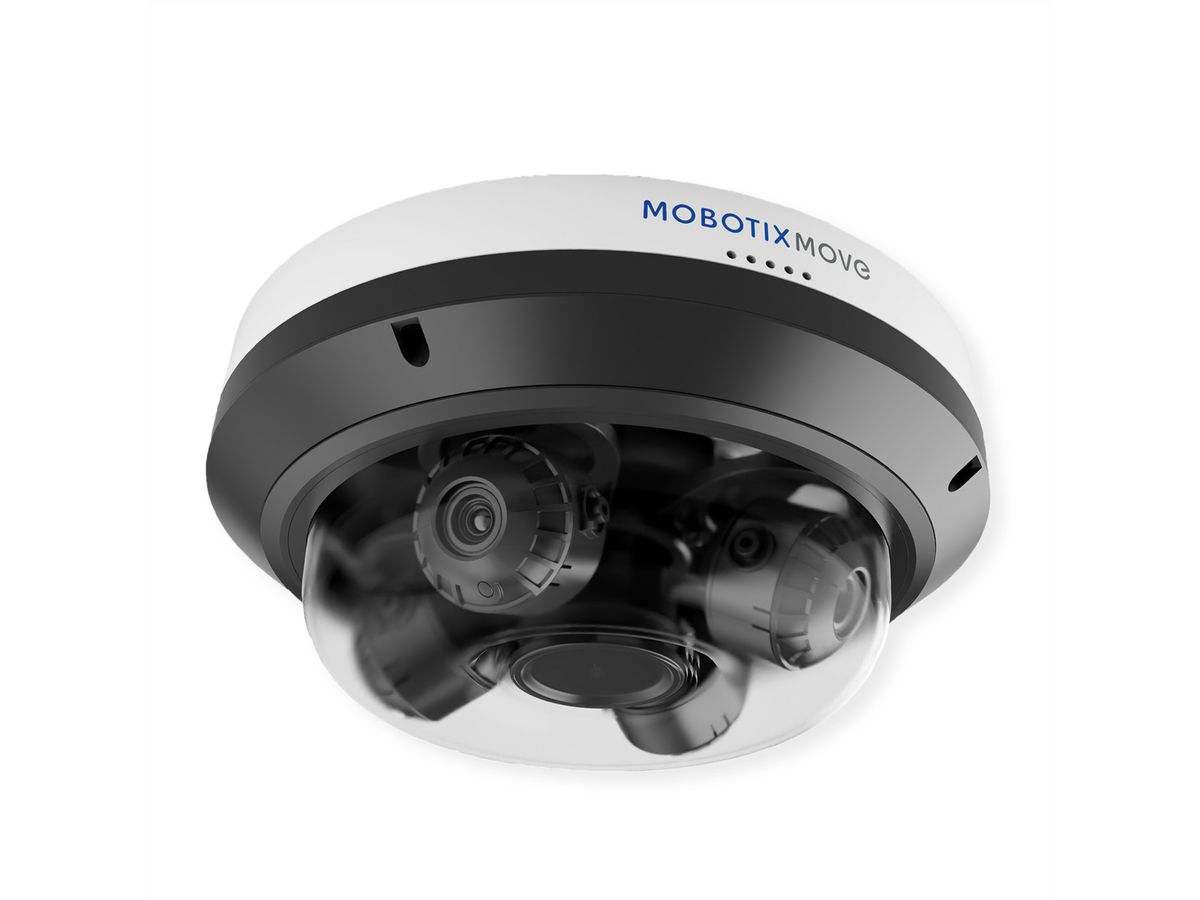

MOBOTIX MOVE Vandal-Multisensor 20 MP
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
Aus vier mach eins! Überwachen Sie grosse Bereiche mit höchster Detailstufe und nur einer einzigen Kamerainstallation. Die MOBOTIX MOVE Vandal Multisensor Kamera verfügt über vier manuell ausrichtbare Sensormodule mit je 5 MP - Vierfacher Überblick – kompakt verpackt:
- 4 flexible Bildsensoren (je 5 MP)
- Bis zu 8 TB SSD-Speicher onboard
- Integrierte Videoanalysefunktionen
- Kompaktes Design
- Durchmesser: 25.4 cm, Höhe: 10.5 cm
Specifications
Manufacturer | MOBOTIX |
---|---|
Product group | Sicherheitskameras |
Product type | Multi-Sensor-Netzwerkkamera |
Colour | white |
Mounting form | Fixed-Dome |
Type | MOBOTIX MOVE |
Interface | LAN |
ONVIF | ja |
Image Sensor Type | 1/2.8-Zoll-CMOS |
Resolution | 20 MPx |
Framerate at max Resolution (Frames/Second) | 30 |
Video Compression | H.264 / H.265 / MJPEG |
Lens Type | Motorzoomobjektiv |
Focal Length | 2.8 - 8mm |
Field of View | 111.5 - 53.7° |
Remote Controllable Optical Zoom | ja |
Removable IR Cut Filter | ja |
Day/Night Mode | ja |
IR LED | ja |
IR range (max.) | 30 m |
Minimum Illumination | 0,02 kleur / 0,001 zw |
WDR | WDR |
Audio Input | ja |
Audio Output | ja |
Digital Input | ja |
Digital Output | ja |
Integrated PIR Sensor | nein |
Motion Detection | ja |
Memory Card Slot | ja |
Power over Ethernet (PoE) | ja |
WLAN | nein |
Protection class | IP66 / IK10 |
Protection class (IP Code) |
|
Suitable for Outdoor Use | ja |
Mains connection | Power over Ethernet (PoE) |
Operating temperature min. | -40 °C |
Operating temperature max. | 60 °C |
Height | 105 mm |
Width | 225 mm |
Depth | 225 mm |
Weight | 2.6 kg |
Height of packaging (single piece) | 160 mm |
Width of packaging (single piece) | 320 mm |
Depth of packaging (single piece) | 330 mm |
Package weight (single piece) | 3.746 kg |
