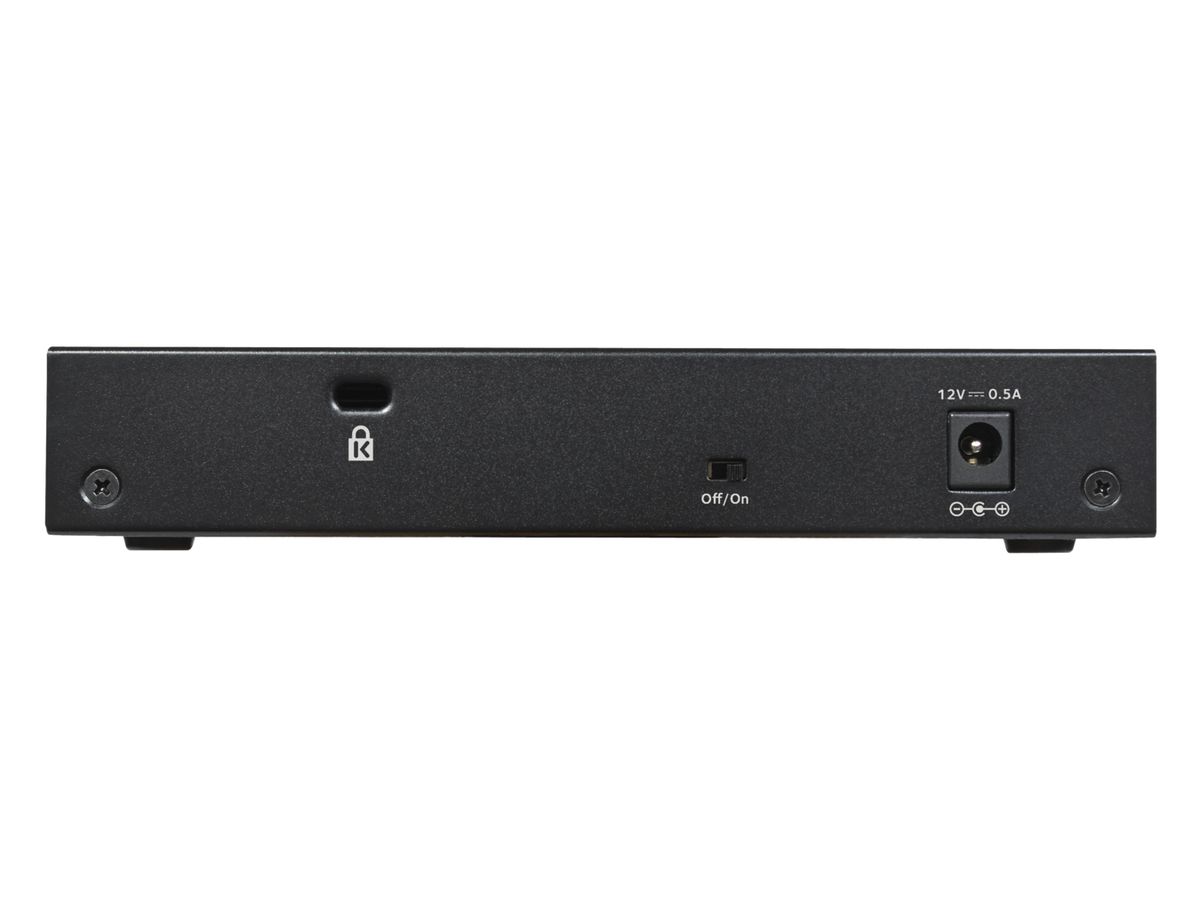

Netgear GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 521622843 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | GS308-300PES |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
Netgear GS308-300PES. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u. Power connector: DC-in jack. Wall mountable
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Weight & dimensions
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 390 g |
Power
| Power consumption (max) | 3.04 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 10.4 BTU/h |
Networking
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-sensing | Y |
| Cable length detection | Y |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames support | Y |
| Jumbo frames | 9216 |
| Packet buffer memory | 128 MB |
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
Design
| Rack mounting | N |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity,Link,Power |
| Wall mountable | Y |
| Certification | CE Mark\nFCC Part 15 Class B\nIC Class B\nRCM\nCCC\nVCCI\nKC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | N |
|---|
Performance
| Mean time between failures (MTBF) | 3711898 h |
|---|
