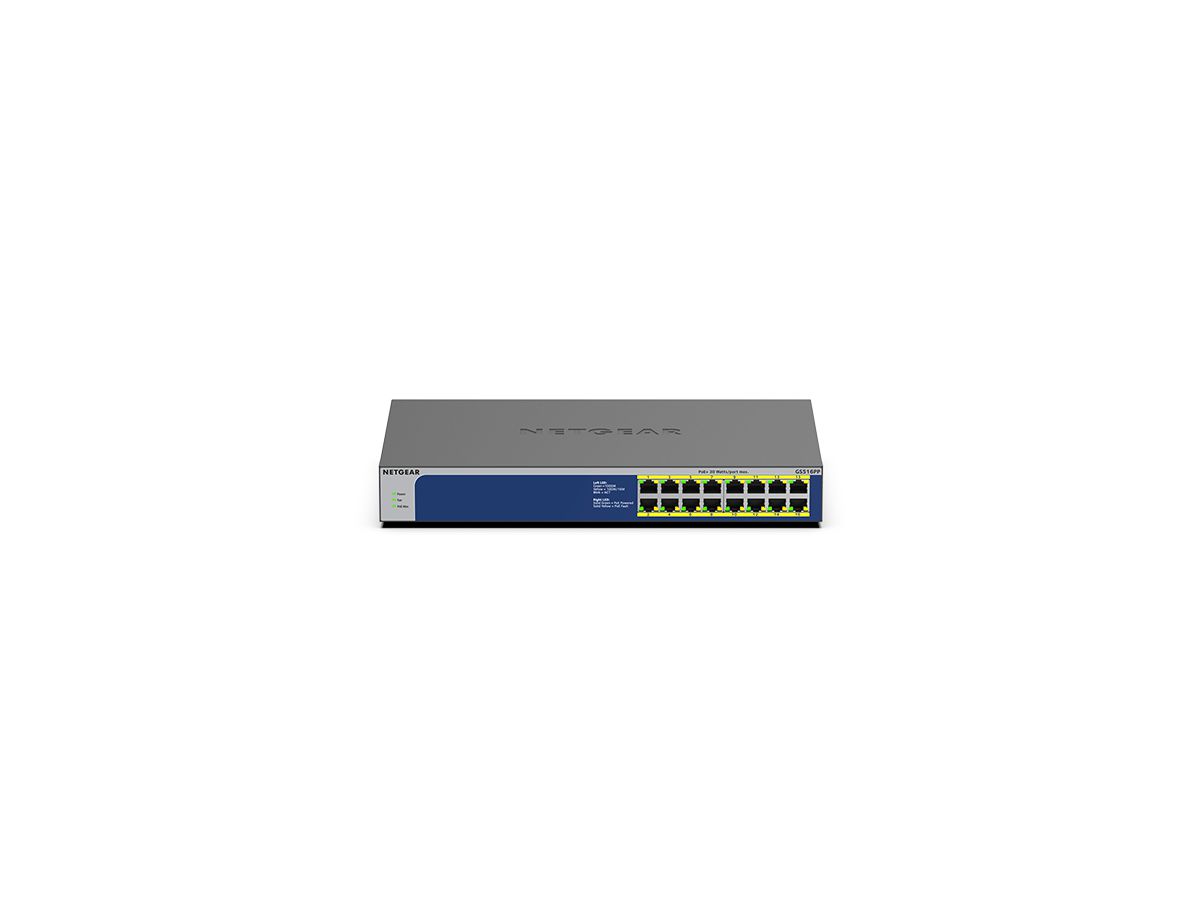

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 523670638 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | GS516PP-100EUS |
| EAN | 0606449149258 |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
NETGEAR GS516PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting
Instant Connectivity and Reliable PerformanceThe NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multipleThe GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.Powerful and Energy EfficientIdeal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Weight & dimensions
| Width | 330 mm |
|---|---|
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
Power
| Power supply included | Y |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 316.1 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
Network
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Y |
| Half duplex | Y |
| Auto MDI/MDI-X | Y |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames support | Y |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
Security
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
|---|
Management features
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Y |
Design
| Rack mounting | Y |
|---|---|
| Product colour | Blue, Grey |
| Housing material | Metal |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Certification | FCC 47 CFR Part15B (Class A)ICES-003 Class AEN 55024/55032/55035 (Class A)AS/NZS CISPR 32VCCIBSMI CNS13438KCCUL 62368-1CB_IEC 60950-1 + IEC 62368-1 Ed-3LVD EN60950-1+EN62368-1 Ed-2 RptAS/NZS 62368.1 Ed-2BSMI CNS14336-1 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
Performance
| Mean time between failures (MTBF) | 2415333.9 h |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
