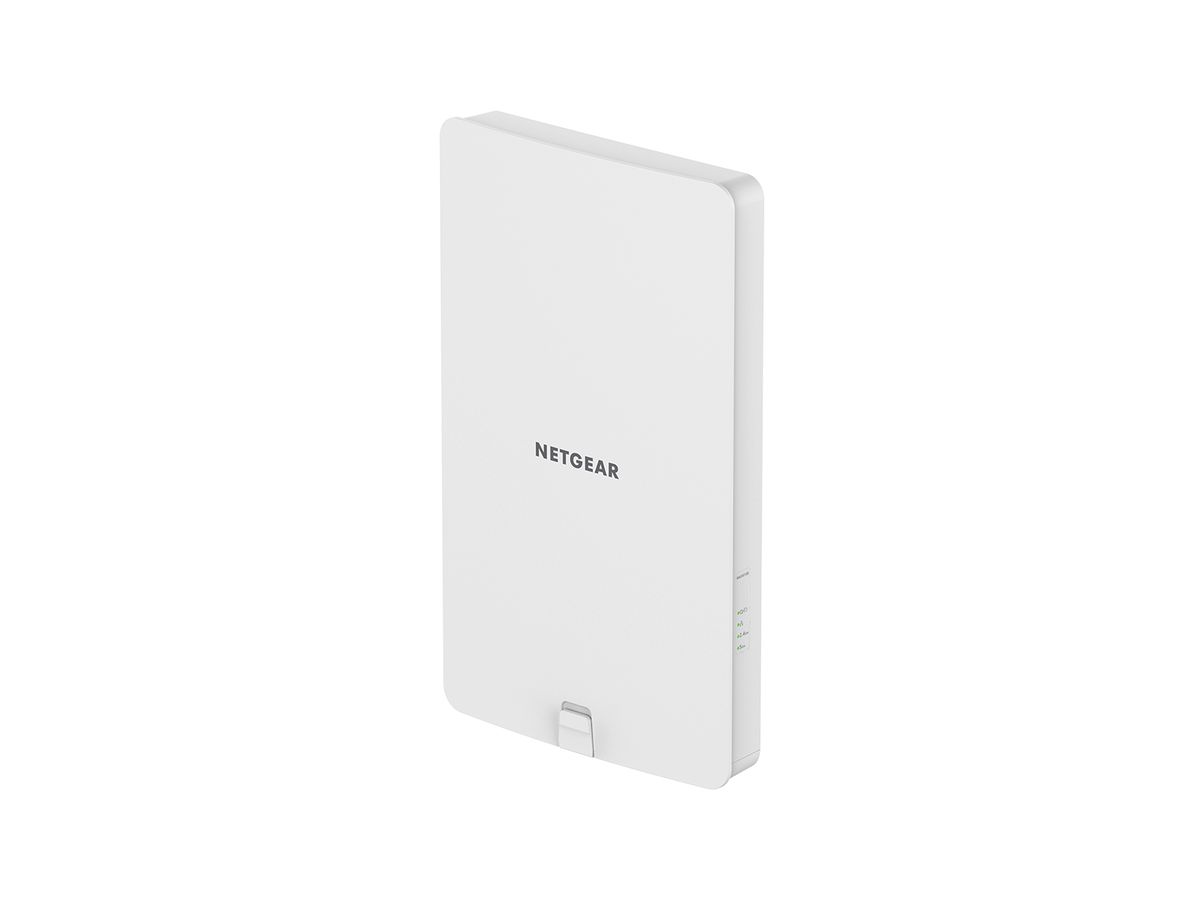

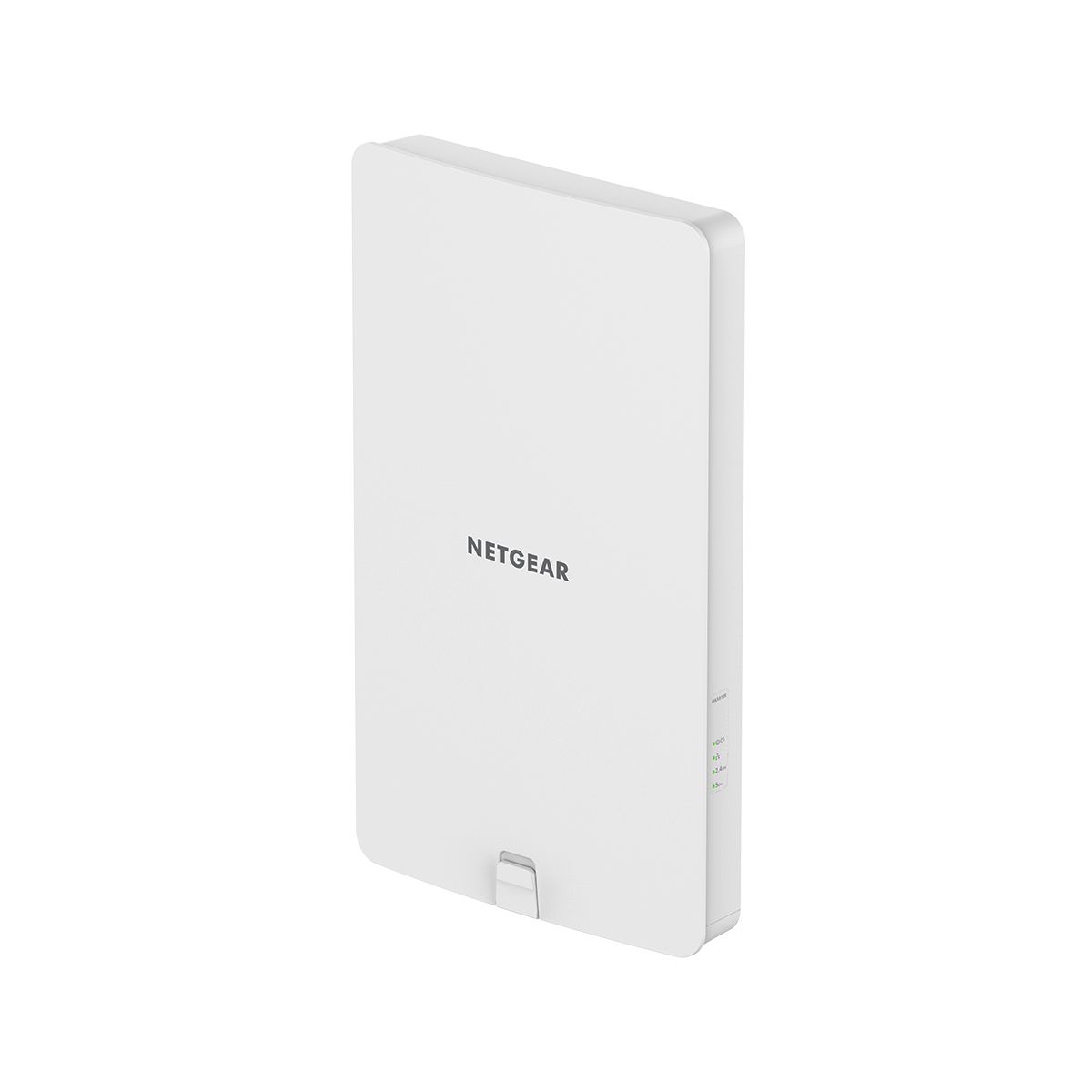

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y) 1800 Mbit/s White Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/09/2024

Item no.	523689364
Brand / Manufacturer	NETGEAR
Manuf. item no.	WAX610Y-100EUS
EAN	0606449152579

Description

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610Y is an outdoor wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610Y is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come. WAX610Y is designed to withstand harsh environment conditions including prolonged exposure to sunlight, cold, frost, snow, rainfall, hail and humidity. It is rated IP55 and supports temperatures from -20C to 60C.

The WAX610Y is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610Y also comes with an intuitive local management GUI as one of the choices. The WAX610Y features 2x2 Multi-user MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610Y Insight Managed Outdoor Wireless Access Point
- Wall/ceiling mount kit
- Pole mount kit
- Installation guide

Specifications

Manufacturer	NETGEAR
Product type	Wireless Access Points

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Weight & dimensions

Width	181 mm
Depth	305 mm
Height	34 mm
Weight	940 g

Power

Power over Ethernet (PoE)	Yes
Power consumption (typical)	16.1 W

Operational conditions

Operating temperature (T-T)	-10 - 50 °C

Packaging data

Package width	390 mm
Package depth	430 mm
Package height	350 mm
Package weight	11.7 kg

Security

Security algorithms	EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3
MAC address filtering	Yes
Auto Wireless Distribution System (WDS)	Yes

Packaging content

Quantity per pack	1 pc(s)
Mounting kit	Yes

Antenna

Antenna type	Internal

Design

Placement	Ceiling, Pole, Wall
Product colour	White
International Protection (IP) code	IP55
LED indicators	LAN, Power, WLAN

Features

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Networking standards	IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Adaptive bandwidth management	Yes

Logistics data

Harmonized System (HS) code	85176990

Downloads

PDF data sheet - NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y) 1800 Mbit/s White Power over Ethernet (PoE) - English (1.8 MB)

Download
