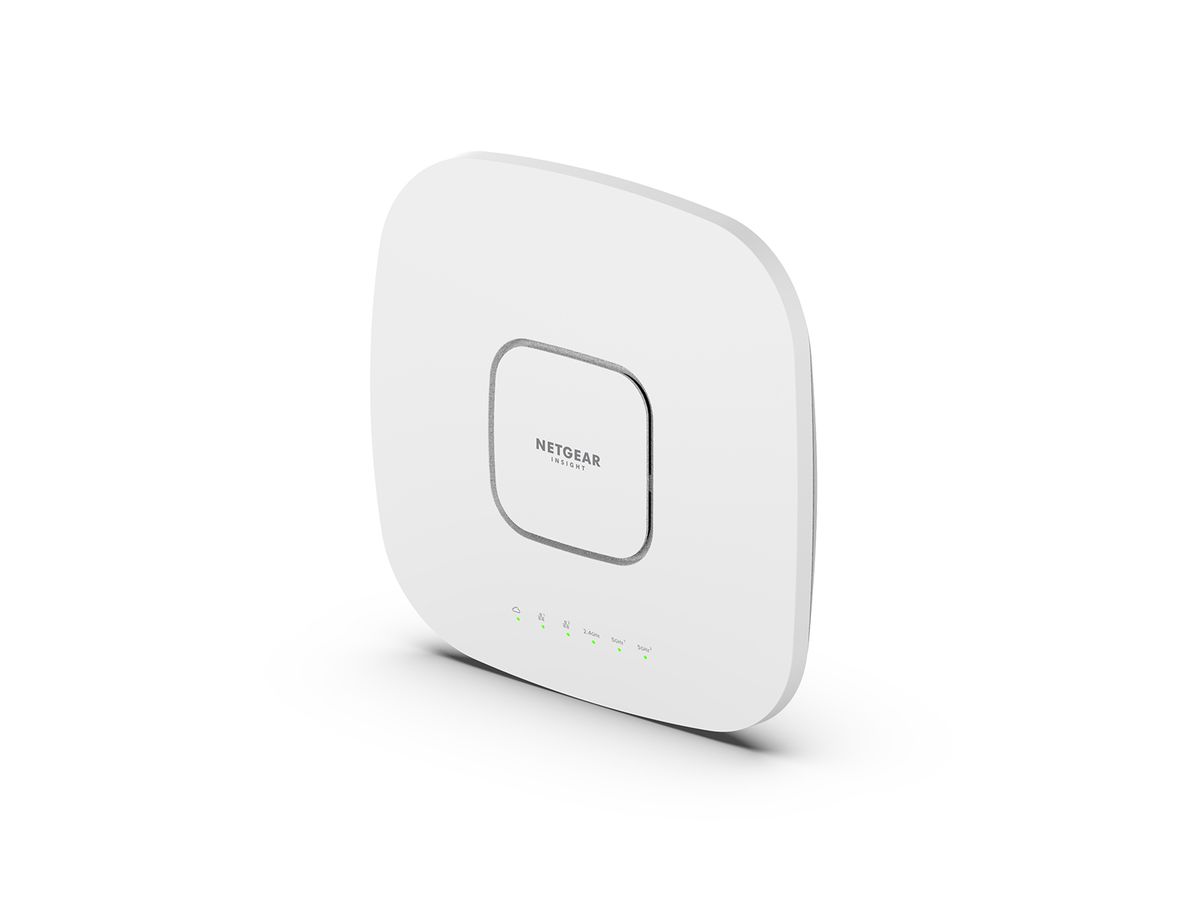

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630) 6000 Mbit/s White Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	525513291
Brand / Manufacturer	NETGEAR
Manuf. item no.	WAX630-100EUS
EAN	0606449153965

Description

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630). 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business.

REMOTE CLOUD MANAGEMENT
Plug-and-play set up and remote management of small business networks

NETWORK TOPOLOGY
A single, holistic view of wired and wireless networks for further troubleshooting

HIGH-DENSITY WIFI MANAGEMENT
Deep wireless management features with more tools to deploy small and large WiFi networks

Business-Level Security
WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)
Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
NETGEAR INSIGHT FOR VARS
Multi-location & multi-tenant remote network management from a single pane-of-glass

Easy Setup
Set up, configure, and manage with NETGEAR Insight

Remote Management
Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included

Specifications

Manufacturer	NETGEAR
Product type	Wireless Access Points

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Weight & dimensions

Width	266.6 mm
Depth	268.3 mm
Height	55.5 mm
Weight	956 g

Power

Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	3.5 A

Operational conditions

Operating temperature (T-T)	0 - 40 °C

Security

Security algorithms	EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes

Management features

Web-based management	Yes

Packaging content

Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Antenna

Antenna type	Internal
Antenna gain level (max)	4.3 dBi

Design

Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes

Features

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	6000 Mbit/s
Maximum data transfer rate (2.4 GHz)	1200 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Networking standards	IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Number of users	200 user(s)
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Modulation	OFDM
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes

Logistics data

Harmonized System (HS) code	85176990
