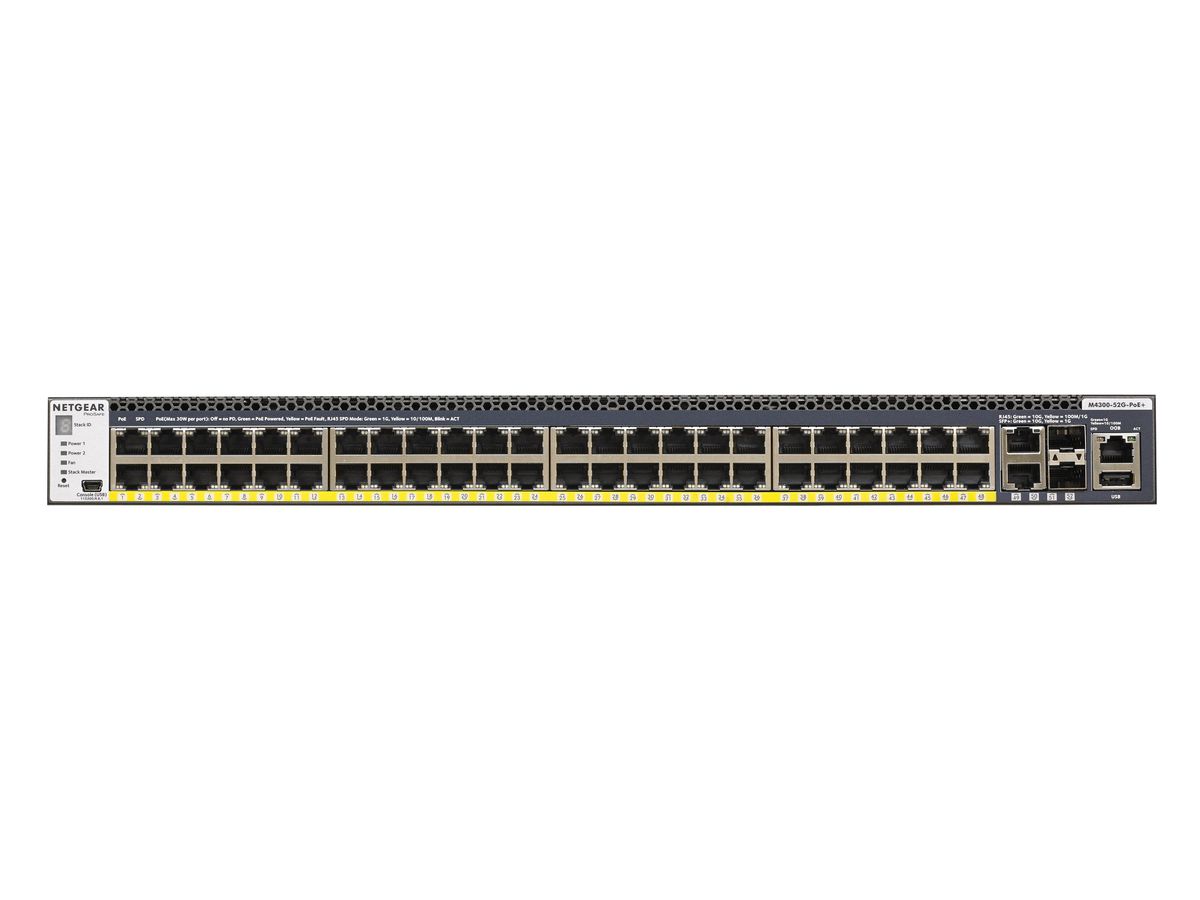

Netgear M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)

Netgear M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 516961880
Brand / Manufacturer NETGEAR
Manuf. item no. GSM4352PB-100NES
EAN 0606449112863

Description

Netgear M4300-52G-PoE+ 1000W PSU. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.11ad,IEEE 802.11az,IEEE 802.3ad,IEEE 802.3az. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network. Best-in-class stacking - M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables) - High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption Higher flexibility - Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization - 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds Lower complexity - Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license - DHCP/BootP innovative auto-installation including firmware and configuration file upload automation Investment protection - Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks - Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection Secure services - With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs - With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies Industry standard management - Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN - Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support Industry leading warranty - NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty - 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Specifications

Manufacturer NETGEAR
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 2
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Weight & dimensions
Width 440 mm
Depth 388 mm
Height 44 mm
Weight 6.67 kg
Power
Power supply included Y
Redundant power supply (RPS) support Y
Number of power supply units 1
AC input voltage 120 - 230 V
Power consumption (max) 888 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Heat dissipation 303163 BTU/h
Networking
Networking standards IEEE 802.11ad,IEEE 802.11az,IEEE 802.3ad,IEEE 802.3az
10G support Y
Cable types supported Cat5,Cat5e,Cat6,Cat7,Fiber
Flow control support Y
Port mirroring Y
Link aggregation Y
Rate limiting Y
IP routing Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-sensing Y
Data transmission
MAC address table 16000 entries
Switching capacity 176 Gbit/s
Forwarding rate 357 Mpps
Store-and-forward Y
Number of static routes 64
Jumbo frames support Y
Jumbo frames 9000
Packaging data
Cables included AC,LAN (RJ-45),Mini-USB
User guide Y
Rack mount kit Y
Rubber feet Y
Resource CD Y
Security
Access Control List (ACL) Y
DHCP client Y
DHCP server Y
Security algorithms HTTPS,SNMP,SSH
SSH/SSL support Y
IGMP snooping Y
BPDU filtering/protection Y
Management features
Switch type Managed
Switch layer L2/L3/L4
Quality of Service (QoS) support Y
Web-based management Y
ARP inspection Y
Optical fiber
Fiber ethernet cabling technology 10GBASE-LR,10GBASE-LRM,10GBASE-SR
Fiber optic connector SFP+
Design
Rack mounting Y
Stackable Y
Product colour Black
Form factor 1U
LED indicators Activity,Power,Speed
Safety CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 591 W
Performance
Built-in processor Y
Processor frequency 800 MHz
Internal memory 1024 MB
Flash memory 256 MB
Noise level 39.8 dB
Packet buffer memory 16 MB
Auto-negotiation Y
Mean time between failures (MTBF) 673207 h
Virtual LAN features
VLAN support Y
Virtual LAN features Private VLAN
Number of VLANs 4000
Multicast features
Multicast support Y
Number of multicast groups filtered 4000

Downloads

PDF data sheet - Netgear M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE) - English (6.3 MB)
