Description

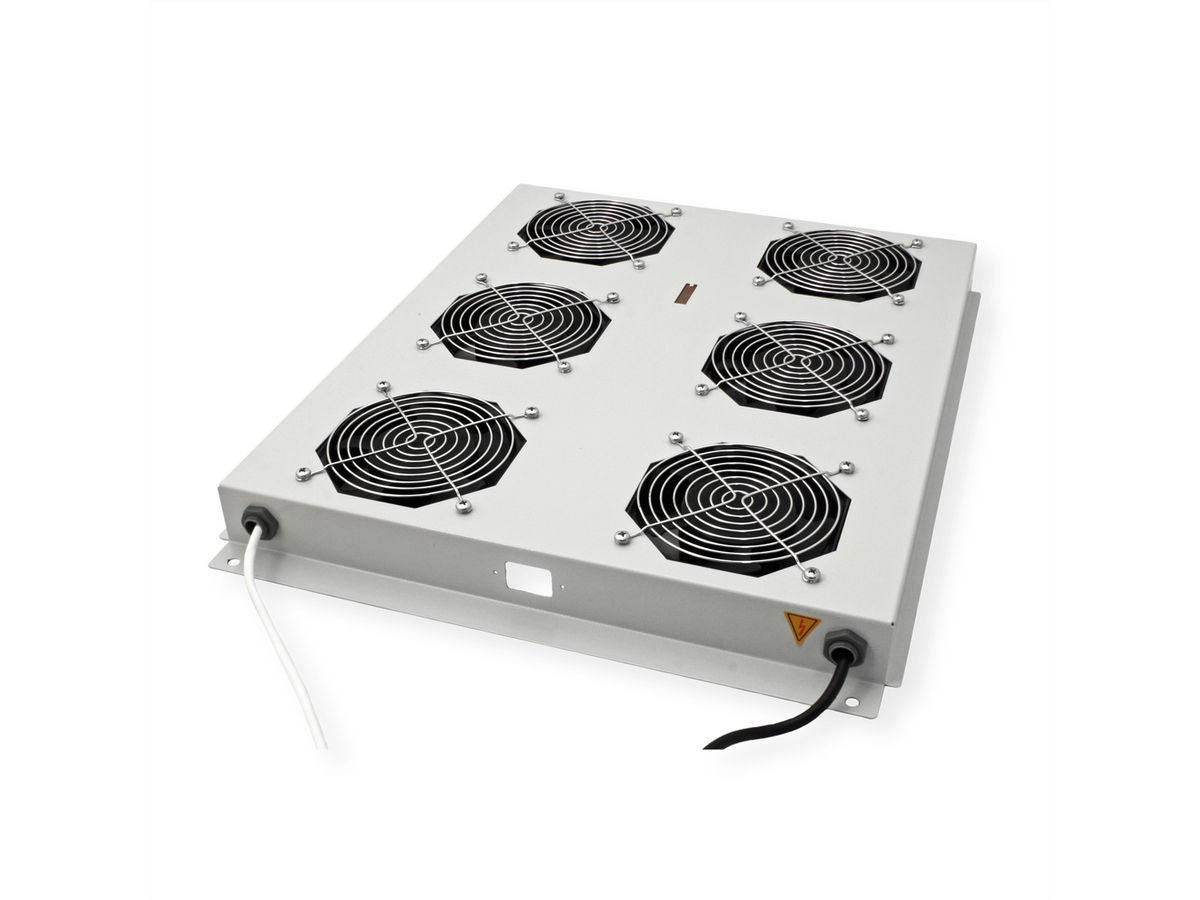

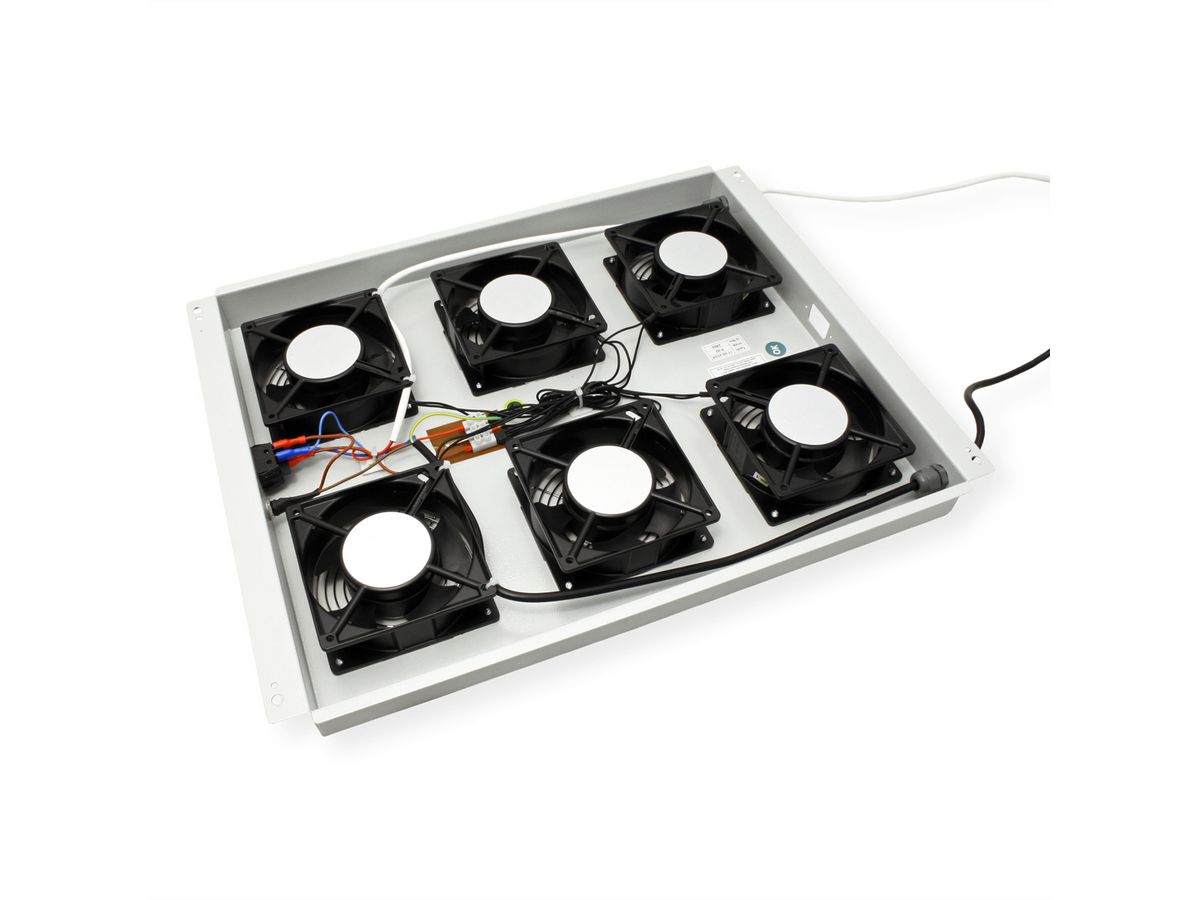

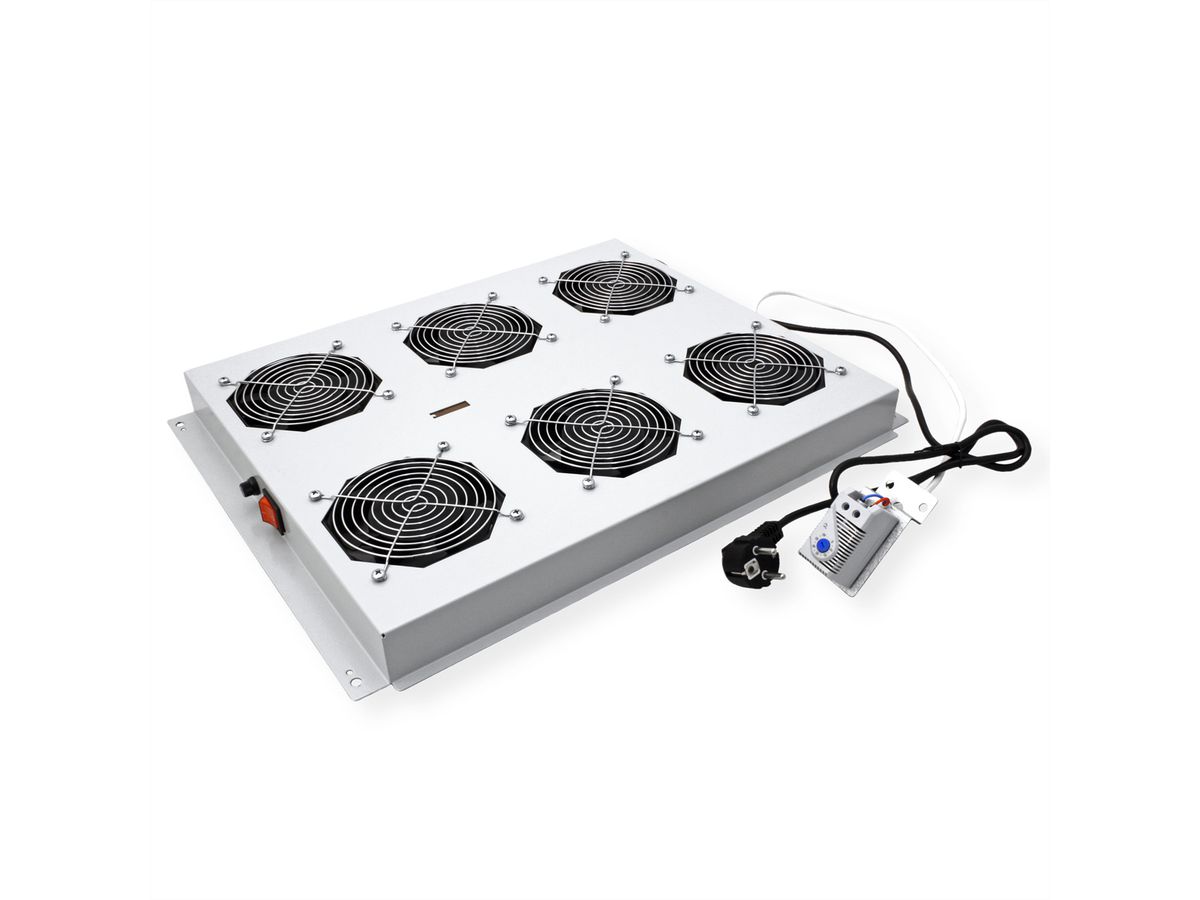

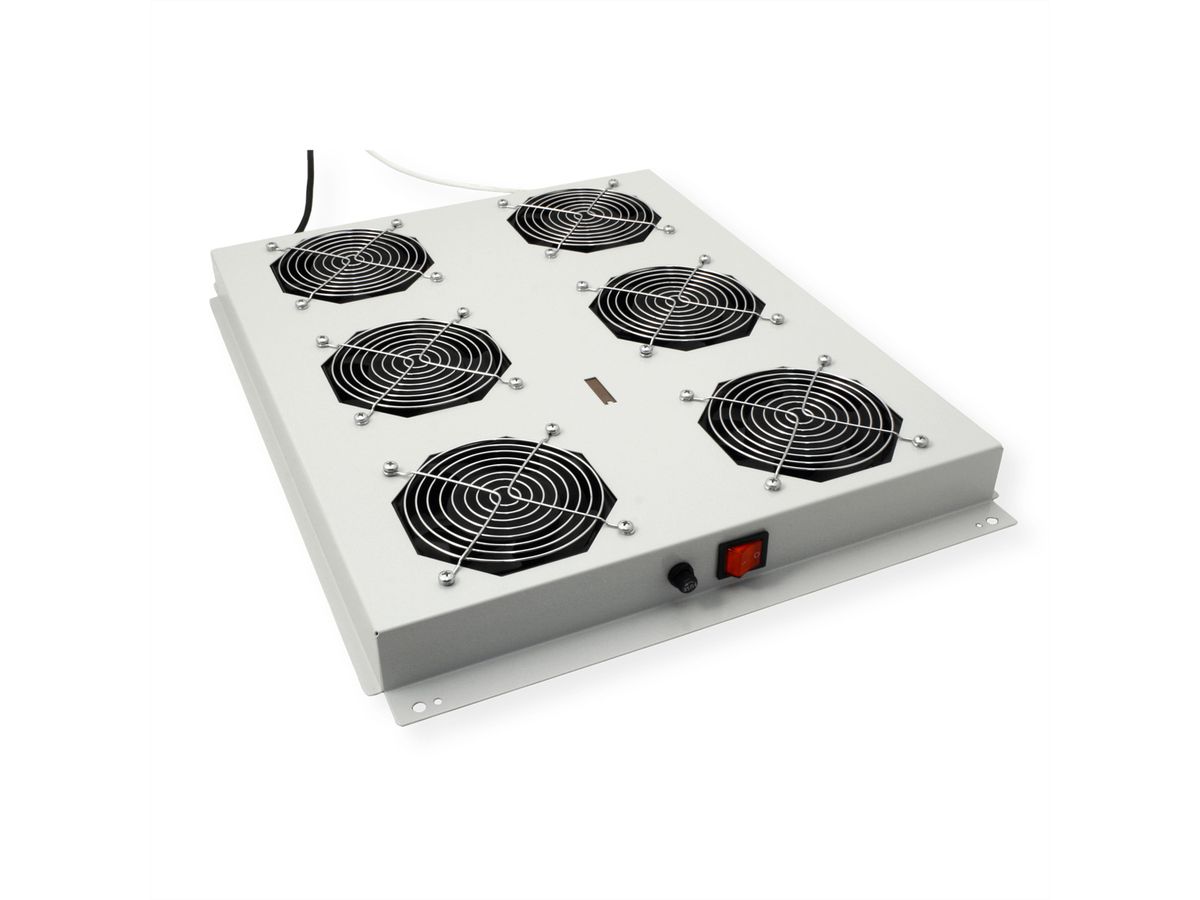

ROLINE 19 inch roof-mounted fan unit 6 fans thermostat grey

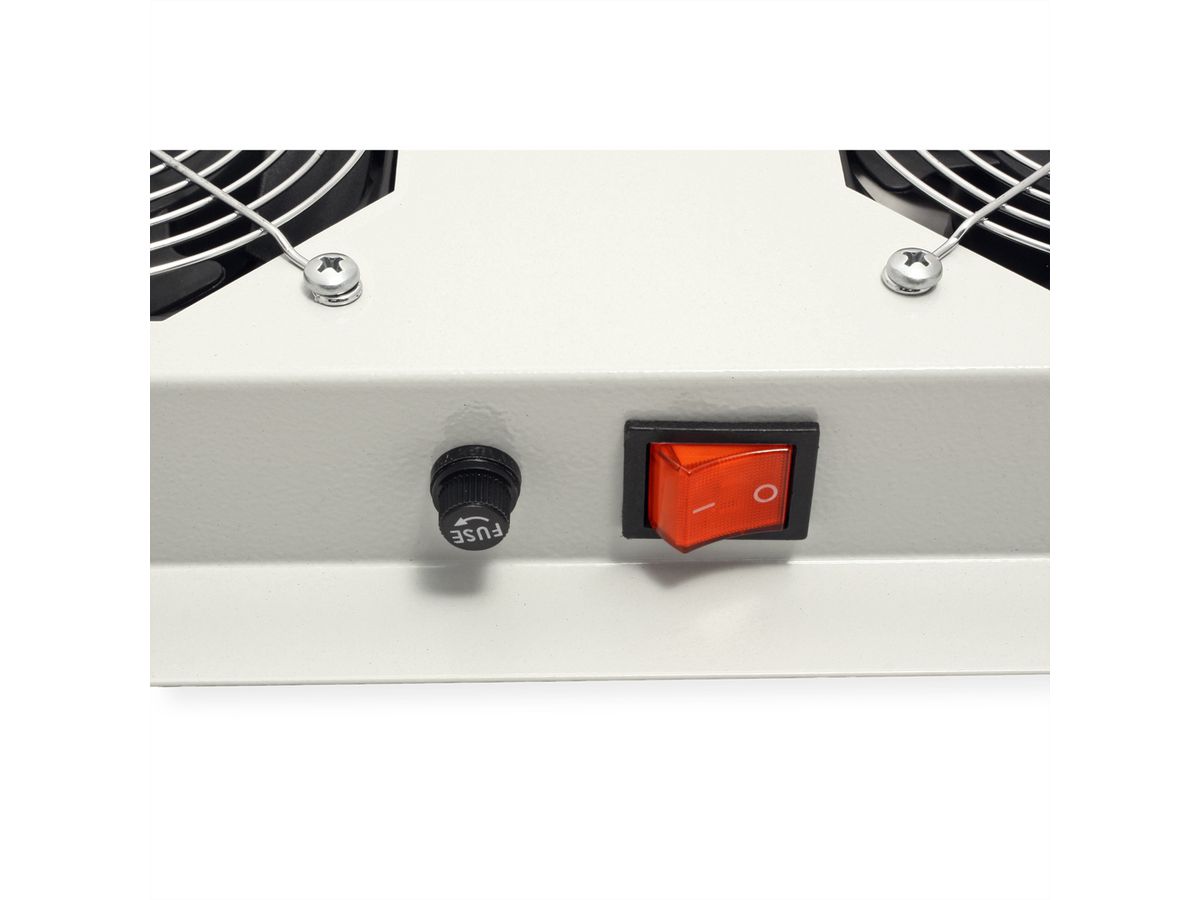

The roof fan units can be used flexibly in any 19" enclosure. Each fan unit is supplied with two sets of mounting brackets. With the standard set, you can attach the fan unit to any height unit of your network or server enclosure. The second set enables installation in the roof of 19" network or server cabinets from the ROLINE Pro and Basic series. A switch and an adjustable thermostat offer optimum customisation options. The model is available in the standard colours grey (RAL 7035) and black (RAL 9005).

Specifications

Manufacturer	ROLINE
Product group	19"- / 10" technology
Product type	19"-Cabinet ventilation
Colour	grey
Scope of delivery	Roof-mounted fan unit, fastening material, power cable, mounting bracket for 19" profile rails
Material group	Steel
Number of integrated fans	6
RAL colour	RAL 7035 Light grey
Mains connection	Protective contact plug, Type-E/F
Height	50 mm
Width	420 mm
Depth	530 mm
Weight	5.12 kg
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	565 mm
Depth of packaging (single piece)	435 mm
Package weight (single piece)	5.39 kg

Downloads

Product data sheet - English (30.0 KB)

Download
