ROLINE 19-inch server rack Pro 36 U, 800x1000 WxD grey

ROLINE 19-inch server rack Pro 36 U, 800x1000 WxD grey

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/30/2024
Product is a shipping prodcut! Shipping costs may arise!
Item no. 26210169
Brand / Manufacturer ROLINE
Manuf. item no. 26.21.0169
EAN 7630049601727
Item weight 106.5 kg

Description

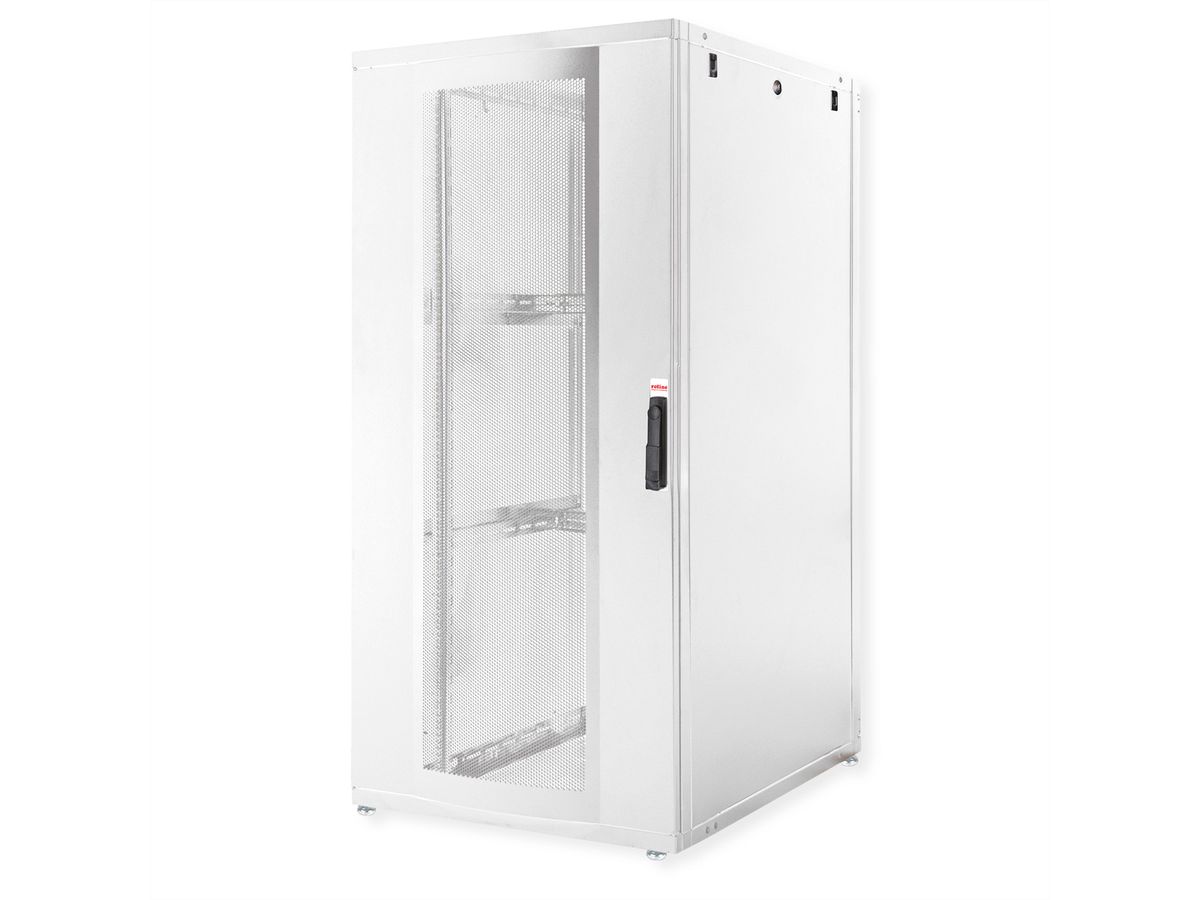

ROLINE 19 inch server cabinet 36 U 800x1000 WxD grey

The server enclosures in the ROLINE Pro series have been specially developed for convenient and flexible network cabling. Inlets with brushes, a slide-on inlet with a foam rubber seal and an additional brush inlet in the base chassis are located on the sides of the roof and base (from 800 mm enclosure width), offering a wide range of possible applications. Perforated single-leaf front doors and double-leaf rear doors, each with a swivel handle and profile half cylinder, ensure improved air circulation. The roof has a perforated cover that allows easy installation of a fan module.

Specifications

Manufacturer ROLINE
Product group 19"-/10"-Cabinet
Product type 19"-Server cabinet
Colour grey
Scope of delivery 19-inch server enclosure 36 U, earthing cable set, installation kit for profile half cylinder, 2x spanners, installation set (screws, cage nuts, washers), assembly instructions
Height units 36 U
Minimum rack depth supported 675 mm
Maximum rack depth supported 875 mm
delivery condition fully assembled
Material group Steel
Server cabinet yes
Wall mountable no
Adjustable feets yes
Maximum weight capacity 1000 kg
Protection class (IP Code) IP20
Soundproof no
Front Steel door with perforation
Rack rails yes
Side panels included yes
Removeable side panels yes
Removable front door yes
Removable back door yes
Ventilation Passive
RAL colour RAL 7035 Light grey
Height 1705 mm
Width 800 mm
Depth 1000 mm
Weight 101 kg
Height of packaging (single piece) 1900 mm
Width of packaging (single piece) 1040 mm
Depth of packaging (single piece) 850 mm
Package weight (single piece) 106.5 kg
