Description

ROLINE 19 inch shelf 1 U 250 T 15 kg black

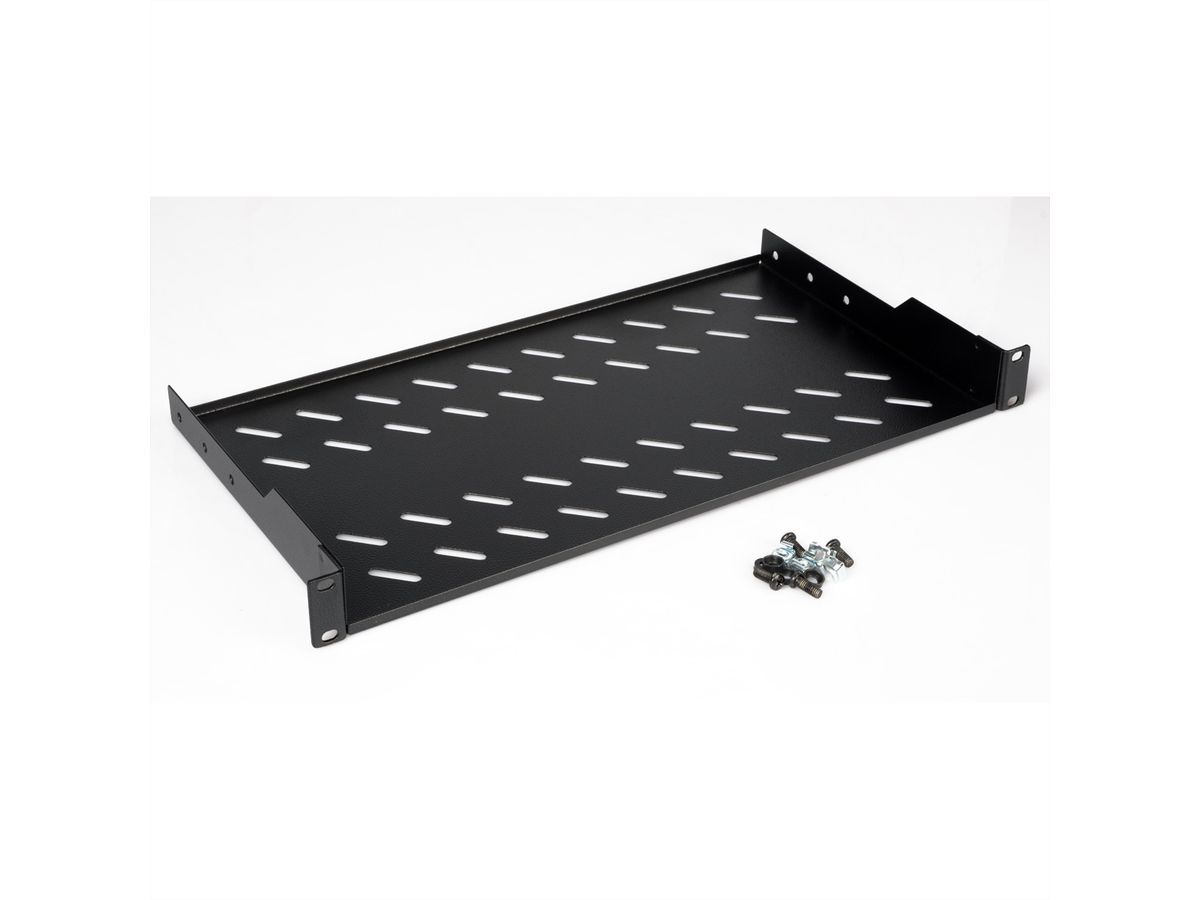

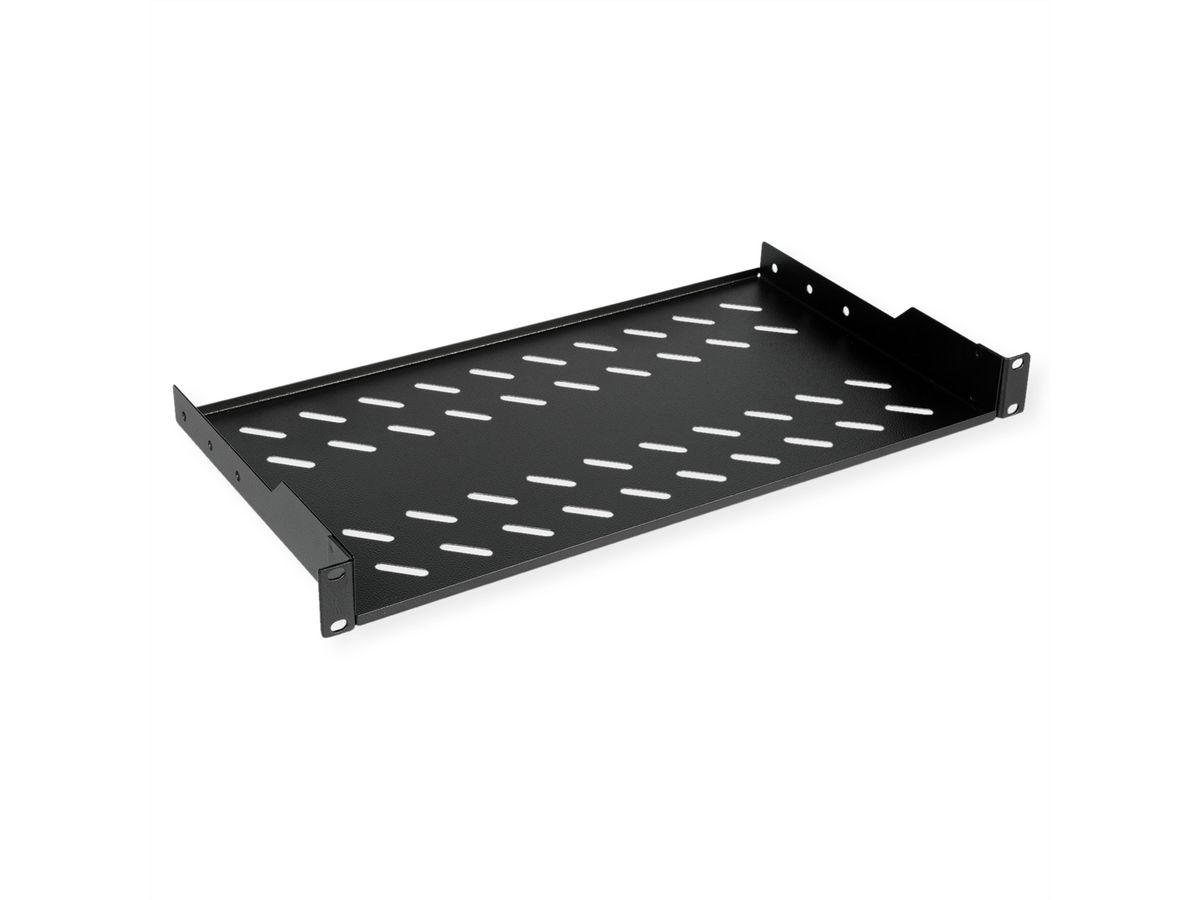

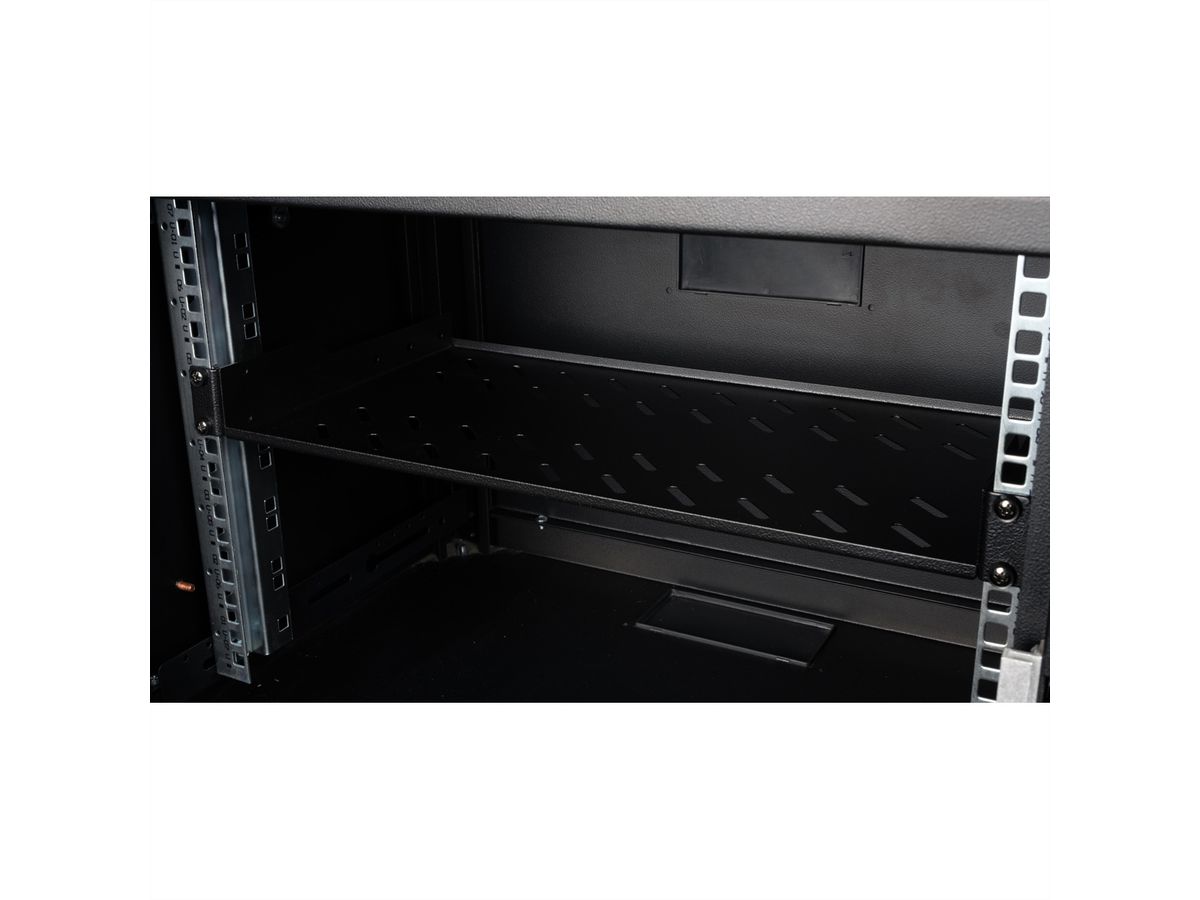

The shelves can be easily integrated into the front 19" profile rails of your 19" network or server enclosure. Thanks to the sturdy, perforated perforated plate with a high load capacity, they provide an ideal storage surface for components that cannot normally be installed in a 19" rack.

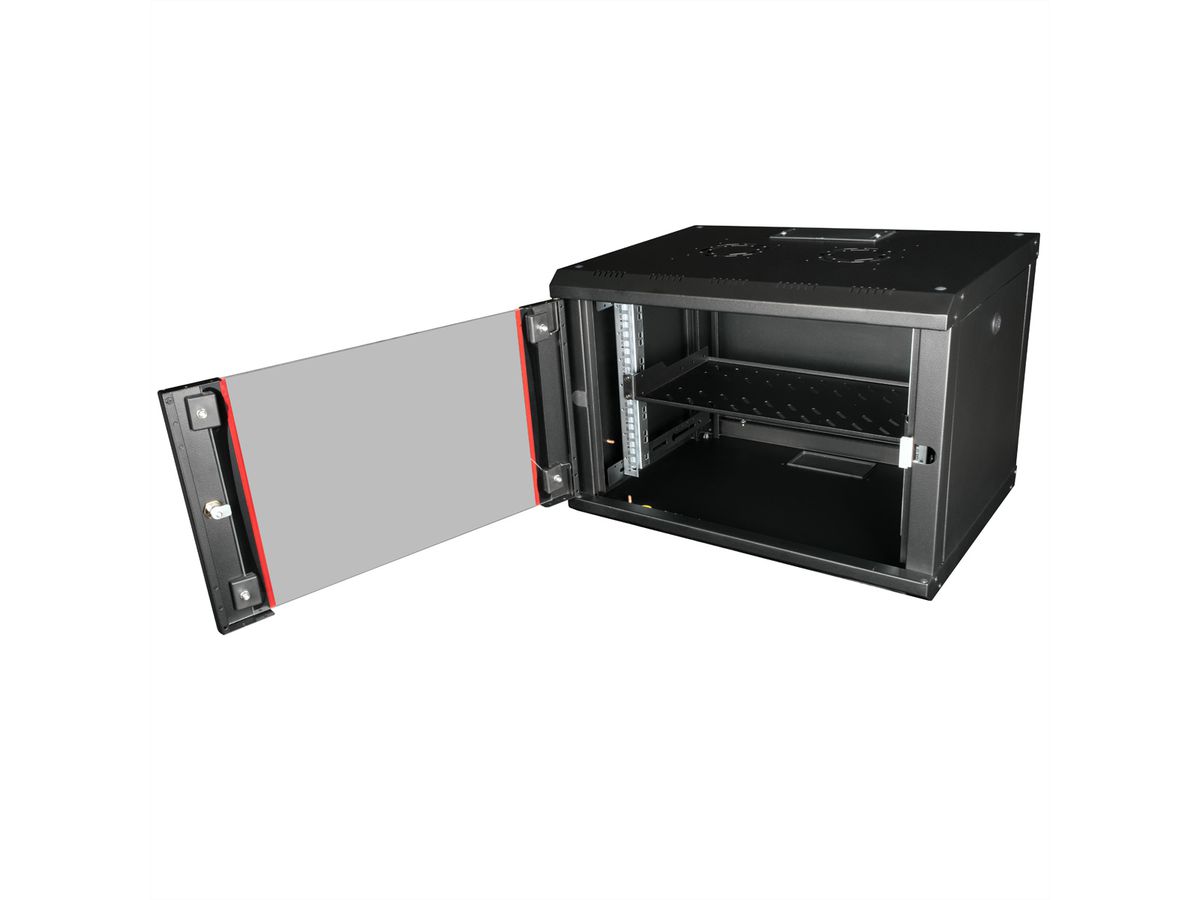

Two pairs of galvanised 19" profile rails are mounted inside the enclosure, which are equipped with height units that can be read in both directions and are adjustable in depth. They are also connected with depth braces. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm. The cabinets are electrostatically powder-coated and available in the standard colours grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels (horizontally divided from 42U) and doors improve accessibility. The door hinges can also be changed. The entire construction can be dismantled, meaning that the cabinets can be completely removed if required.

Specifications

Manufacturer	ROLINE
Product group	19"- / 10" technology
Product type	19"-fold bottom
Colour	black
Scope of delivery	Shelf, installation set (screws, cage nuts, washers), handle
Height units	1 U
Material group	Steel
Maximum weight capacity	30 kg
RAL colour	RAL 9005 Jet black
Height	45 mm
Width	485 mm
Depth	250 mm
Weight	1003 g
Height of packaging (single piece)	52 mm
Width of packaging (single piece)	520 mm
Depth of packaging (single piece)	280 mm
Package weight (single piece)	1.28 kg

Downloads

Product data sheet - English (44.2 KB)

Download

Technical drawing - English (620.2 KB)

Download
