Description

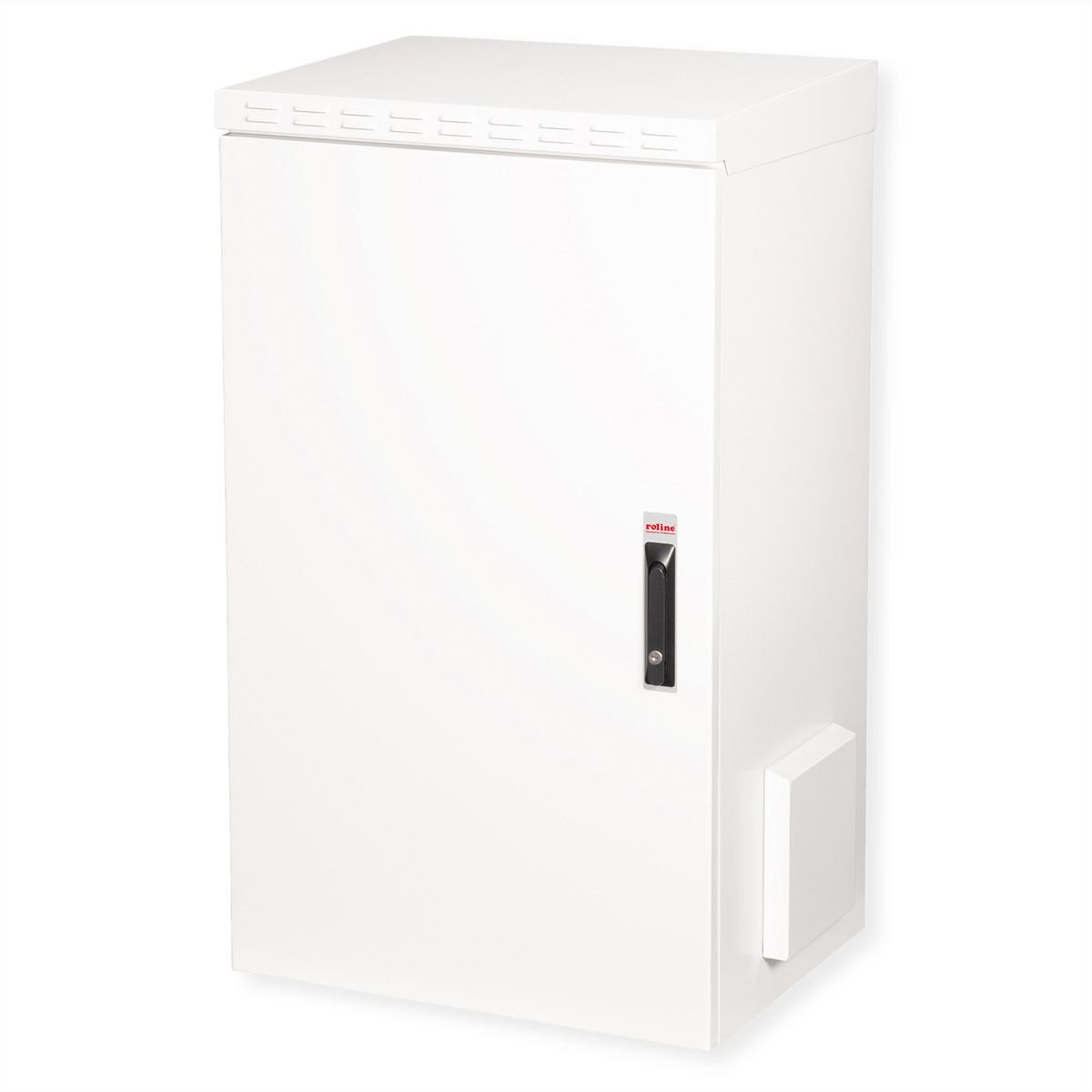

19-inch wall-mounted enclosure Pro 20 U 600x450 WxD IP55 outdoor grey

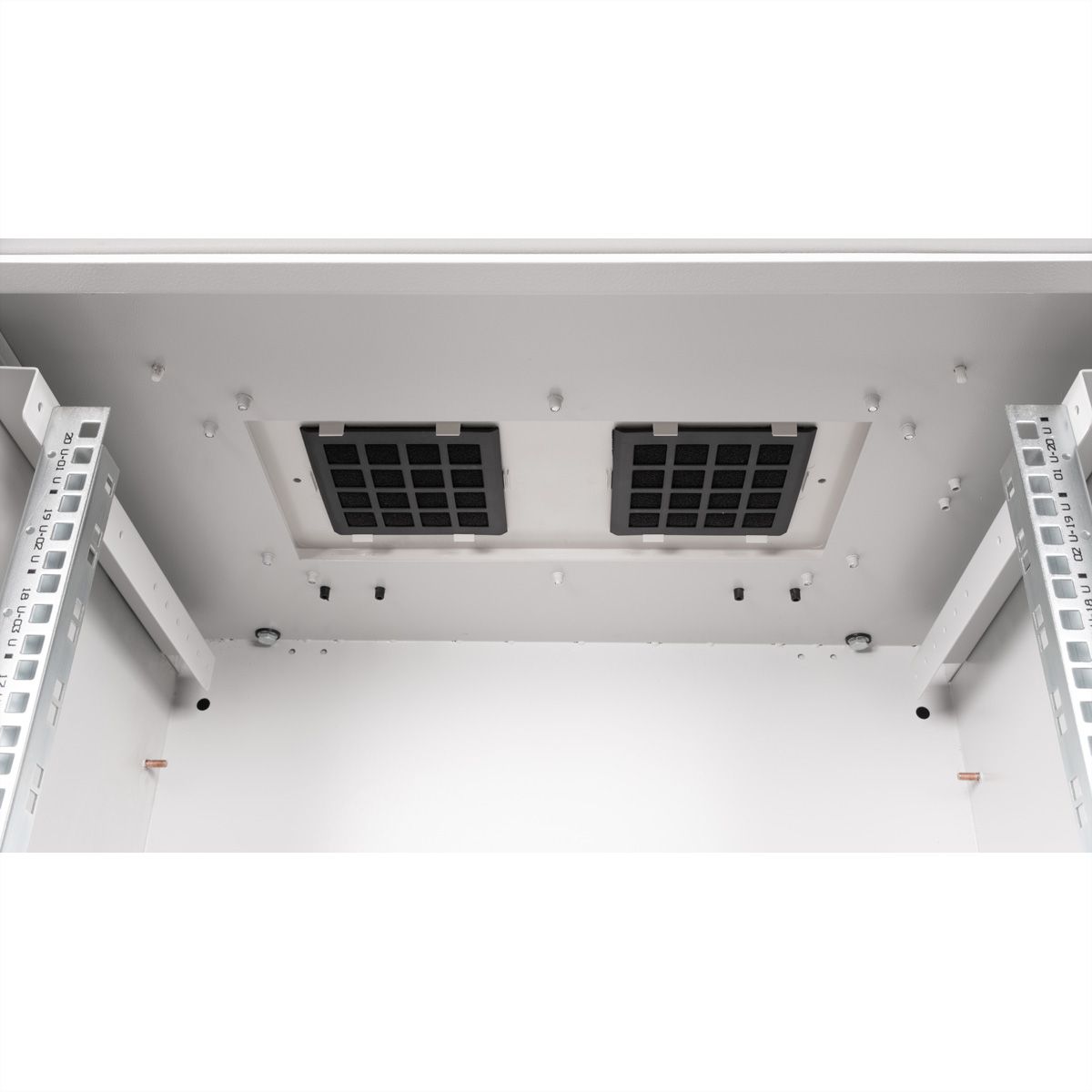

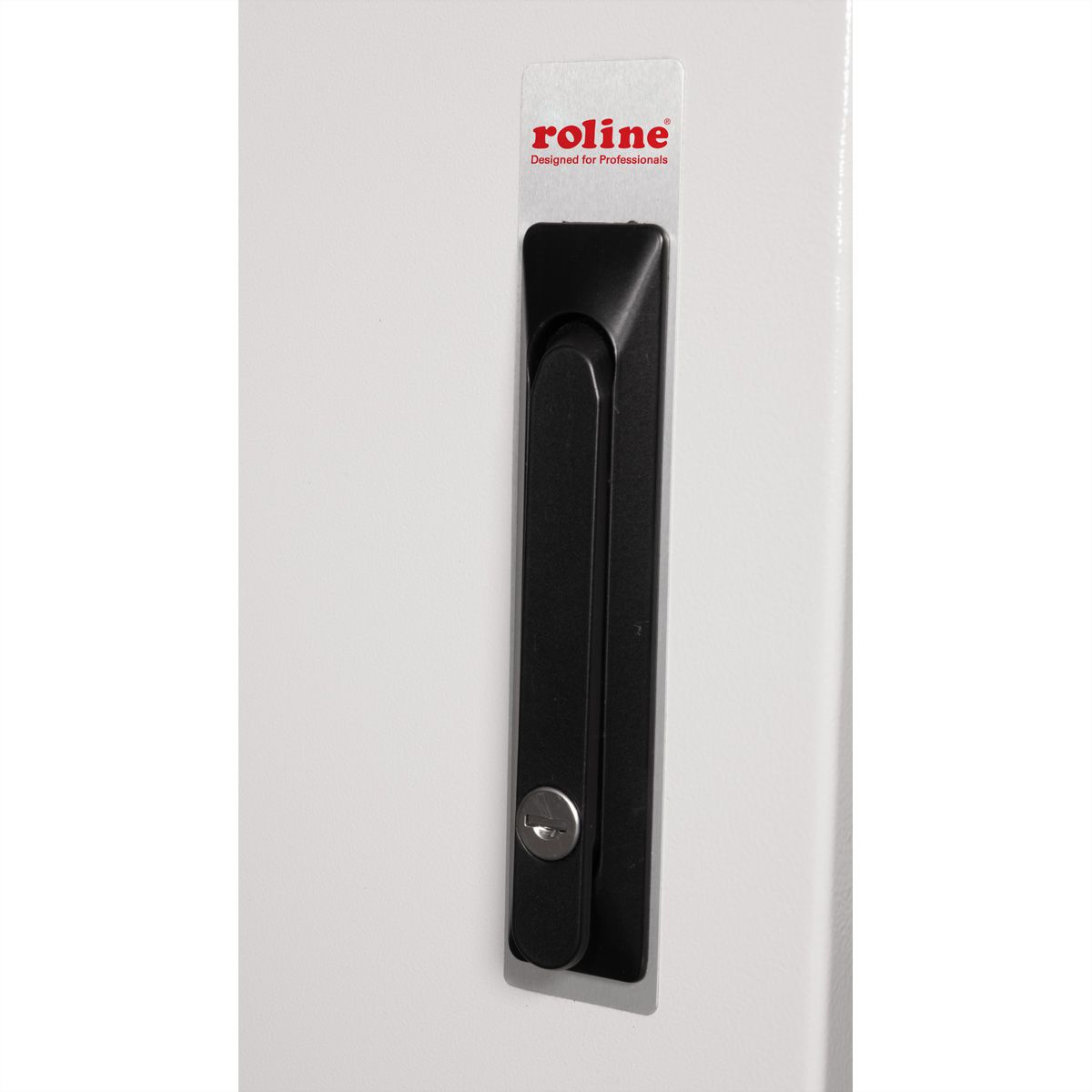

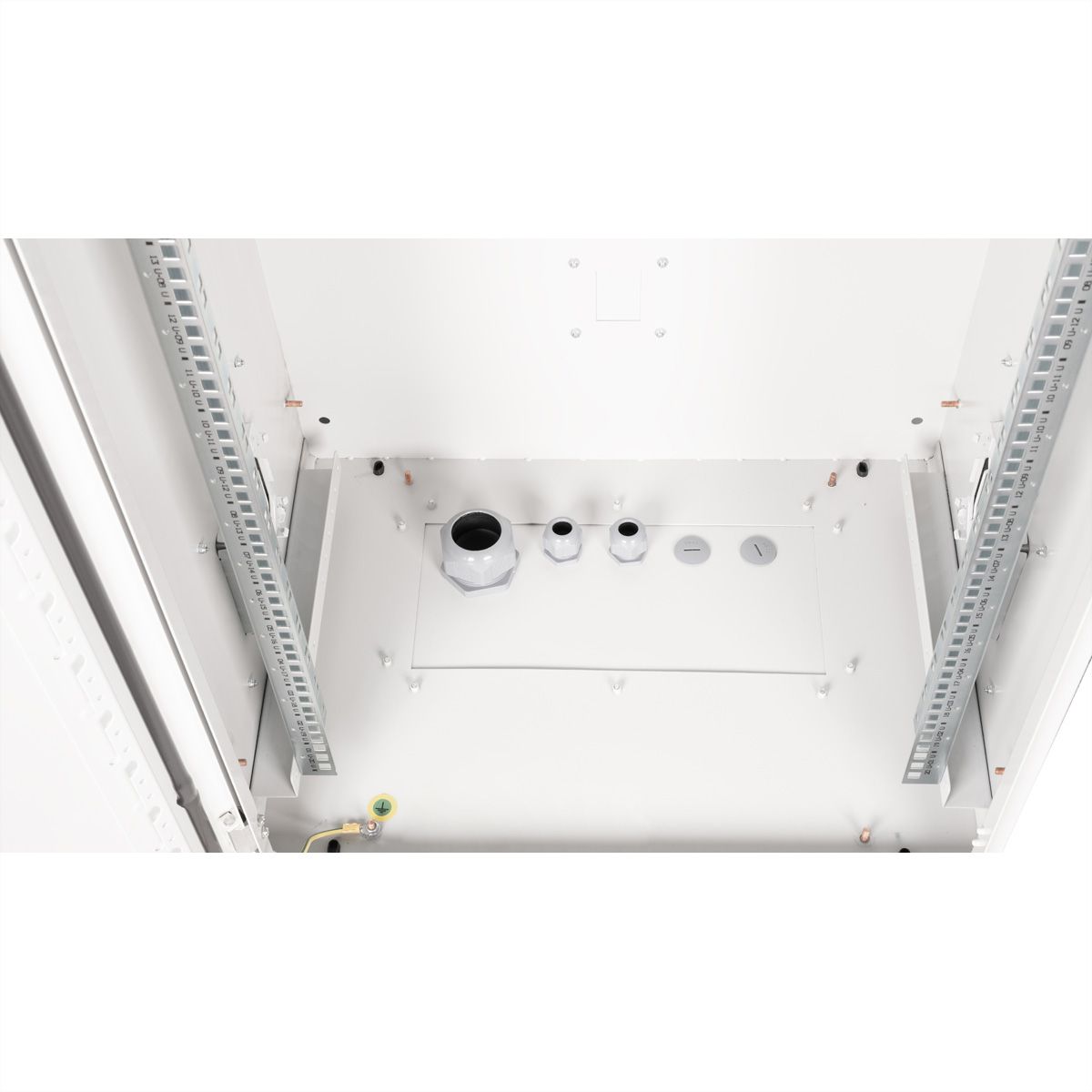

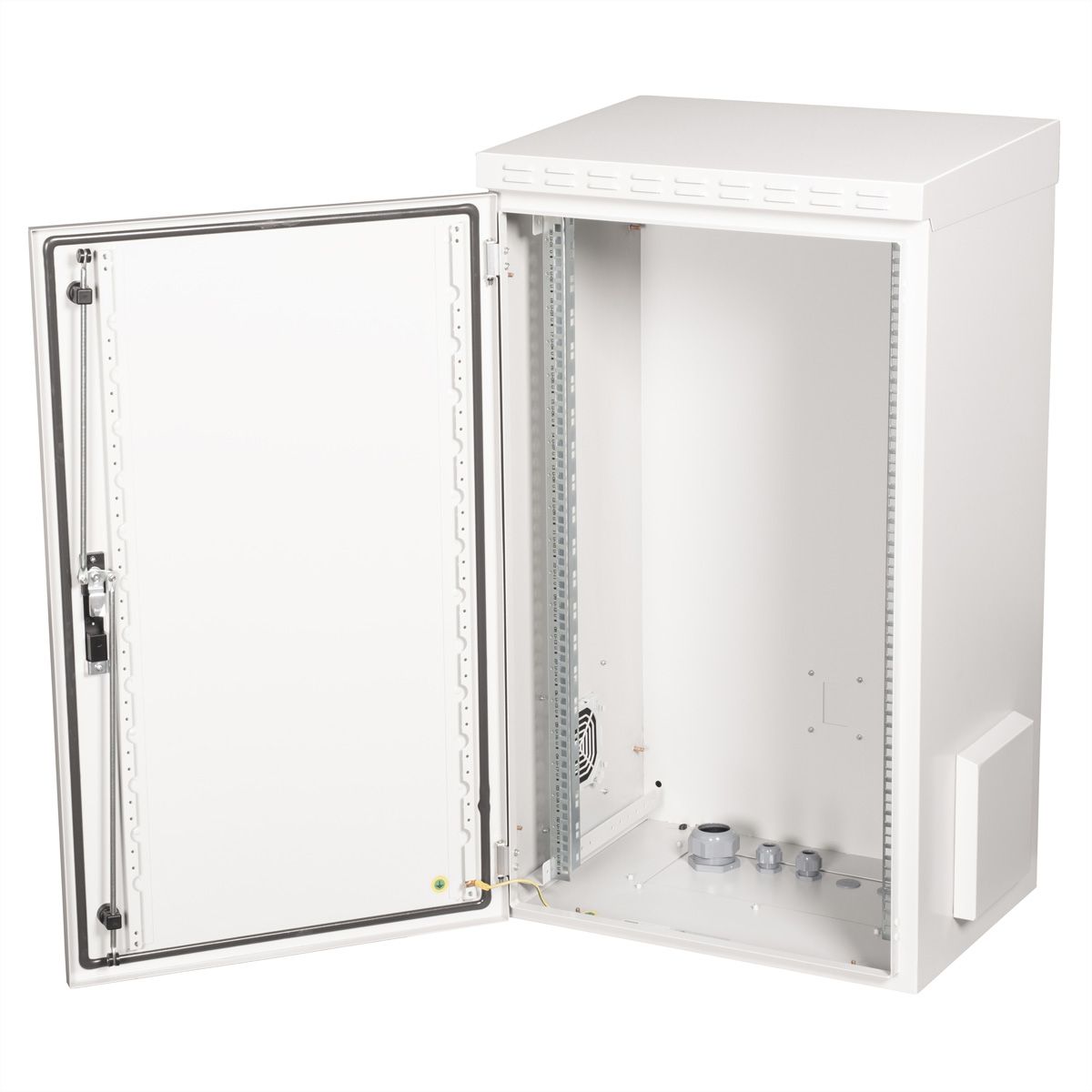

The outdoor network enclosures for wall mounting are developed in accordance with protection class IP55 and are specially designed for use in harsh environments, particularly outdoors. The wall-mounted enclosures offer a 3-point locking system with lockable swivelling handle and insulated PG cable glands. Integrated ventilation filter housings ensure ventilation and provide protection against water and dust in accordance with IP54. These enclosures are ideal for outdoor areas that are exposed to environmental influences such as rain, hail and splash water. The roof chassis is equipped with a filtered area for the installation of a fan module. Inside there is a pair (from 600 mm depth two pairs) of galvanised 19" profile rails, which can be read in both directions and are adjustable in depth. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm.

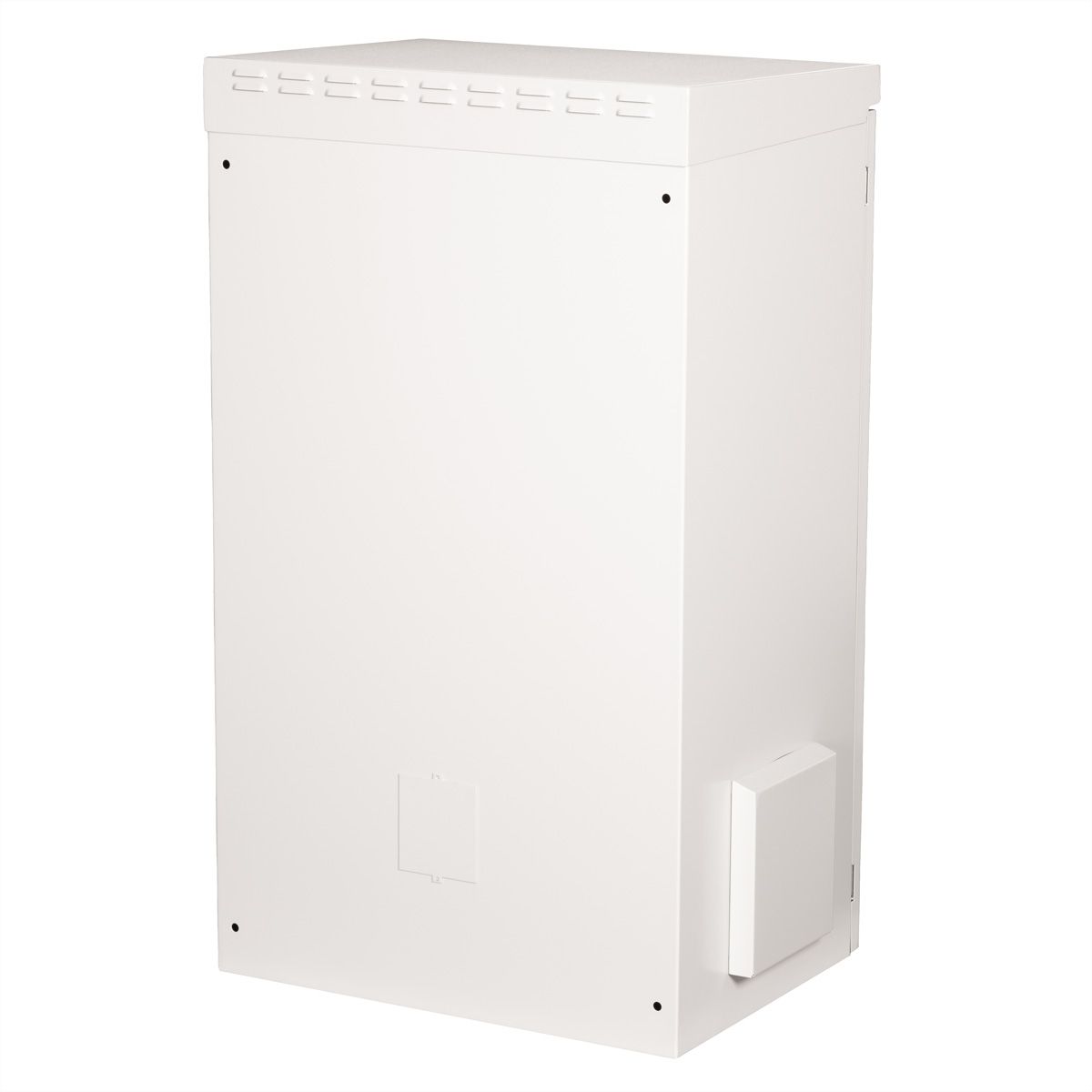

The colouring is done by electrostatic powder coating in the standard colour grey (RAL 7035). Wall mounting is carried out using the enclosed mounting brackets. Optionally, the cabinets can be used with a base as a free-standing solution or attached to poles using a mounting set.
