Description

Displays the video output from 2 HDMI sources alternately on a monitor or a projector.

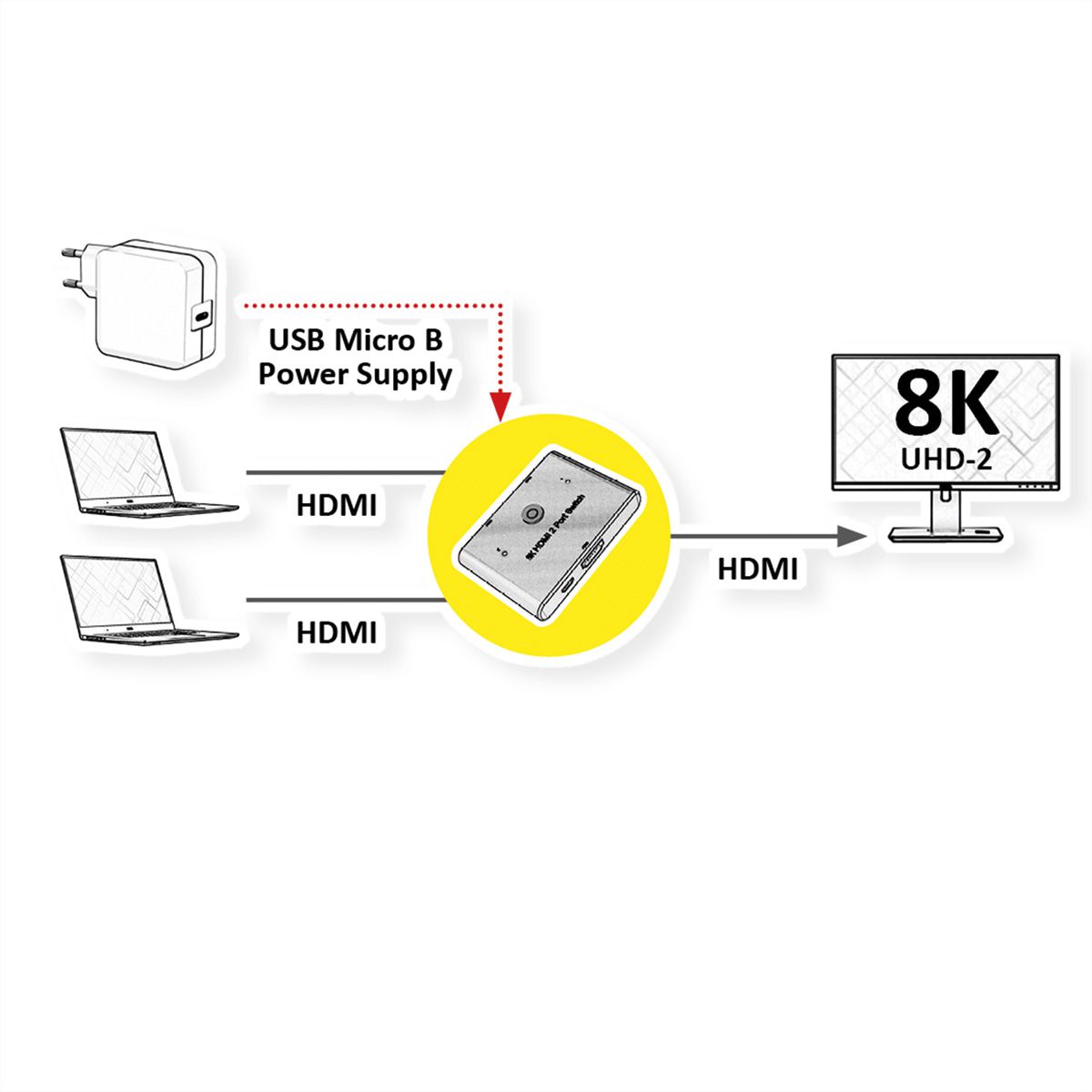

• Example of use: An LCD monitor is supplied with power from two different HDMI sources, such as a DVD player or notebook. The desired source can be selected at the push of a button.

• Switching between the PCs is done with a button on the switch
• Supports 8K (7680x4320 @60Hz)
• Resolution: up to 480p, 720p, 1080i, 2160p, 4320p
• Installation is easy - no software, just connect the cables and you're done.
• Black body
• Powered by USB, USB cable (type A - micro B) included

Technical specifications:

• Input : 2x HDMI A socket
• Output: 1x HDMI A socket

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Video-Switch
Colour	black
Scope of delivery	HDMI Switch, USB cable type A-micro B, manual
Interface	HDMI
Inputs	2
Outputs	1
Video input	2x HDMI A Female
Video output	1x HDMI A Female
Max. resolution (nom.)	max. 8K (7680x4320 @60Hz)
Technical particularity	Switching via button on the device
Weight	74.3 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	80 mm
Depth of packaging (single piece)	110 mm
Package weight (single piece)	0.081 kg

Downloads

Product data sheet - English (51.9 KB)

Download
