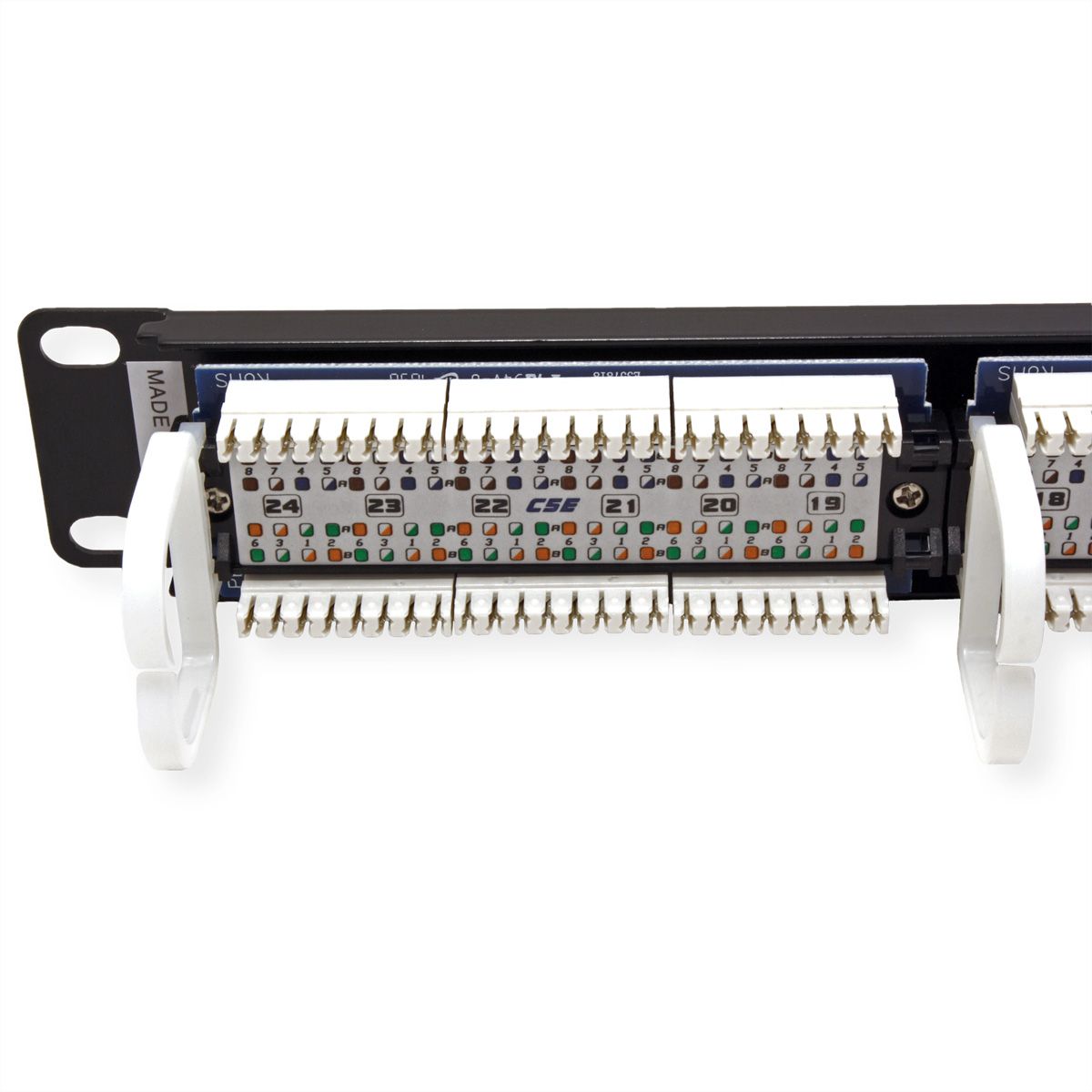

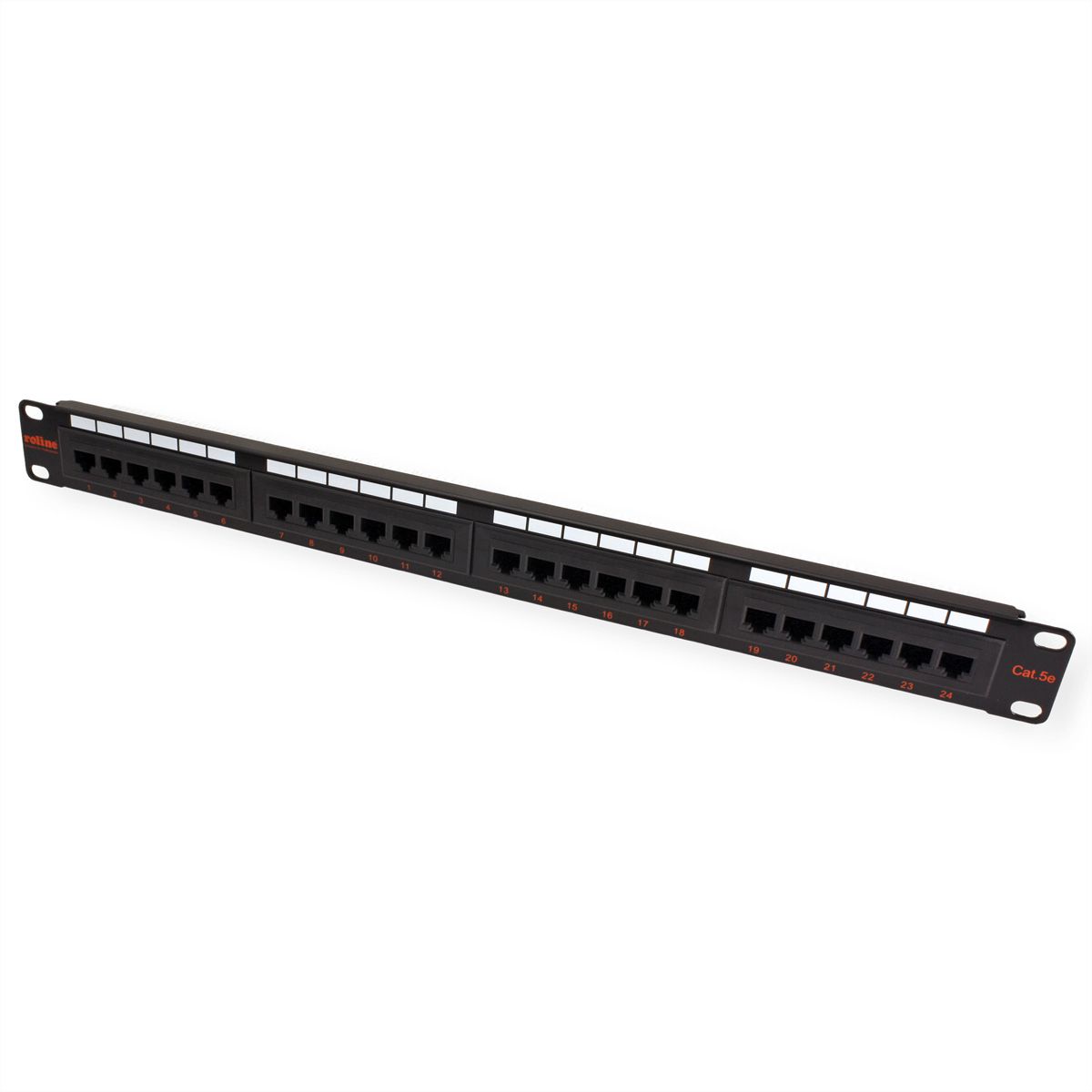

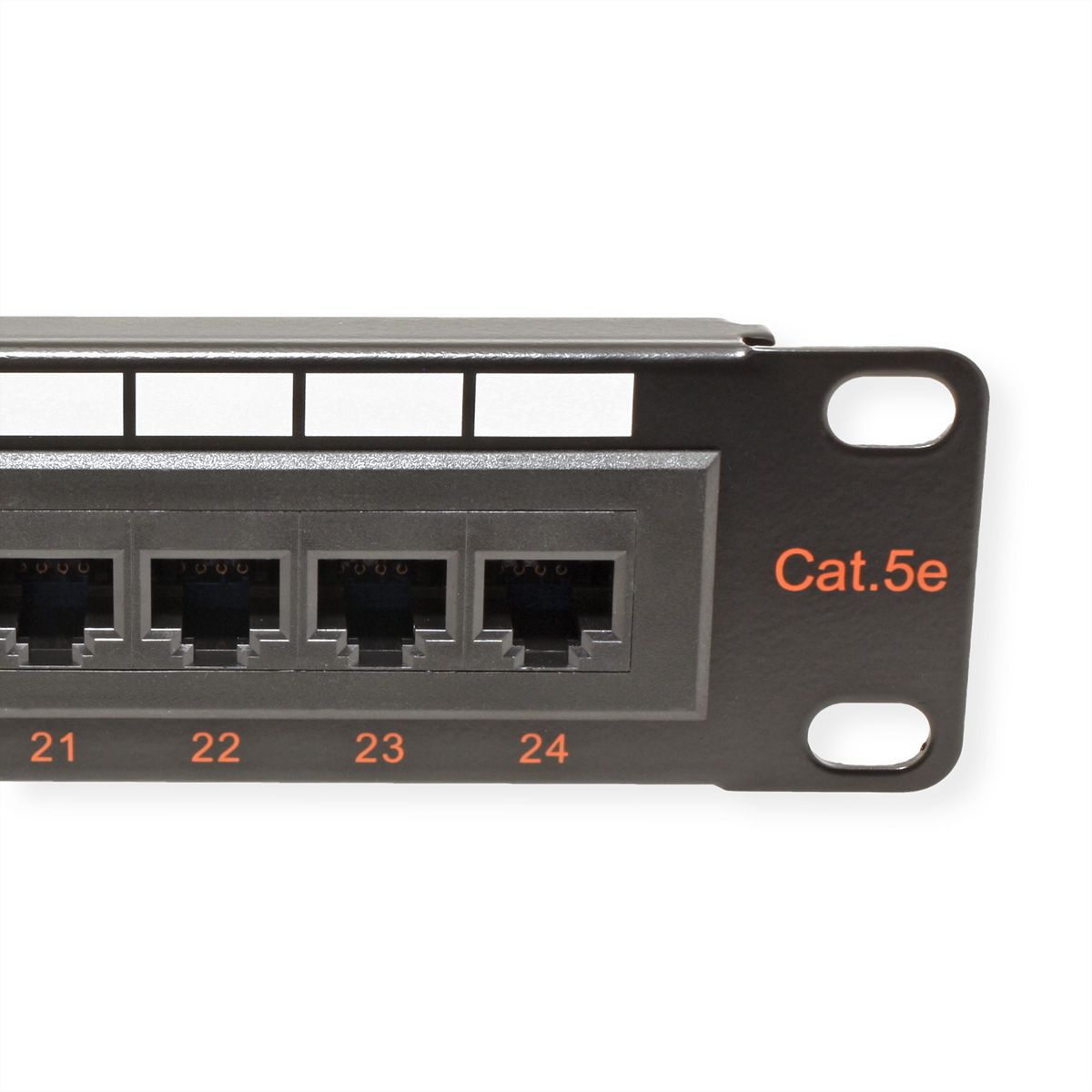

ROLINE Cat.5e (Class D) 19" Patch Panel, 24 Ports, UTP, black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26110349
Brand / Manufacturer	ROLINE
Manuf. item no.	26.11.0349
EAN	7611990135684
Item weight	0.75 kg

Description

The UTP patch panels are compliant with EIA/TIA 568 TSB40a
LSA-plus technology
24 ports
Colour: Black

For a structured unshielded cabling system we recommend to use the following components:

ROLINE Cat.5e UTP Cable, Solid Wire, AWG24: 21.15.0512 (100 m), 21.15.0511 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, unshielded: 25.16.8506 (white), 25.16.8501 (ivory)/25.16.8406 (white), 25.16.8401 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, unshielded: 26.11.0349 (black), 26.11.0347 (light grey)
ROLINE Cat.5e UTP Patch Cord, grey, 5 m: 21.15.0505

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Patchpanel Cat.5e
Colour	black
Shield type	Not screened
Transfer quality	Cat5e / Class D
Cabinet system	19"-Technique
Quantity of ports	24
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	no
Shield contacts	No
Connection direction	Straight
Height units	1 U
Height	43.5 mm
Width	482.6 mm
Depth	48.3 mm
Weight	482.9 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	490 mm
Package weight (single piece)	0.75 kg
