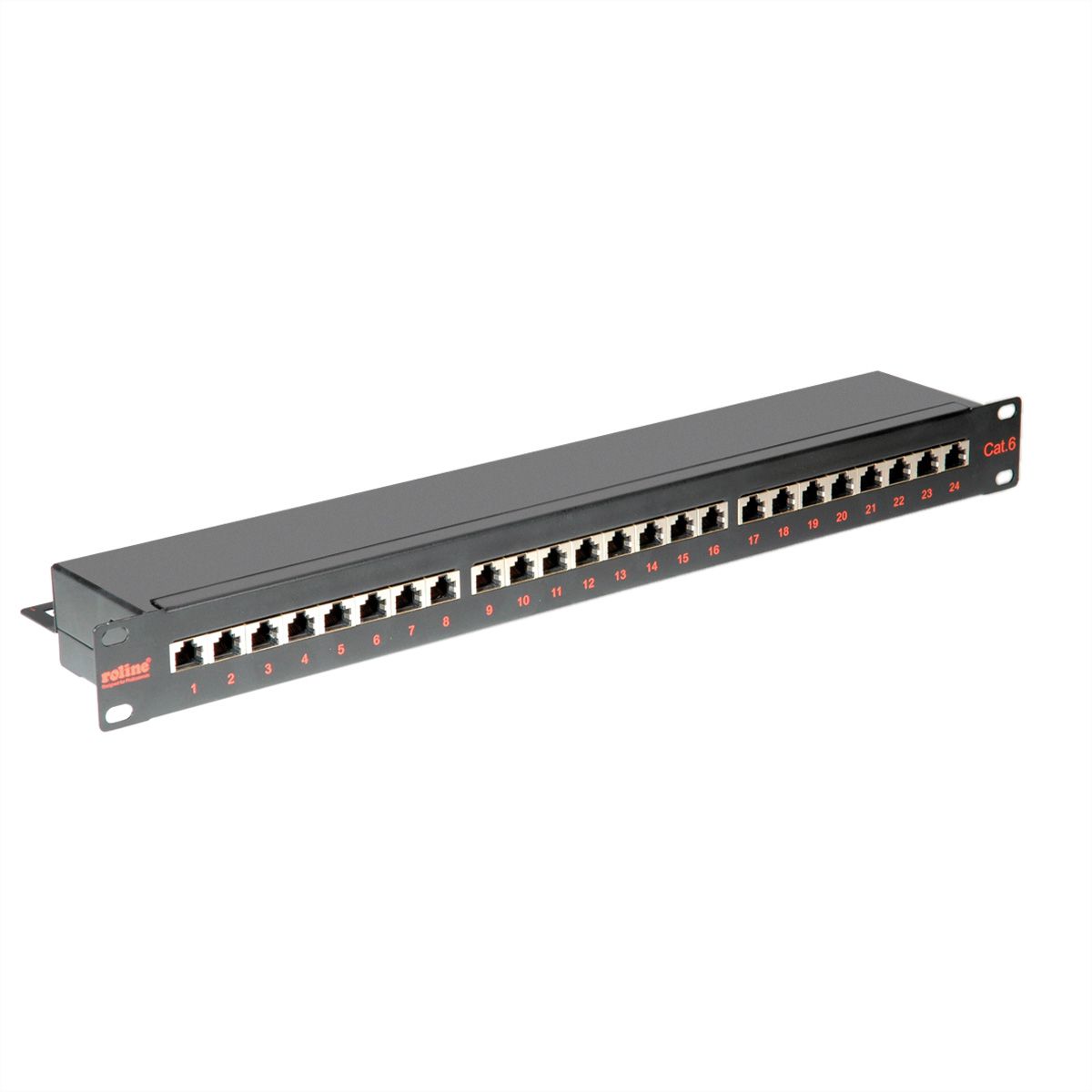

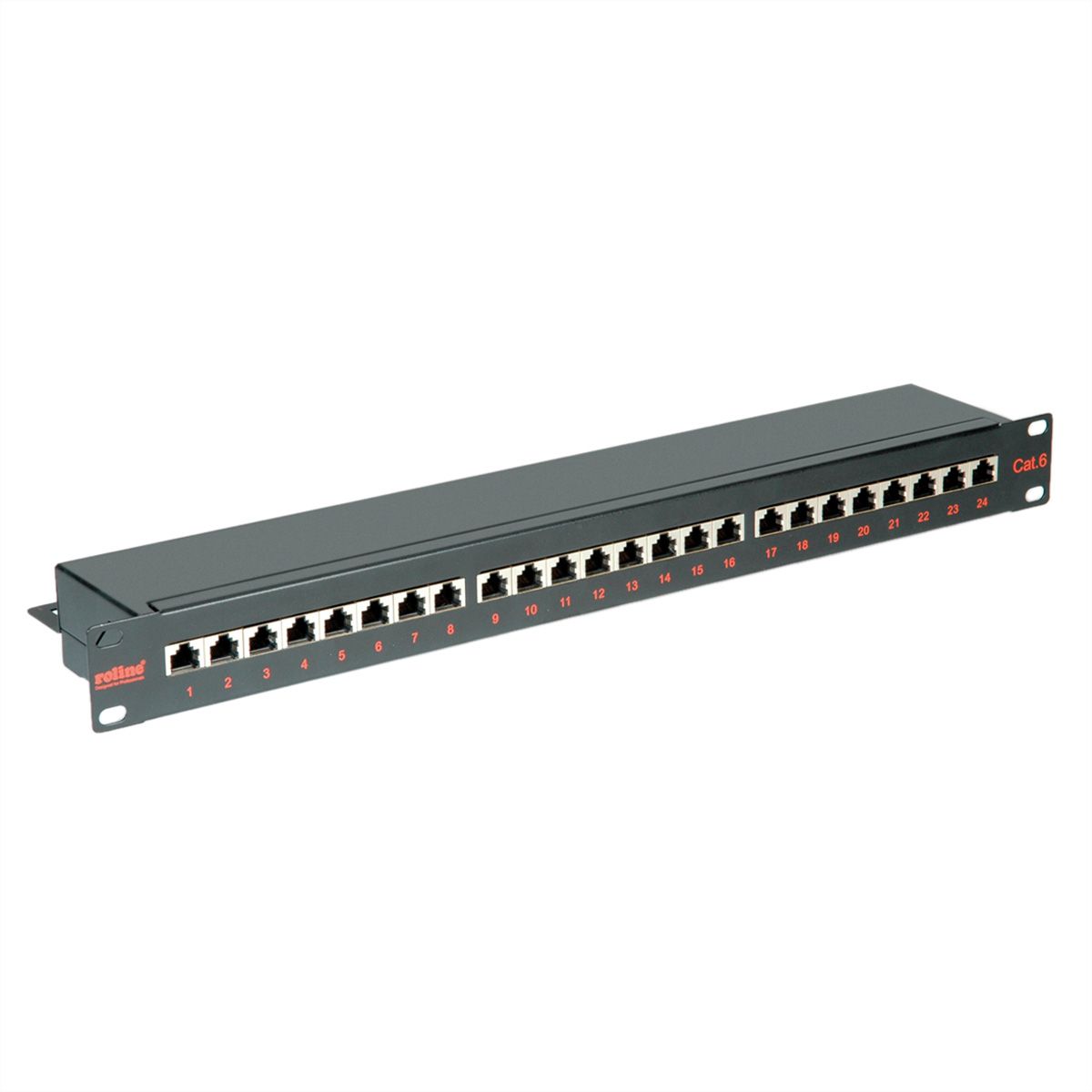

ROLINE Cat.6 (Class E) 19" Patch Panel, 24 Ports, STP, black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26110361
Brand / Manufacturer	ROLINE
Manuf. item no.	26.11.0361
EAN	7611990182435
Item weight	1.69 kg

Description

The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
Sheet steel housing and cover
24 ports
Colour: Black

For a structured cabling system we recommend to use the following components:

ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835

The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2365b-10-E (with flush

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Patchpanel Cat.6 / Class E
Colour	black
Shield type	Screened
Transfer quality	Cat6 / Class E
Cabinet system	19"-Technique
Quantity of ports	24
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	no
Material (casing)	Metal
Shield contacts	Yes
separate strain relief	yes
Connection direction	Straight
Height units	1 U
Height	44 mm
Width	482.6 mm
Depth	109 mm
Weight	1504.5 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	560 mm
Package weight (single piece)	1.69 kg
