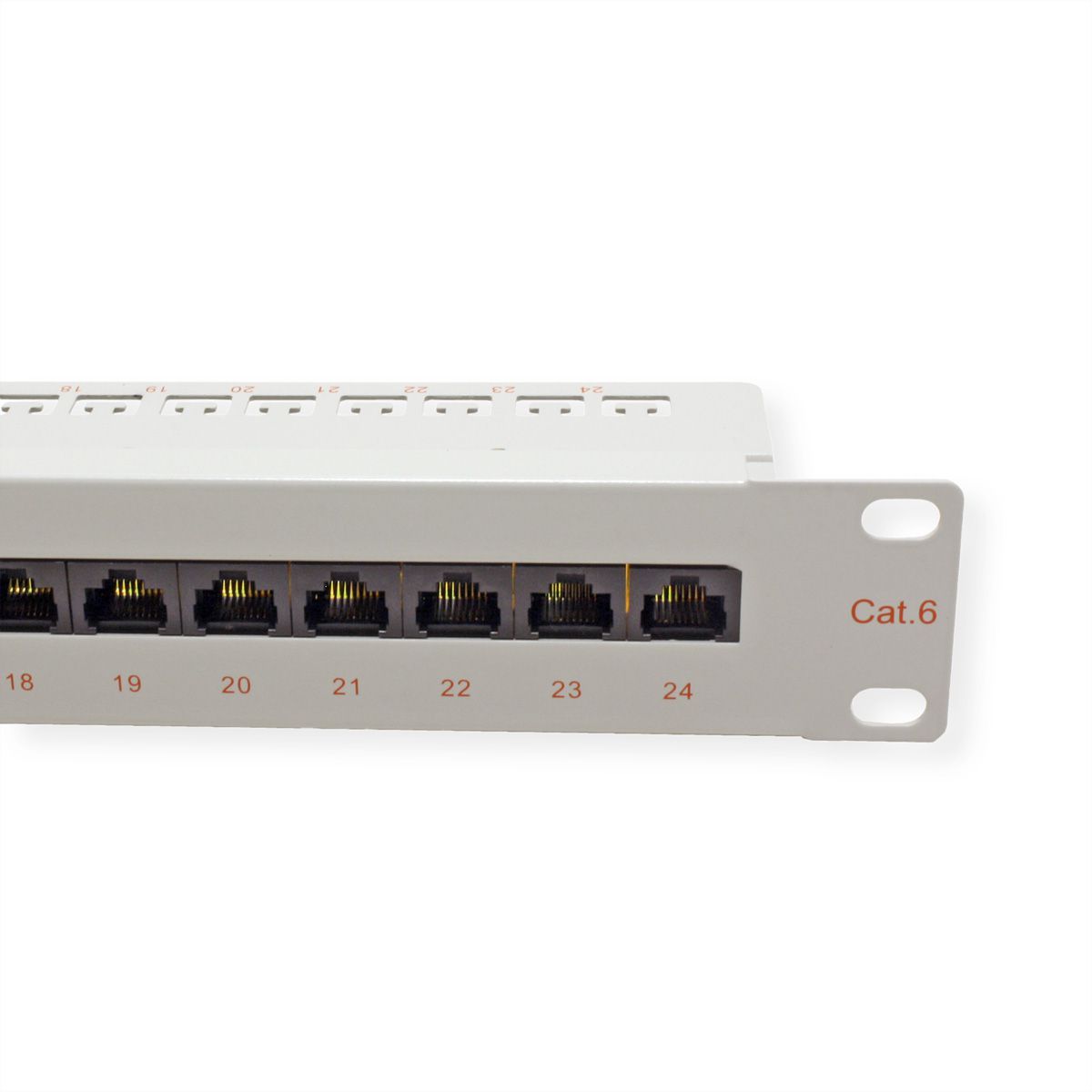

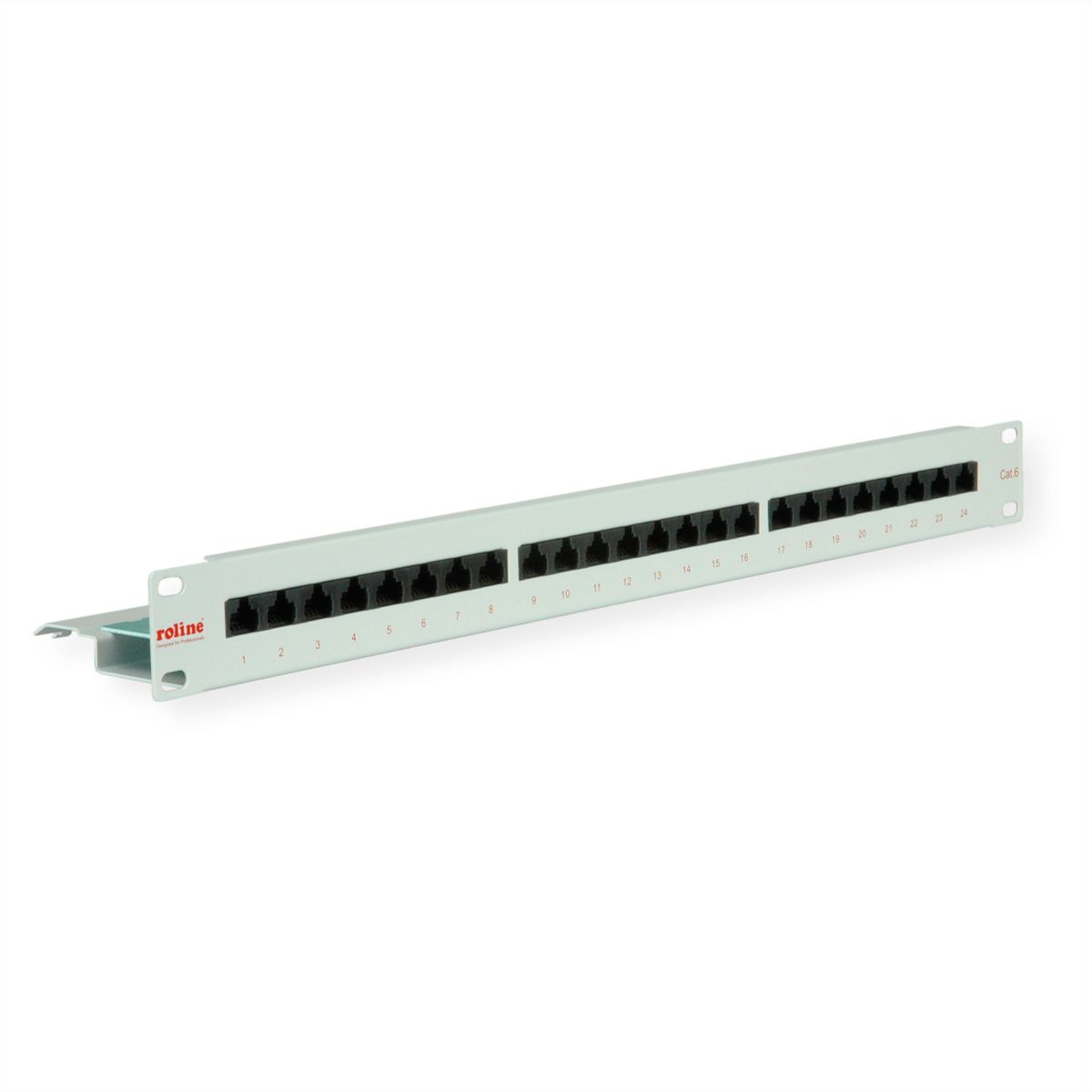

Description

• The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks

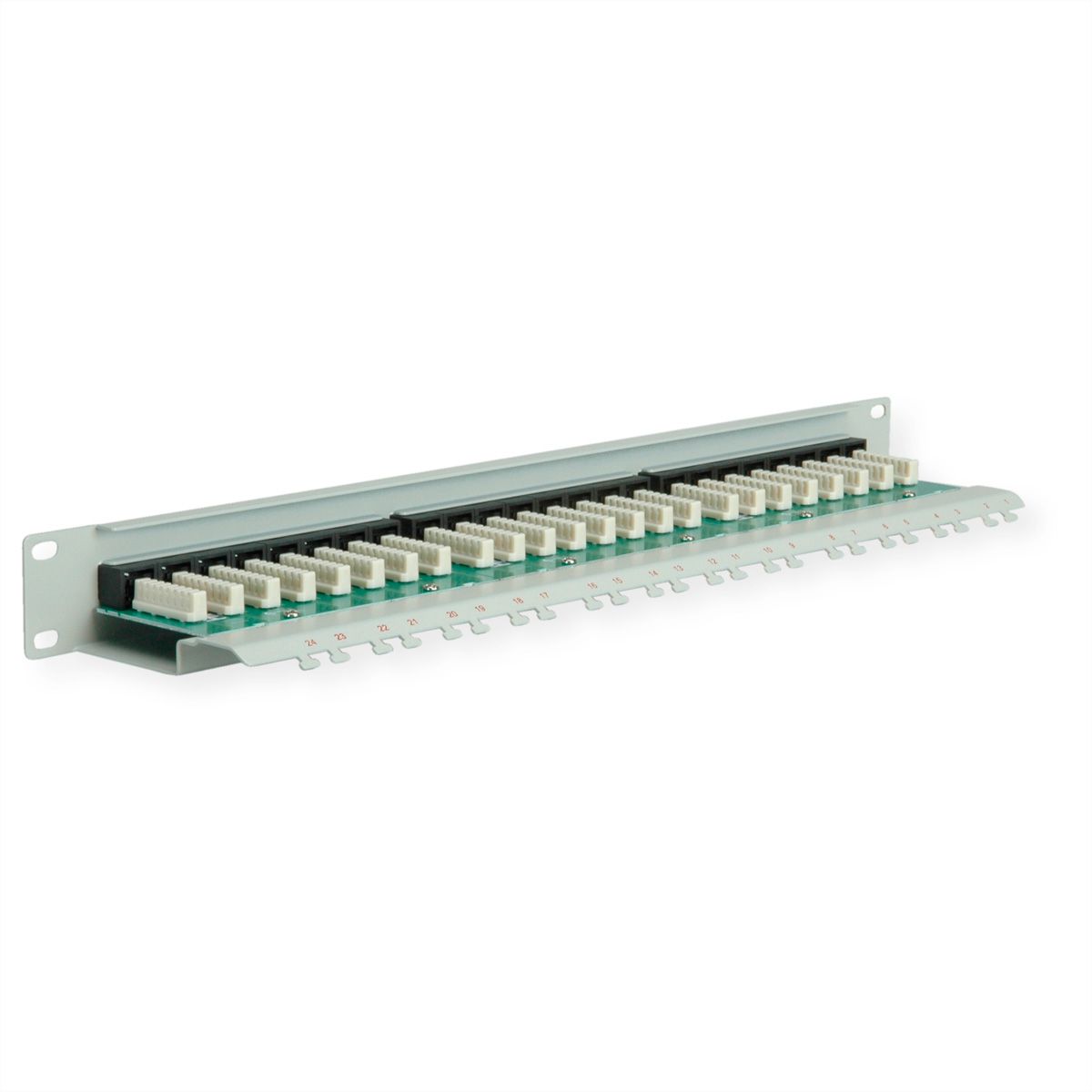

• Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
• 24 ports
• Colour: Light grey

For a structured cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Patchpanel Cat.6 / Class E
Colour	grey
Shield type	Not screened
Transfer quality	Cat6 / Class E
Cabinet system	19"-Technique
Quantity of ports	24
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	no
Shield contacts	No
separate strain relief	yes
Connection direction	Straight
Height units	1 U
Height	44 mm
Width	482.6 mm
Depth	109 mm
Weight	874.3 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	490 mm
Package weight (single piece)	2.2 kg

Downloads

Product data sheet - English (38.5 KB)

Download

Manufacturer data sheet - English (681.3 KB)

Download
