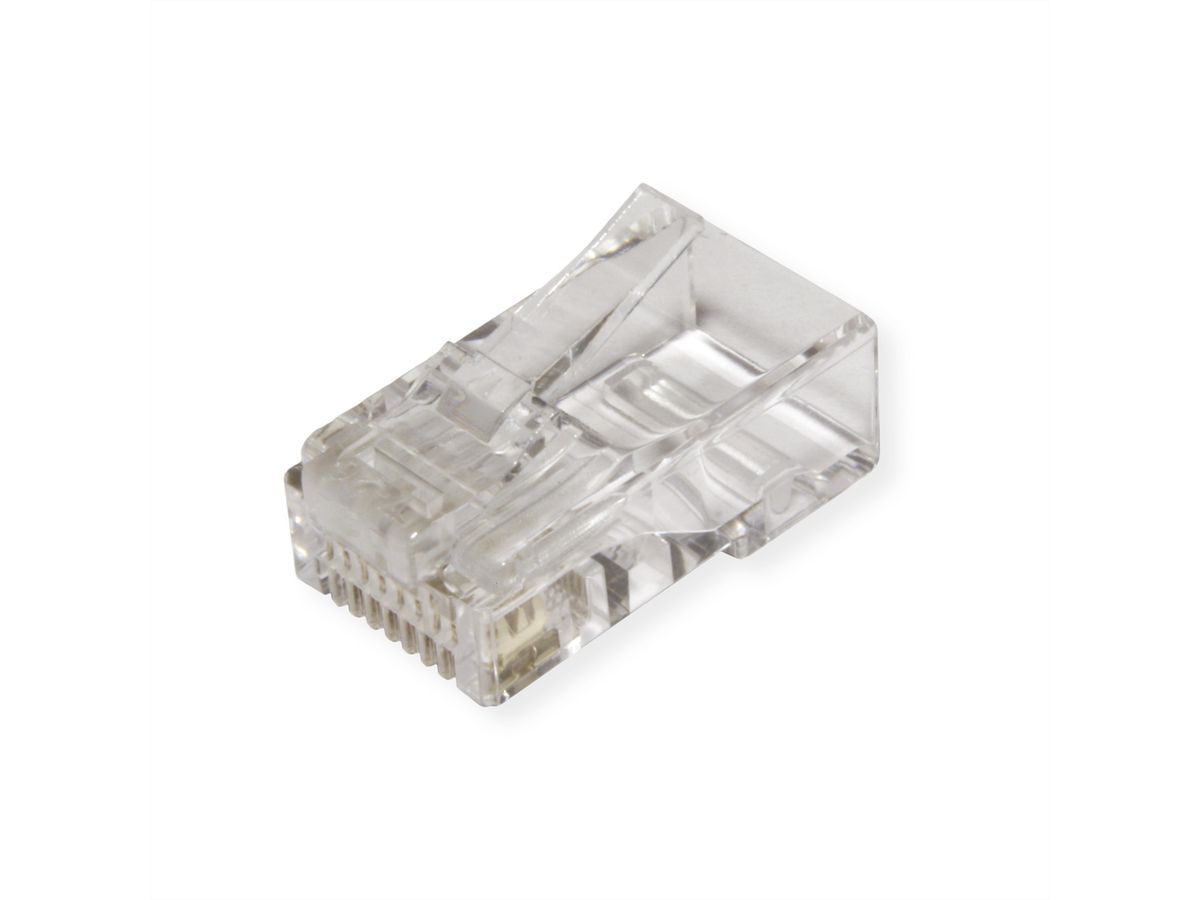

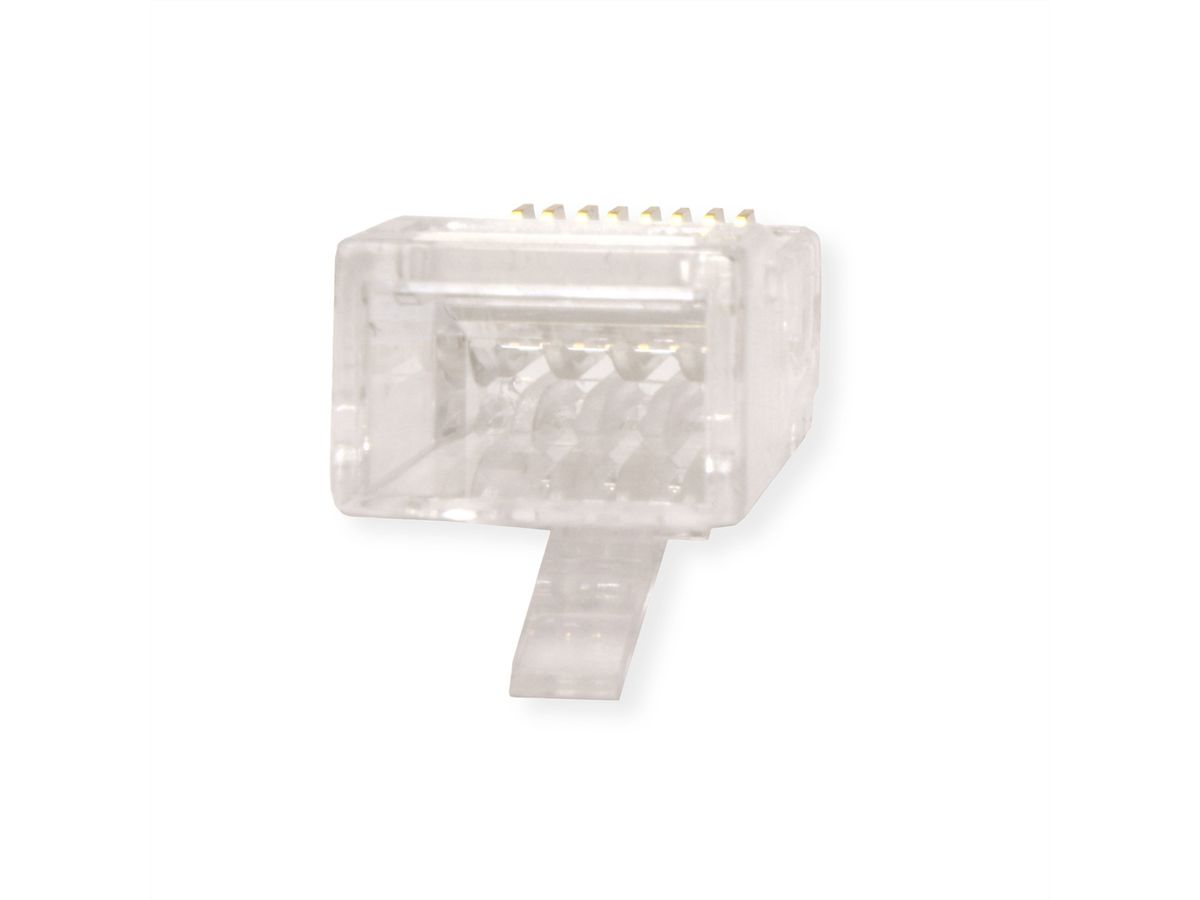

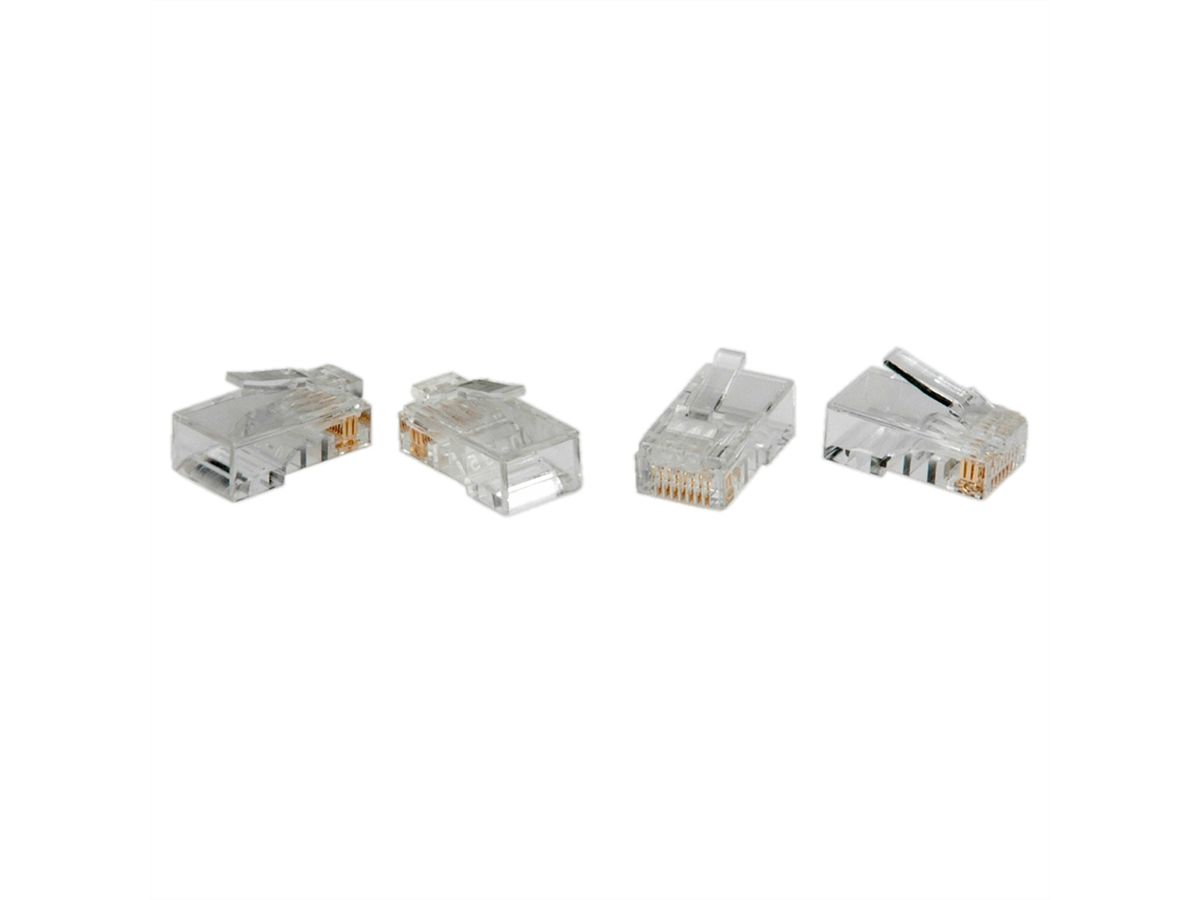

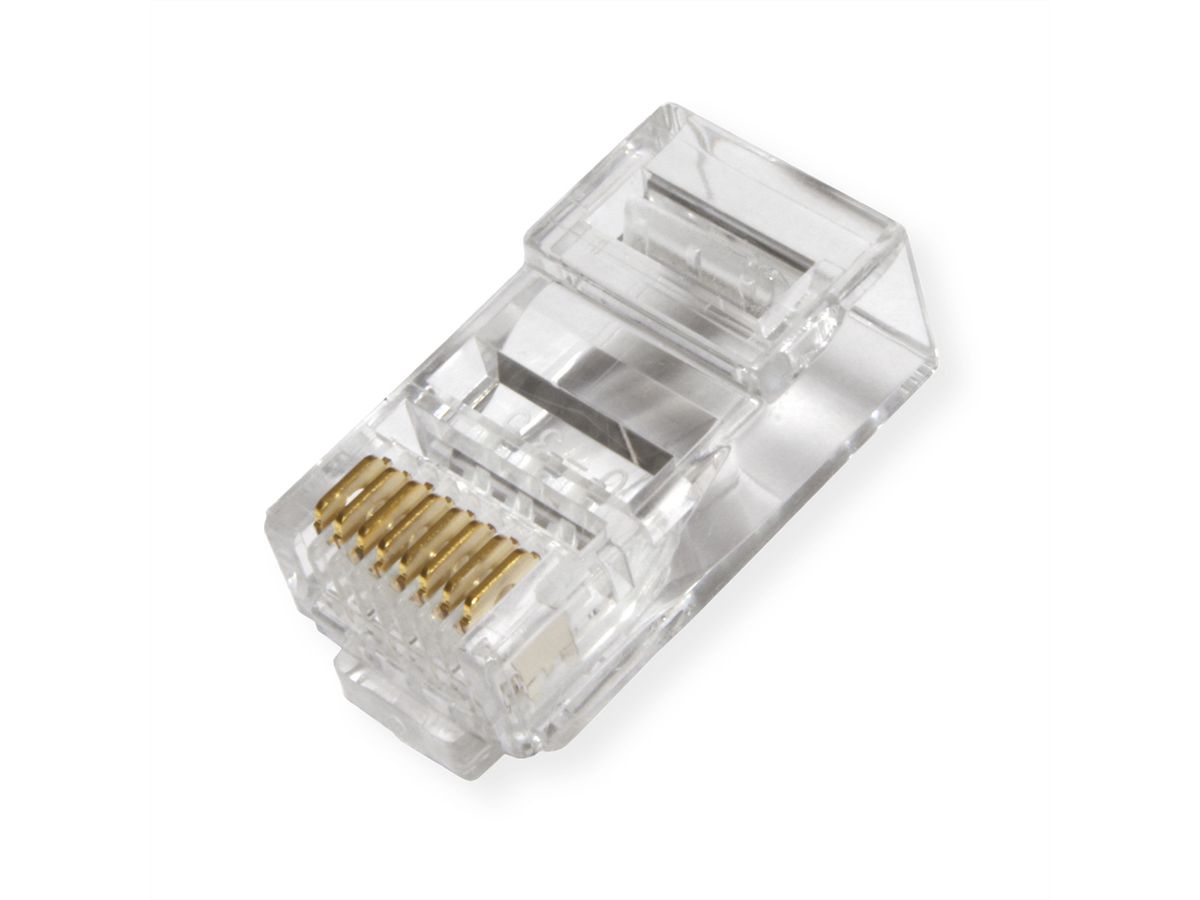

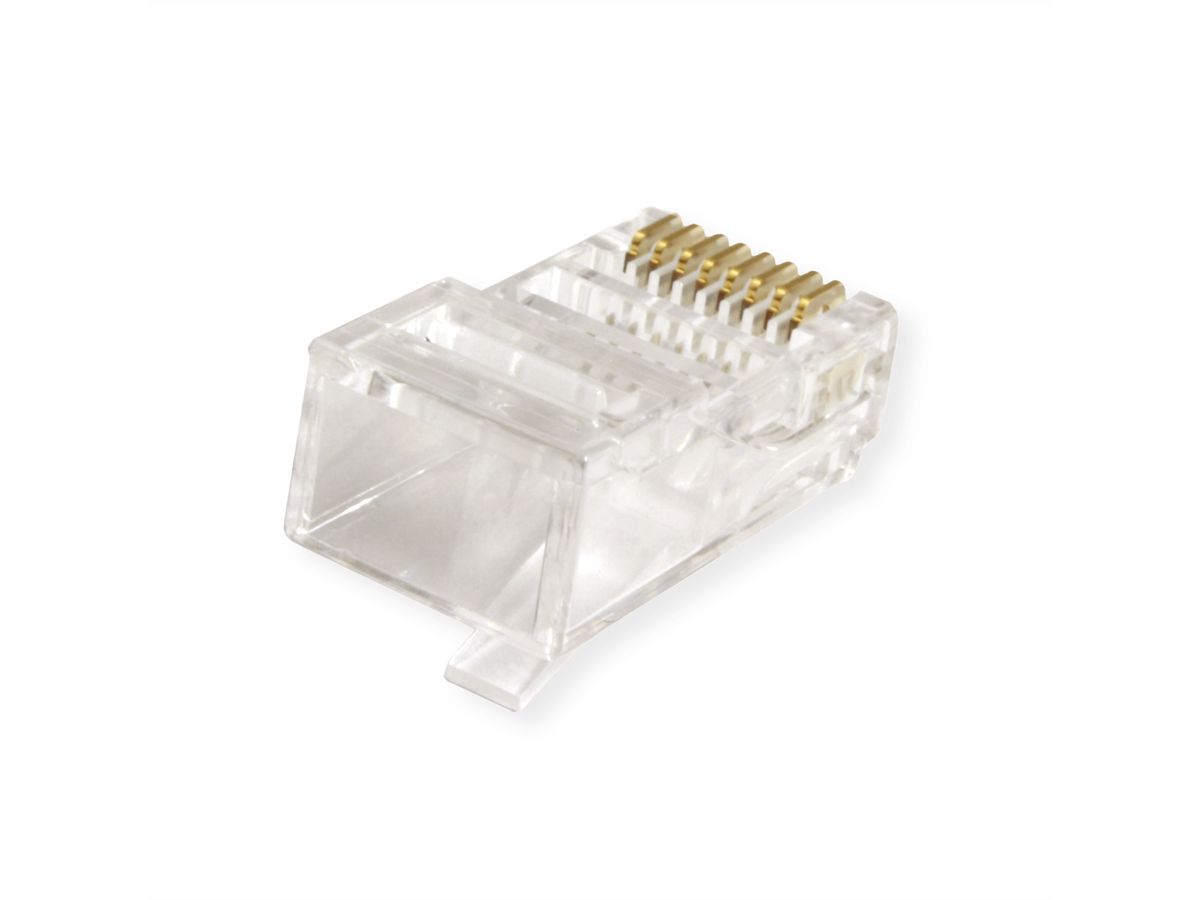

ROLINE Cat.6 (Class E) Modular Plug, UTP, for Stranded Wire, 10 pcs.

ROLINE Cat.6 (Class E) Modular Plug, UTP, for Stranded Wire, 10 pcs.

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21173060
Brand / Manufacturer ROLINE
Manuf. item no. 21.17.3060
EAN 7611990176601
Item weight 0.024 kg
ROLINE

Description

  • Modular Plugs unshielded
  • Gold plated
  • For stranded wire
  • Package unit 10 connectors

Specifications

Manufacturer ROLINE
Product group Connection technology TP
Product type RJ-45 Modular Plugs
Colour transparent
Shield type Not screened
Transfer quality Cat6 / Class E
Material (casing) Plastic
separate strain relief no
Connection direction Straight
Operating temperature min. -20 °C
Operating temperature max. 75 °C
Height 12 mm
Width 11.7 mm
Depth 21.5 mm
Weight 14.4 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 70 mm
Depth of packaging (single piece) 130 mm
Package weight (single piece) 0.024 kg
Shield contacts yes

Downloads

Product data sheet - English (37.9 KB)

Download

Manufacturer data sheet - English (52.6 KB)

Download
