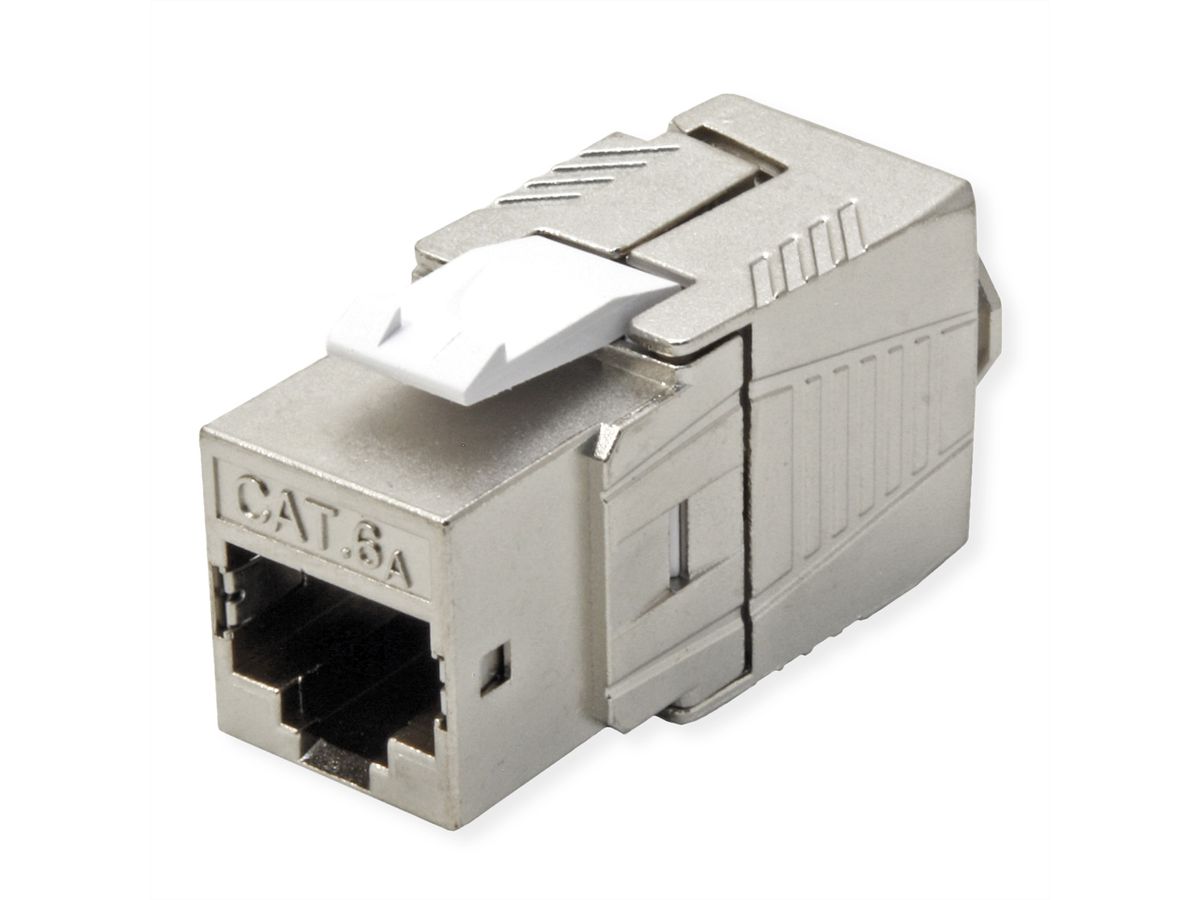

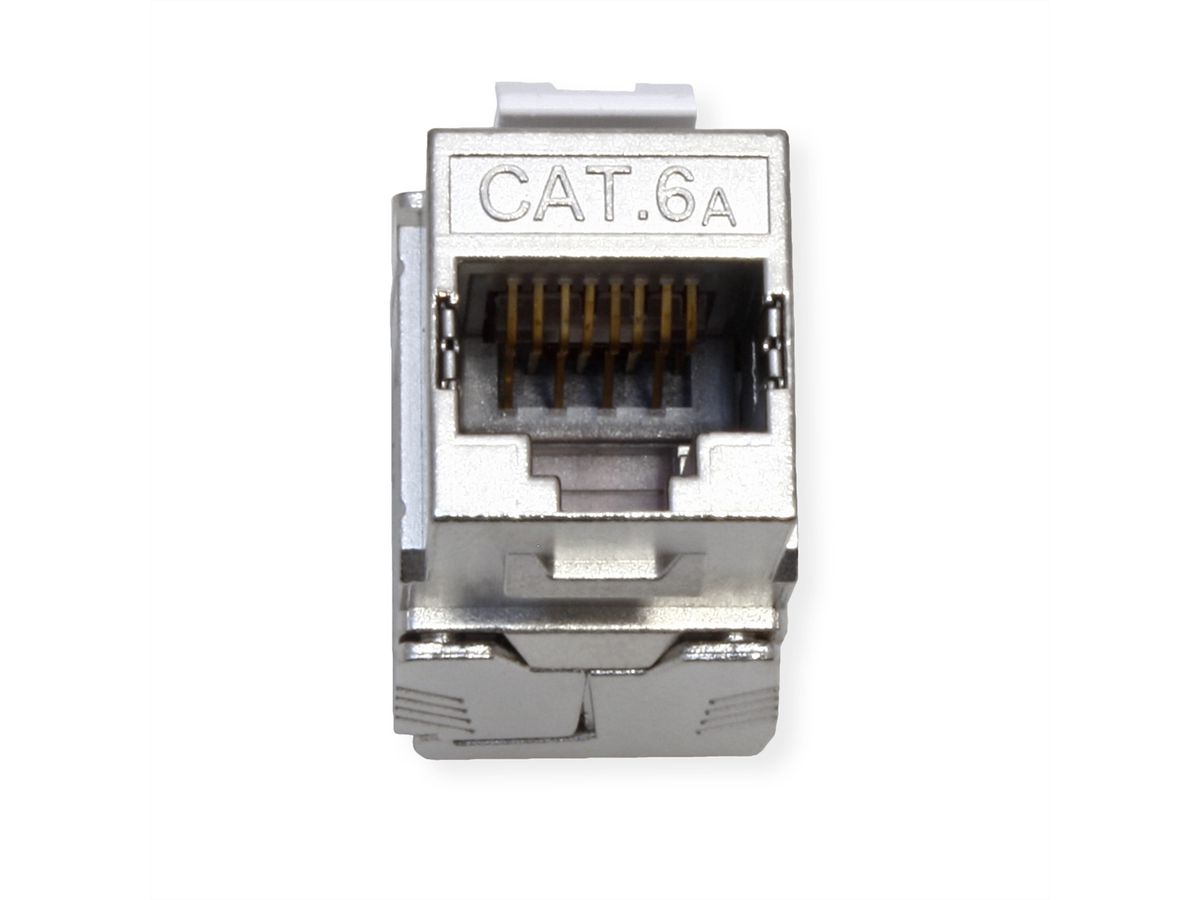

ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

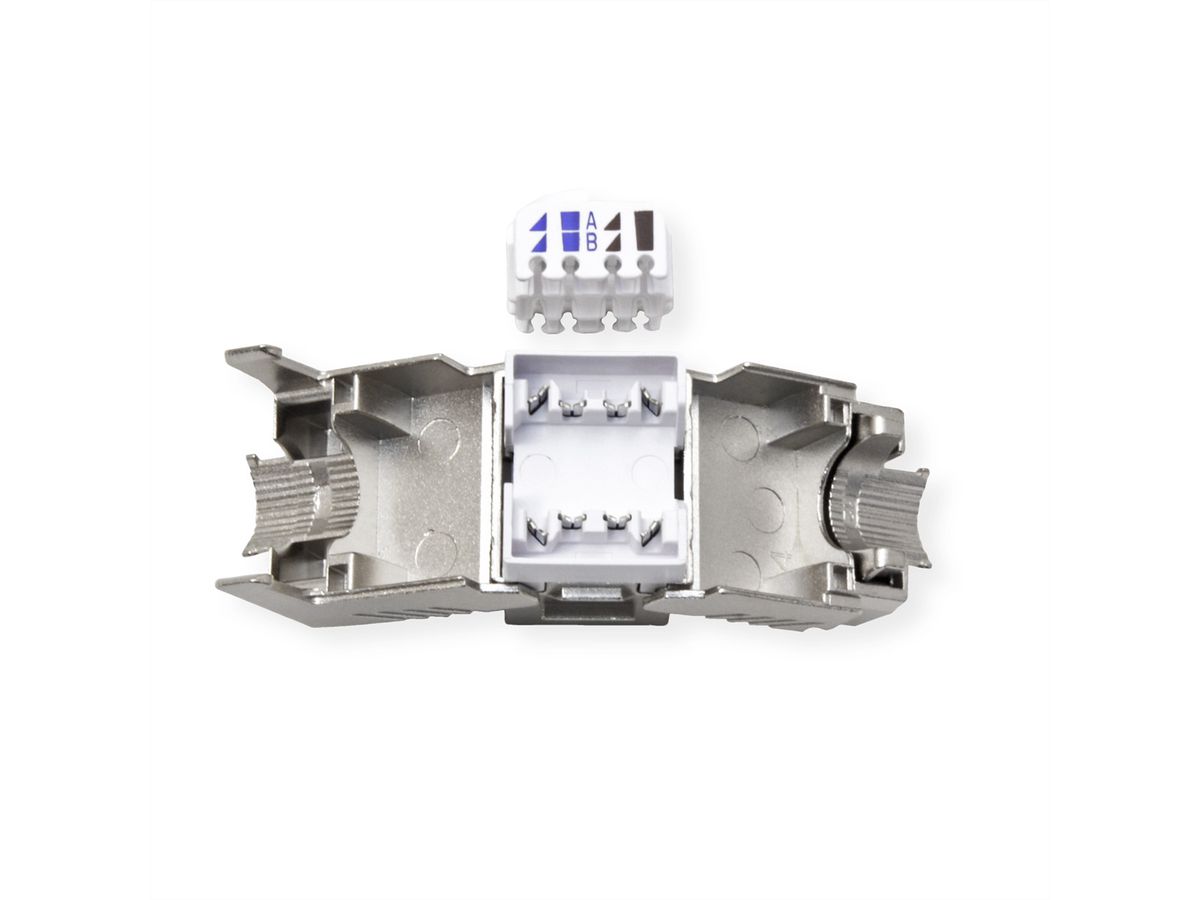

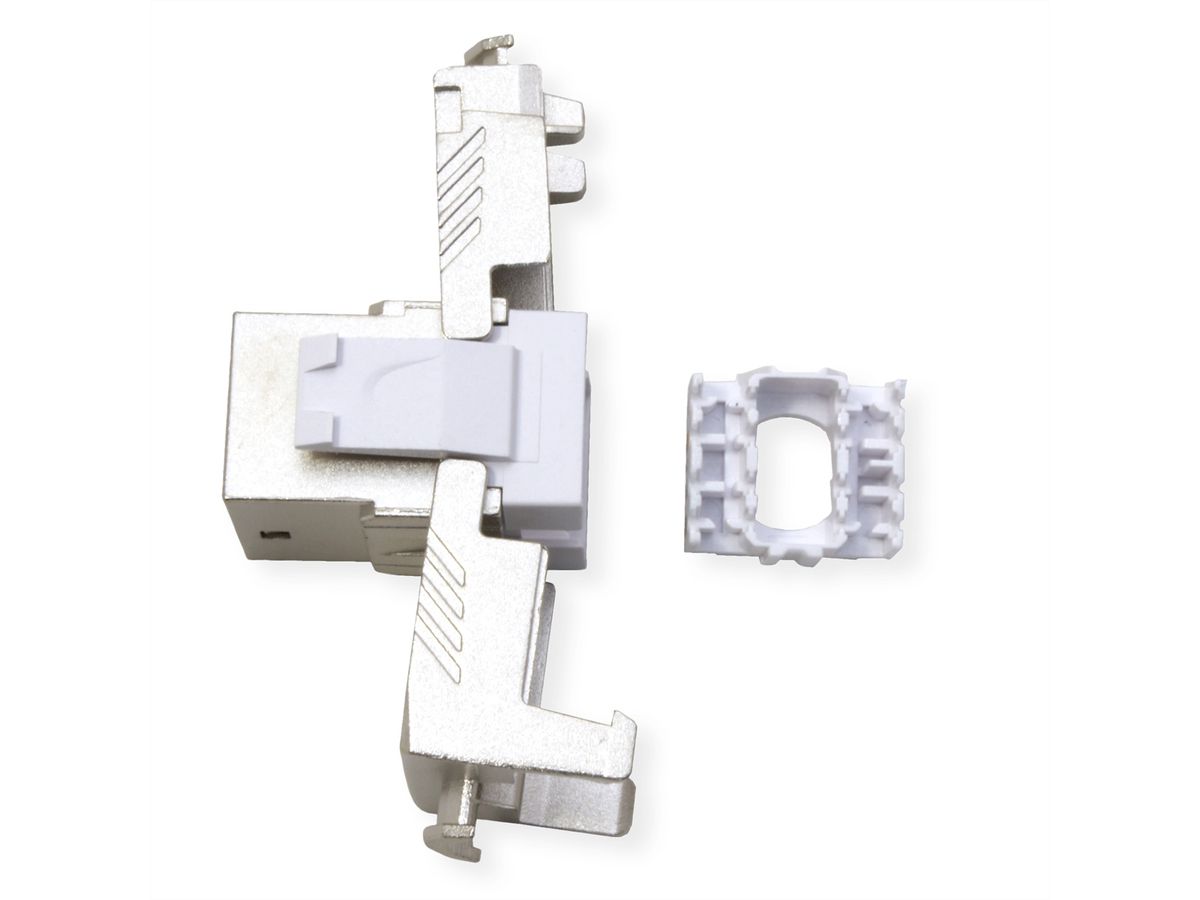

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 23-26
- For cables with OD: 5.5-9.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 41.6×16.5×20.3mm
GHMT certified
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Connection technology TP |
Product type | RJ45 Keystone Jack |
Colour | silver |
Shield type | Screened |
Transfer quality | Cat6A / Class EA |
Quantity of ports | 1 |
Assignment | EIA/TIA 568A & 568B |
Connection direction | Straight |
Technical particularity | GHMT certified |
Operating temperature min. | -10 °C |
Operating temperature max. | 60 °C |
Height | 20.3 mm |
Width | 16.5 mm |
Depth | 41.6 mm |
Weight | 22 g |
Height of packaging (single piece) | 20 mm |
Width of packaging (single piece) | 20 mm |
Depth of packaging (single piece) | 40 mm |
Package weight (single piece) | 0.02 kg |
