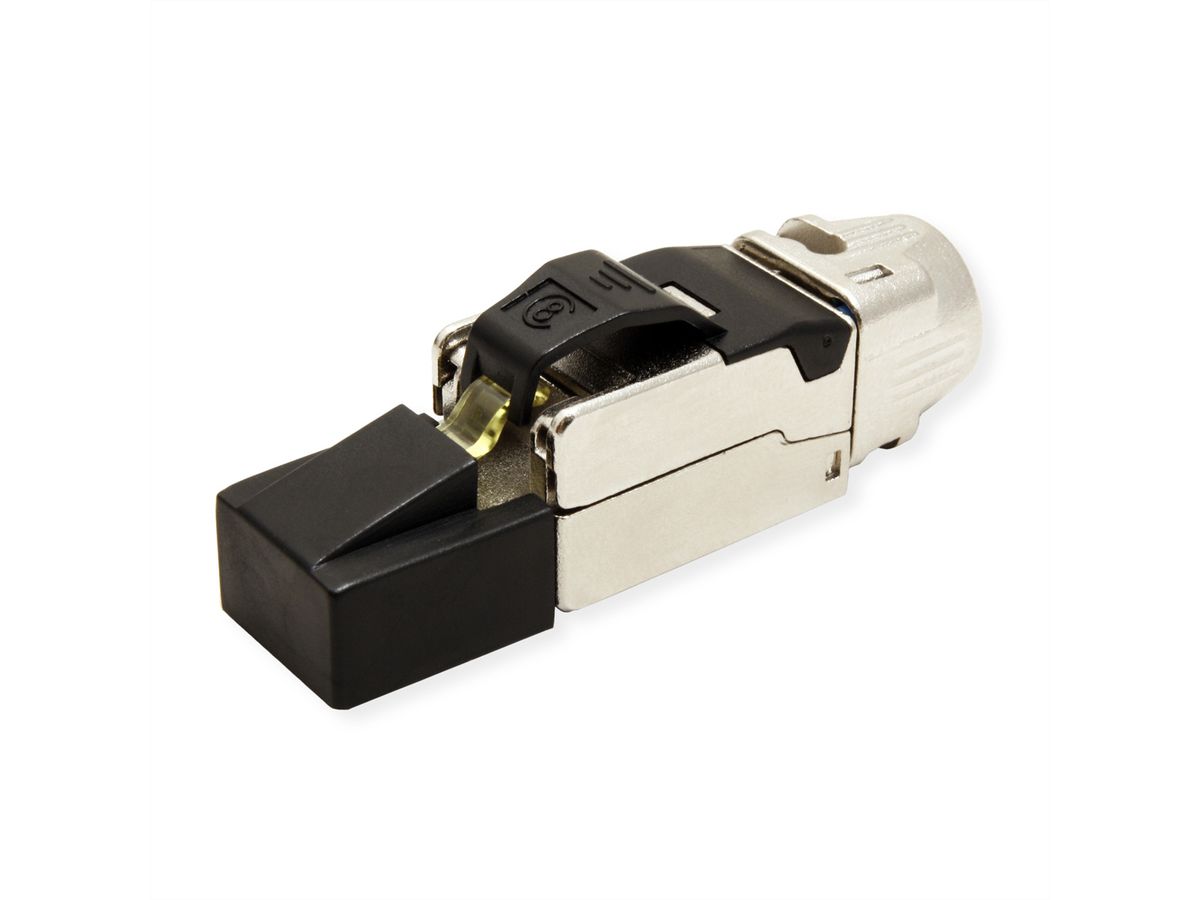

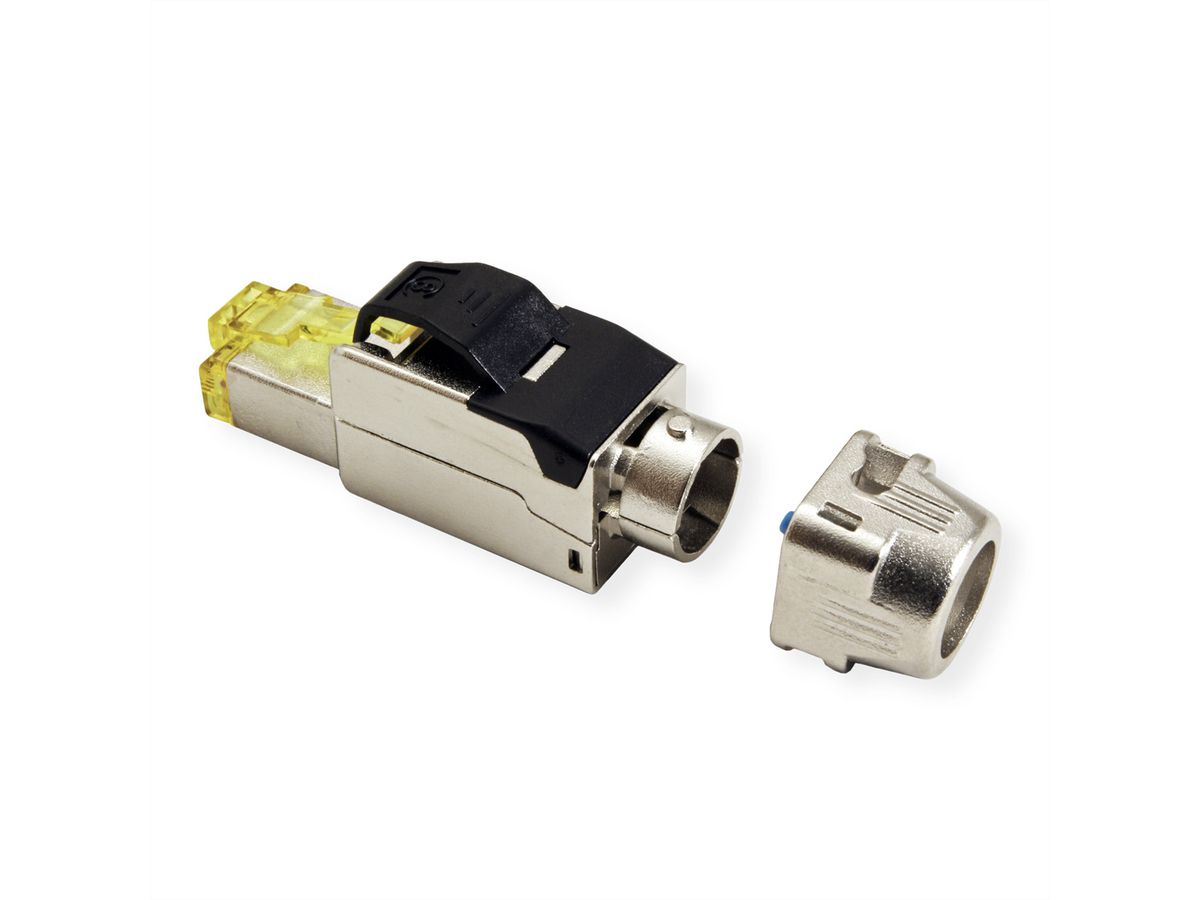

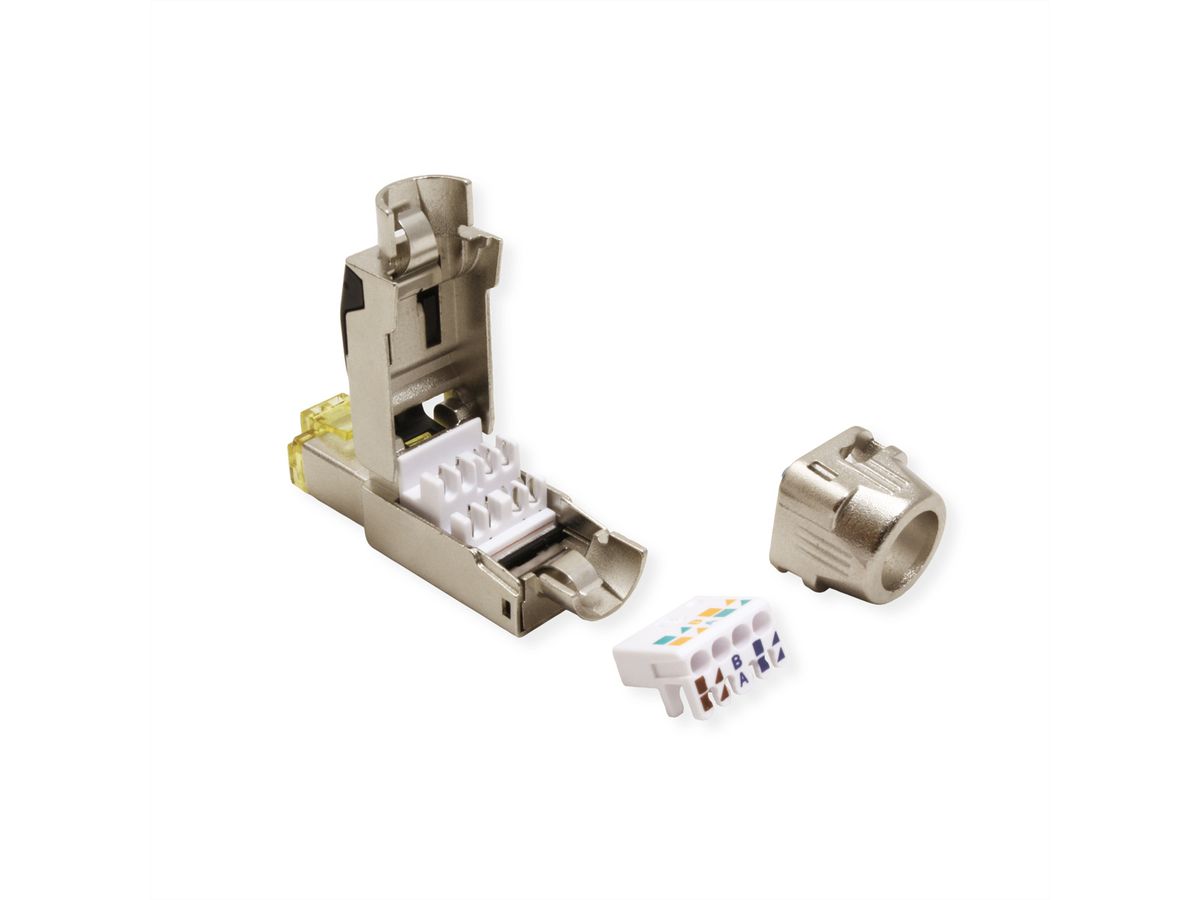

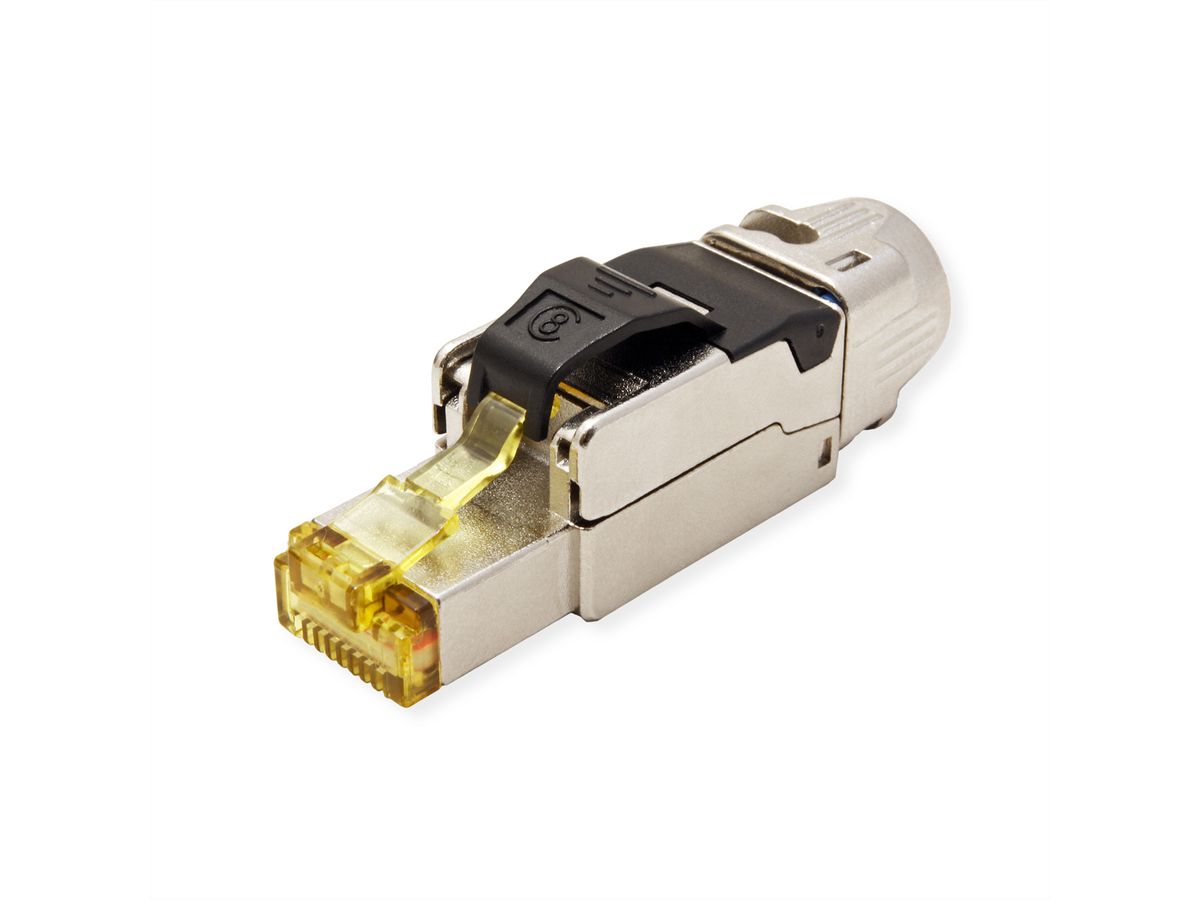

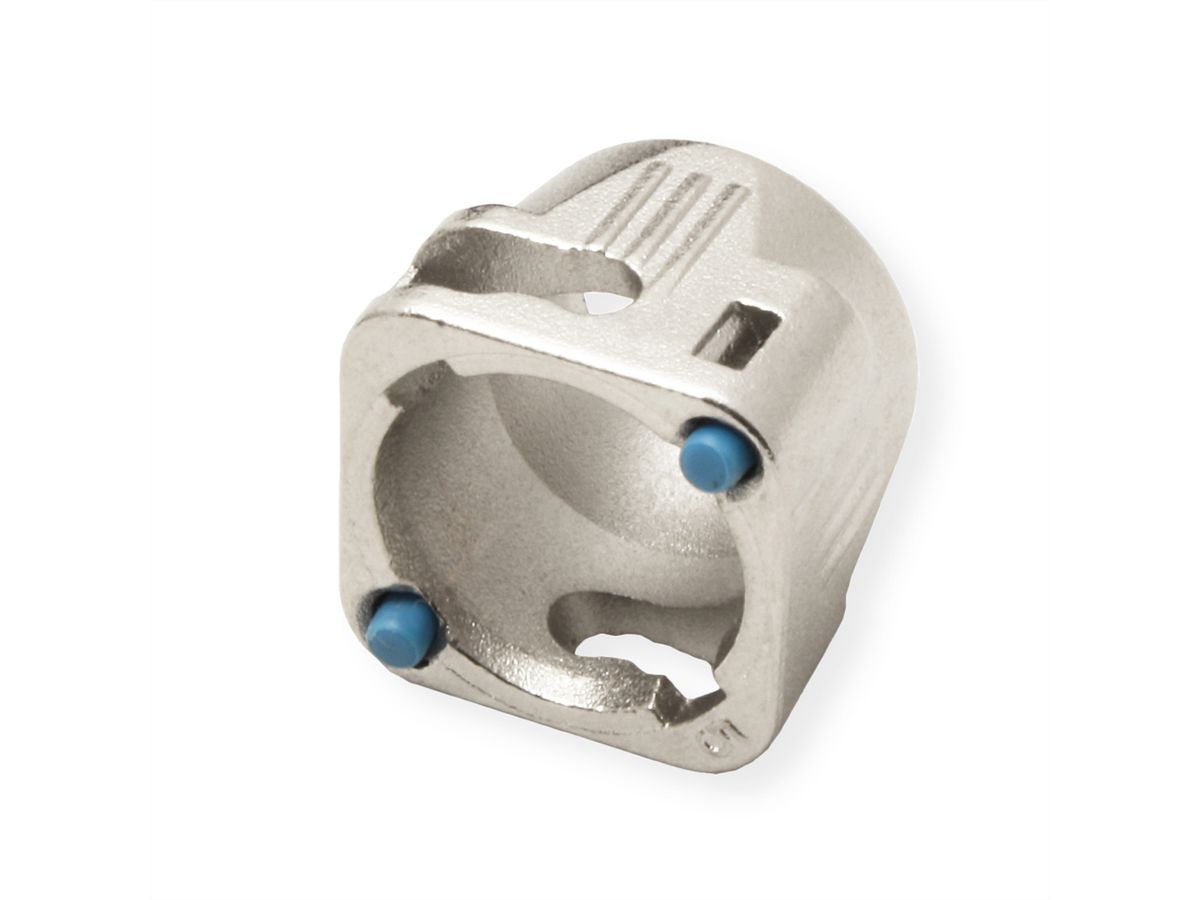

ROLINE Cat.8 (Class I) Field Connector Plug RJ45

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21173086
Brand / Manufacturer	ROLINE
Manuf. item no.	21.17.3086
EAN	7630049611009
Item weight	0.02 kg

Description

Full shielded with zinc alloy housing
T568A & T568B wiring
C8 channel performance vertified
Cable wire gauge : 22AWG to 26AWG
Cable outer diameter : 7.0 to 8.5mm
Suitable for the PoE plus (IEEE 802.3at) applications
Easy, quick and reliable installation

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat8.1 / Class I
Shield contacts	ja
separate strain relief	yes
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	18.4 mm
Width	13.8 mm
Depth	50.2 mm
Weight	19.7 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.02 kg

Downloads

Product data sheet - English (42.6 KB)

Download

Manufacturer data sheet - English (208.9 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 5-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.

More about ROLINE
