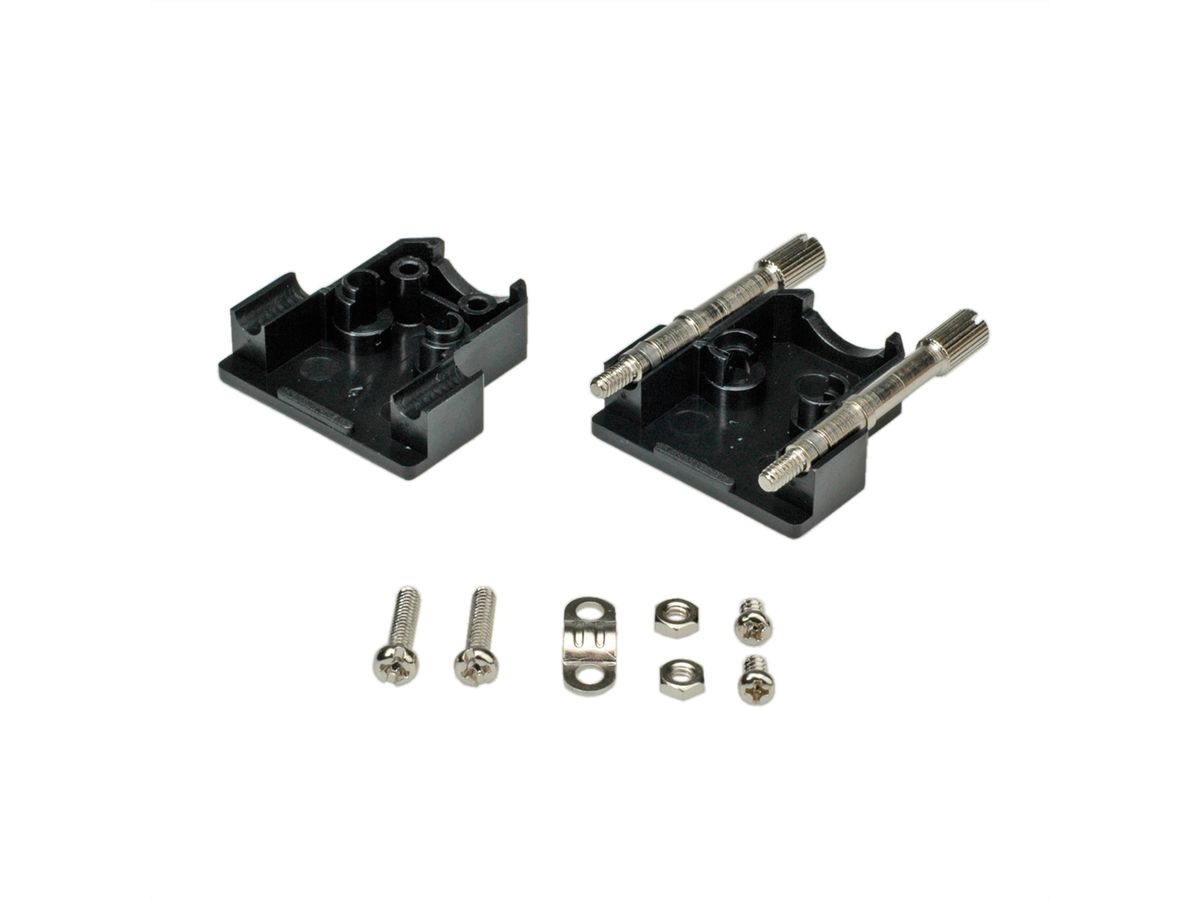

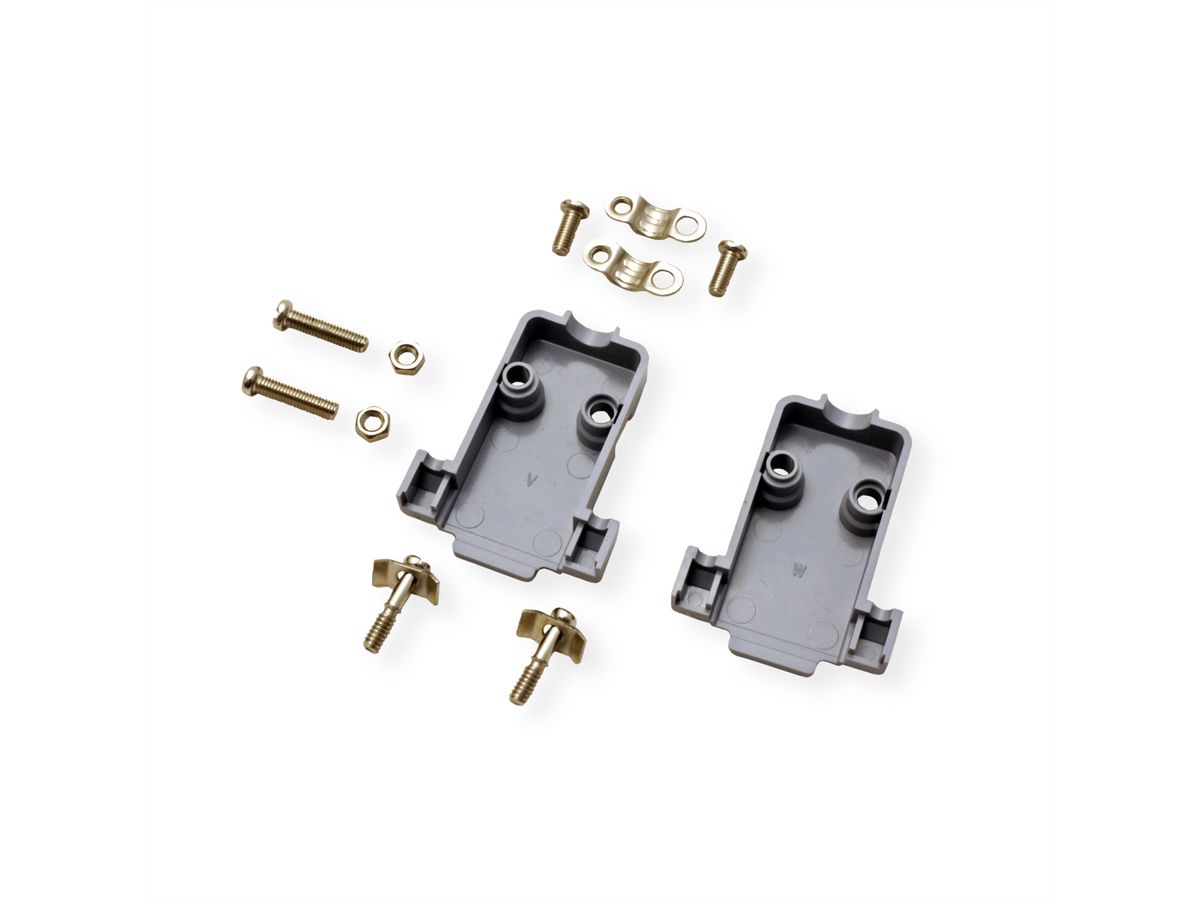

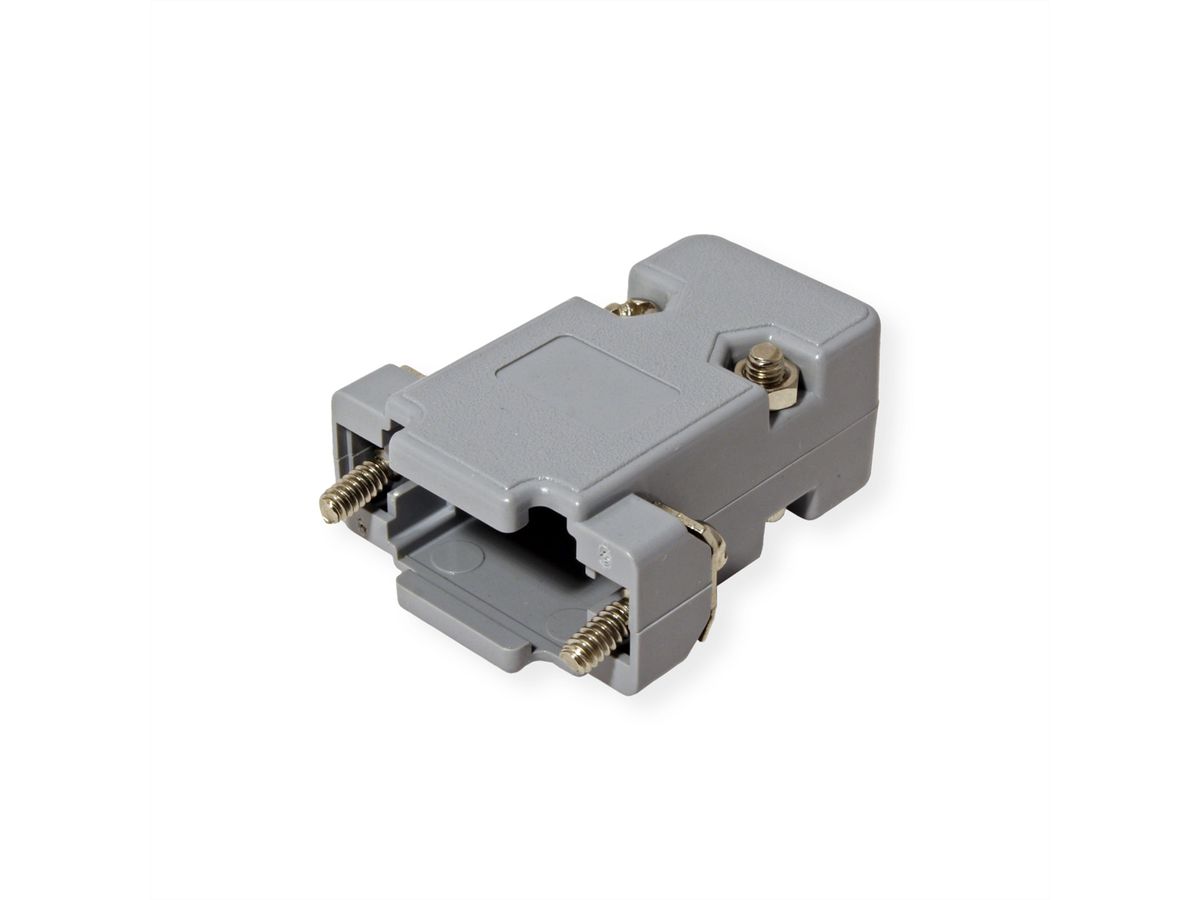

ROLINE D-Sub Connector Casing 9-pin/HD15
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 12014005 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 12.01.4005 |
| EAN | 7611990110582 |
| Item weight | 0.016 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- Suitable for D-Sub plug connectors
- Screwed, stable plastic casing
- Internal strain reduction
- With UN-4-40 locking screws which can't be lost
- Without connector
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | D-SUB connector housing |
| Colour | black |
| Side 1 connection (PC) | for DB 8 / HD15 Male/Female |
| Area of application | External |
| Dimensions (HxWxD) | 15 x 30 x 30 mm |
| Material | Plastic |
| Technical particularity | With UN-4-40 locking screws |
| Height | 15 mm |
| Width | 30 mm |
| Depth | 30 mm |
| Weight | 14.5 g |
| Height of packaging (single piece) | 30 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 60 mm |
| Package weight (single piece) | 0.016 kg |
