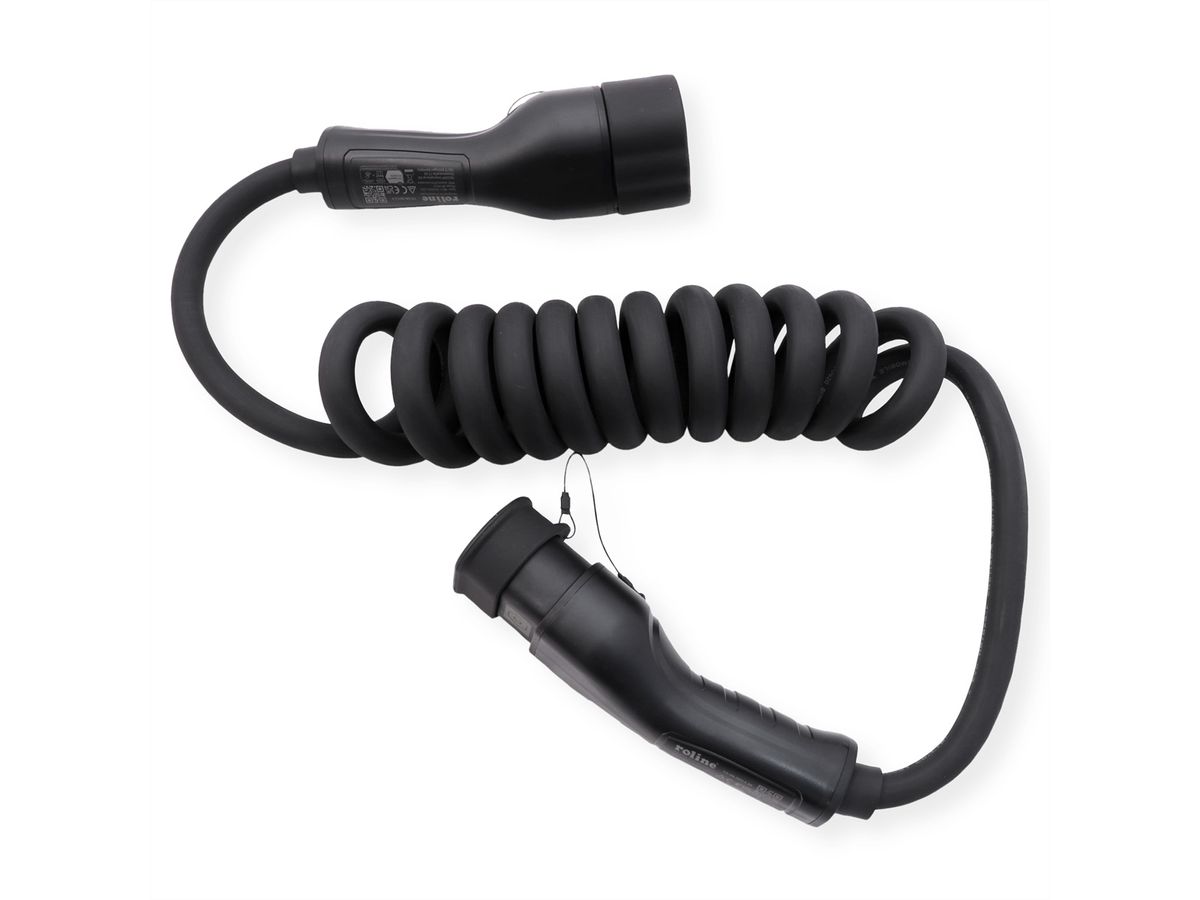

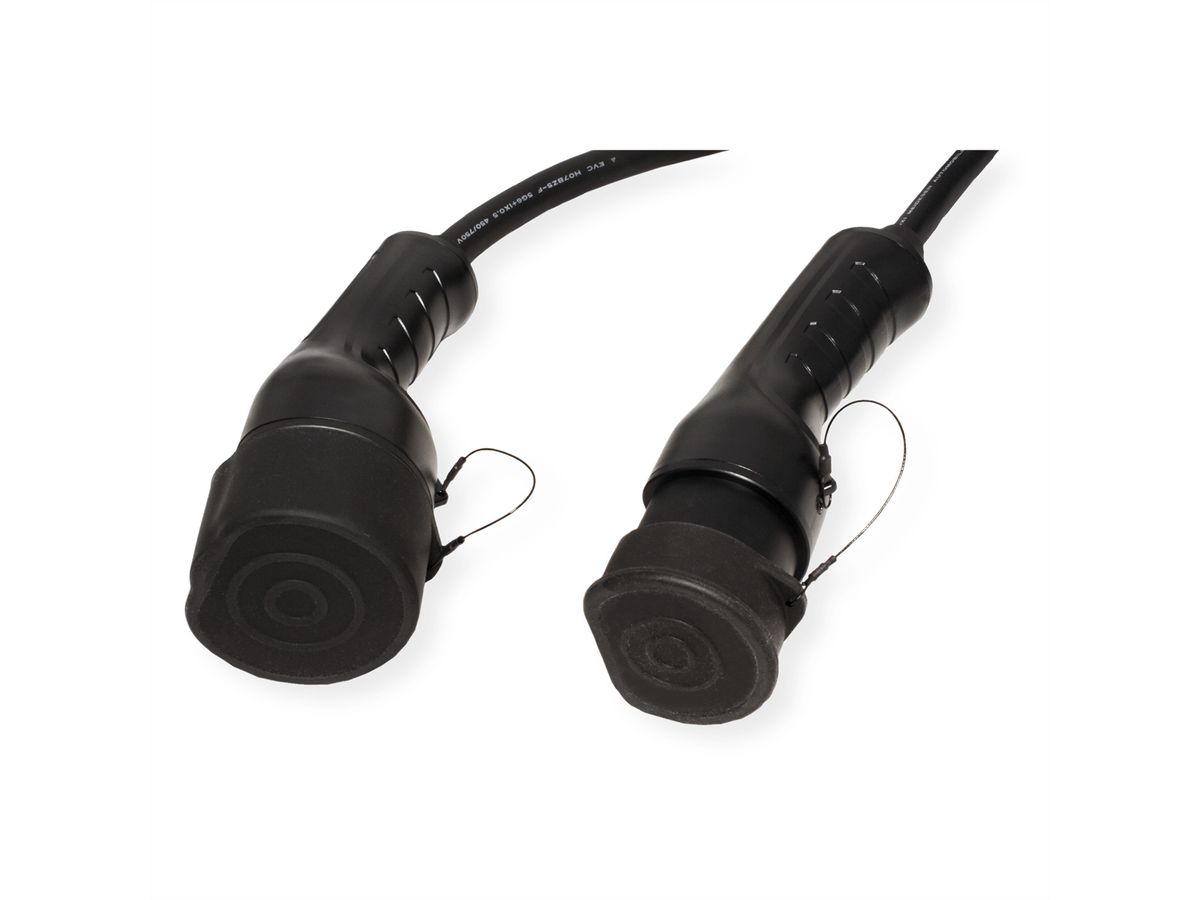

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, spiral, 3 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19080053 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 19.08.0053 |
| EAN | 7630049628212 |
| Item weight | 3 kg |
| Colour | |
| Length |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC
- Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
- Suitable for charging electric and hybrid vehicles
- Mode 3 / Type 2 car charging cable
- Connections: Type 2 on both sides
- For all electric cars with type 2 connection
- Ergonomically shaped plug and coupler
- Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)
- 32 A / 3- phase (480 VAC)
- Max. Charging power: 22 kW
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Power Cables |
| Product type | Electric car charging cable |
| Colour | black |
| Length | 3 m |
| Scope of delivery | E-car charging cable, carrying bag |
| Charging power | 22 kW |
| Input voltage | 480 V, 50 Hz |
| Current | 32 A |
| Number of phases | 3-phase |
| Supported charging technology | Mode-3 |
| Side 1 Connector Type | IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2) |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2) |
| Side 2 Connector Gender | Female |
| Cable LSOH | flame retardant |
| Protection class (IP Code) |
|
| Technical particularity | spiral |
| Mains connection | IEC 62196-2 Type 2 plug, 3Ph. |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 50 °C |
| Height | 40 mm |
| Width | 390 mm |
| Depth | 390 mm |
| Weight | 2.6 kg |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 390 mm |
| Depth of packaging (single piece) | 390 mm |
| Package weight (single piece) | 3 kg |
