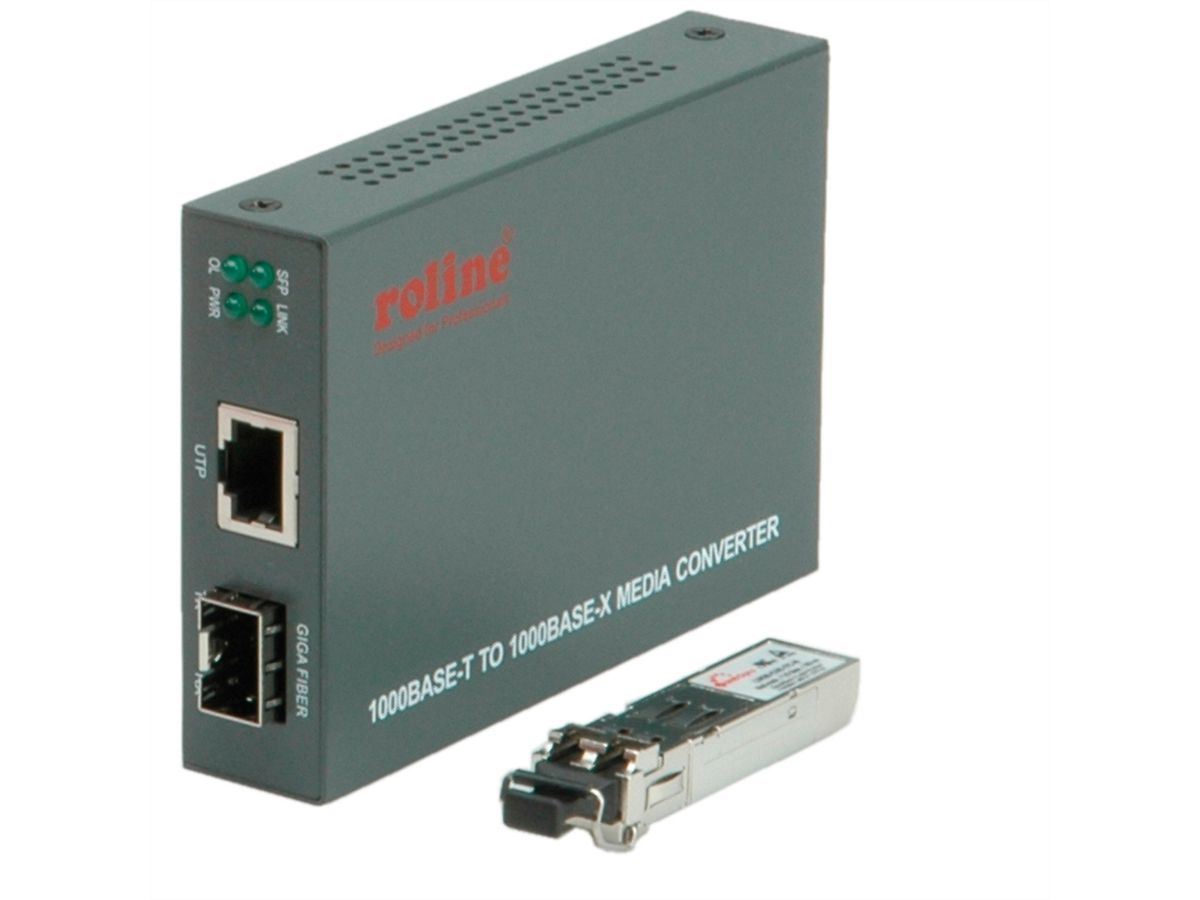

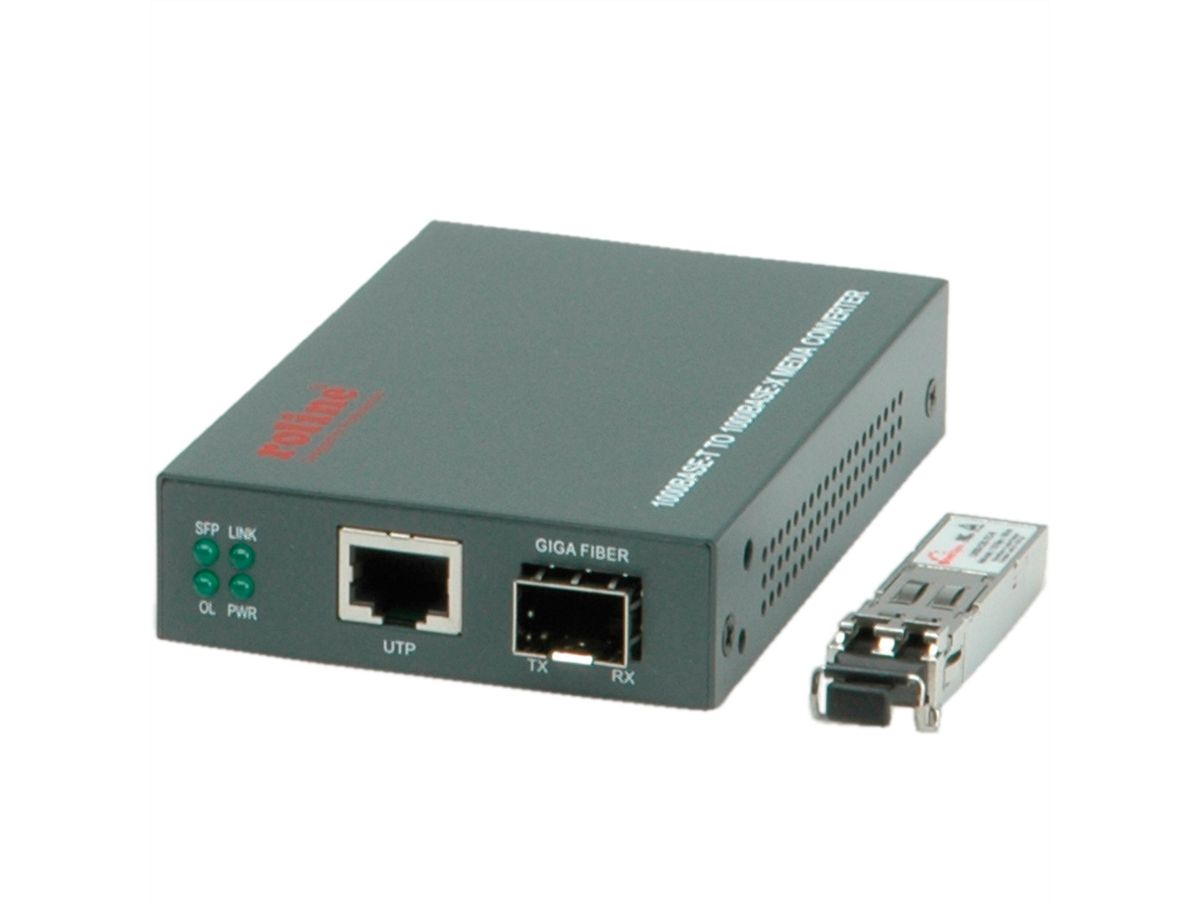

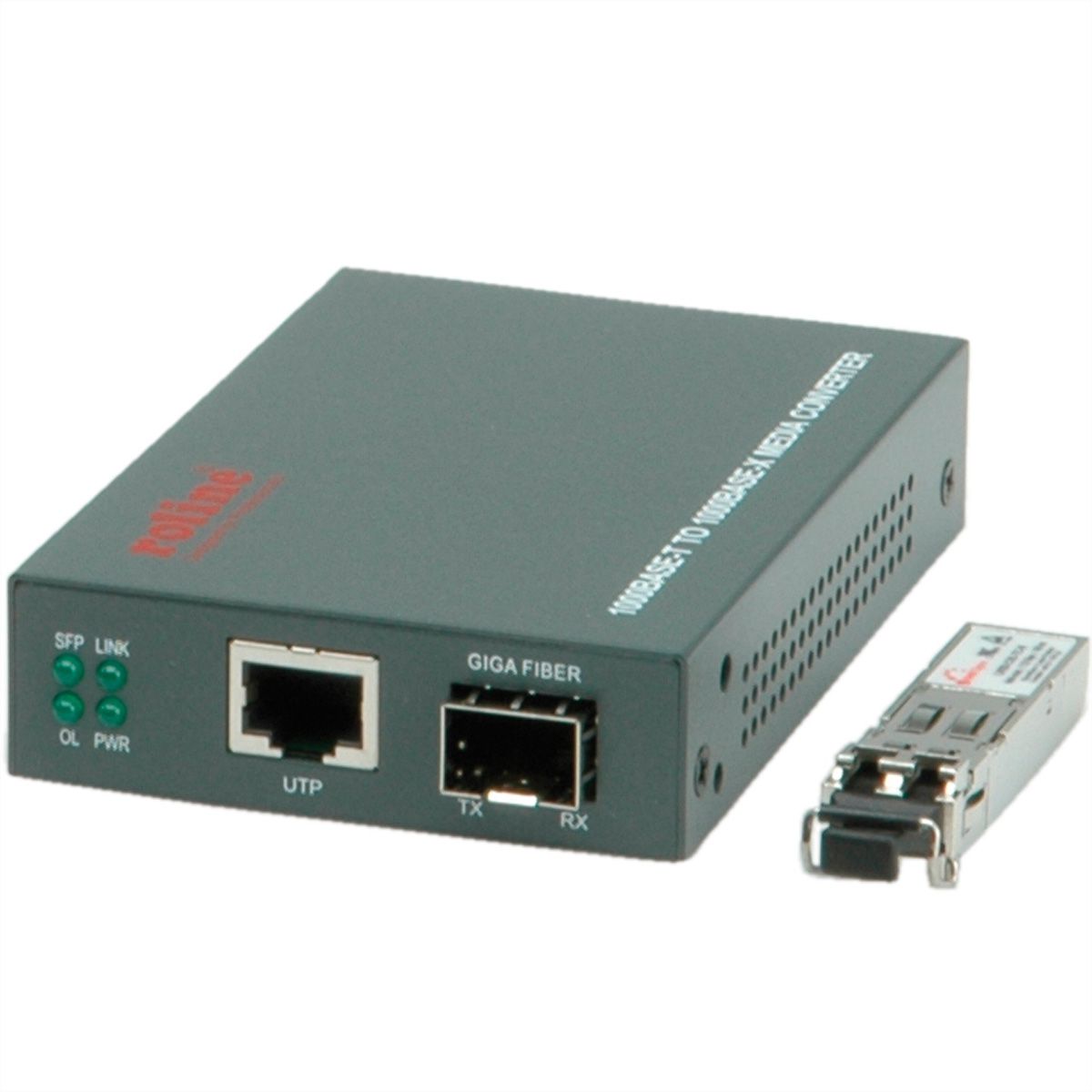

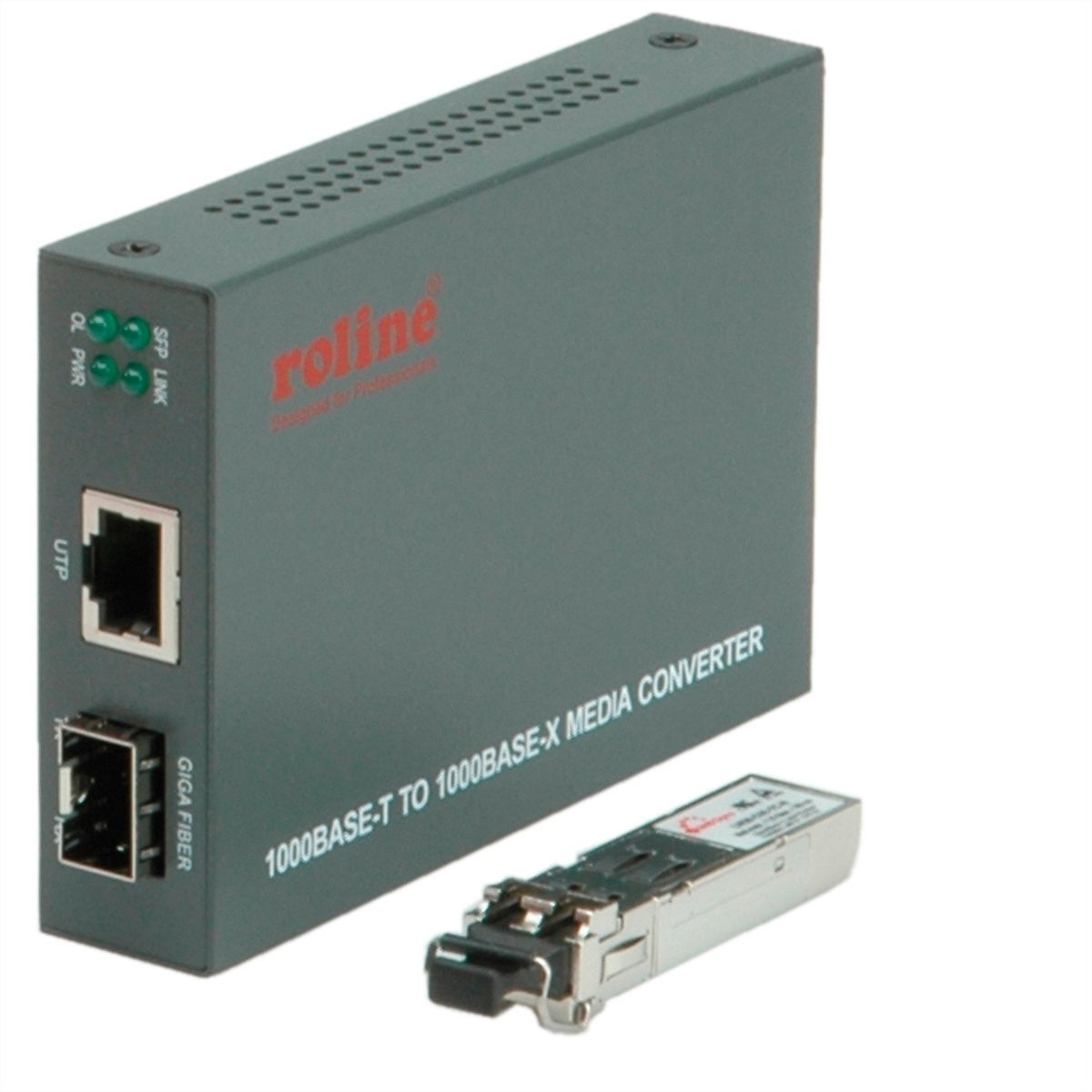

Description

• These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
• Provides media conversion from STP to multimode LC fibre media type
• RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber
• Supports transparent conversion of any packet types with no packet length limitation
• Supports auto-negotiation with link partners
• Provides link pass through between copper and fiber link
• Provides SFP on fiber port for mounting variety of fiber options
• Supports optional DIN-Rail installation
• Dimension;(WxDxH) 72,5x108x23mm
• Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
• Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
• Compliant with IEEE 802.3ab, 802.3z
• Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fib
• Content: Converter, Manual, PSU (7,5V DC, 500mA), Mini-GBIC Module SX/LC

Specifications

Manufacturer	ROLINE
Product group	Network converters
Product type	Network Media Converters
Colour	black
Scope of delivery	Converter, Manual, PSU (7,5V DC, 500mA), Mini-GBIC Module SX/LC (21.14.3500
RJ-45 Port (Mbps/s)	1000
Fibre Ports (Mbps)	1000
Quantity of RJ45 ports	1
Quantity of fibre LC ports	1
Converts to	RJ-45/LC
Fibre	Multi mode
Ethernet fibre standard	1000Base-SX
Max. range 50 µm fibre	500m
Height	23 mm
Width	72.5 mm
Depth	108 mm
Weight	222.7 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.456 kg

Downloads

Product data sheet - English (46.7 KB)

Download

Manufacturer data sheet - English (569.6 KB)

Download

Accesories

ROLINE Mini-GBIC Modul SX/LC, Multi Mode

Item no.:	21143500
Manuf. item no.	21.14.3500

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

ROLINE Mini-GBIC Module LX/LC, Single Mode, 10 km

Item no.:	21143501
Manuf. item no.	21.14.3501

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

ROLINE Mini-GBIC Module LX/LC, Single Mode, 20 km

Item no.:	21143502
Manuf. item no.	21.14.3502

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day
