ROLINE Gigabit Converter, RJ-45 to Mini GBIC

ROLINE Gigabit Converter, RJ-45 to Mini GBIC

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21131067
Brand / Manufacturer ROLINE
Manuf. item no. 21.13.1067
EAN 7611990195275
Item weight 0.48 kg

Description

For adaptation of different cabling within a LAN FO converters can be used to obtain a functional network. Whether to implement fiber optic on a classic twisted pair network with a mini-GBIC or for the implementation of fiber optic to another fiber optic network with two mini-GBICs.
The ROLINE Gigabit converter offers both possibilities.

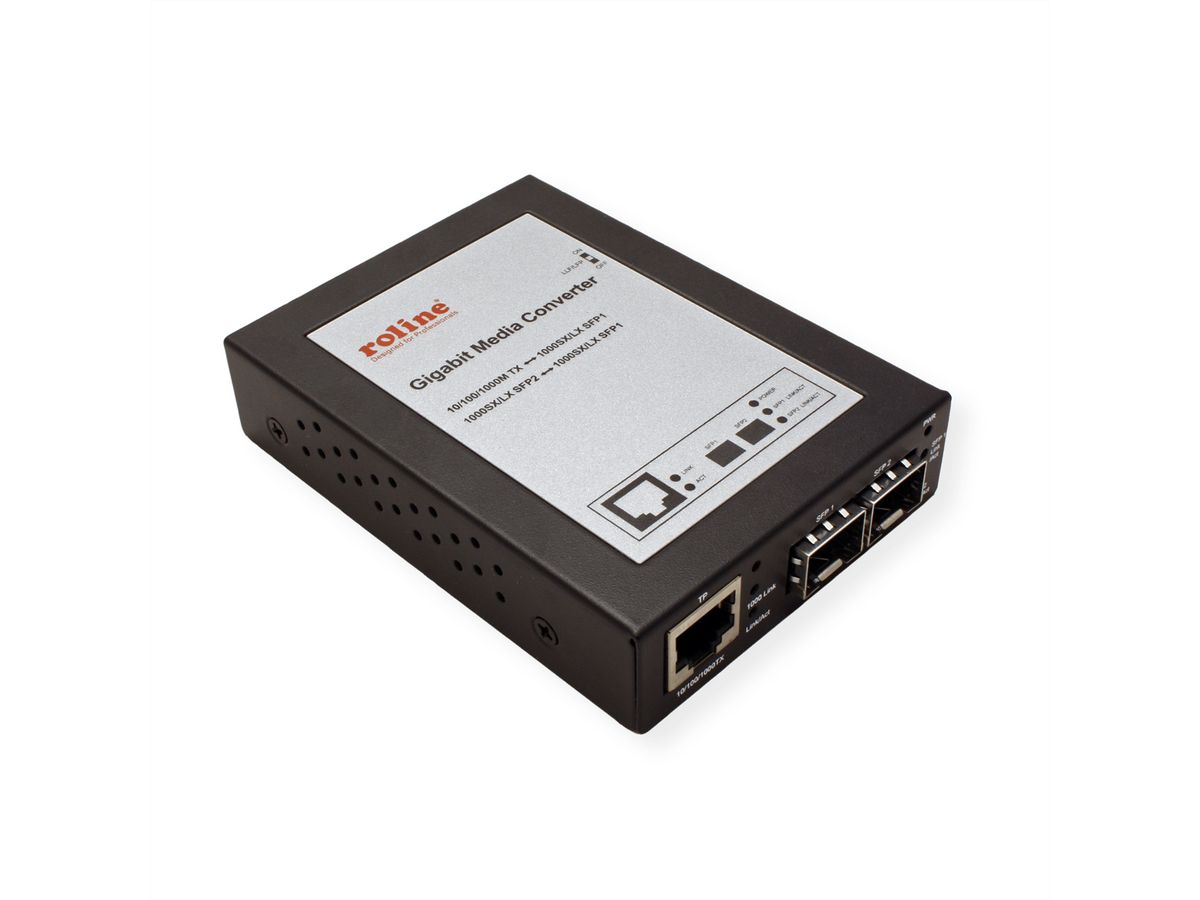

The ROLINE Gigabit converter is a Gigabit Ethernet TP port to fiber or a fiber port to a second fiber port. The fiber optic connectors can be freely selected by means of mini-GBIC Module

  • Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards

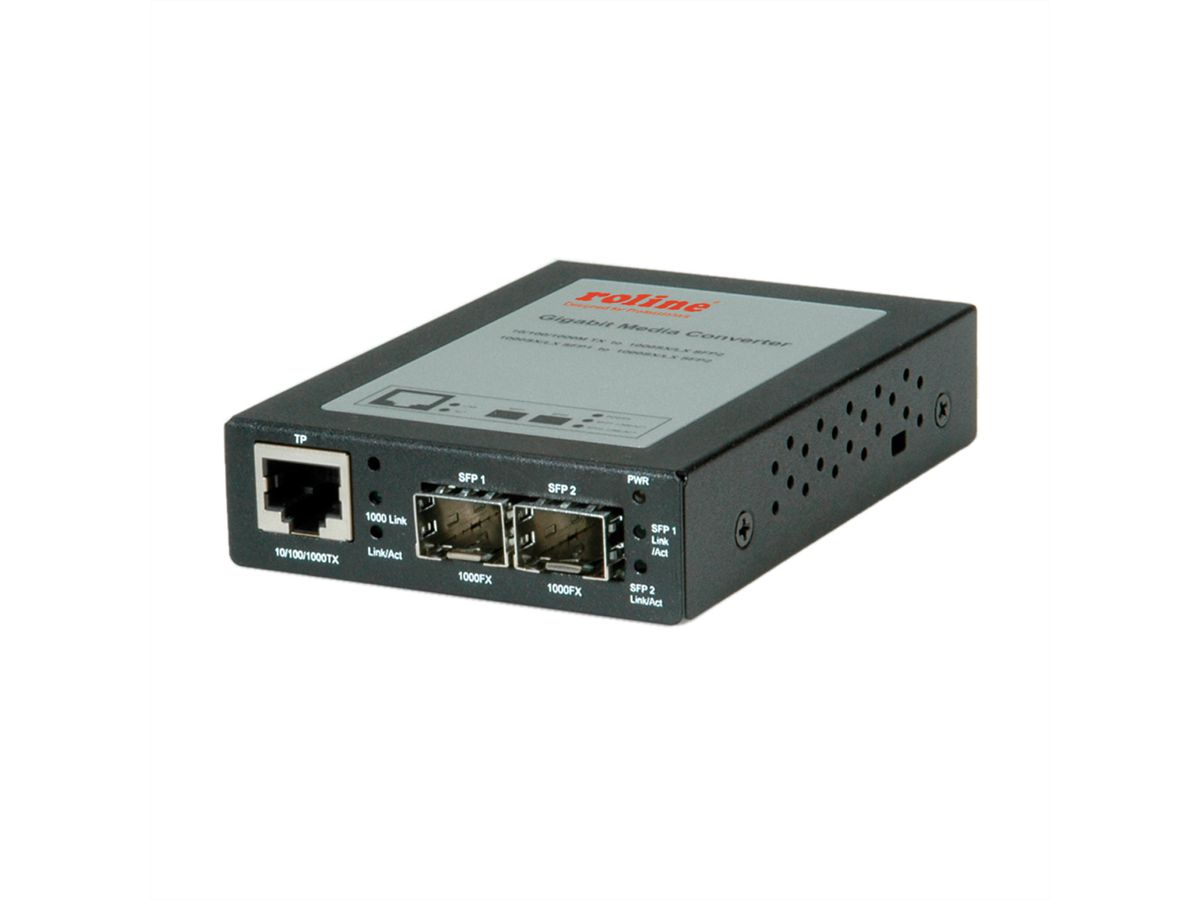

  • Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port, 2x Mini-GBIC slots on the fiber optic side
  • Power is supplied via an external power supply (included)
  • TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
  • Each SFP slot supports both singlemode and multimode or mixed
  • Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
  • Dimensions: 102 × 75 × 23 mm
  • Contents:

Specifications

Manufacturer ROLINE
Product group Network converters
Product type Network Media Converters
Colour black
Scope of delivery Konverter, Kurzanleitung, Netzteil
RJ-45 Port (Mbps/s) 1000
Fibre Ports (Mbps) 1000
Quantity of RJ45 ports 1
Technical particularity Fibre optic connection is realized by MiniGBIC Module
Height 102 mm
Width 75 mm
Depth 23 mm
Weight 210.1 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 210 mm
Package weight (single piece) 0.48 kg

Downloads

Product data sheet - English (46.6 KB)

Download

Manufacturer data sheet - English (78.2 KB)

Download

User manual - Français (507.7 KB)

Download

User manual - Deutsch (1.1 MB)

Download

User manual - English (1.2 MB)

Download
