Description

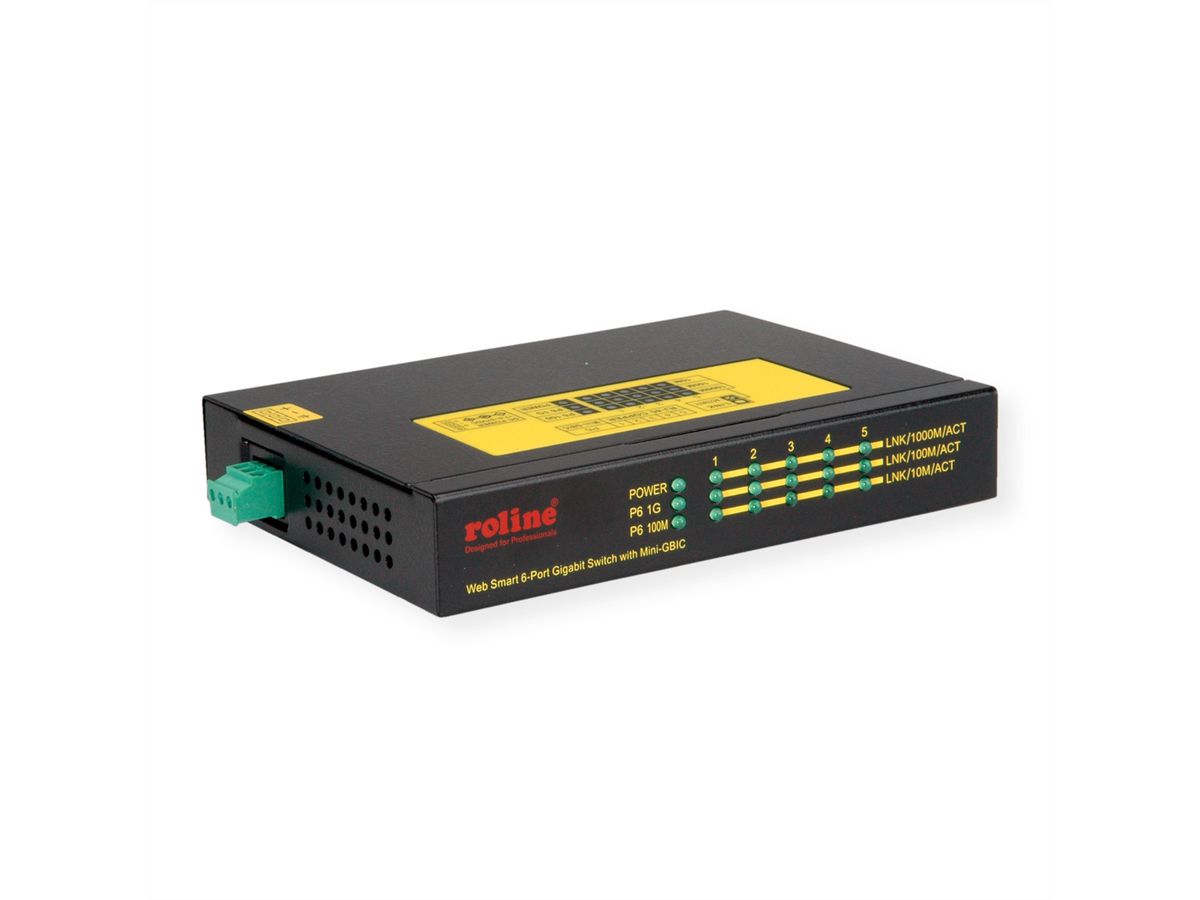

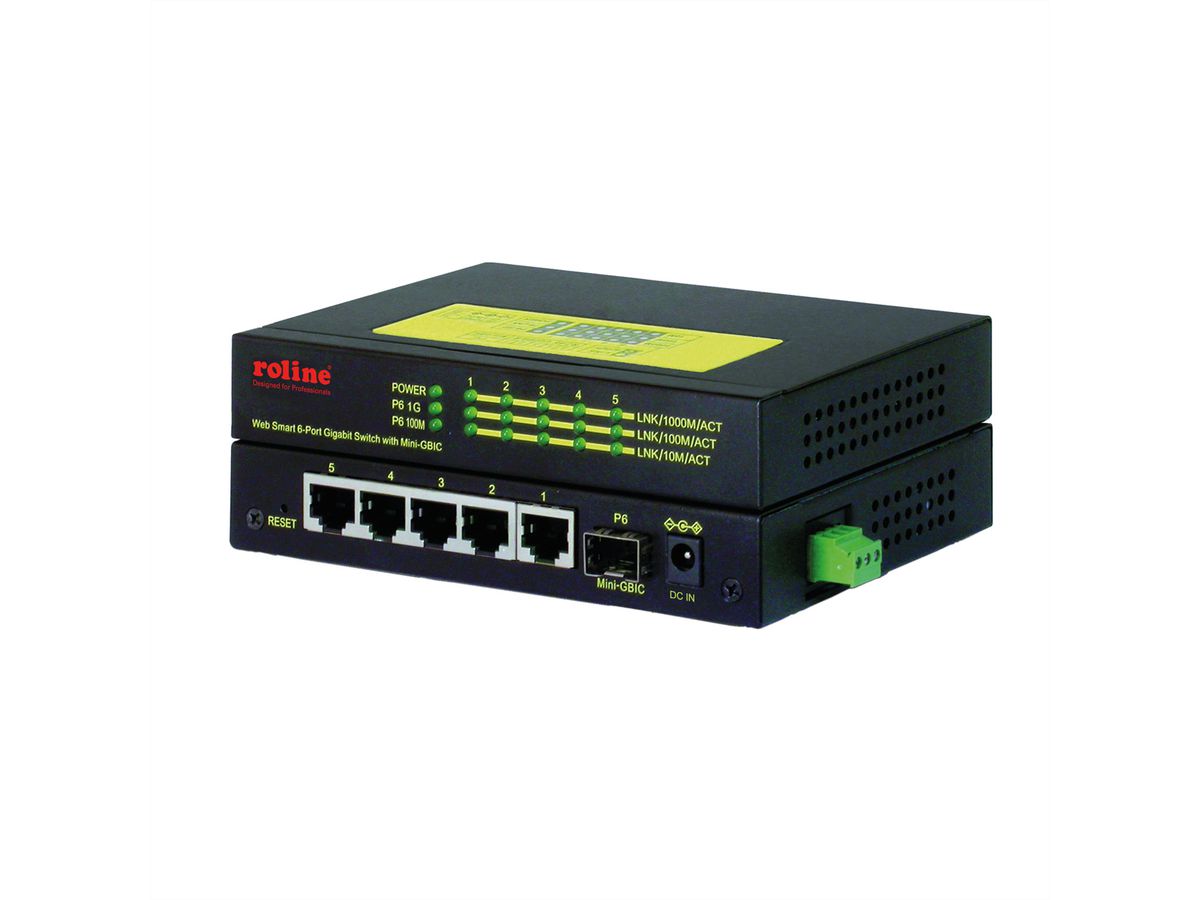

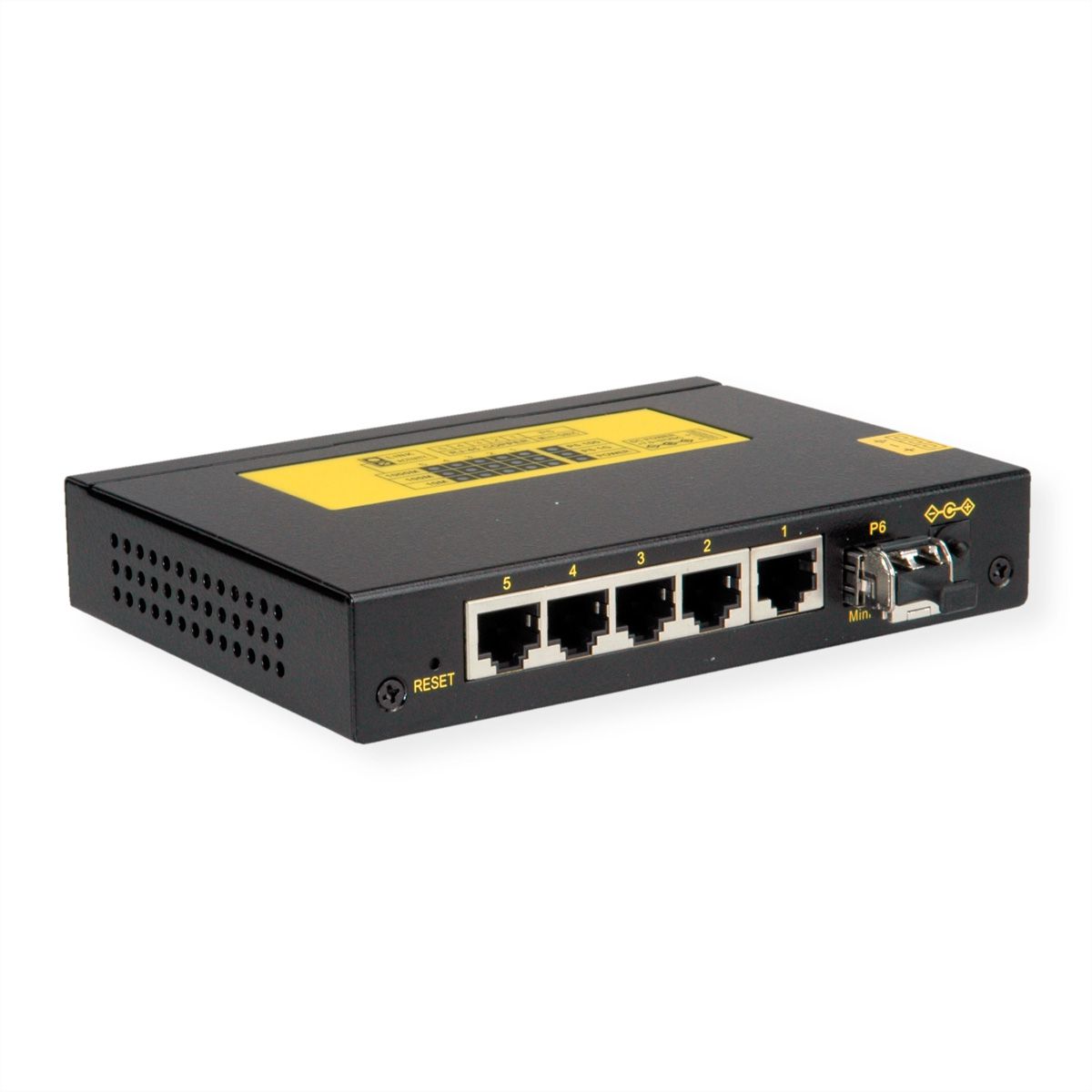

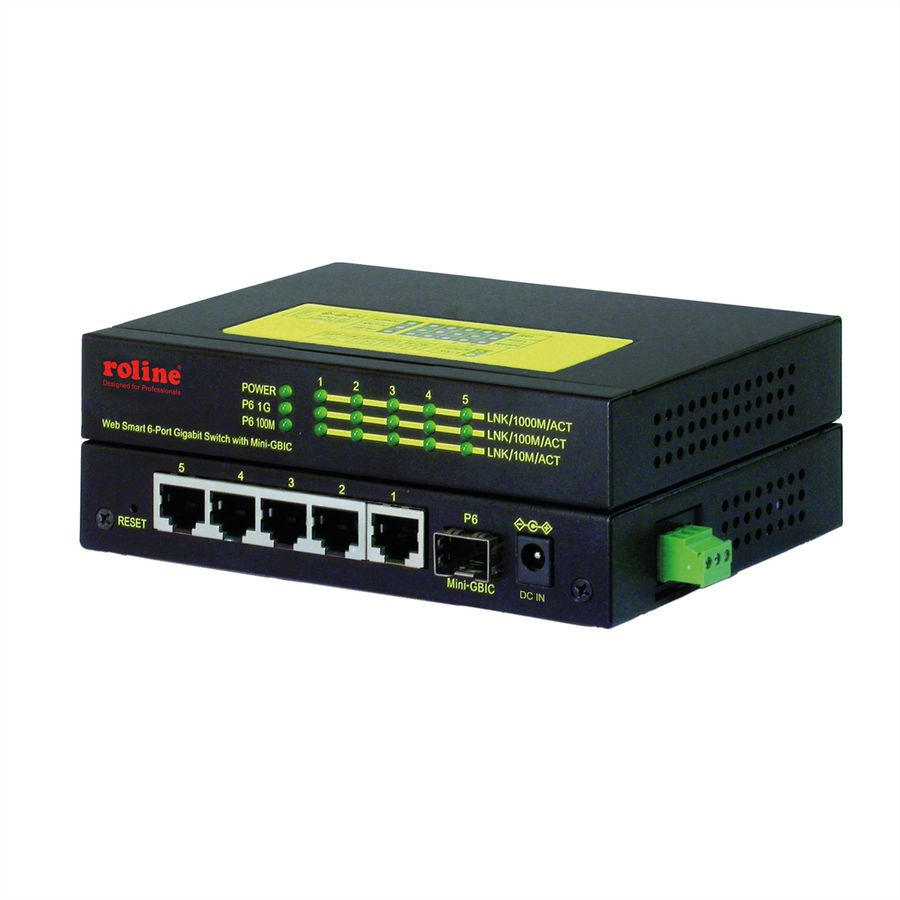

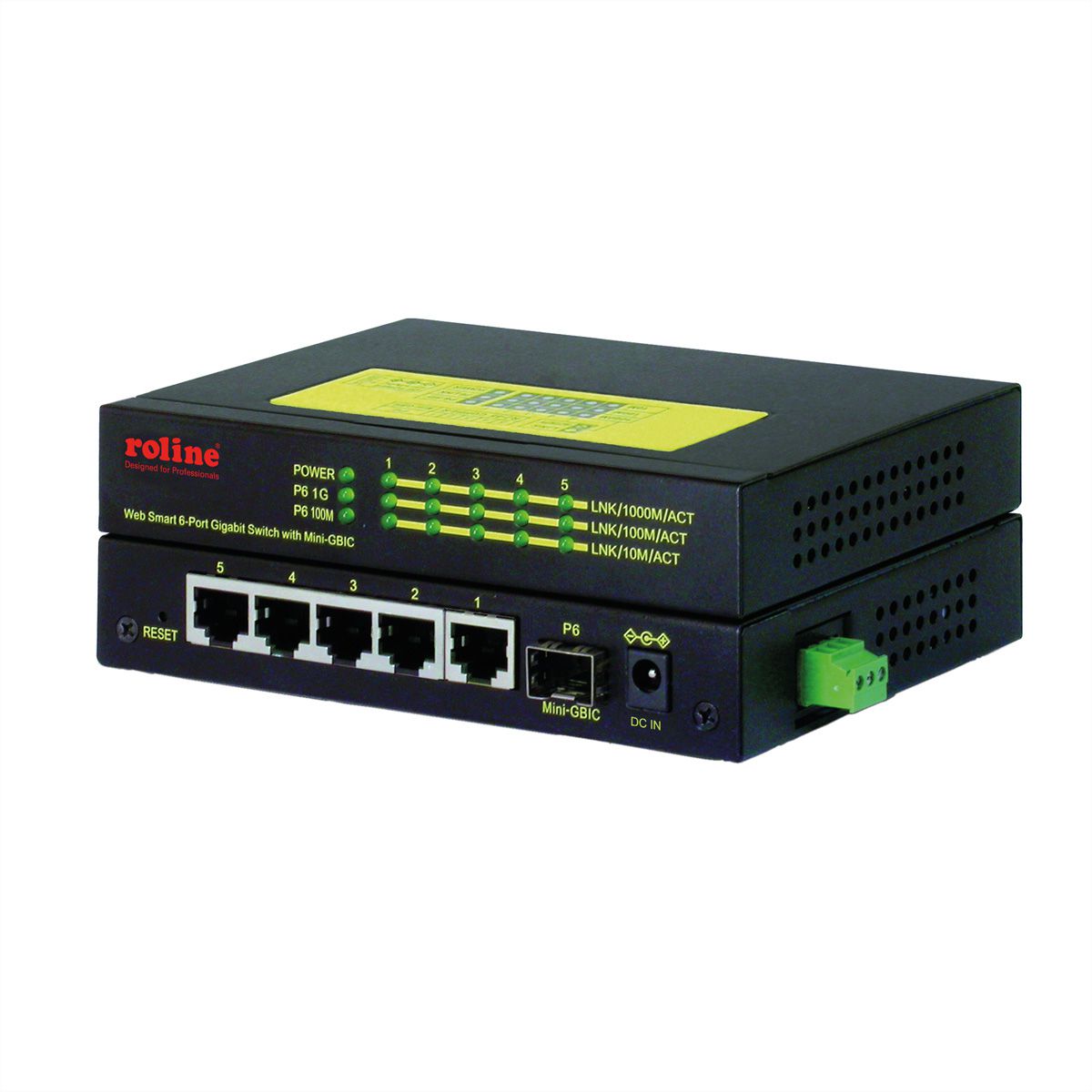

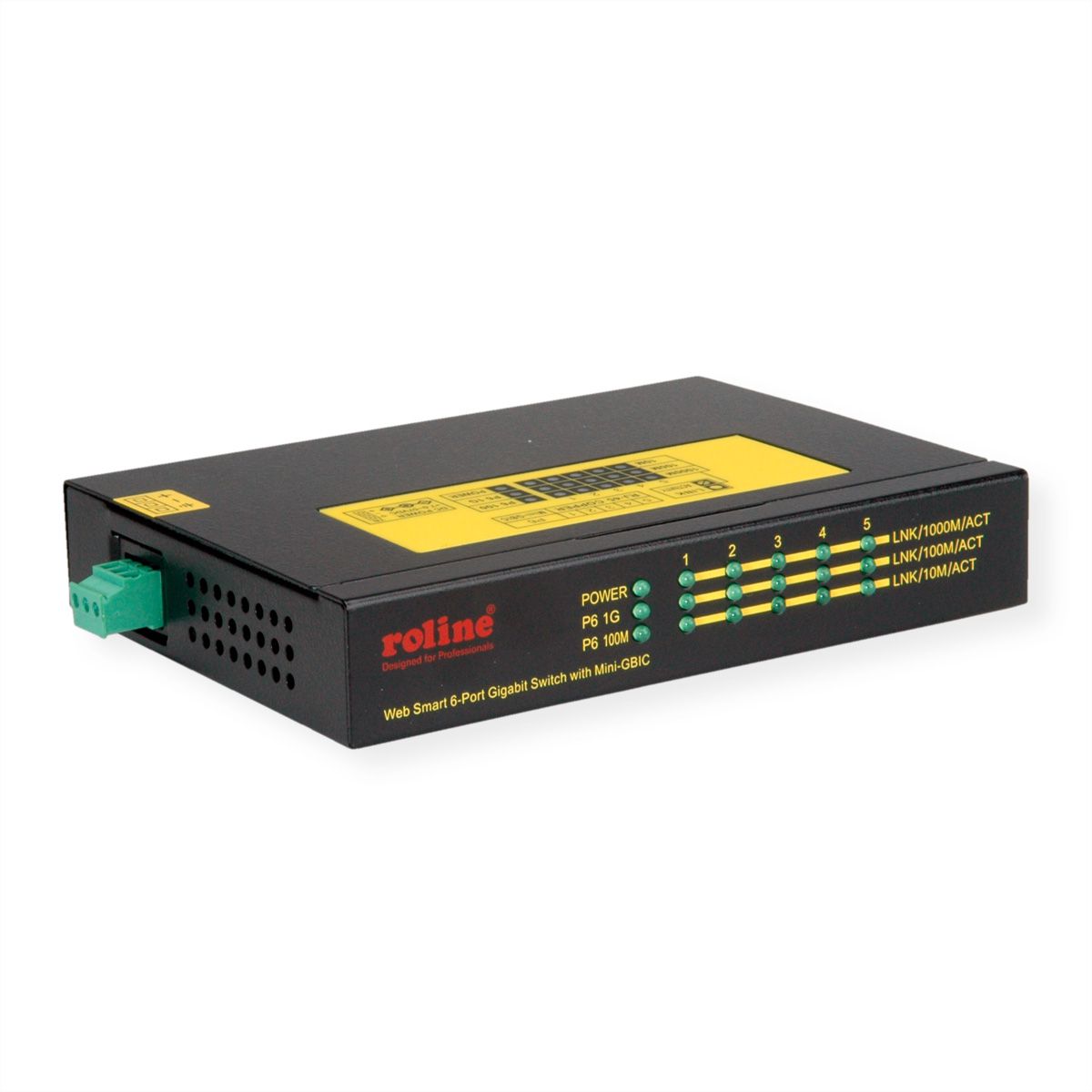

5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!

• Provides 5x 10/100/1000Mbps copper ports + 1x dual SFP slot
• Auto-negotiation
• Auto MDI/MDI-X crossover function
• Provides in-band web-based management interface
• Supports IEEE 802.3x flow control for full duplex
• Supports back pressure flow control for half duplex
• Supports port-based and 802.1Q Tag-based VLAN
• Provides QoS function
• Provides 802.1x authentication
• Supports configuration backup and upload

• Provides port mirroring function
• Supports 802.1w RSTP
• Provides IGMP snooping
• MAC Address Table 8K entries
• Buffer Memory 136K bytes
• Operating Power: +7VDC to +57VDC
• DC Power Input Screwed Terminal Block: +7VDC - +57VDC
• DC IN Jack: -D 6.3mm/+D 2.0mm

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	6
Gigabit Ethernet Ports RJ-45	5
Free slots for SFPs	1
Mounting form	DIN Rail
Stackable	no
Dimensions (HxWxD)	26 x 104.5 x 144 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Height	26 mm
Width	104.5 mm
Depth	144 mm
Weight	443.2 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.8 kg
