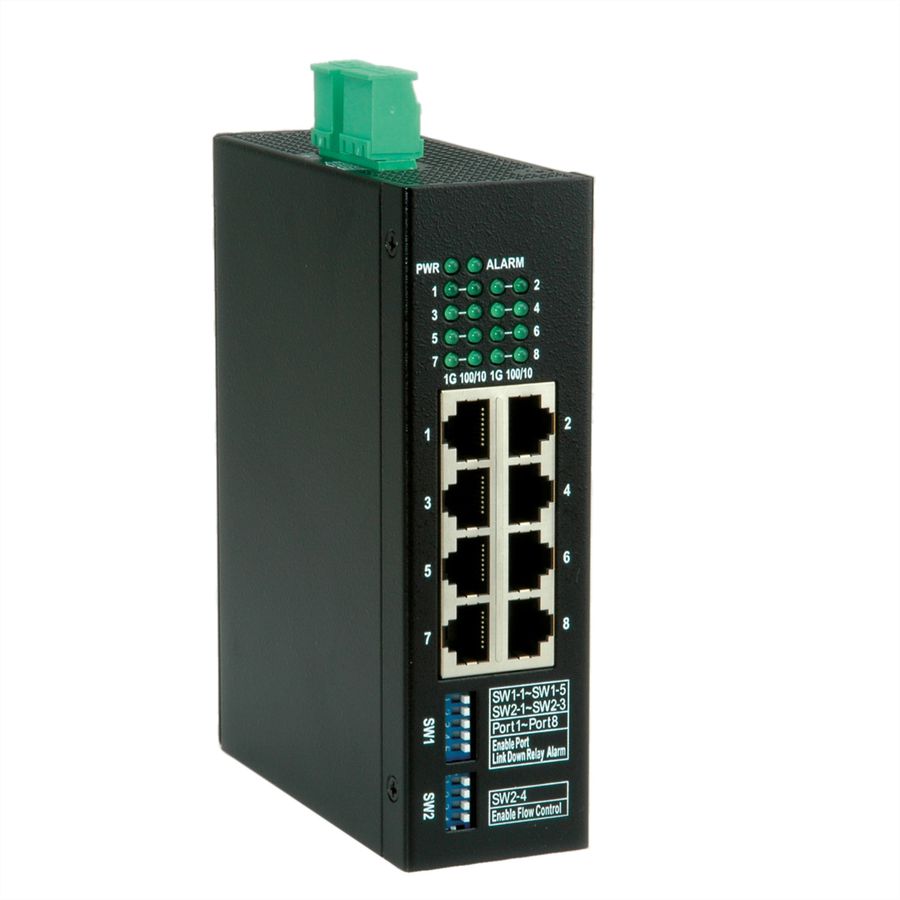

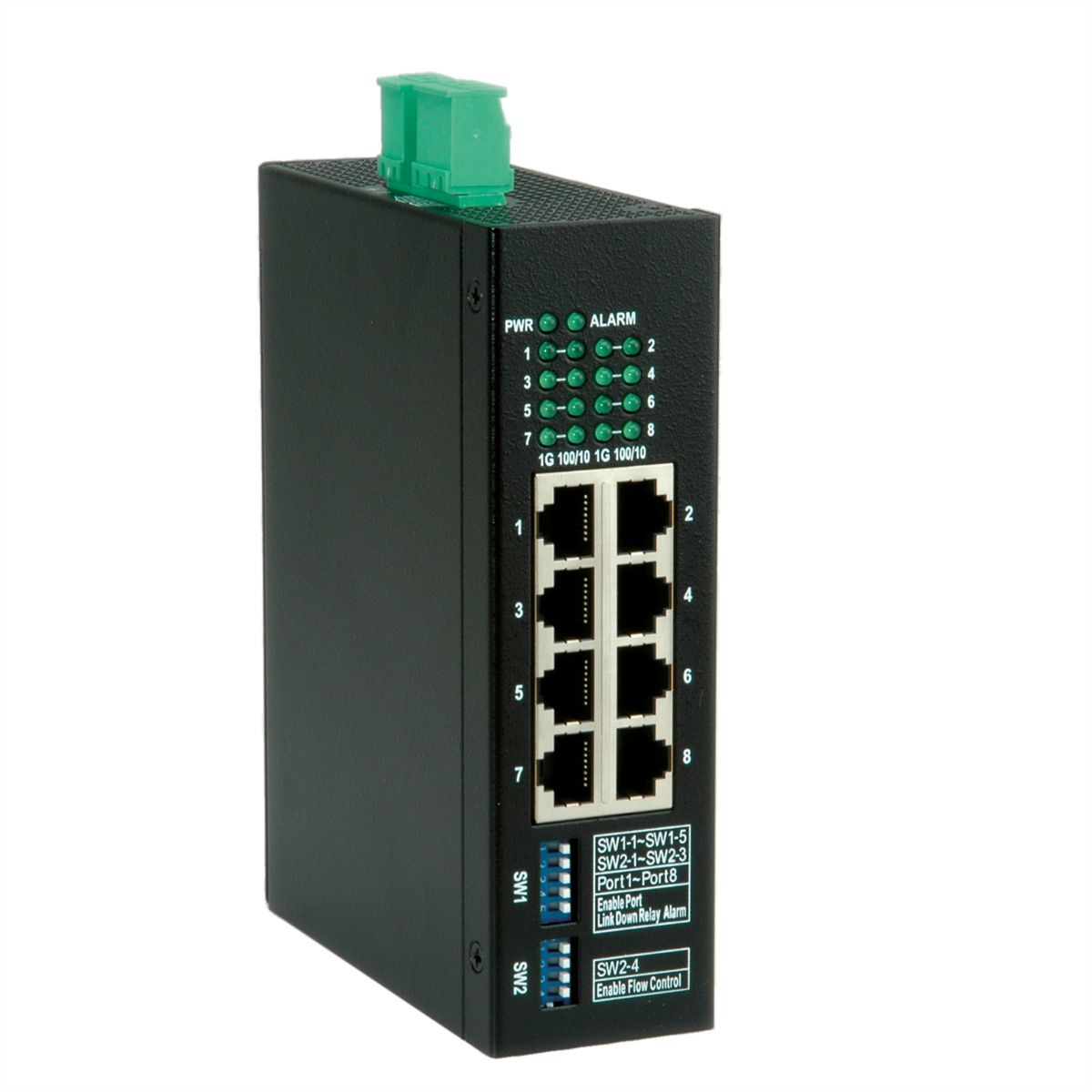

ROLINE Gigabit Ethernet Industrial Switch, 8x RJ45

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21131161
Brand / Manufacturer	ROLINE
Manuf. item no.	21.13.1161
EAN	7611990117413
Item weight	0.651 kg

Description

Network switch for use in a industrial environment

Provides 8x 10/100/1000Mbps copper ports
Auto-negotiation
Auto MDI/MDI-X crossover function
Supports IEEE 802.3x flow control for full duplex
Supports back pressure flow control for half duplex
Fully non-blocking Gigabit full wire speed switching performance
Jumbo frame support
Operating Power: +8.0 to +57VDC
Alarm relay output for power failure event and configured port link fault events
Wide operating temperature range
Supports Green Ethernet power saving
Entry DC by clamp
Supports IEEE 802.3az Energy Efficient Ethernet

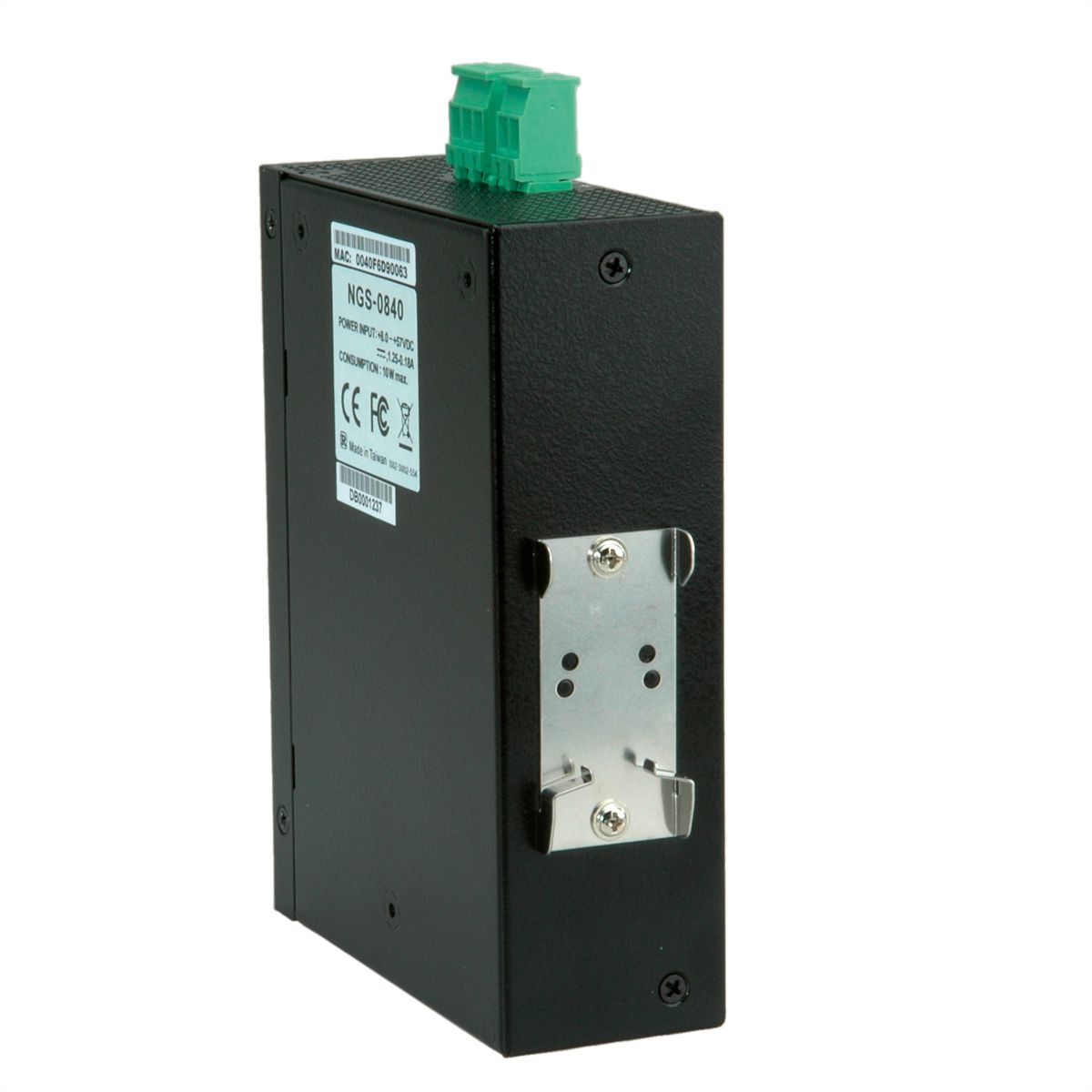

Supports DIN-Rail mounting and panel mounting
As PSU we recommend 21.13.1311
Industrial-rated emission and immunity performance

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Scope of delivery	Switch
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	8
Gigabit Ethernet Ports RJ-45	8
Mounting form	DIN Rail
Stackable	no
Dimensions (HxWxD)	42 x 106 x 140 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Operating temperature min.	-30 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	42 mm
Width	106 mm
Depth	140 mm
Weight	547.6 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.651 kg
