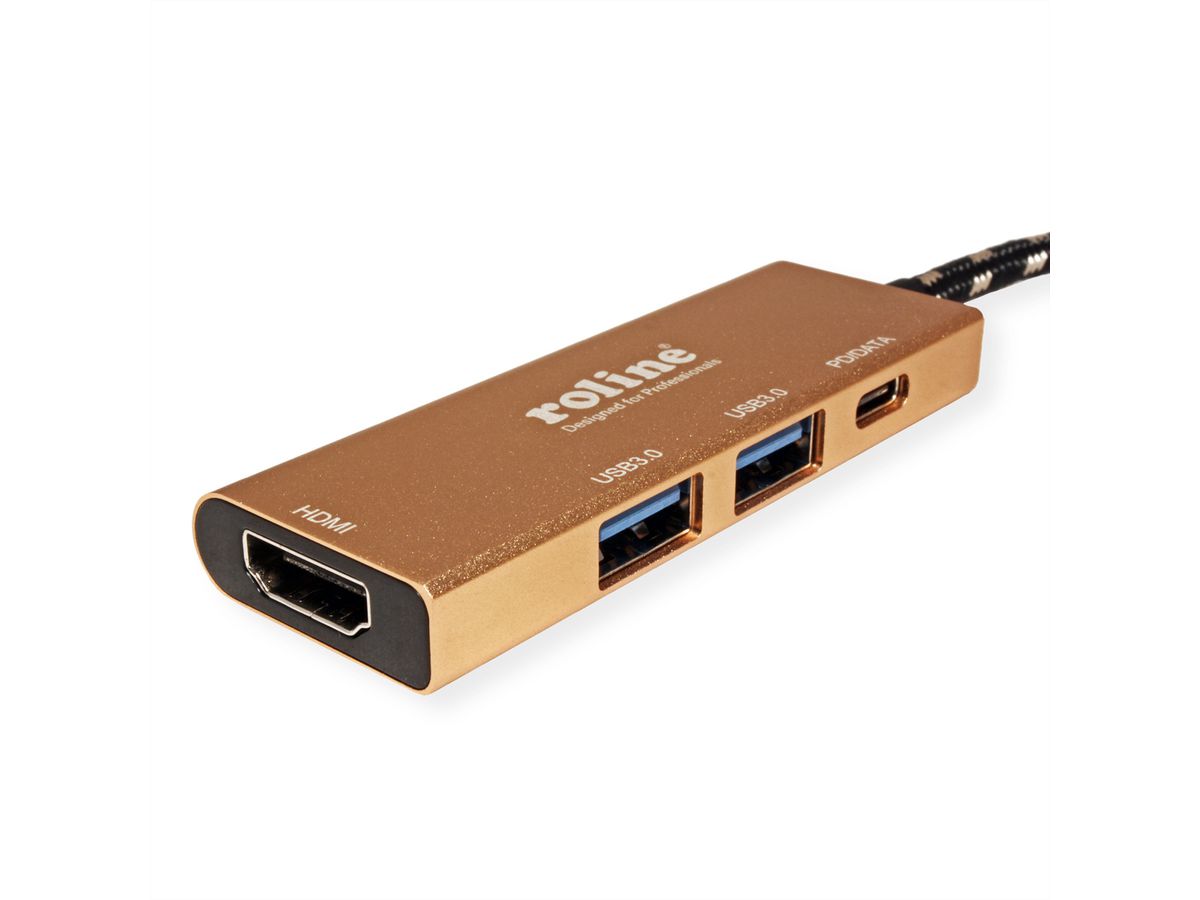

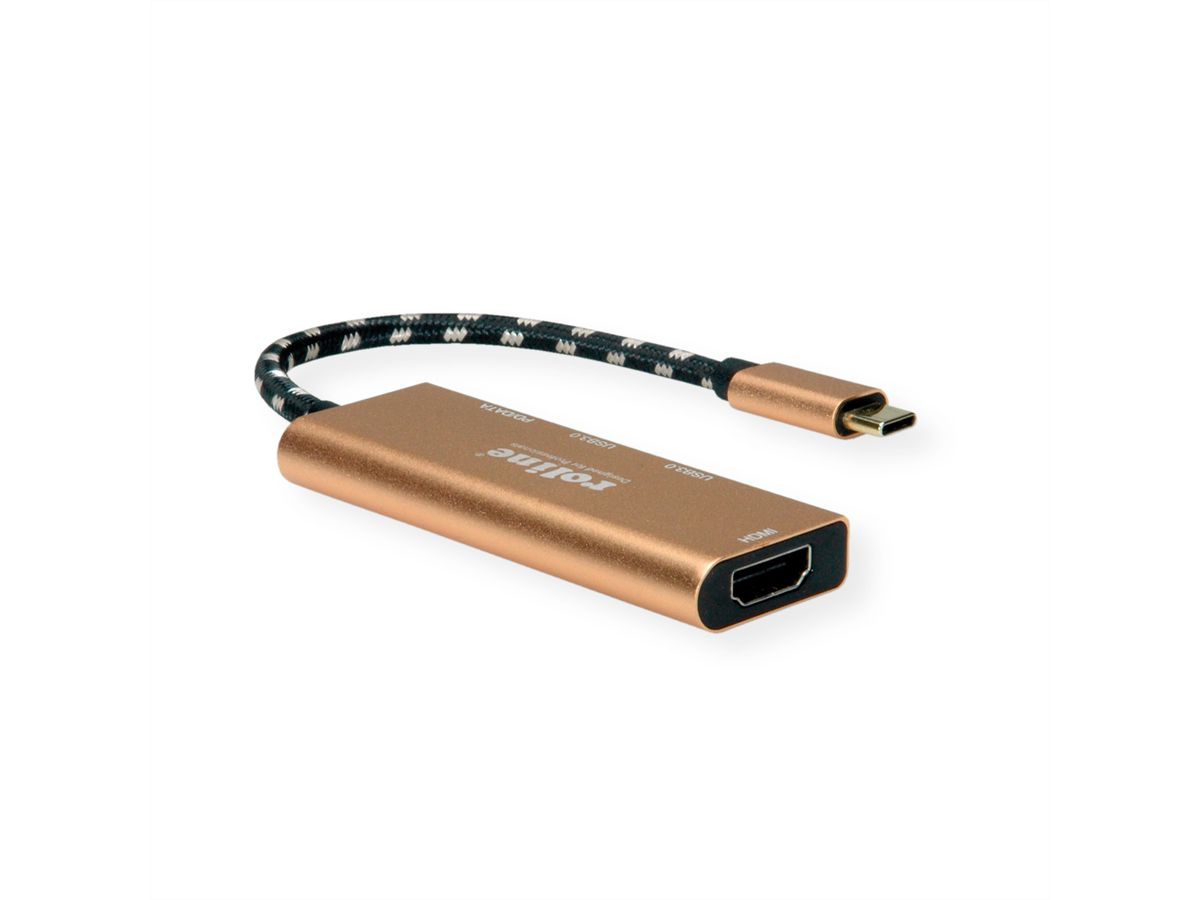

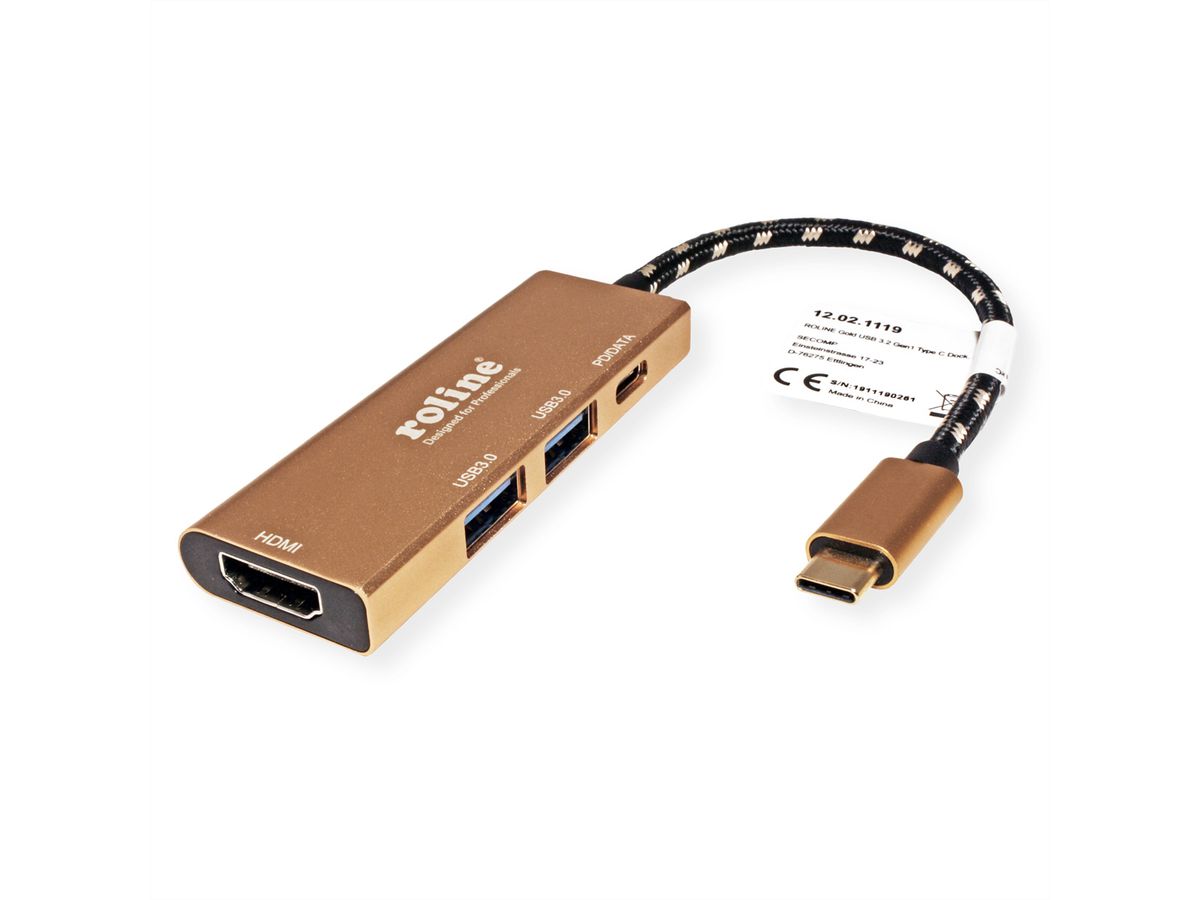

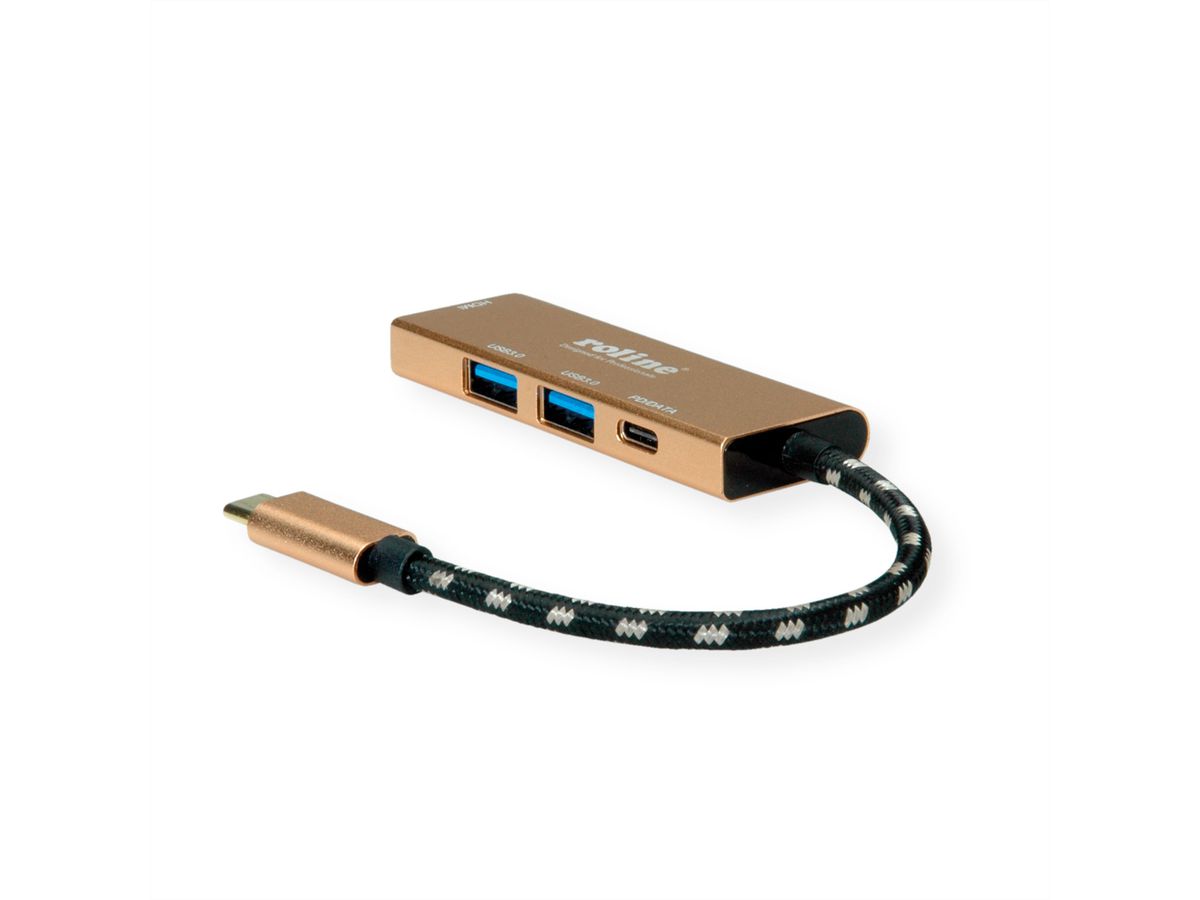

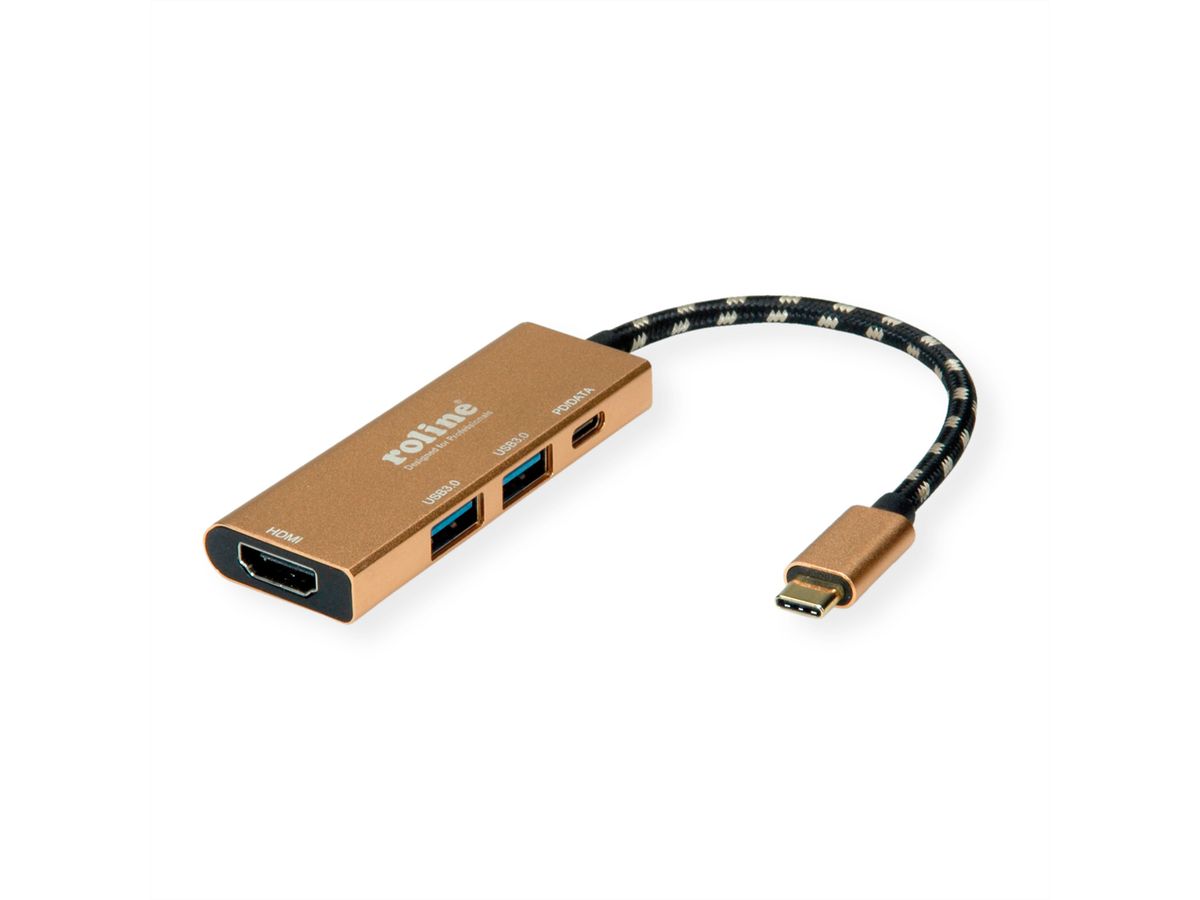

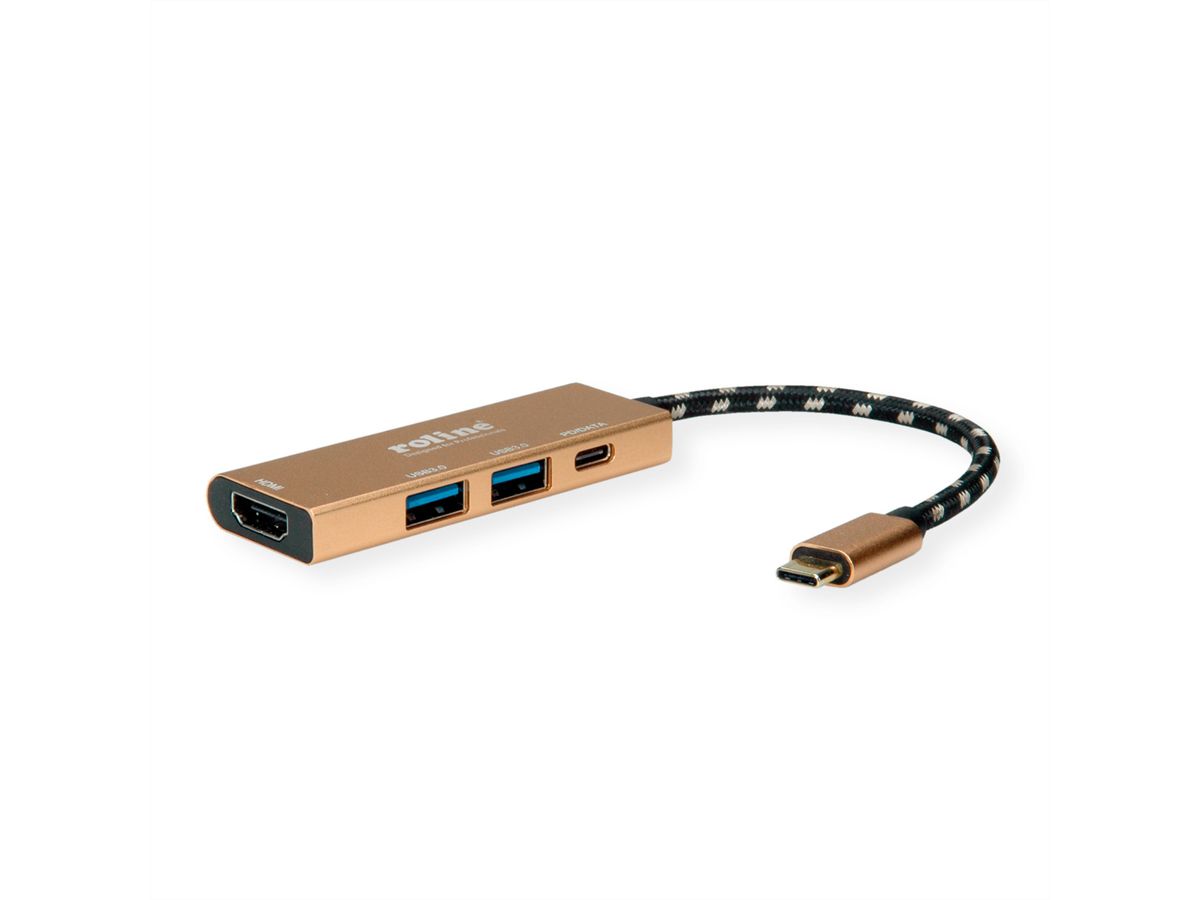

ROLINE GOLD USB Type C Docking Station, 4K HDMI, 2x USB 3.2 Gen 1 ports, 1x USB Type C PD (Power Delivery)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	12021119
Brand / Manufacturer	ROLINE
Manuf. item no.	12.02.1119
EAN	7630049616400
Item weight	0.05 kg

Description

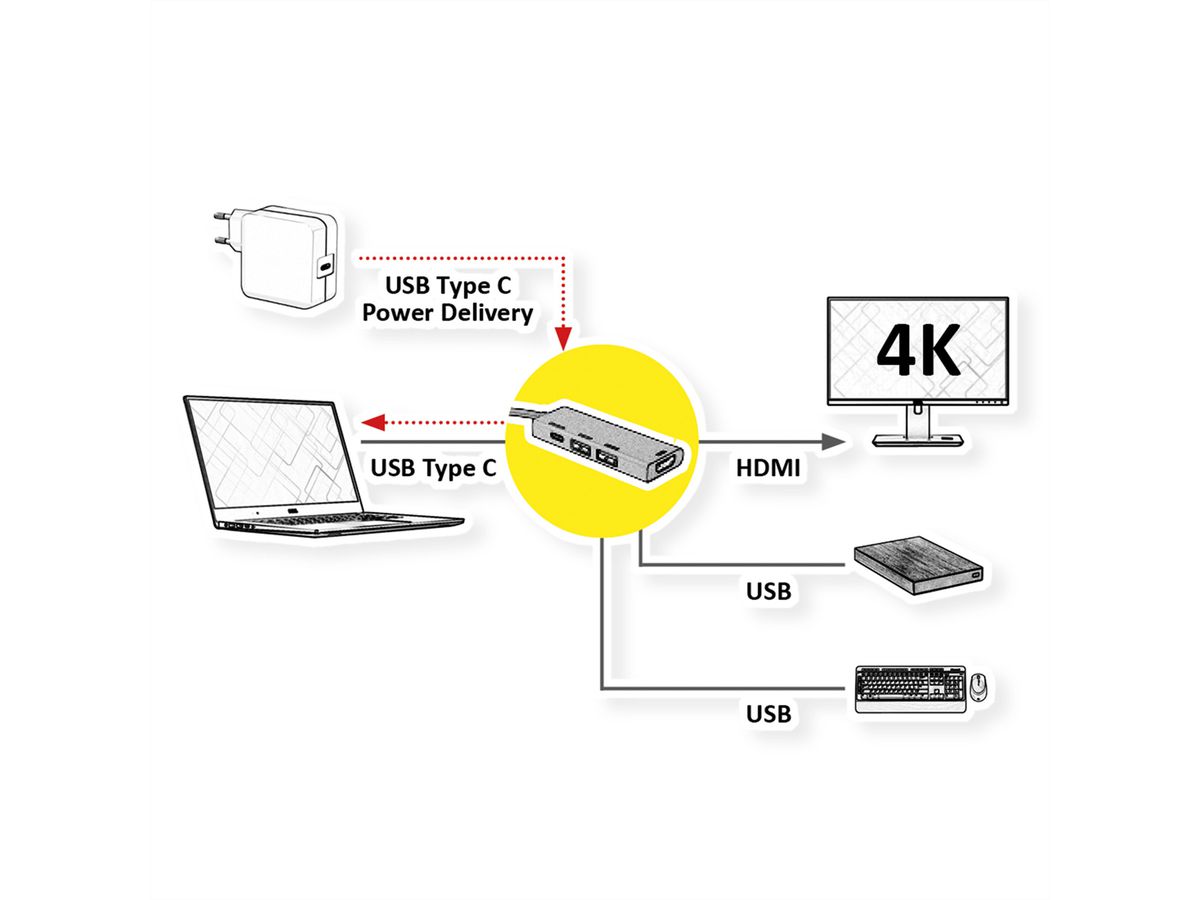

The docking station is supplied for Macbooks, Ultrabooks or Notebooks/Laptops and provides a quick and easy connection to the workplace peripherals that you use every day, including one HDMI connector, that allows you a maximum resolution of up to 3840x2160 @30Hz!

Golden aluminium case
Narrow, flat design
Black golden nylon braid around the cable
Golden shield plates and contacts for reliable signal transmission

Connection to the mobile device:

1x USB 3.1 / USB 3.2 Gen 2 Type C

Connections for peripheral devices:

1x HDMI video output: mirror or expand your screen to a TV, monitor or projector
2x USB 3.0 / USB 3.2 Gen 1 Type A ports (data transfer rate up to 5Gbit/s), to connect e.g. keyboard / mouse, USB HDD / SSD, etc.
1x USB Type C PD (Power Delivery)

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	Notebook-Docking-Station
Colour	gold
Length	0.1 m
Scope of delivery	Docking Station
Transfer quality	USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Max. resolution	3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)	USB Type C
Side 2 connection (Peripherals)	1x HDMI, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x USB Type C PD
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A USB 3 Type A USB Type C PD (Power Delivery)
Side 2 Connector Gender	Female
Area of application	External
Weight	37 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	80 mm
Package weight (single piece)	0.05 kg

Downloads

Product data sheet - English (48.5 KB)

Download

Manufacturer data sheet - English (121.7 KB)

Download

User manual - Deutsch (415.5 KB)

Download

User manual - English (413.3 KB)

Download
