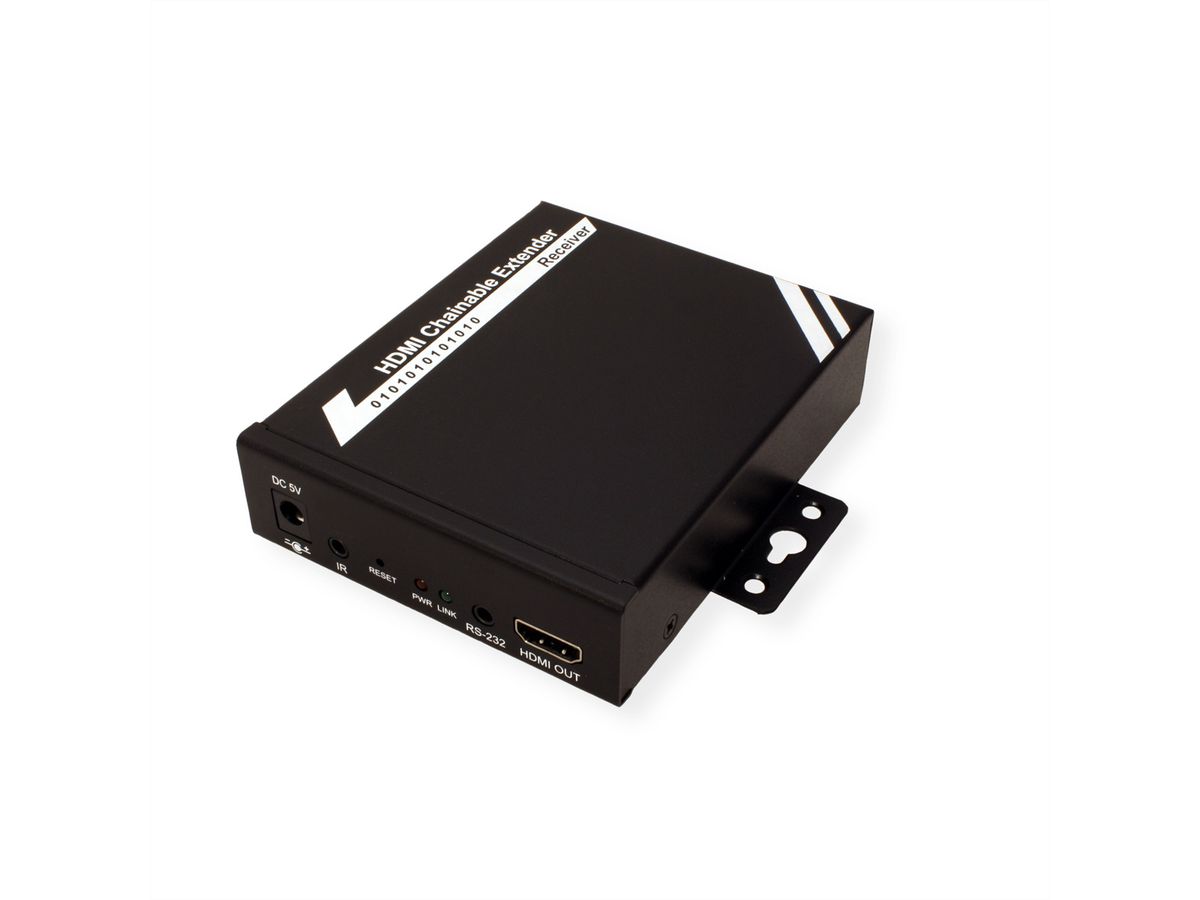

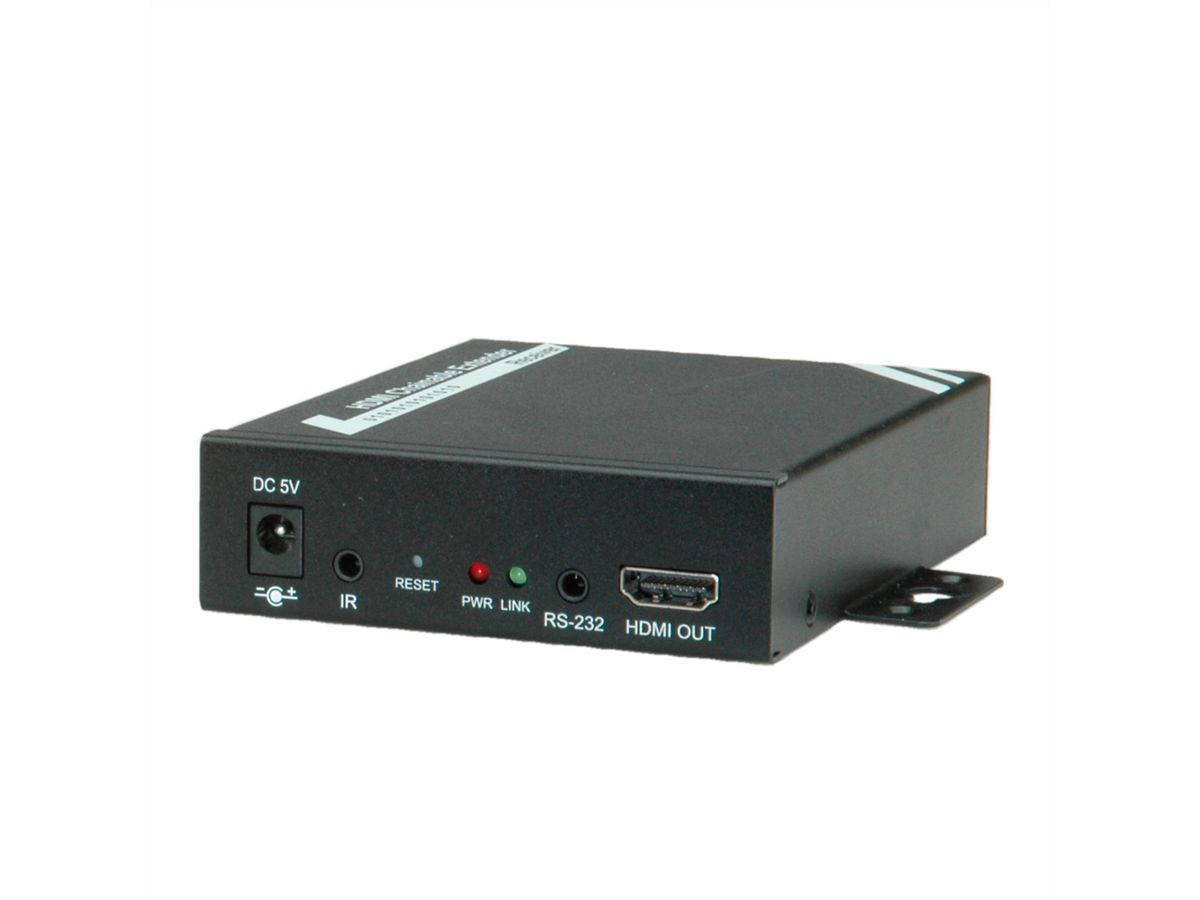

ROLINE HDMI Receiver over TP, for 14.01.3468, 100 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14013469
Brand / Manufacturer	ROLINE
Manuf. item no.	14.01.3469
EAN	7611990123742
Item weight	0.707 kg

Description

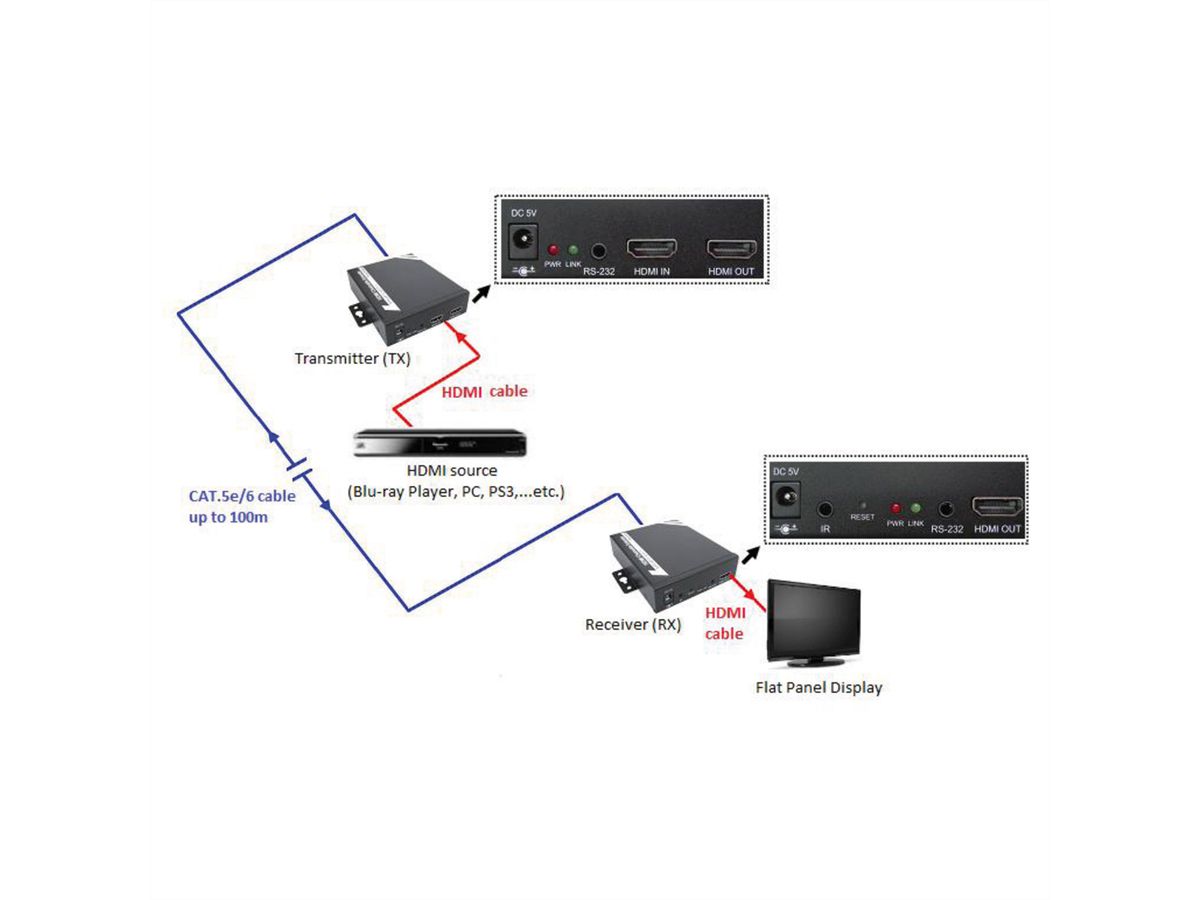

The transmission distance of the HDMI signal can be extended (chained) up to 100 m by using one Cat.5e or Cat.6 cable in combination with 14.01.3468

Easily connect the receiver to a second receiver unit with a twisted pair cable of up to 100 m length in combination with 14.01.3468
Max. resolution (nominal) over 100 m: 1920 x 1200, 1080p
Supports uncompressed HDMI signal
Supports CEC pass-through
Supports uncompressed audio stereo

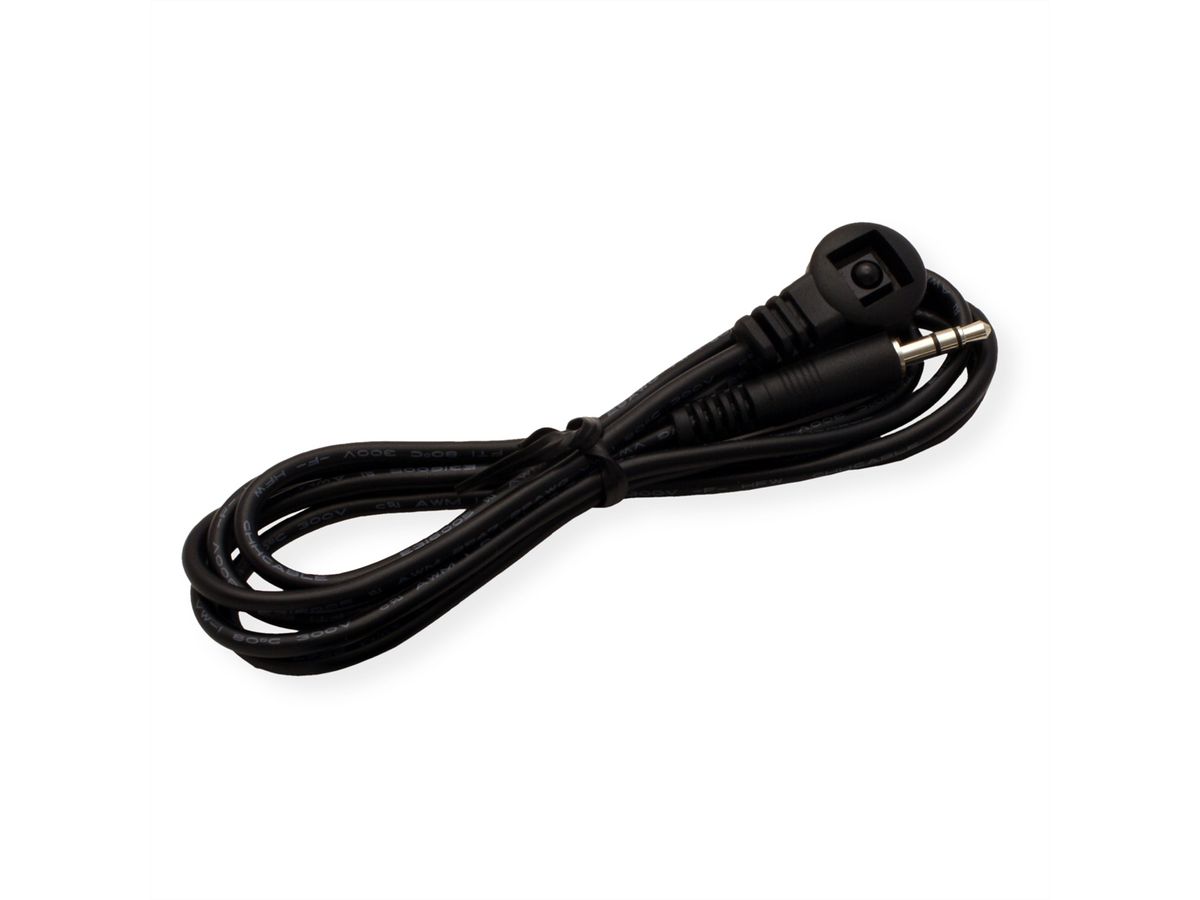

External infrared emitter - allow using the remote control of the source device
Metal housing
Power supply included in content of delivery

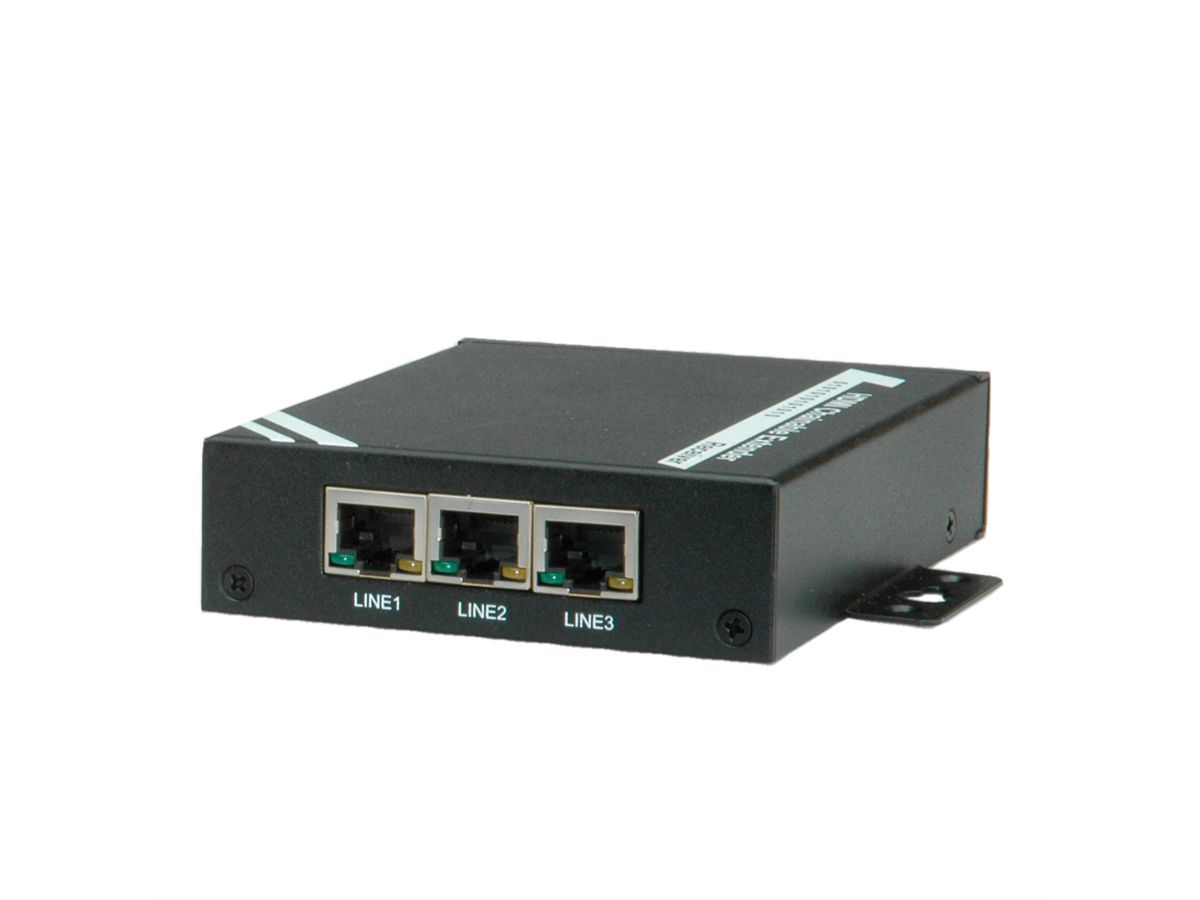

Contents: Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, 1x cables IR (1.1m), 1x serial cables (3.5mm/DB9F, 1.1m), manual

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI Extender
Colour	black
Scope of delivery	Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, manual
Interface	HDMI
Max. distance	100 m
Video input	HDMI
Audio input	HDMI
Video output	HDMI
Audio output	HDMI
Max. resolution (nom.)	1.920 x 1.080
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Dimensions (HxWxD)	28 x 115 x 91 mm
Power supply unit	1
Technical particularity	External infrared emitters allow using the remote control of the source device
Height	28 mm
Width	115 mm
Depth	91 mm
Weight	562.87 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	240 mm
Package weight (single piece)	0.707 kg
