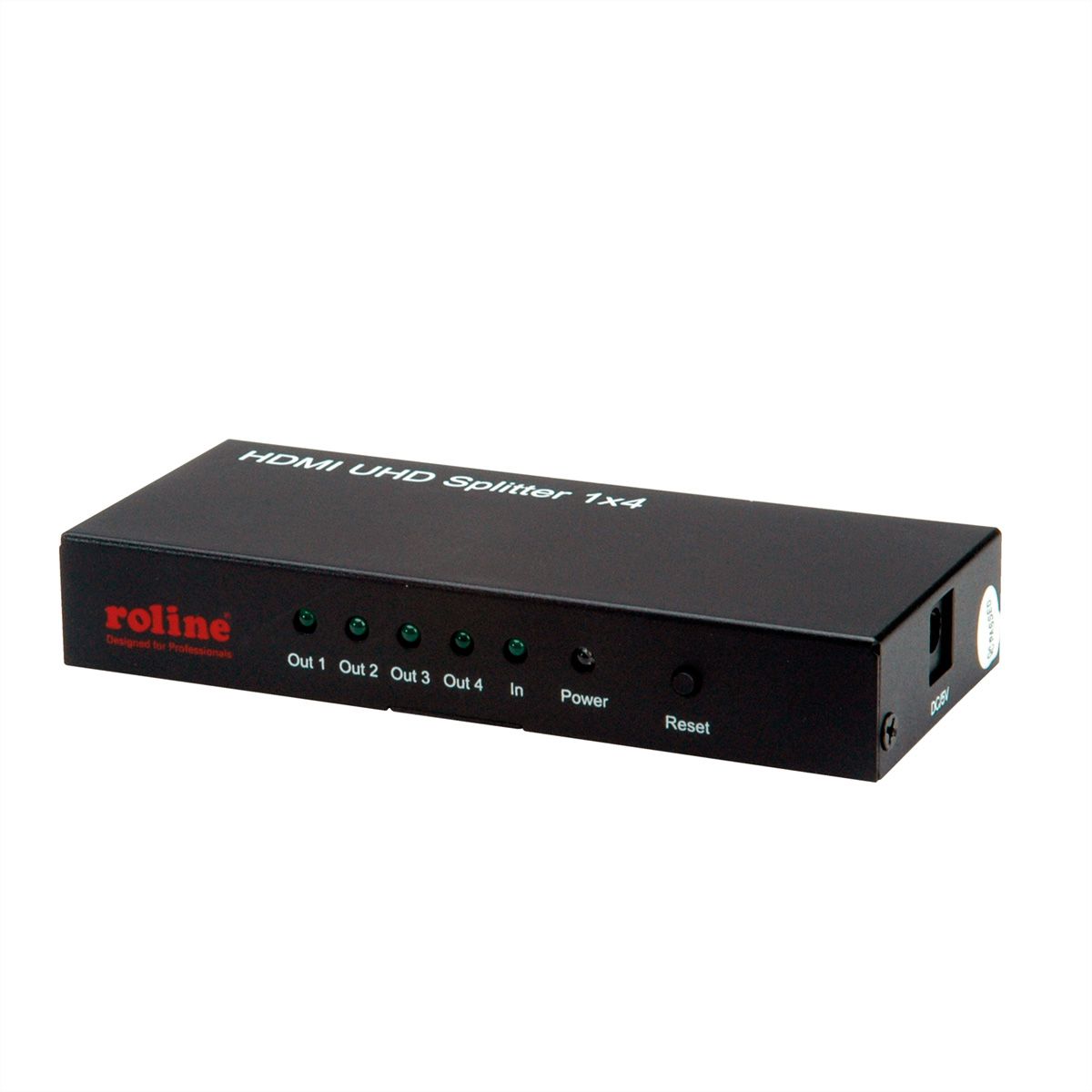

ROLINE HDMI Splitter, 4K, 4-way

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14013586
Brand / Manufacturer	ROLINE
Manuf. item no.	14.01.3586
EAN	7611990145928
Item weight	0.459 kg

Description

Reproduces an HDMI video signal, e.g. From a BluRay/DVD player, to 4 output devices with a maximum resolution of 3840x2160 @60Hz!

Duplicates a HDMI video signal to four HDMI video signals with a 4K resolution

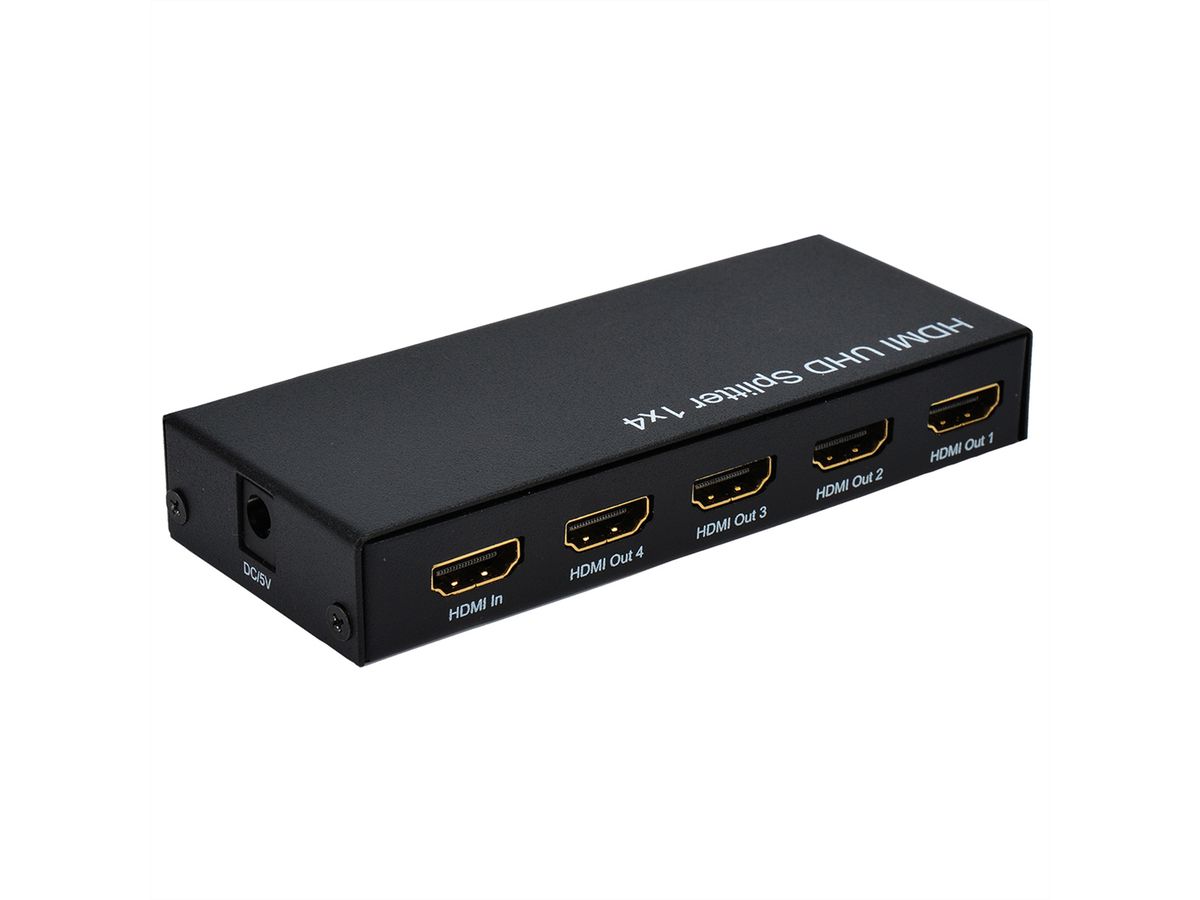

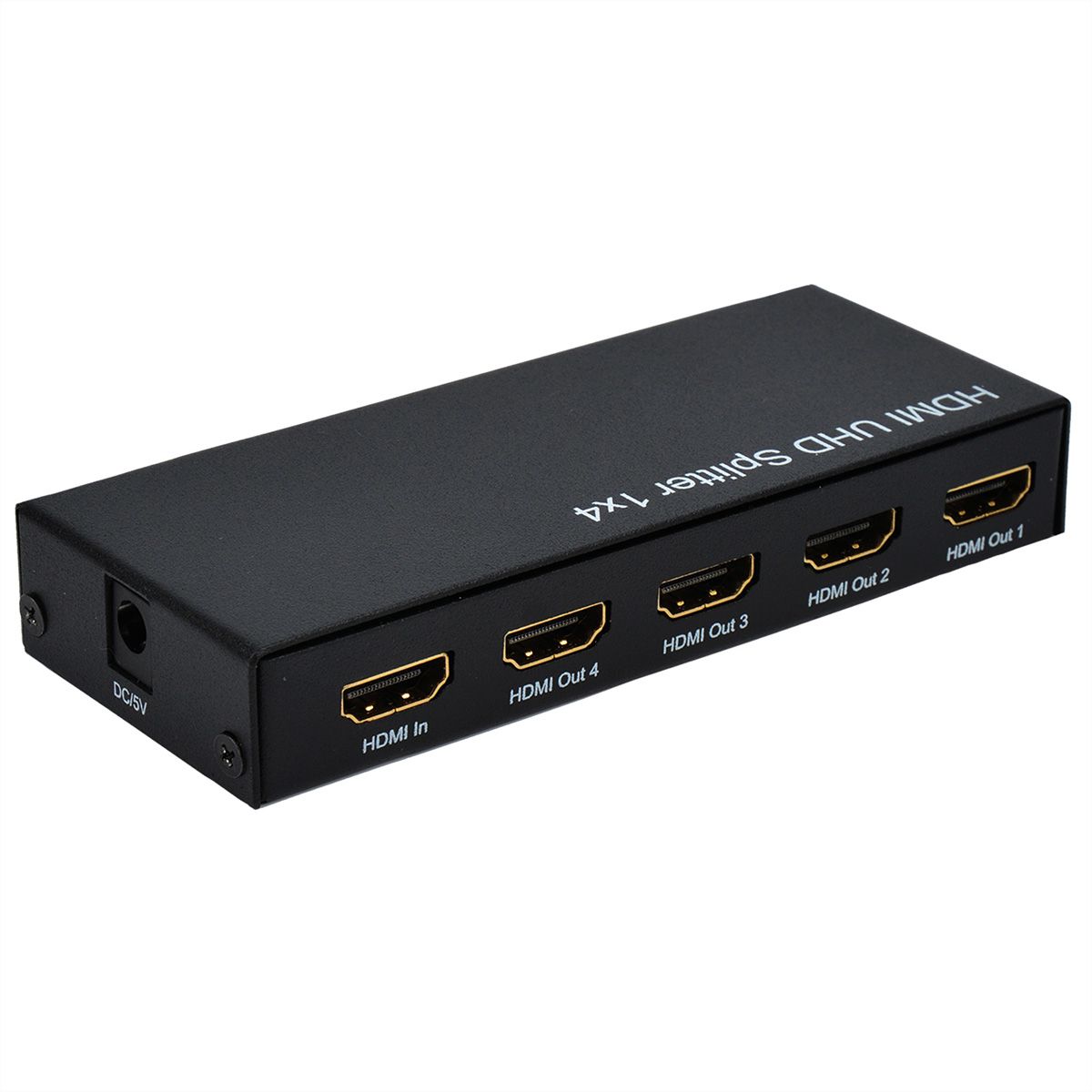

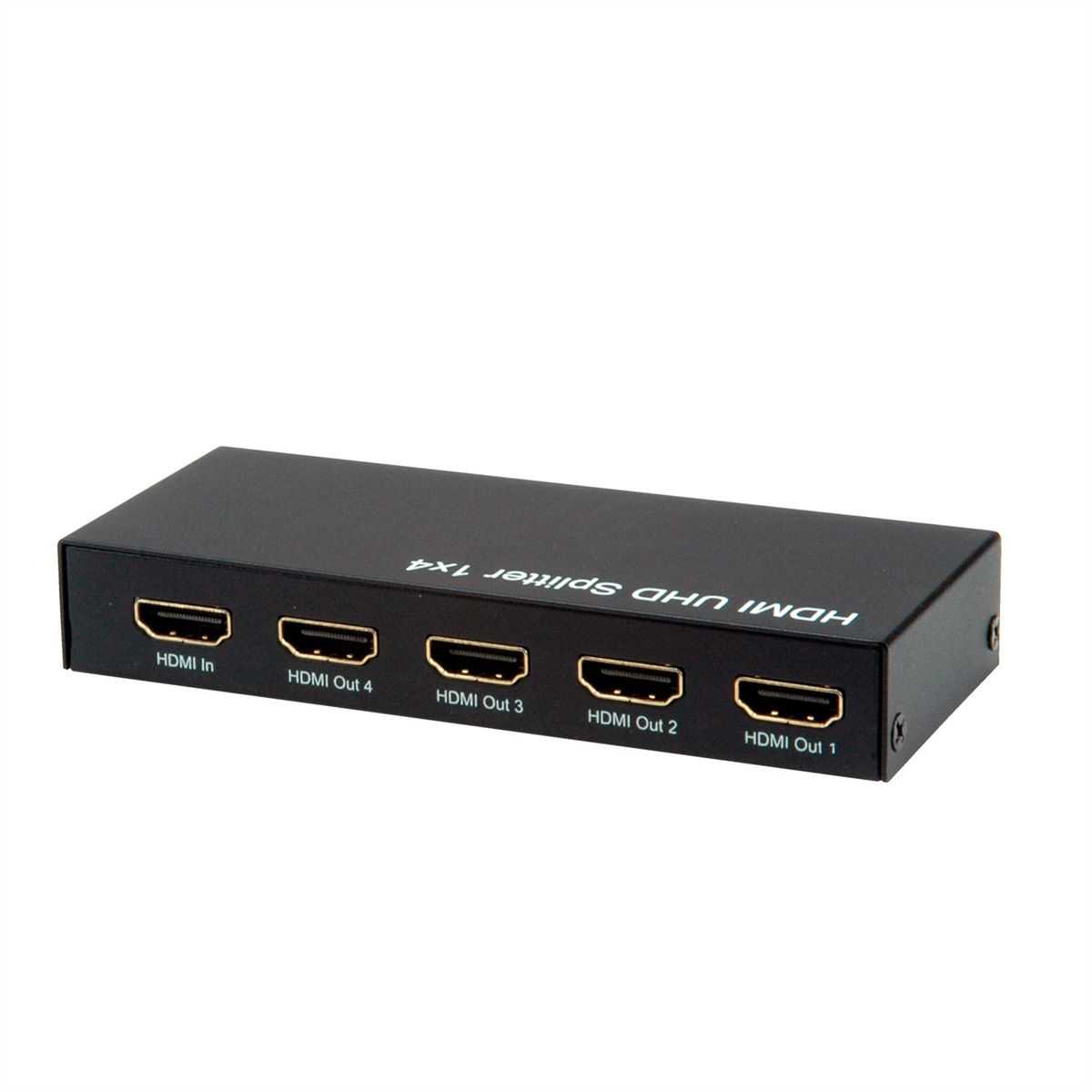

Connectors: 1 HDMI Input (for e.g. BluRay/DVD-player), 4 HDMI outputs
Supports 480i, 480p, 720i, 720p, 1080i, 1080p, 2160p @60Hz
Supports VGA, SVGA, XGA, UXGA
Supports 3D
Plug & play, easy to install and simple to operate
No software installation required
Power supply included (5VDC, 2A)

ROLINE 4-PORT HDMI SPLITTER FOR IMAGE TRANSFERS UP TO 4K2K ULTRA HD AND IN 3D QUALITY

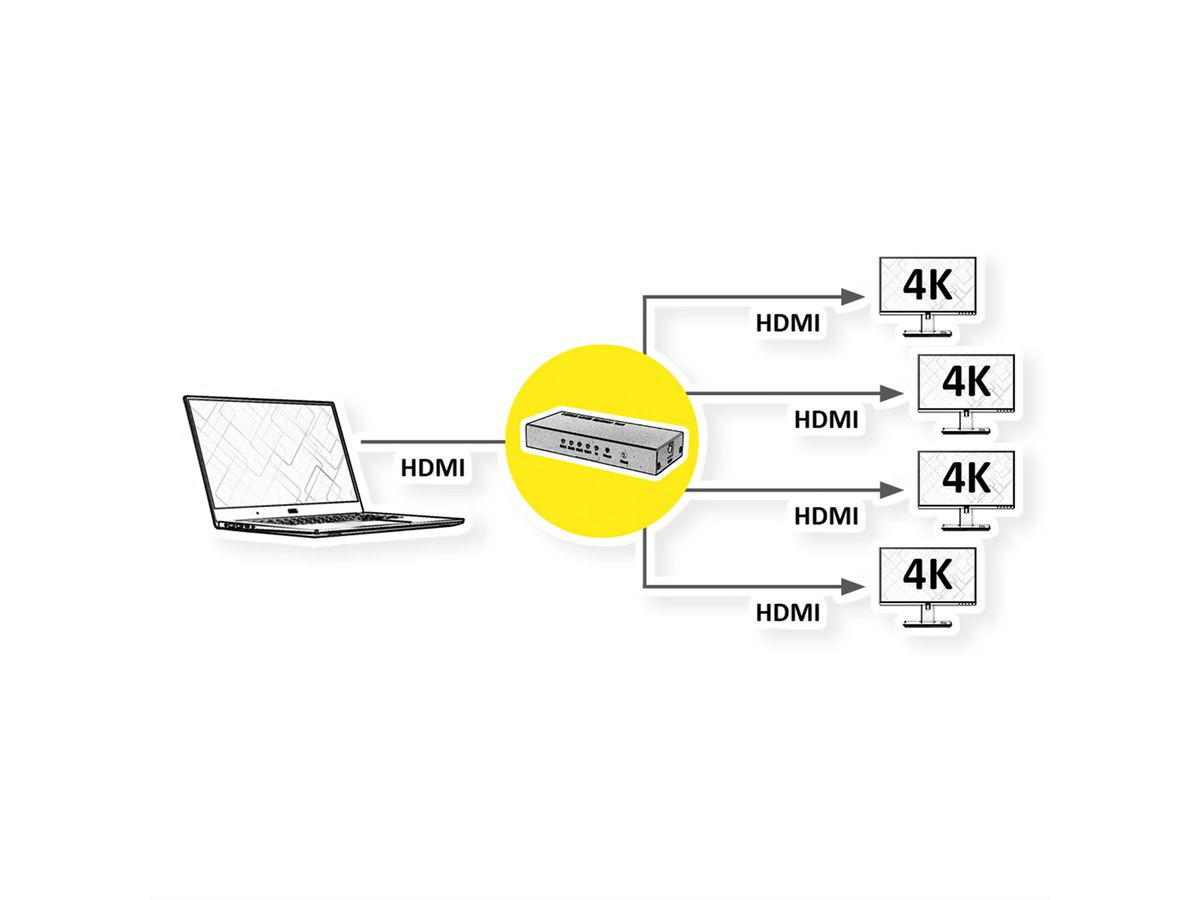

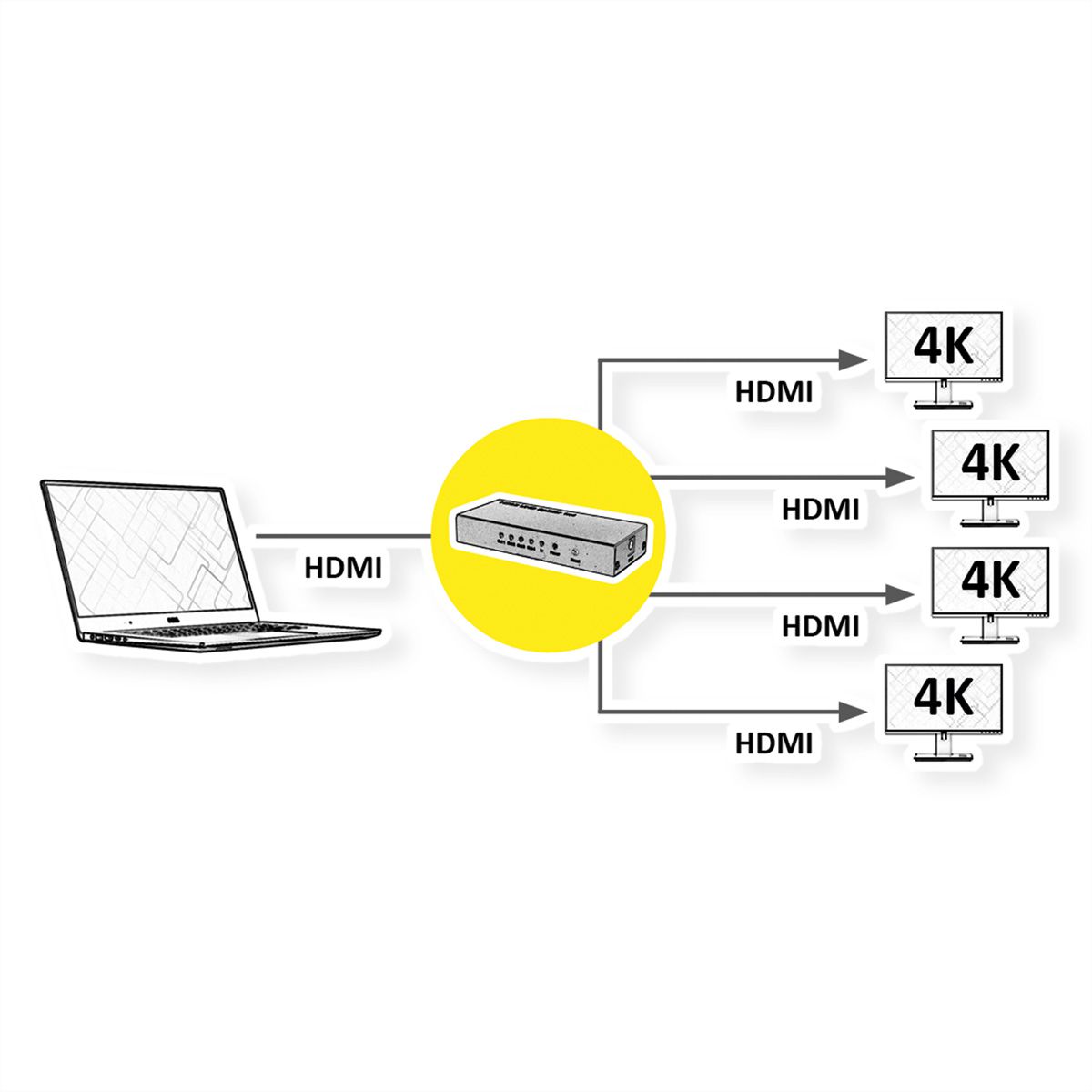

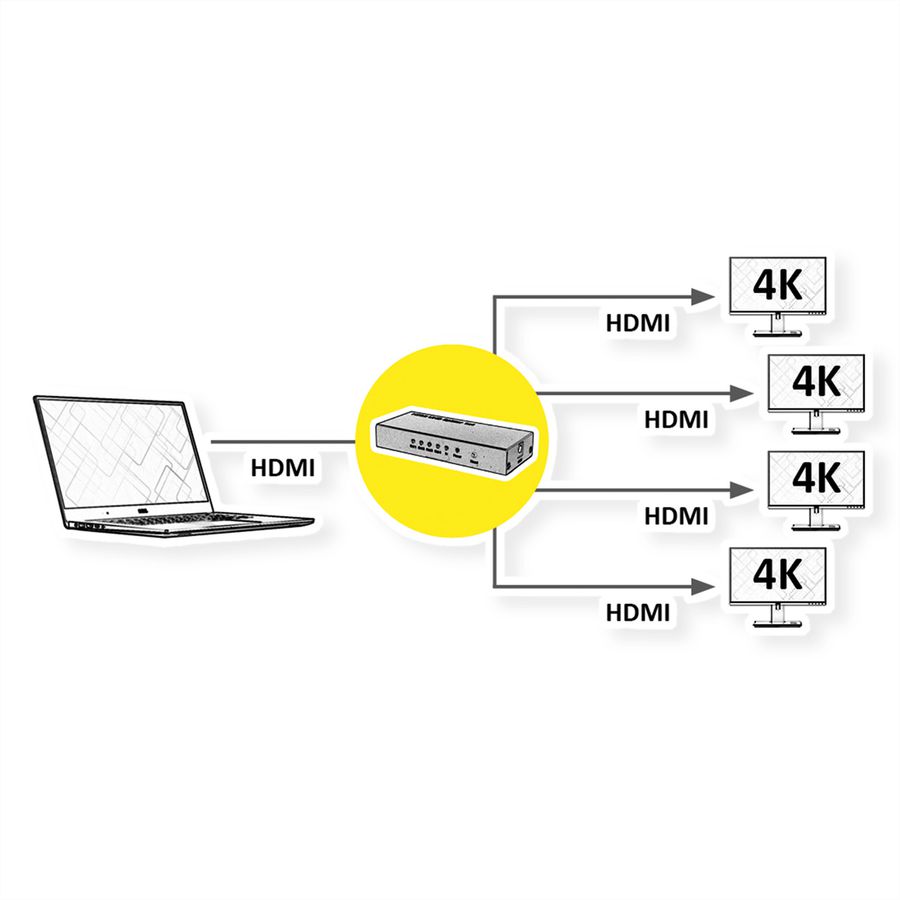

The ROLINE HDMI video splitter allows you to distribute picture and sound signals reliably to up to four HDMI indicators without any loss of quality. For example, video formats from PC or notebook can be distributed to four devices such as a monitor, TV or projector. An additional power supply is included in the delivery. The high-quality metal housing improves the shielding of the signals and provides an absolutely interference-free data transfer. The ROLINE HDMI Splitter is particularly suitable for professional use, e.g. For training purposes or in advertising, which is to be carried out in high resolution with up to 4k. No software is required.

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Video-Splitter
Colour	black
Scope of delivery	splitter, manual, powersupply
Interface	HDMI
Inputs	1
Outputs	4
Video input	1x HDMI Female
Video output	4x HDMI Female
Max. resolution (nom.)	3840 x 2160 @60Hz
Dimensions (HxWxD)	20 x 123 x 51 mm
Power supply output	5 VDC; 2A
Height	20 mm
Width	123 mm
Depth	51 mm
Weight	154.7 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.459 kg
