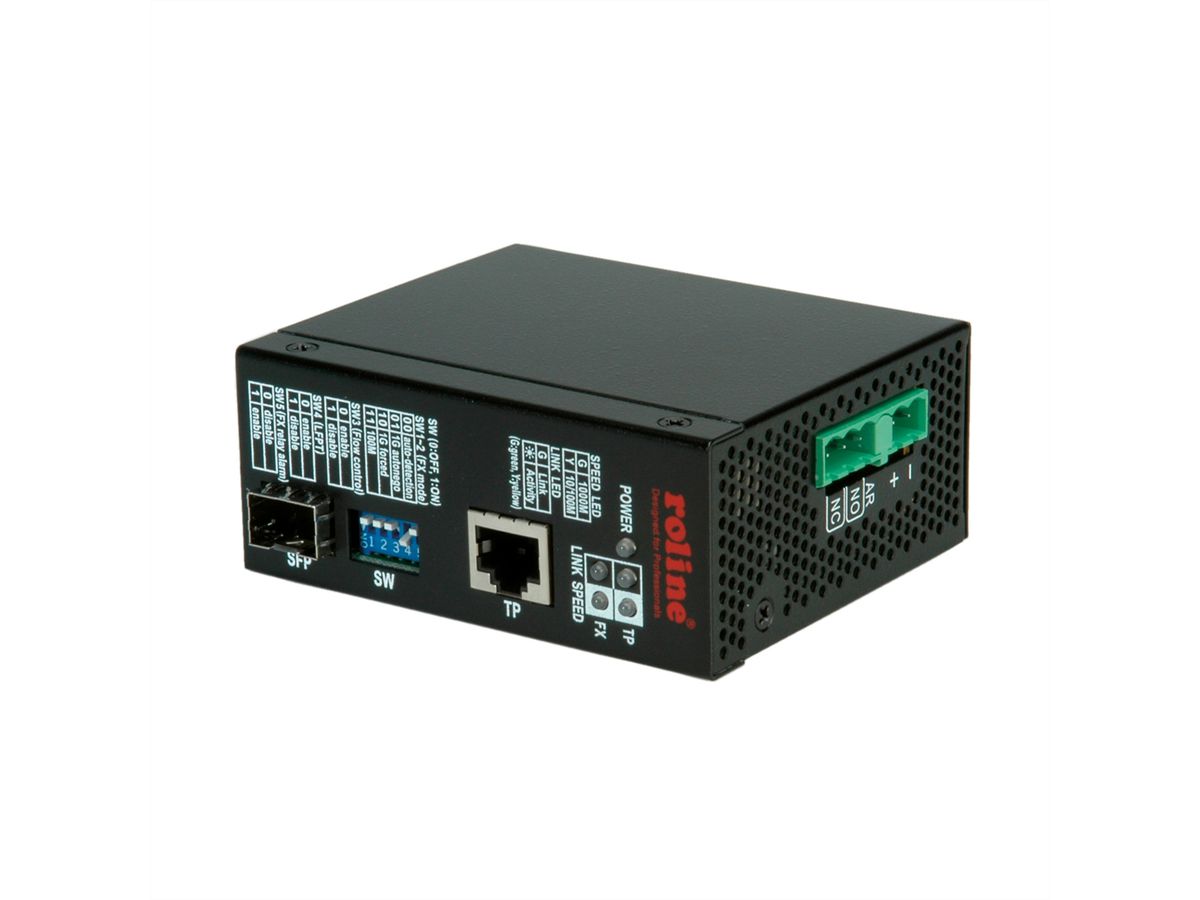

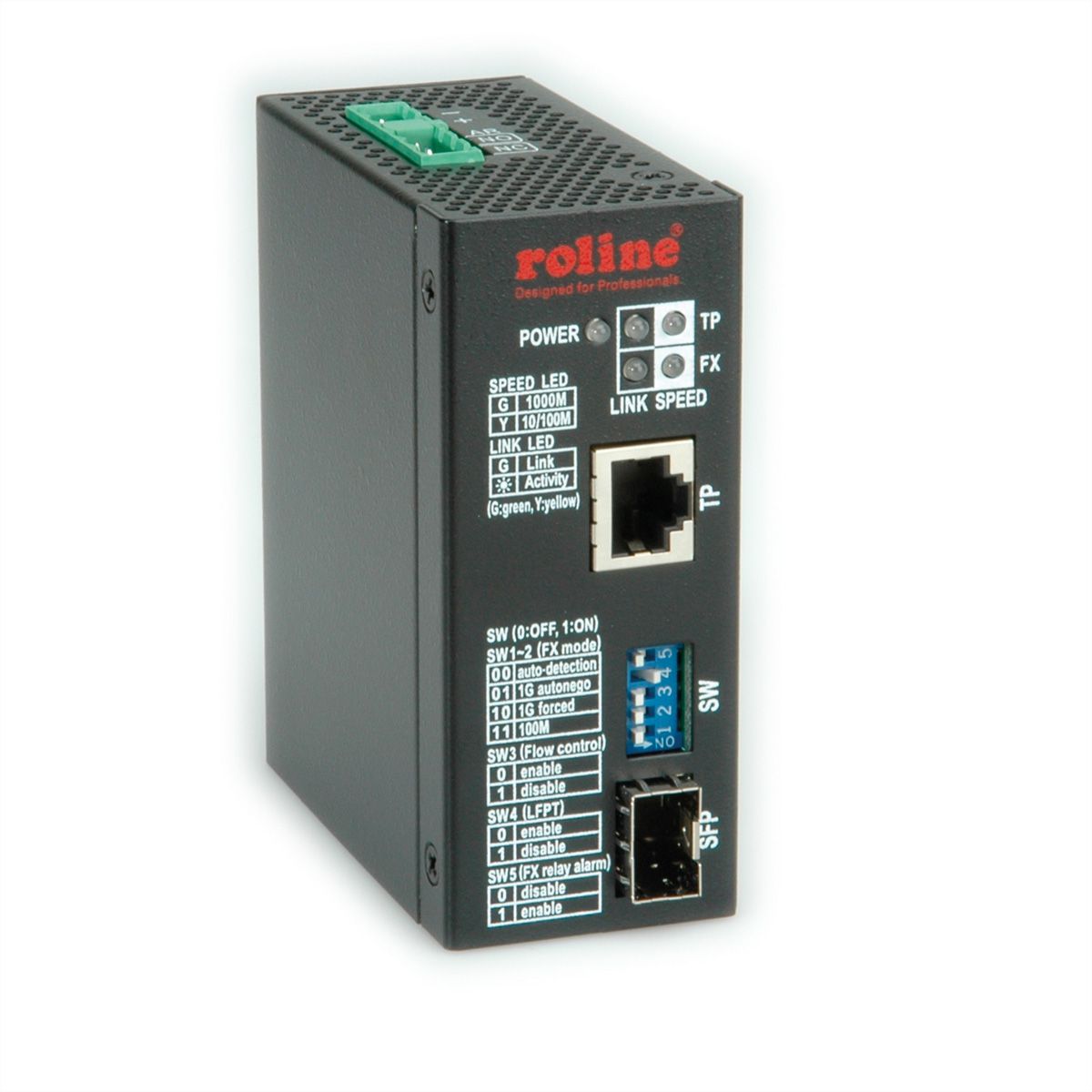

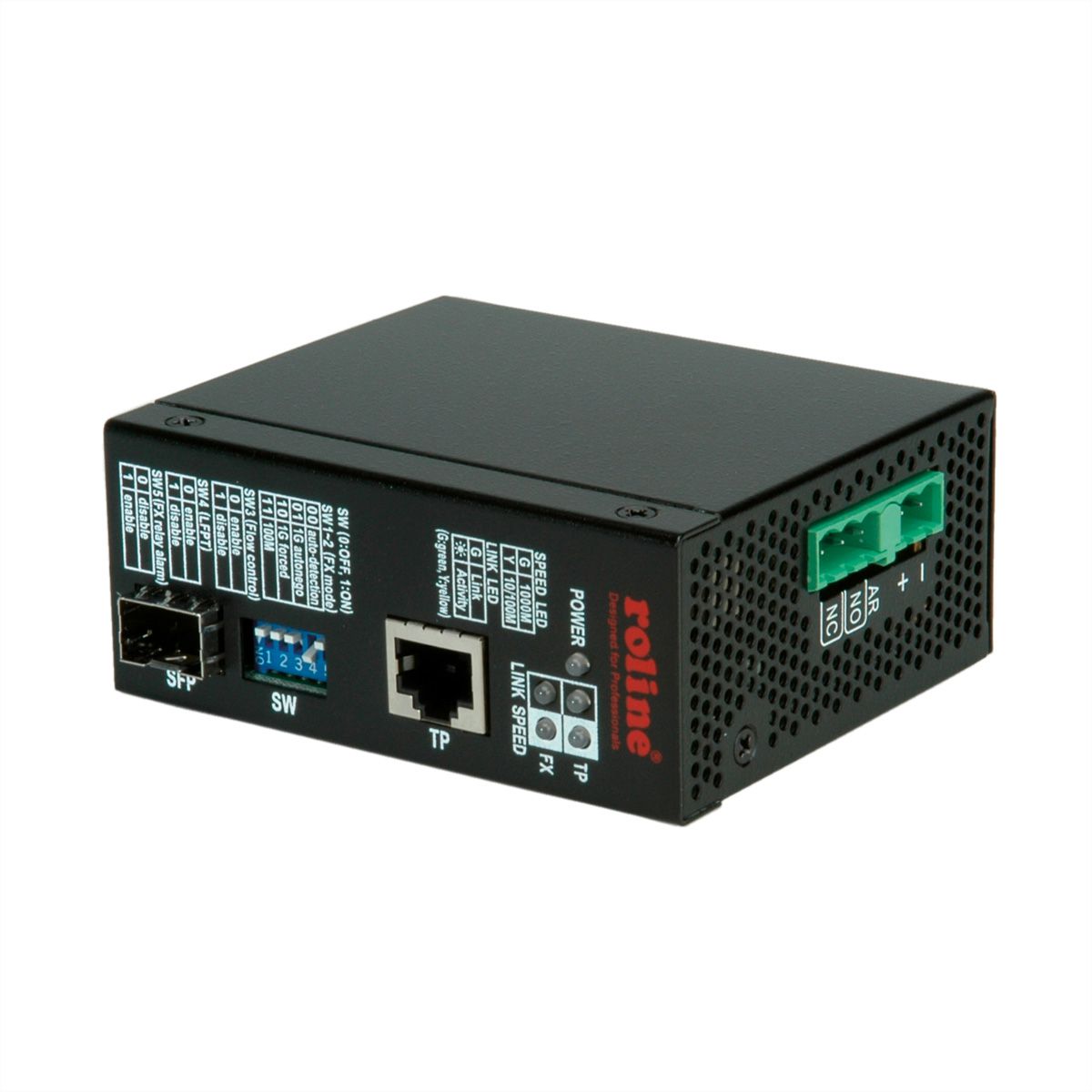

Description

• Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
• Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion
• Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z standard
• Choice for SFPs for 100Base-FX (21.14.3499) or for Gigabit Ethernet (Mini-GBICs: 21.14.3500, 21.14.3501, 21.14.3502)
• Support full wire speed conversion for Gigabit copper to Gigabit fiber SFP port
• Support auto-negotiation with link partners
• Supports auto-negotiation 10/100Mbps or forced mode on the copper port
• Auto-MDI/MDIX on the copper port
• Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di applications
• Provide dual-speed SFP on fiber port for mounting variety of fiber options
• Provide important LFPT (Link Fault Pass Through) media converter function
• Support Jumbo frame conversion
• Energy efficient ethernet (EEE) support
• Alarm events relay output
• Operation temp. : - 20 ºC - +70 ºC

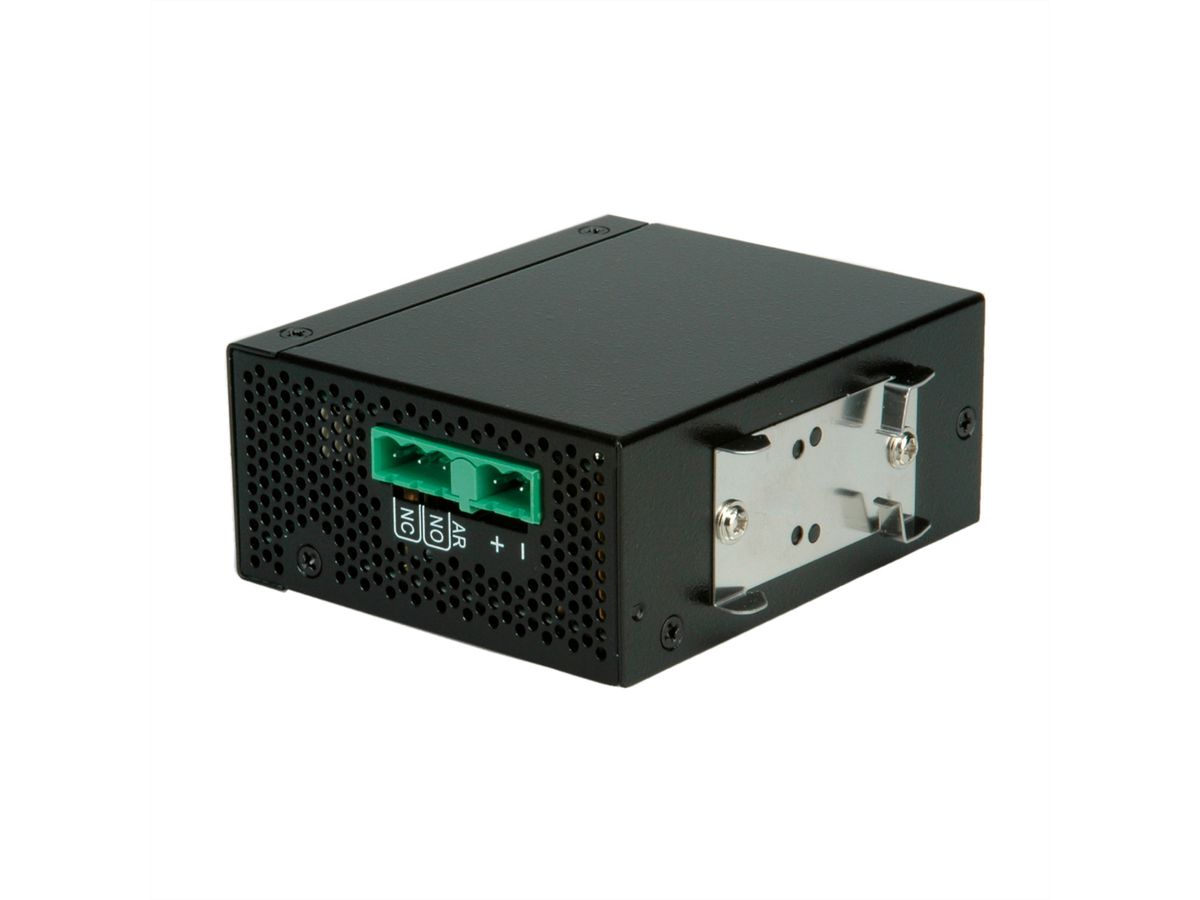

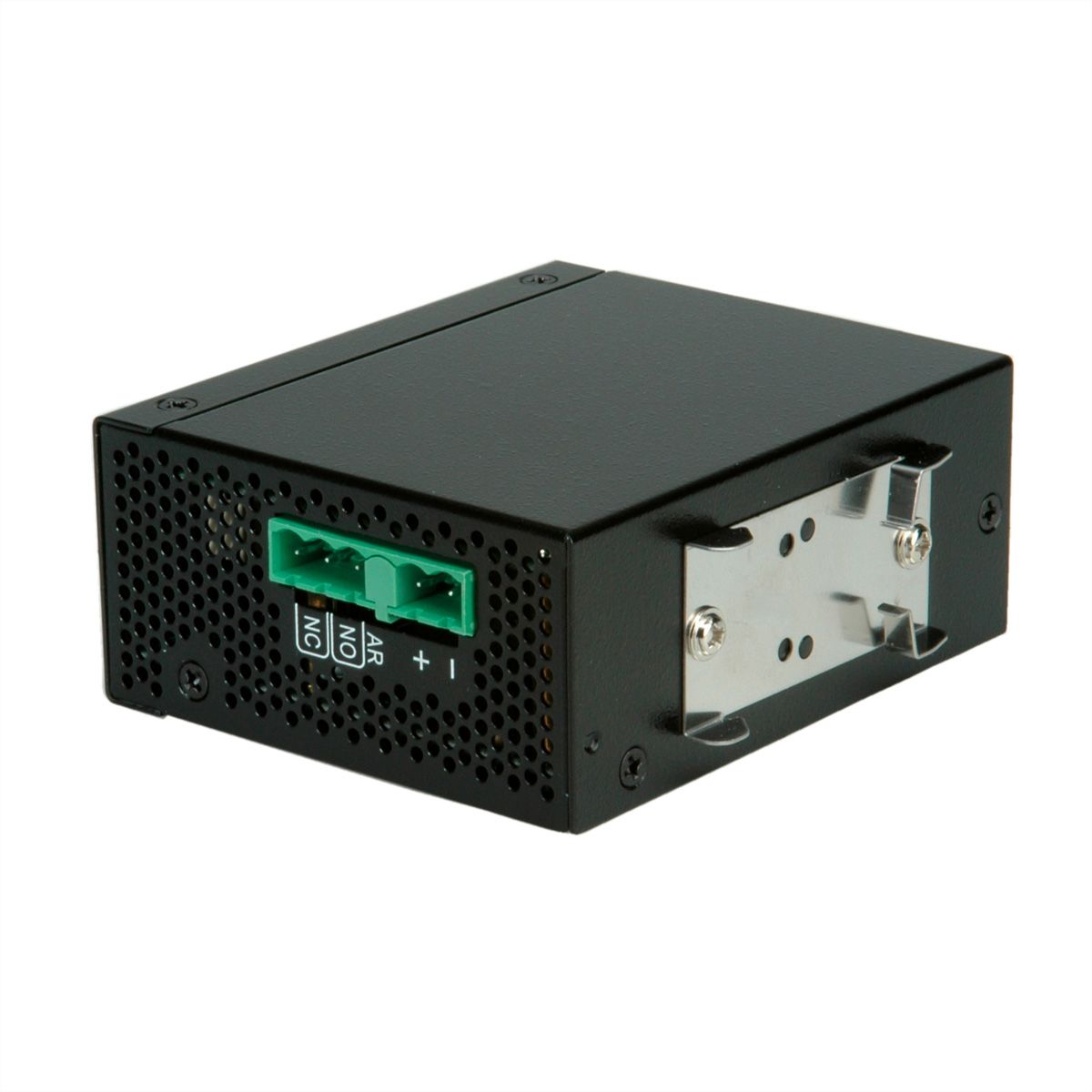

• Supports DIN rail mounting
• DC Input via terminal block
• As PSU u order : 21.13.1311

Specifications

Manufacturer	ROLINE
Product group	Network converters
Product type	Media Converter
Colour	black
Operating temperature min.	-40 °C
Operating temperature max.	75 °C
Height	95 mm
Width	40 mm
Depth	80 mm
Weight	314.4 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	190 mm
Package weight (single piece)	0.428 kg

Downloads

Product data sheet - English (46.0 KB)

Download

Manufacturer data sheet - DATA SHEET - English (123.0 KB)

Download

Accesories

MEAN WELL NDR-75-24 Hutschienennetzteil 75W 24V DC

Item no.:	21131311
Manuf. item no.	NDR-75-24

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

ROLINE SFP 100Base-FX, Multimode, 2km

Item no.:	21143499
Manuf. item no.	21.14.3499

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

ROLINE Mini-GBIC Modul SX/LC, Multi Mode

Item no.:	21143500
Manuf. item no.	21.14.3500

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day
