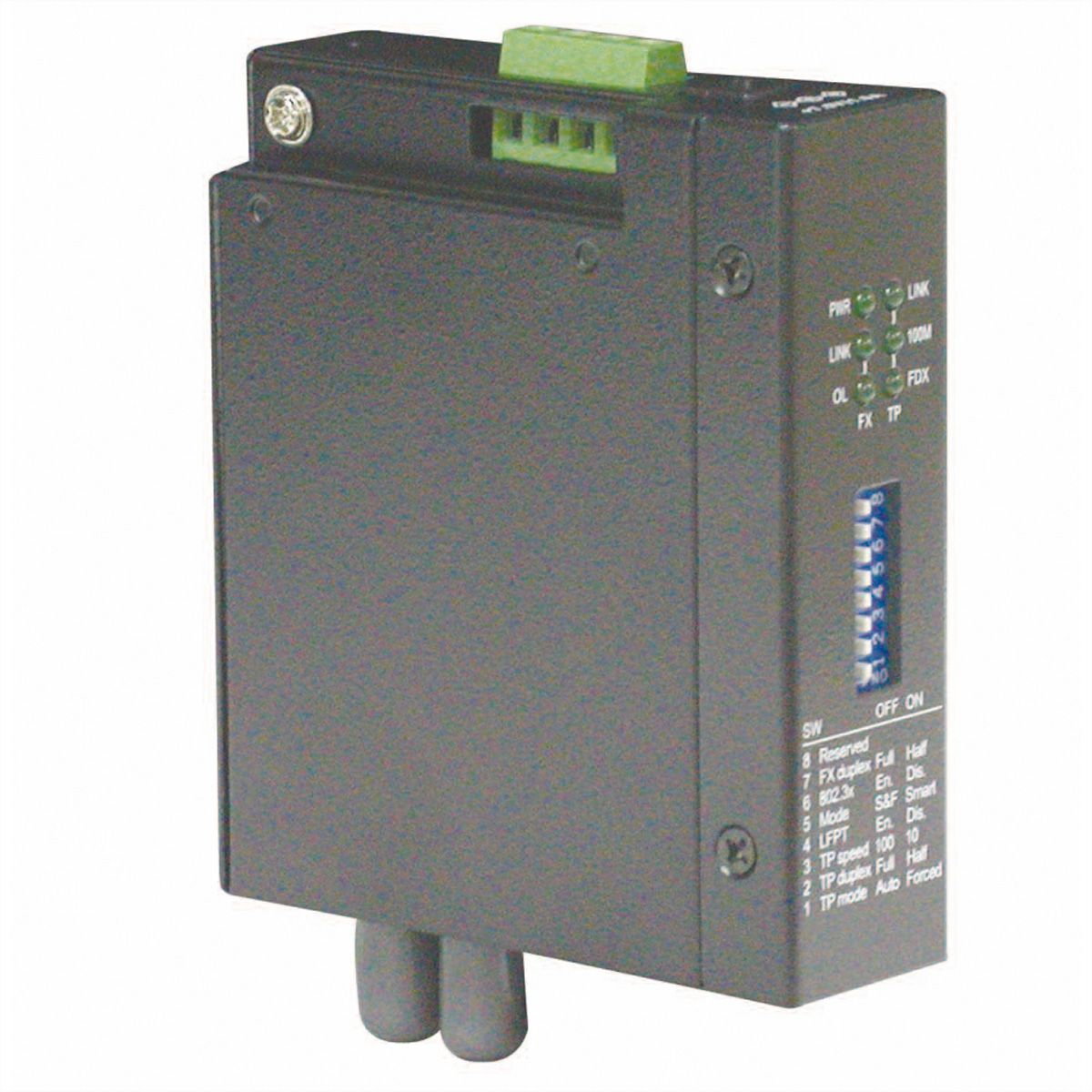

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, ST

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, ST

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21131142
Brand / Manufacturer ROLINE
Manuf. item no. 21.13.1142
EAN 7611990176656
Item weight 0.347 kg

Description

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Support auto-negotiation 10/100Mbps or forced mode on TP copper port
  • Auto MDI/MDI-X crossover function on the TP copper port
  • Provide Link Fault Pass Through function
  • Provide comprehensive manual configuration settings
  • Transparent conversion to 802.1Q VLAN tagged packets
  • Provides Far End Fault function on FX (fiber) port
  • Low power consumption
  • Power: Input: 7-30 VDC, Consumption : 2.6 W (max.)
  • Operating Temperature: - 10 °C - +70 °C
  • DC Input via terminal block or DC plug (6.3 mm/2.0 mm)
  • Supports DIN-rail mounting
  • Industrial-rated Emission and Immunity performance
  • Dimensions: 28 x 82 x 95 mm (WxDxH)
  • As according Power Supply Unit we recommend 21.13.1226

Specifications

Manufacturer ROLINE
Product group Network converters
Product type Media Converter
Colour black
RJ-45 Port (Mbps/s) 10/100
Fibre Ports (Mbps) 100
Quantity of RJ45 ports 1
Quantity of fibre ST ports 1
Fibre Multi mode
Ethernet fibre standard 100Base-FX
Max. range 50 µm fibre 2 km
Max. range 62,5 µm fibre 2 km
Managed no
Operating temperature min. -10 °C
Operating temperature max. 70 °C
Height 95 mm
Width 28 mm
Depth 82 mm
Weight 277 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 150 mm
Package weight (single piece) 0.347 kg

Downloads

Product data sheet - English (39.5 KB)

Download

Manufacturer data sheet - English (920.9 KB)

Download
