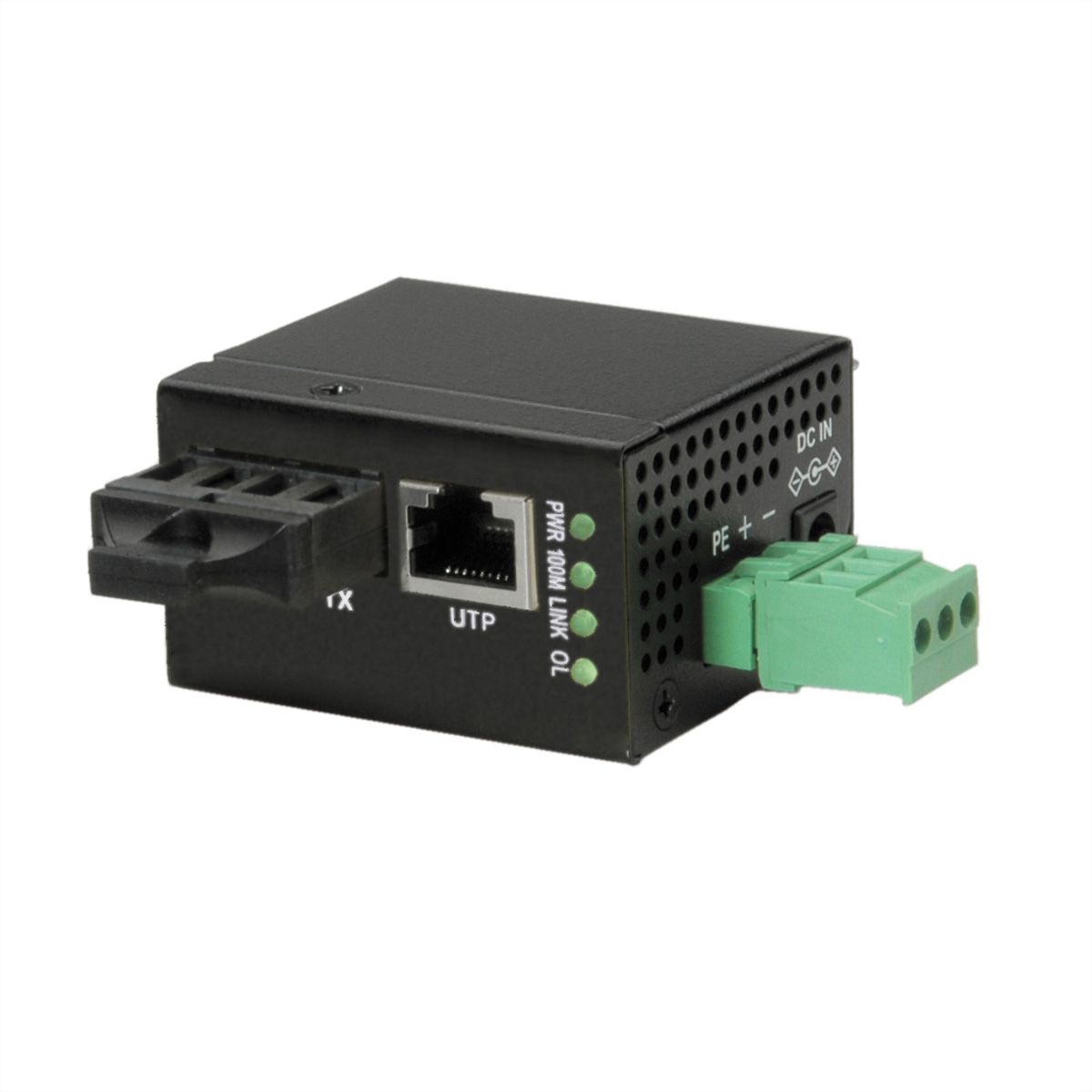

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21131147
Brand / Manufacturer	ROLINE
Manuf. item no.	21.13.1147
EAN	7611990197026
Item weight	0.222 kg

Description

Network converter for use in industrial environments

Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
Supports auto-negotiation 10/100Mbps or forced mode on the copper port
Auto-MDI/MDIX on the copper port
Provides Link Fault Pass Through function
Transparent conversion to 802.1Q VLAN tagged packets
Provides Far End Fault function on FX (fiber) port
The optimal latency for 100Mbit/s to 100Mbit/s conversion
Low power consumption
Power: Input: +4.5 - 50 VDC, Consumption: 1.6 W@ 7.5 V, 1.6 W@ 12 V, 2 W@ 48 V
Supports DIN rail mounting
Compact design for easy installation in enclosure and chassis
Supports wide operating temperature range
Industrial-rated emission and immunity performance
DC Input via terminal block or DC power jack
Dimensions: 34 x 49 x 56 mm (WxDxH)
Operating Temperature: - 20 °C - +70 °C
As according power supply unit we recommend NDR-75-24 (21.13.1311)

Specifications

Manufacturer	ROLINE
Product group	Network converters
Product type	Media Converter
Colour	black
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height	56 mm
Width	34 mm
Depth	49 mm
Weight	151.2 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	170 mm
Package weight (single piece)	0.222 kg
